Q1: What is the main function of the 20P41AD412RA0NNN?

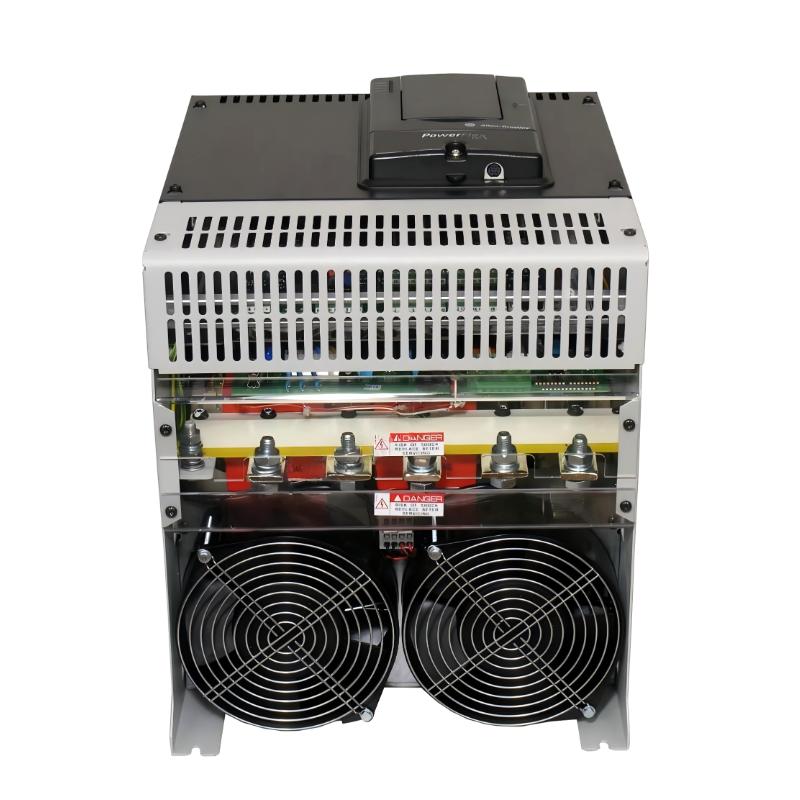

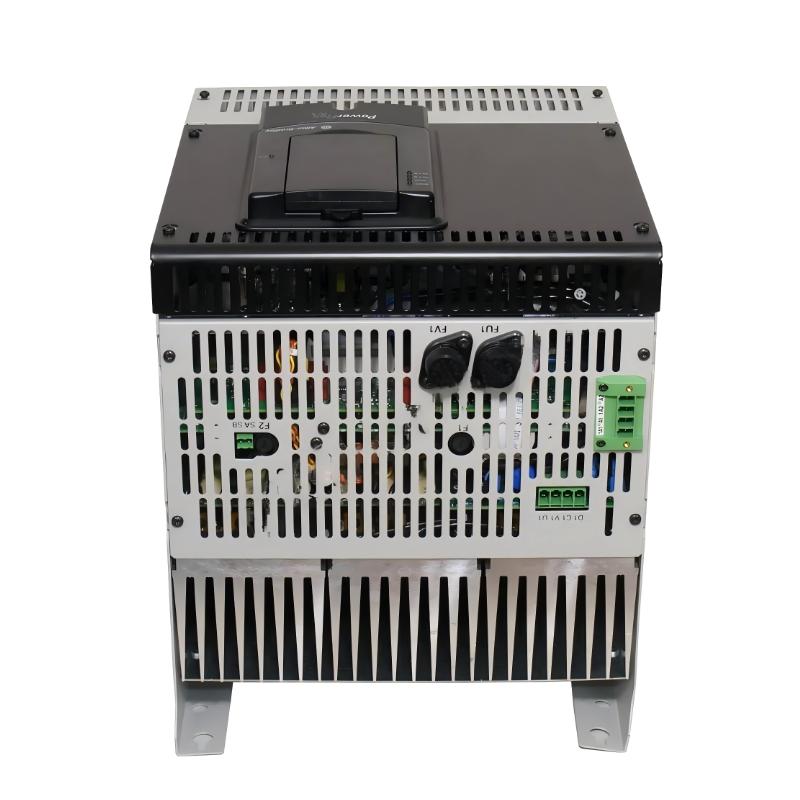

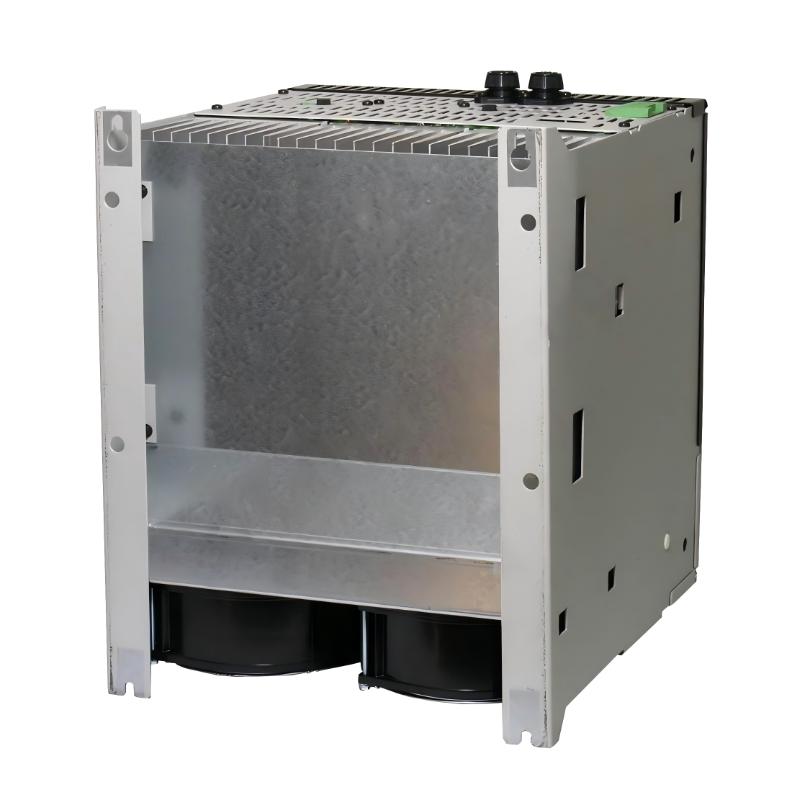

A: The 20P41AD412RA0NNN is an Allen-Bradley PowerFlex DC drive designed to regulate the speed and operating performance of compatible industrial DC motors. It supports controlled acceleration, deceleration, current regulation, and regenerative braking. With a rated output current of 412 A and a motor power rating of 250 HP, approximately 187 kW, it is intended for high-power industrial applications that require reliable DC motor control. Before selecting this drive, verify the motor’s armature voltage, rated current, field requirements, load characteristics, and operating duty to ensure that the drive matches the complete motor and control system.

Q2: What are the input voltage, rated output current, and motor power?

A: This model is designed for a three-phase 480 VAC input and provides a rated output current of 412 A. Its specified motor power rating is 250 HP, approximately 187 kW. These values are important when matching the drive to a DC motor, but they should not be the only selection criteria. Engineers should also check the motor’s armature voltage, field current, overload requirements, speed range, and operating cycle. Applications involving frequent starts, rapid deceleration, or heavy loads may require additional thermal and electrical evaluation. Confirm the motor nameplate data and the manufacturer’s technical specifications before commissioning.

Q3: Does the 20P41AD412RA0NNN support regenerative braking?

A: Yes. This model supports four-quadrant regenerative operation, allowing the drive to control motor operation in both motoring and braking conditions. During deceleration or when an external load drives the motor, the motor can generate electrical energy. When the system is correctly configured for regenerative operation, the drive can return this energy to the AC supply. This capability is useful in applications involving high inertia, frequent speed changes, reversing operations, or overhauling loads. The incoming power system, protective devices, motor parameters, and control configuration must be suitable for regenerative operation to ensure reliable performance.

Q4: What electrical conditions should be checked before installation?

A: Before installation, verify the three-phase supply voltage, available power capacity, grounding arrangement, upstream protection, and cable ratings. Check the motor’s armature voltage, rated current, and field requirements against the drive specifications. Control wiring and feedback connections must follow the manufacturer’s instructions, and power cables should be routed separately from low-level signal wiring where appropriate to reduce electrical interference. The drive should be installed in a suitable electrical cabinet with sufficient ventilation and heat dissipation. Its IP20 open-type enclosure does not provide complete protection against dust or moisture, so the surrounding enclosure must be appropriate for the operating environment. All electrical work should be carried out by qualified personnel after proper power isolation.

Q5: Can this drive connect directly to a PLC or industrial communication network?

A: The 20P41AD412RA0NNN is supplied without a communication module in its specified configuration. Therefore, compatibility with a particular industrial network should be verified before system integration. PLC control may be implemented through supported hardwired digital and analog interfaces for start and stop commands, speed references, and status signals. If network communication is required, select a compatible communication adapter and confirm the supported protocol, firmware requirements, and PLC configuration. The control system should also define how communication loss, invalid commands, and drive faults are handled. Proper signal mapping and interlock testing are essential before the equipment is released for normal production.

Q6: How can parameters be configured without a Human Interface Module?

A: This model does not include a Human Interface Module and uses a blank plate. Before commissioning, determine which parameter-access and diagnostic methods are available for the installed hardware. A compatible programming tool, interface, or external control system may be required, depending on the configuration. Important settings include motor ratings, current limits, field parameters, acceleration and deceleration times, speed feedback, and protection functions. The drive also supports DC tachometer and encoder feedback, but the actual feedback device and its configuration must be verified. Use the documentation for the applicable hardware and firmware revision to avoid incorrect settings that could cause unstable operation or unnecessary trips.

Q7: How should overcurrent, overheating, or unstable motor speed be diagnosed?

A: Begin by recording the fault code, operating conditions, and events preceding the problem. Overcurrent faults may be caused by short circuits, grounding issues, incorrect wiring, excessive mechanical loads, or mismatched motor parameters. Overheating may result from restricted airflow, high cabinet temperature, excessive loading, or inadequate cooling. Unstable speed may indicate problems with the speed-reference signal, feedback device, field circuit, or control settings. Inspect external wiring and mechanical components before determining that the drive itself has failed. Electrical inspections must be performed after safe isolation, and the drive should not be repeatedly reset without identifying the cause. After correcting the problem, verify the relevant protection functions and perform a controlled test run.

Q8: What should be considered when replacing or repairing the 20P41AD412RA0NNN?

A: Before replacing the drive, verify the complete catalog number and compare the replacement’s electrical ratings and functional configuration with the existing installation. Important factors include input voltage, rated output current, motor power, regenerative capability, field supply, feedback interfaces, enclosure requirements, and communication options. A drive with a similar current rating may still differ in hardware revision, control functionality, or wiring requirements. Record the original parameter settings, wiring connections, fault history, and available firmware information before removing the existing unit. Inspect the motor, incoming power, feedback devices, and external control circuits to rule out other causes of failure. After replacement, verify all connections, restore the correct parameters, test protective interlocks, and perform a controlled commissioning run before returning the equipment to service.
