Technical Specifications

FAQ

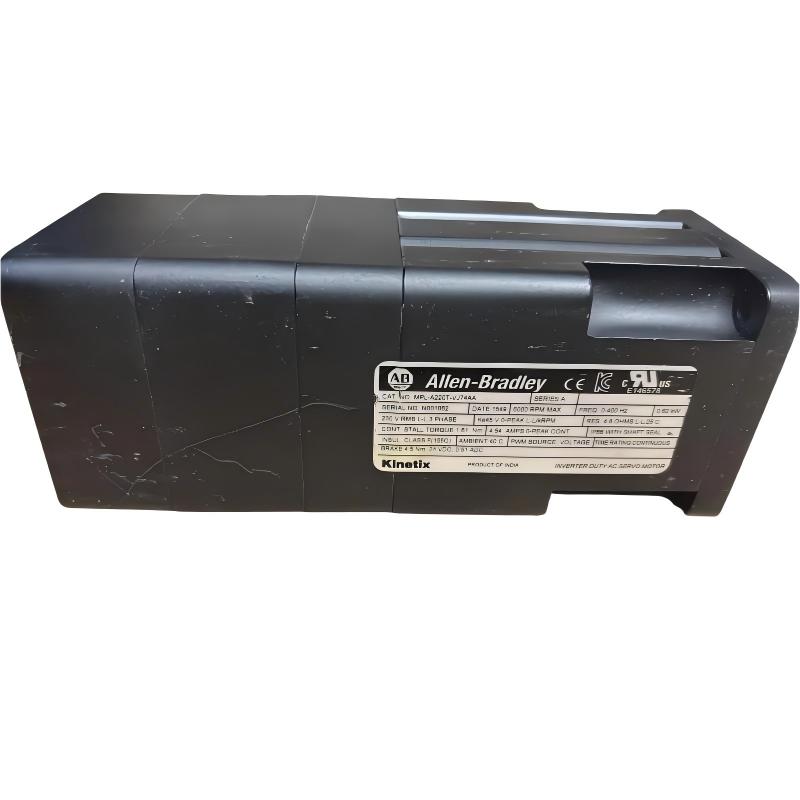

1. What industrial applications is the MPL-A220T-VJ74AA suitable for?

The MPL-A220T-VJ74AA is a low-inertia brushless AC servo motor designed for industrial motion control applications that require precise positioning, rapid acceleration, and stable speed regulation. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and precision manufacturing equipment. Its absolute feedback system supports position monitoring in applications where repeatable motion is essential. Before selecting the motor, evaluate the required torque, operating speed, load inertia, acceleration profile, and duty cycle to ensure that it meets the machine’s performance requirements.

2. Which servo drive is compatible with the MPL-A220T-VJ74AA?

This motor belongs to the Allen-Bradley MP-Series MPL family and operates in the 230 V AC class. Drive compatibility depends on the exact drive model, feedback interface, electrical ratings, and system configuration. When selecting a drive, verify support for the motor’s Hiperface absolute encoder, required feedback cable, and 24 V DC holding brake. The drive must also meet the application’s continuous and peak current requirements. Do not select a drive based on voltage alone; confirm the complete motor-drive combination against the manufacturer’s compatibility documentation before installation.

3. What advantages does the multi-turn absolute encoder provide?

The multi-turn absolute encoder records angular position within a revolution and tracks position across multiple revolutions. This allows the control system to establish the motor’s position without necessarily performing a homing routine after every power cycle, provided the encoder and control system are configured to preserve and interpret the position information correctly. The Hiperface interface provides feedback communication between the motor and compatible drive. During commissioning, verify the encoder configuration, feedback cable connections, and position reference behavior. If the reported position is incorrect or unavailable, check the drive diagnostics and feedback wiring before resuming automatic operation.

4. How does the 24 V DC holding brake work?

The MPL-A220T-VJ74AA includes a 24 V DC holding brake designed to hold the motor shaft when the motor is stopped and the brake is engaged. It is useful for applications where the shaft must remain stationary during pauses or when motor torque is removed. The brake wiring and release sequence must follow the motor and drive documentation. A holding brake should not be used for routine dynamic stopping unless specifically approved for that purpose. For vertical axes or gravity-loaded mechanisms, verify the required holding torque and implement appropriate safety measures to prevent uncontrolled movement during a power failure or drive fault.

5. What installation precautions should be followed?

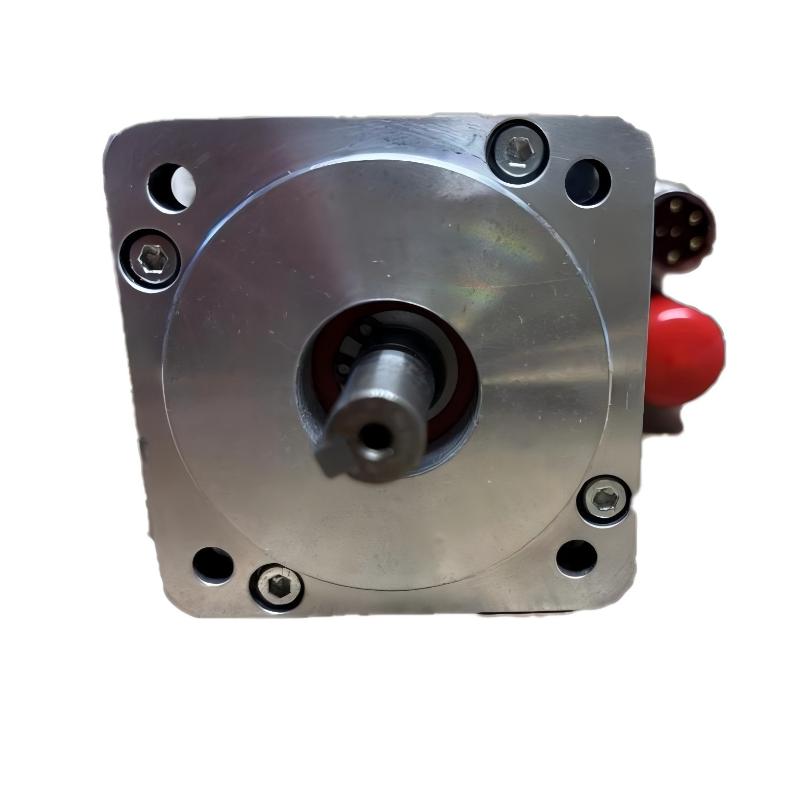

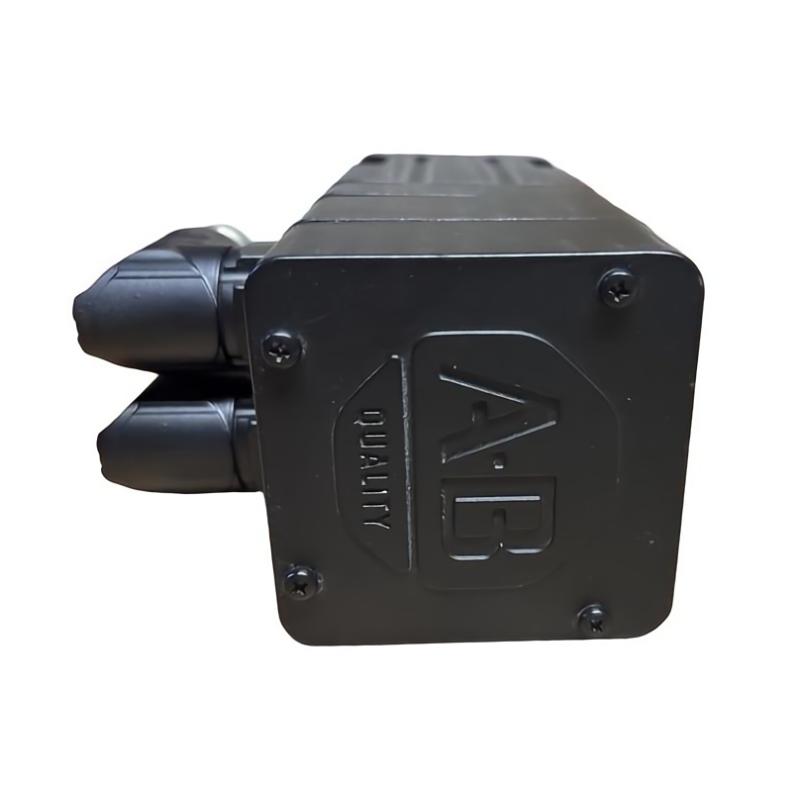

Before installation, inspect the motor housing, shaft, mounting flange, and connectors for damage. Ensure the mounting surface is rigid and properly aligned with the driven equipment. The keyed shaft requires a compatible coupling, and the mechanical arrangement should avoid excessive radial or axial loading. Connect the motor power, feedback, and brake circuits according to the applicable wiring documentation. The right-angle SpeedTEC DIN connector can be rotated to accommodate different cable orientations, but the cable must not be subjected to excessive bending or tension. Before commissioning, verify grounding, cable routing, mechanical clearance, and brake operation. Conduct initial tests at a controlled speed under safe conditions.

6. Why might the motor experience overheating or overcurrent faults?

Overheating and overcurrent faults may result from excessive load demand, frequent acceleration and deceleration, mechanical binding, incorrect drive parameters, or unsuitable operating cycles. Begin by checking the driven mechanism for resistance, misalignment, or mechanical obstruction. Review the drive’s current and torque monitoring values, acceleration settings, and load-inertia configuration. Confirm that the selected motor is suitable for the application’s continuous and peak torque requirements. Also inspect the mounting arrangement and operating environment. If the fault persists after these checks, stop the equipment and investigate the motor, drive, and mechanical system before returning it to service.

7. How can positioning errors or unstable operation be diagnosed?

Positioning errors, vibration, or inconsistent motion may be caused by encoder communication faults, electrical interference, coupling misalignment, mechanical backlash, or inappropriate servo tuning. First, review the drive’s alarm history and feedback status. Check the Hiperface feedback cable and connectors for loose contacts or damage, and ensure feedback wiring is routed appropriately relative to high-power cables. Inspect the coupling and transmission components for looseness or excessive play. If the mechanical and electrical components appear normal, review the position-loop and velocity-loop settings using the manufacturer’s commissioning procedures. Make adjustments systematically and verify the results through repeatable, low-speed positioning tests.

8. What should be checked when replacing the MPL-A220T-VJ74AA?

When replacing this motor, verify the electrical, mechanical, and feedback requirements of the existing motion-control system. Important characteristics include the 230 V AC voltage class, 75 mm frame size, 50.8 mm magnet stack length, multi-turn absolute encoder, keyed shaft, SpeedTEC DIN connector, and 24 V DC holding brake. Confirm that the replacement is supported by the existing drive and that the feedback and brake wiring are compatible. Similar frame dimensions alone do not guarantee interchangeability. After installation, verify the drive configuration, encoder feedback, brake operation, rotation direction, and positioning accuracy. Complete controlled commissioning tests before returning the machine to normal production.
