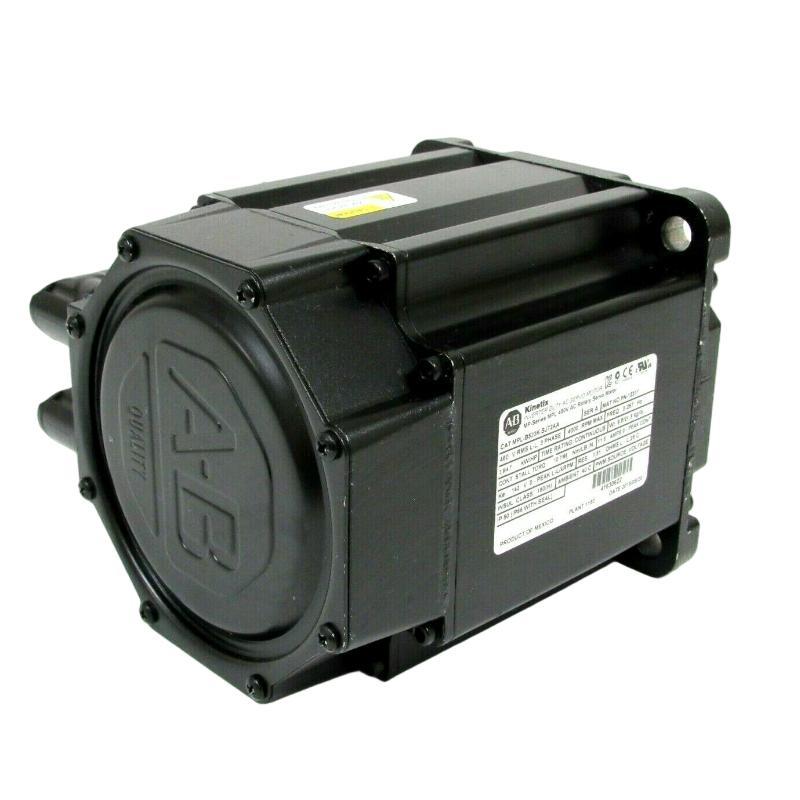

Allen Bradley MPL-A310F-SJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPL-A310F-SJ72AA |
| Manufacturer | Allen-Bradley |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3000 rpm |
| Continuous Stall Torque | 1.58 N·m |
| Peak Torque | 3.61 N·m |
| Continuous Rated Output Power | 0.46 kW |
| Feedback Type | Single-Turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | Sin/Cos, 1024 cycles/revolution |
| Shaft Type | Keyed Shaft Extension |
| Brake Type | No Integrated Brake |
| Connector Type | SpeedTEC DIN Circular Connector, Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Free Mounting Holes (Type FF) |
| Shaft Seal | No Shaft Seal |
| Protection Rating | IP50 standard; up to IP66 with optional shaft seal and suitable environmentally sealed cable connectors |
| Operating Temperature | 0–40°C |
| Storage Temperature | -30–70°C |
| Relative Humidity | 5–95% RH |
| Rotor Inertia | 4.4 × 10⁻⁵ kg·m² |
| Compatible Drive Series | Selected Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000 drives; verify compatibility with the specific drive model |
| Weight | 2.7 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A310F-SJ72AA suitable for?
The MPL-A310F-SJ72AA is a low-inertia servo motor designed for precise positioning and responsive motion control. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and industrial positioning mechanisms. Selection should account for load inertia, acceleration requirements, operating cycles, and continuous torque demand.
2. What type of encoder does the MPL-A310F-SJ72AA use?
This motor uses a single-turn, high-resolution absolute encoder with Hiperface feedback. It provides rotor position information to a compatible servo drive for closed-loop control. The single-turn encoder measures position within one revolution, so system-level position tracking across multiple revolutions depends on the drive and machine control configuration.
3. Does this motor include an integrated holding brake?
No. The MPL-A310F-SJ72AA does not include an integrated brake. If the application requires the load to remain stationary after power is removed, an external holding brake or suitable mechanical restraint may be needed. For vertical axes, secure the load before maintenance or power disconnection.
4. Which servo drives are compatible with this motor?
The motor is designed for use with selected Allen-Bradley Kinetix and Ultra servo drive families. Compatibility depends on the exact drive catalog number, feedback interface, voltage rating, and system configuration. Verify the motor-drive combination and required feedback cable using the relevant Rockwell Automation documentation before commissioning.
5. What should be checked if the motor triggers an overcurrent or overload fault?
Check for mechanical binding, excessive load, damaged power cables, and unsuitable acceleration or deceleration settings. Review the drive’s fault history and current readings to identify when the problem occurs. If the fault appears mainly during acceleration or rapid direction changes, assess the load inertia and torque demand against the motor and drive ratings.
6. How can single-turn encoder feedback faults be diagnosed?
Inspect the feedback cable and connectors for loose contacts, damaged insulation, or bent pins. Verify grounding and shielding, then check the drive’s diagnostic messages for encoder communication or position errors. If the wiring and configuration are correct but the fault persists, further testing of the encoder and motor assembly may be necessary.
7. Why might the motor overheat or vibrate during operation?
Possible causes include excessive load, mechanical resonance, coupling misalignment, loose mounting, bearing wear, or incorrect servo tuning. Frequent acceleration and deceleration may also increase thermal stress. Compare current and following-error data across different operating conditions, and inspect the mechanical transmission before adjusting control parameters.
8. What should be verified when replacing the MPL-A310F-SJ72AA?
Confirm the full catalog number, voltage rating, speed and torque specifications, single-turn absolute encoder, keyed shaft, absence of an integrated brake, connector orientation, and mounting configuration. Also verify drive compatibility and cable assignments. A replacement with similar power or frame size may still be unsuitable if its feedback system or mechanical interface differs.
