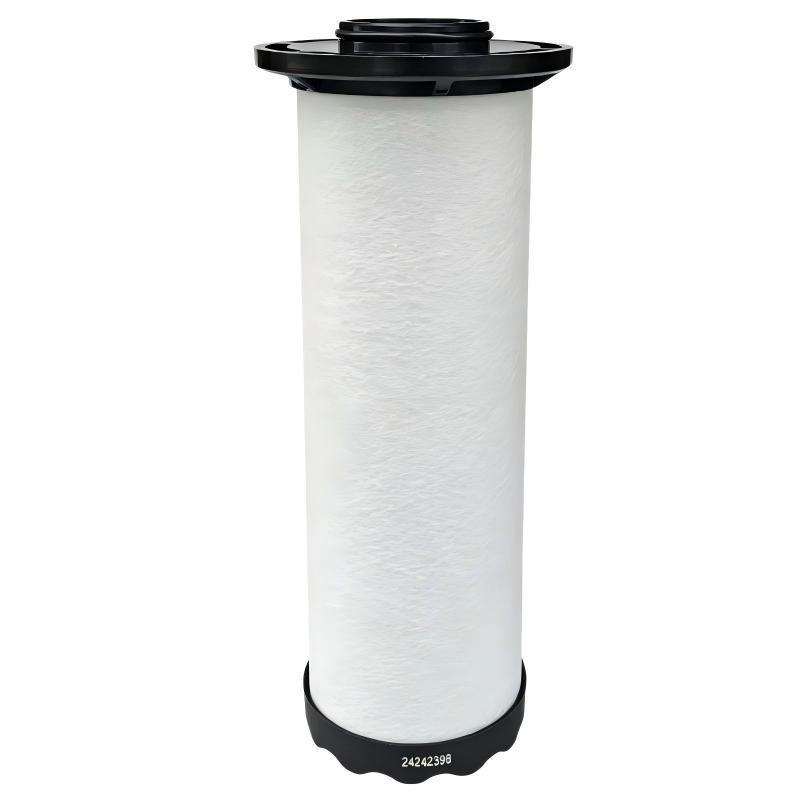

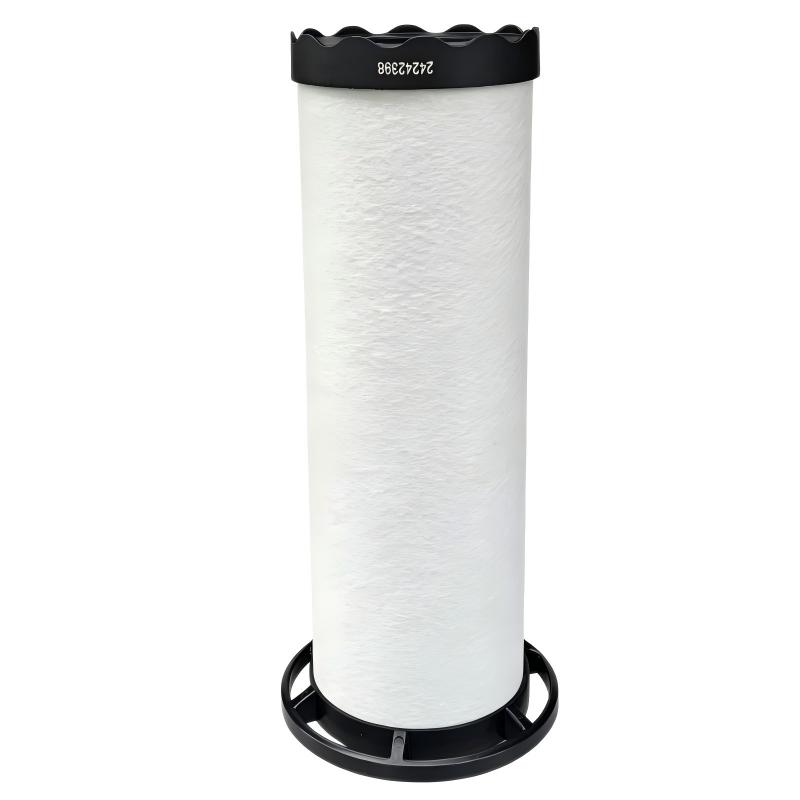

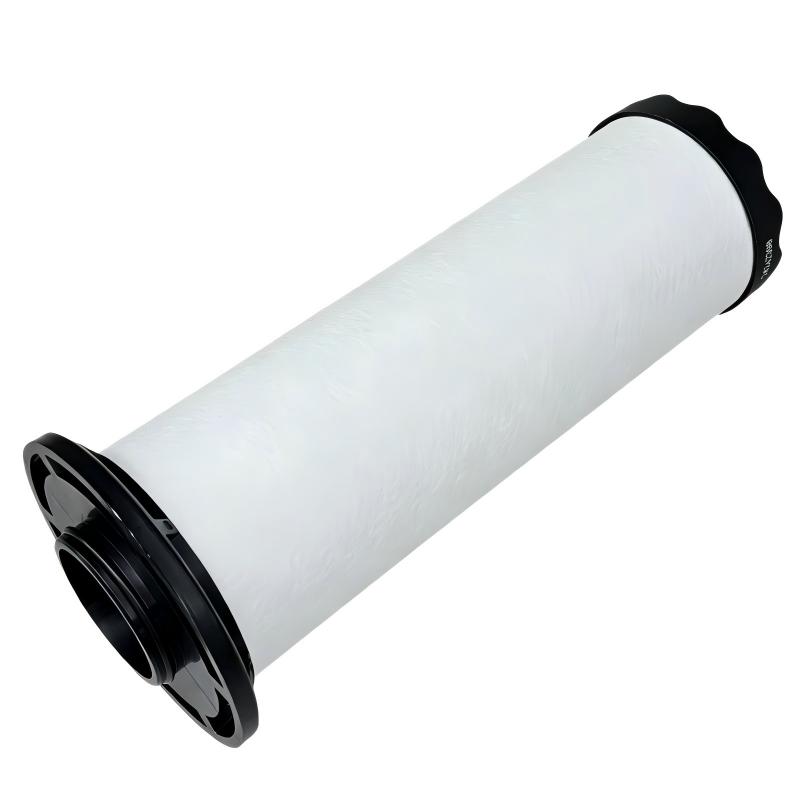

Ingersoll Rand 47704429001 24242398 Filter Element
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47704429001 |
| Ordering Number | 24242398 |
| Product Type | Compressed Air Filter Element |
| Application | Compressed Air Filtration |
| Compatible Filter Housing | FA1000IH |
| Rated Air Flow | 590 CFM |
| Filtration Type | High-Efficiency Coalescing Filtration |
| Filtration Rating | 0.01 μm |
| Oil Carryover | Up to 0.01 mg/m³, depending on operating conditions |
| Included Accessories | Housing O-ring |
| Dimensions | 130 × 35 × 100 mm |
| Weight | 0.45 kg |
| Main Function | Removes fine oil aerosols, moisture, and contaminants from compressed air |
| Installation Type | Internal replacement element for compatible in-line filter housing |
| Typical Applications | Industrial compressed air systems, pneumatic equipment, and process air lines |
FAQ
Q1: What is the main function of the Ingersoll Rand 47704429001 filter element?
A: The filter element is designed to remove fine oil aerosols, moisture, and contaminants from compressed air. It helps improve air quality and protect downstream pneumatic equipment and processes.
Q2: Which filter housing is compatible with ordering number 24242398?
A: This element is associated with the Ingersoll Rand FA1000IH in-line filter housing. Confirm the housing model and existing element part number before ordering a replacement.
Q3: What does coalescing filtration mean?
A: Coalescing filtration collects fine liquid droplets, such as oil aerosols and water mist, into larger droplets that can be separated from the compressed air stream. This helps reduce liquid contamination downstream.
Q4: Can this filter element remove solid particles as well as oil aerosols?
A: It can help capture airborne contaminants, but filtration performance depends on the element grade and system configuration. For reliable results, use the correct filtration stages for the specific air-quality requirements.
Q5: What symptoms indicate that the filter element may need replacement?
A: Common signs include increased differential pressure, reduced airflow, oil or moisture carryover, and declining performance of downstream equipment. Check the filter manufacturer’s maintenance recommendations and operating conditions.
Q6: Can the 47704429001 filter element be installed without changing the filter housing?
A: If the existing housing is the compatible FA1000IH model and the replacement matches the required specification, the element is intended to be replaced within the existing housing. Check the seals and seating surfaces during installation.
Q7: Why is the housing O-ring important when replacing the filter element?
A: The O-ring helps seal the housing and prevent compressed air from bypassing the filtration element or leaking at the housing joint. Inspect the sealing surface and replace damaged or hardened seals before restarting the system.
Q8: What should be checked before restarting the compressor after filter replacement?
A: Verify that the element is correctly seated, the O-ring is properly installed, and the housing is securely closed. Restore pressure according to the equipment procedure, check for leaks, and monitor airflow and differential pressure during initial operation.
Ingersoll Rand 47704429001 24242398 Filter Element is in stock. Please contact us for a quick quote and competitive pricing.
