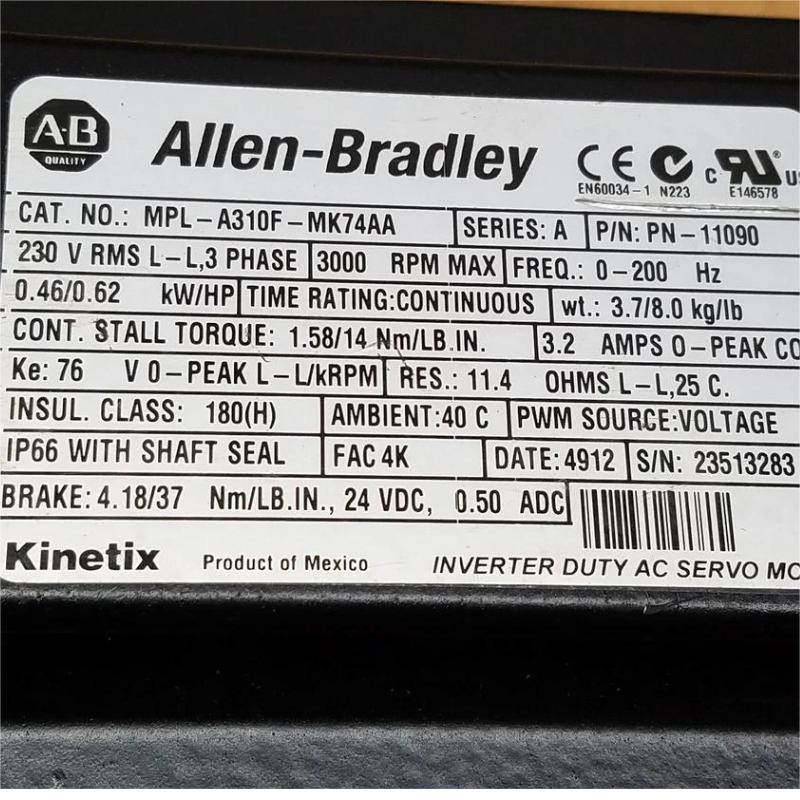

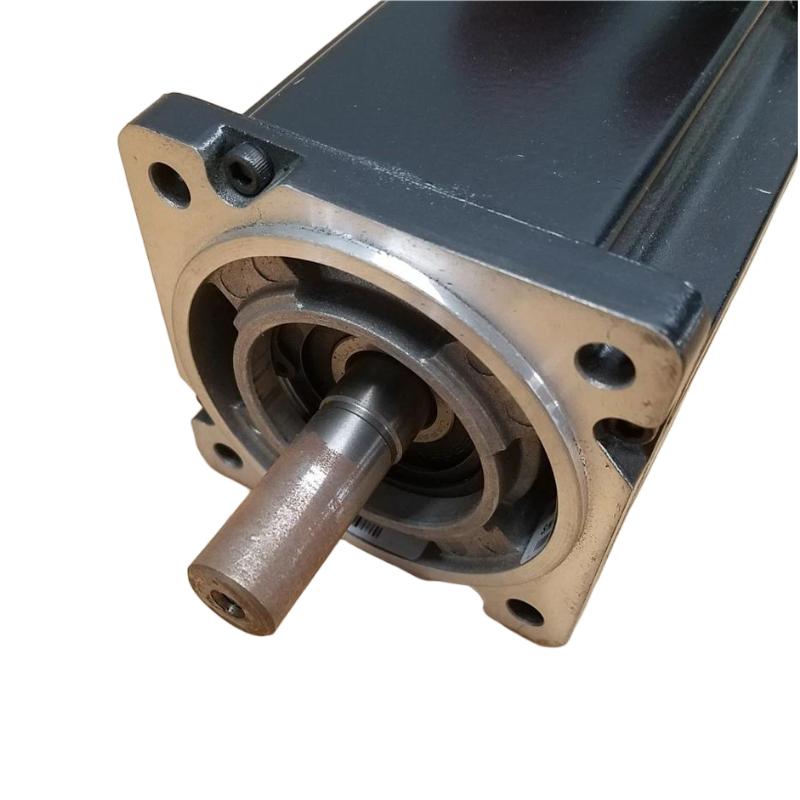

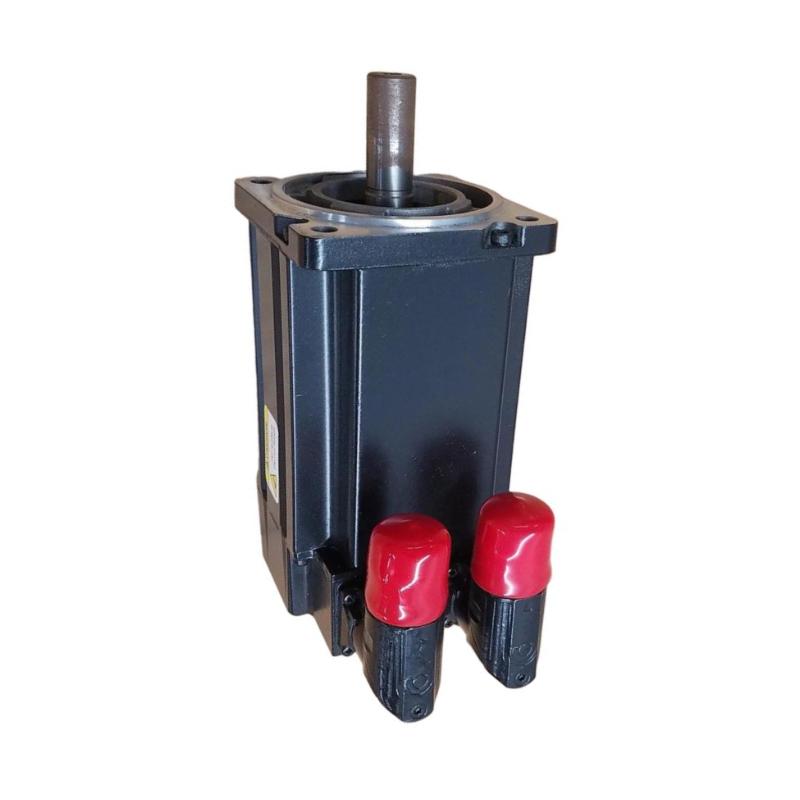

Allen Bradley MPL-A310F-MK74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPL-A310F-MK74AA |
| Manufacturer | Allen-Bradley |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3000 rpm |
| Continuous Stall Torque | 1.58 N·m |
| Peak Torque | 3.61 N·m |
| Continuous Rated Output Power | 0.46 kW |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | Sin/Cos, 1024 cycles/revolution |
| Shaft Type | Keyless Shaft Extension |
| Brake Type | Integrated 24 V DC Holding Brake |
| Connector Type | SpeedTEC DIN Circular Connector, Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Free Mounting Holes (Type FF) |
| Shaft Seal | No Shaft Seal |
| Protection Rating | Depends on shaft-seal and connector configuration; verify the applicable product documentation |
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% RH |
| Rotor Inertia | 4.4 × 10⁻⁵ kg·m² |
| Compatible Drive Series | Selected Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000 drives; verify compatibility with the specific drive model |
| Weight | 2.7 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A310F-MK74AA suitable for?
The MPL-A310F-MK74AA is a low-inertia servo motor designed for accurate positioning, responsive acceleration, and controlled rotary motion. It can be used in packaging machinery, automated assembly equipment, material handling systems, and industrial positioning applications. The final selection should account for load inertia, duty cycle, acceleration requirements, and continuous torque demand.
2. What is the function of the integrated 24 V DC holding brake?
The holding brake helps keep the motor shaft stationary when the motor is stopped or power is removed. It is useful for applications where unintended movement must be prevented, including certain vertical-axis systems. The brake is primarily intended for holding rather than repeated dynamic stopping. Follow the drive manufacturer’s instructions for brake timing and control.
3. Which encoder is used in the MPL-A310F-MK74AA?
This model uses a multi-turn, high-resolution absolute encoder with Hiperface feedback and Sin/Cos signals at 1024 cycles per revolution. The feedback system provides position information for closed-loop control. The connected drive must support the encoder interface and the correct motor configuration for reliable operation.
4. Which servo drives are compatible with this motor?
The motor is listed for use with selected Allen-Bradley Kinetix and Ultra drive families. Compatibility depends on the exact drive catalog number, feedback interface, electrical ratings, and configuration. Check the applicable Rockwell Automation documentation before connecting the motor, especially when integrating it into an existing control system.
5. What should be checked if the motor trips on overcurrent or overload?
Inspect the driven mechanism for binding, excessive friction, or an overloaded condition. Check the motor power connections and review the drive’s fault history and current readings. If the fault occurs mainly during acceleration or rapid reversals, evaluate the load inertia, acceleration settings, and torque demand before changing current limits.
6. How can encoder feedback problems be identified?
Common symptoms include position errors, feedback alarms, unstable motion, or failure to enable the drive. Inspect the feedback cable and connector pins, verify shielding and grounding, and review the drive’s diagnostic messages. If wiring and configuration are correct but the fault persists, further testing of the encoder and motor assembly may be necessary.
7. Why might the motor overheat or vibrate during operation?
Potential causes include excessive load, mechanical resonance, poor coupling alignment, loose mounting, bearing wear, or incorrect servo tuning. Frequent acceleration and deceleration can also increase thermal stress. Compare drive current and following-error data under different operating conditions, then inspect the mechanical transmission and adjust control parameters only after identifying the likely cause.
8. What should be verified when replacing the MPL-A310F-MK74AA?
Confirm the full catalog number, 230 V rating, 3000 rpm speed, torque specifications, multi-turn absolute encoder, keyless shaft, 24 V DC holding brake, connector arrangement, and mounting configuration. Also check drive compatibility and cable assignments. A replacement with similar power or frame size may still be unsuitable if its feedback, brake, or mechanical interface differs.
Allen Bradley MPL-A310F-MK74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
