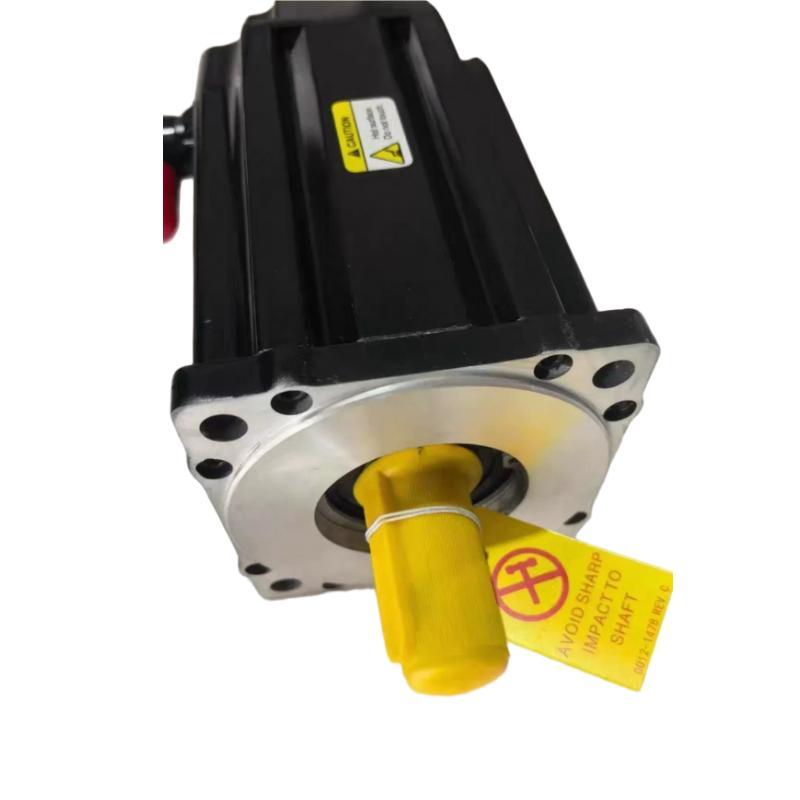

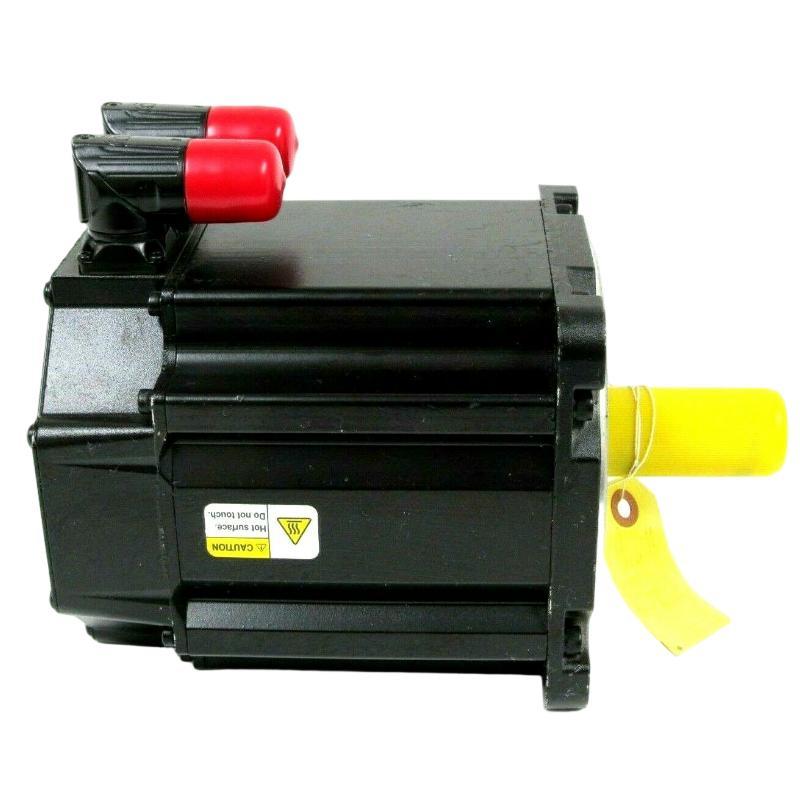

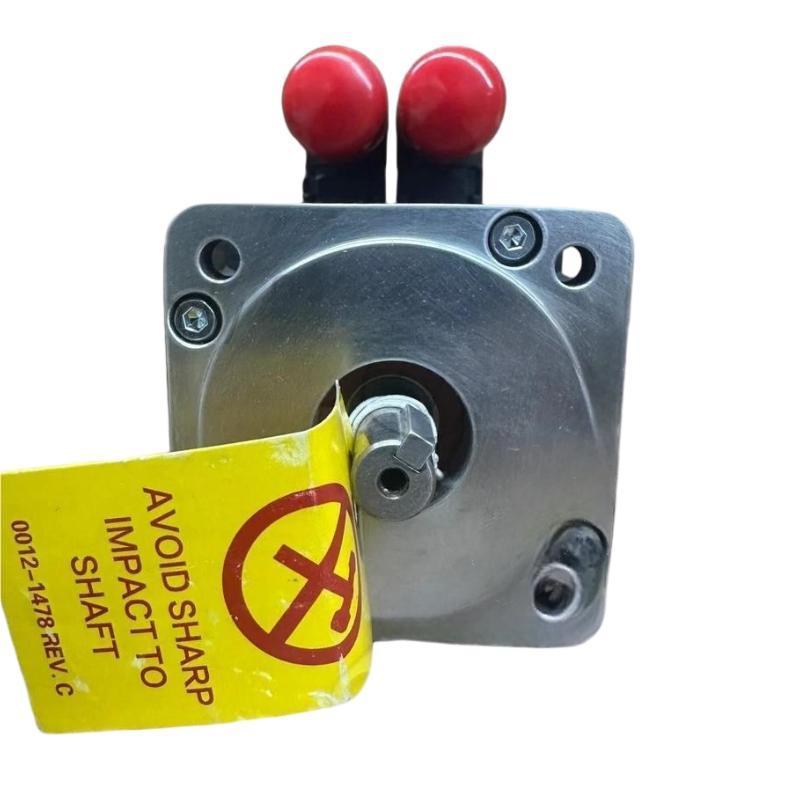

Allen Bradley MPL-A310F-MK72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPL-A310F-MK72AA |
| Manufacturer | Allen-Bradley |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Rated Voltage | 230 V AC |
| Voltage Class | 200 V AC |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3000 rpm |
| Continuous Stall Torque | 1.58 N·m |
| Peak Torque | 3.61 N·m |
| Continuous Rated Output Power | 0.46 kW |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | Sin/Cos, 1024 cycles/revolution |
| Shaft Type | Keyless Shaft Extension |
| Brake | No Integrated Brake |
| Connector Type | SpeedTEC DIN Circular Connector, Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Free Mounting Holes (Type FF) |
| Shaft Seal | No Shaft Seal |
| Protection Rating | IP50 standard; up to IP66 with optional shaft seal and suitable sealed cable connectors |
| Operating Temperature | 0–40°C |
| Storage Temperature | -30–70°C |
| Relative Humidity | 5–95% RH |
| Rotor Inertia | 4.4 × 10⁻⁵ kg·m² |
| Compatible Drive Series | Selected Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000 drives; verify compatibility with the exact drive model |
| Weight | 2.7 kg (user-provided reference value; verify against the specific unit) |
FAQ
1. What applications is the Allen-Bradley MPL-A310F-MK72AA suitable for?
The MPL-A310F-MK72AA is a low-inertia servo motor designed for applications requiring precise positioning and responsive speed control. It can be used in packaging machinery, automated assembly systems, material handling equipment, and industrial positioning applications. Selection should account for load inertia, acceleration requirements, operating cycles, and continuous torque demand.
2. What type of encoder does the MPL-A310F-MK72AA use?
This model uses a multi-turn, high-resolution absolute encoder with Hiperface feedback. The encoder provides position information to a compatible servo drive for closed-loop control. Before installation, confirm that the drive supports the feedback protocol and that the encoder cable and connector configuration are correct.
3. Does the MPL-A310F-MK72AA have an integrated holding brake?
No. This model is supplied without an integrated brake. Applications that require a load to remain stationary after power is removed may need an external holding brake or another suitable mechanical restraint. For vertical axes, the load must be secured against gravity before maintenance or power disconnection.
4. Which servo drives are compatible with this motor?
The motor is associated with selected Allen-Bradley Kinetix and Ultra drive families, including Kinetix 5500, 6000, 6200/6500, 300, 350, 2000, 7000, and Ultra 3000. Compatibility depends on the specific drive model, feedback interface, electrical ratings, and configuration. Confirm the combination against the applicable technical documentation before commissioning.
5. What causes overcurrent or overload faults during operation?
Common causes include excessive mechanical load, binding in the transmission, aggressive acceleration settings, incorrect drive parameters, or faulty power connections. Check the drive’s fault history and current readings, then inspect the mechanical system and motor wiring. If the fault occurs mainly during acceleration, review the load inertia and torque requirements.
6. How can an absolute encoder feedback fault be diagnosed?
Check the feedback cable for damage, inspect connector pins, and verify shielding and grounding. Review the servo drive’s diagnostic messages for encoder communication or position errors. If the wiring and configuration are correct but the fault persists, further testing of the encoder and motor assembly may be necessary.
7. Why does the motor vibrate or overheat during operation?
Possible causes include mechanical resonance, coupling misalignment, loose mounting, bearing wear, excessive load, or unsuitable servo gain settings. Frequent acceleration and deceleration can also increase thermal stress. Compare current and following-error data across operating conditions, and inspect the mechanical transmission before adjusting the control loop.
8. What should be checked when replacing the MPL-A310F-MK72AA?
Verify the complete catalog number, voltage class, speed and torque ratings, absolute encoder protocol, keyless shaft, connector orientation, mounting arrangement, and absence of an integrated brake. Confirm that the replacement is compatible with the existing servo drive and cables. A motor with a similar frame size may still be unsuitable if its feedback or mechanical configuration differs.
Allen Bradley MPL-A310F-MK72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
