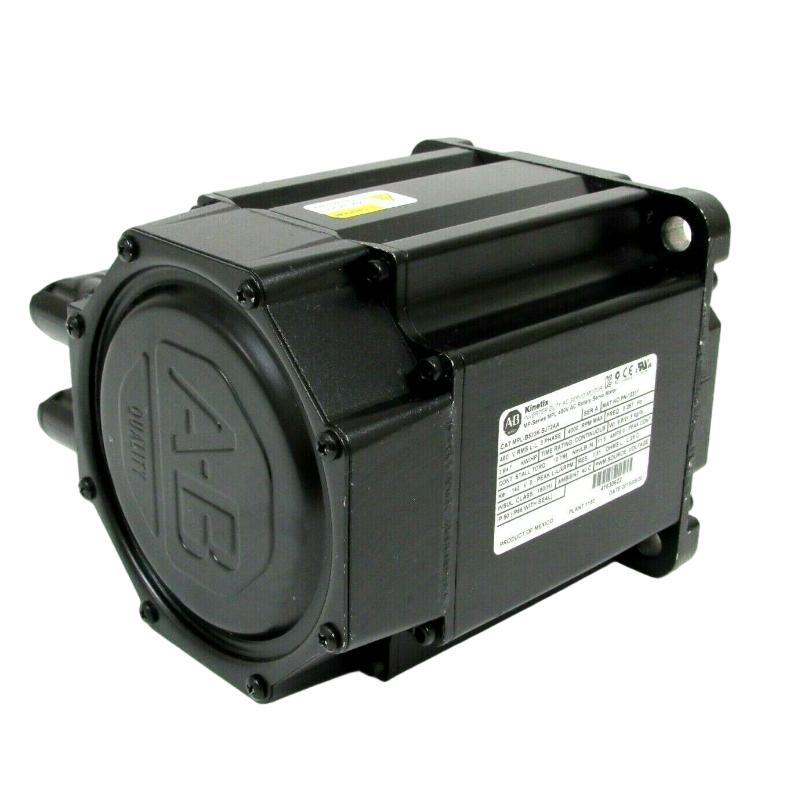

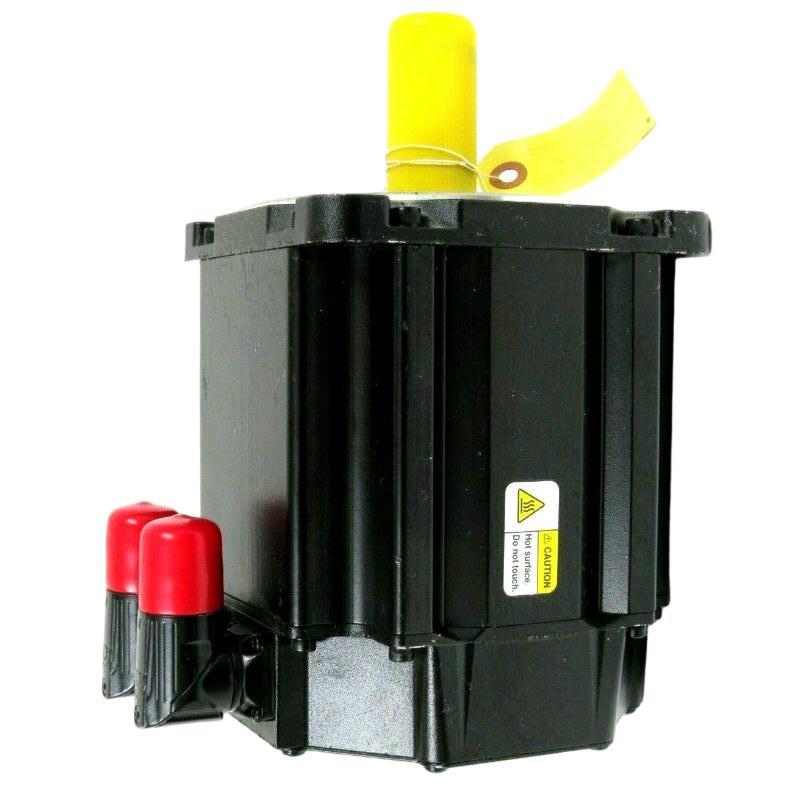

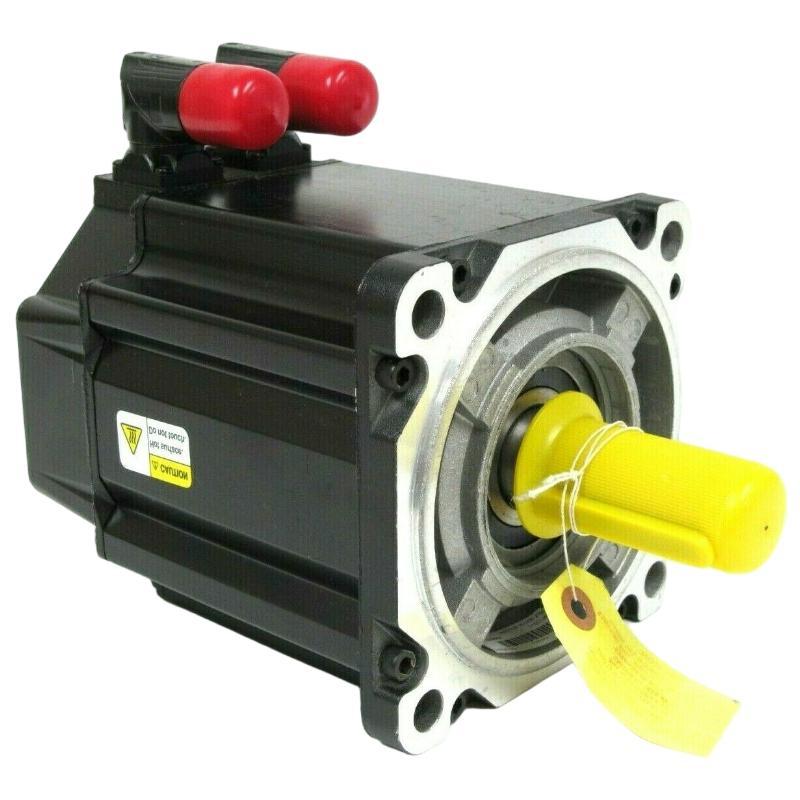

Allen Bradley MPL-A310F-MJ74AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPL-A310F-MJ74AA |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3000 rpm |
| Continuous Stall Torque | 1.58 N·m |
| Peak Torque | 3.61 N·m |
| Rated Output Power | 0.46 kW |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | Sin/Cos, 1024 cycles/revolution |
| Brake Type | Integrated 24 V DC Holding Brake |
| Brake Holding Torque | Verify against the applicable motor technical documentation |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No Shaft Seal |
| Connector Type | SpeedTEC DIN Circular Connector, Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Free Mounting Holes (Type FF) |
| Protection Rating | Depends on shaft-seal and connector configuration; verify the motor documentation for the installed configuration |
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% RH |
| Rotor Inertia | 4.4 × 10⁻⁵ kg·m² |
| Compatible Drive Series | Selected Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000 and Ultra 3000 drives; confirm exact model compatibility |
| Weight | 2.7 kg (provided reference value; verify against the actual motor configuration) |
FAQ
1. What applications is the Allen-Bradley MPL-A310F-MJ74AA suitable for?
The MPL-A310F-MJ74AA is a low-inertia servo motor designed for precise motion control and responsive acceleration. Typical applications include automated assembly equipment, packaging machinery, indexing systems, material handling equipment, and industrial positioning systems. Selection should be based on the required torque, speed, load inertia, and duty cycle.
2. What is the function of the integrated 24 V DC holding brake?
The integrated brake helps hold the motor shaft when the motor is stopped or power is removed, making it useful for applications where unintended movement must be prevented. It is intended primarily for holding rather than repeated dynamic braking. The brake should be controlled according to the drive manufacturer’s instructions and should not be used as the sole safety measure for a suspended load.
3. Which feedback system does this servo motor use?
This model uses a multi-turn, high-resolution absolute encoder with Hiperface feedback. The encoder provides position information to a compatible servo drive for closed-loop motion control. Feedback compatibility, cable pin assignments, and drive configuration should be checked before installation to prevent encoder faults or incorrect position feedback.
4. Which servo drives can operate with the MPL-A310F-MJ74AA?
The motor is associated with selected Allen-Bradley Kinetix and Ultra drive families. However, compatibility depends on the exact drive catalog number, feedback interface, voltage rating, and firmware or configuration requirements. Confirm the motor-drive combination using the relevant Rockwell Automation documentation before commissioning.
5. What should be checked if an overcurrent or overload fault occurs?
Check for mechanical binding, excessive load, incorrect acceleration and deceleration settings, and loose or incorrectly connected power cables. Review the drive’s fault code and current history to identify when the fault occurs. If the alarm appears during acceleration or rapid direction changes, evaluate the load inertia and required torque against the motor and drive ratings.
6. How should encoder-related faults be diagnosed?
Inspect the feedback cable and connectors for damaged insulation, loose contacts, bent pins, or contamination. Check shielding and grounding, then review the drive’s diagnostic messages for feedback communication or position errors. If the external wiring and configuration are correct, further testing may be required to determine whether the encoder or motor assembly is faulty.
7. What can cause excessive motor temperature or vibration?
Potential causes include sustained overload, poor coupling alignment, loose mounting, mechanical resonance, bearing wear, or unsuitable servo tuning. Frequent acceleration and deceleration may also increase thermal load. Compare drive current and following-error data under different operating conditions, and inspect the mechanical transmission before making control-parameter adjustments.
8. What should be verified when replacing this servo motor?
Confirm the complete catalog number, rated voltage, speed, torque, absolute encoder type, Hiperface feedback, keyed shaft, 24 V DC brake, connector arrangement, and mounting configuration. Also verify drive compatibility and cable pin assignments. A replacement motor with similar power or frame size may still be unsuitable if its feedback, brake, or electrical interface differs.
Allen Bradley MPL-A310F-MJ74AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
