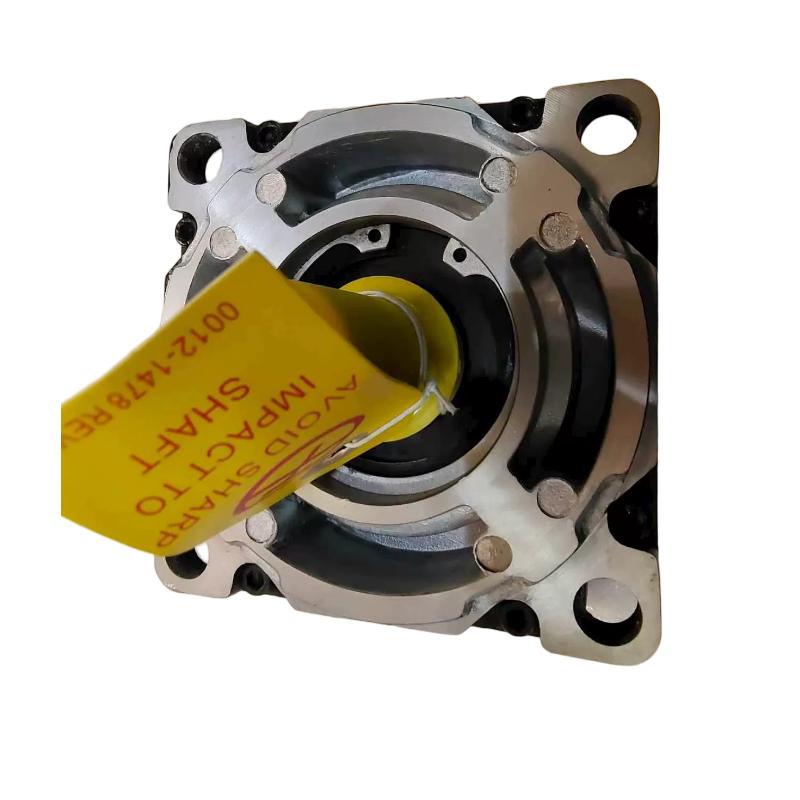

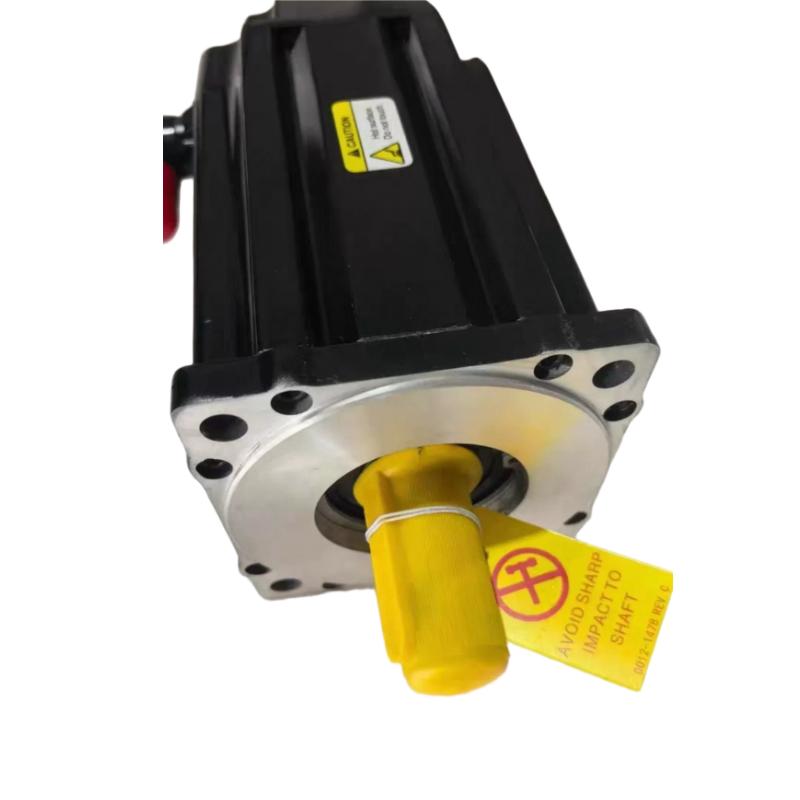

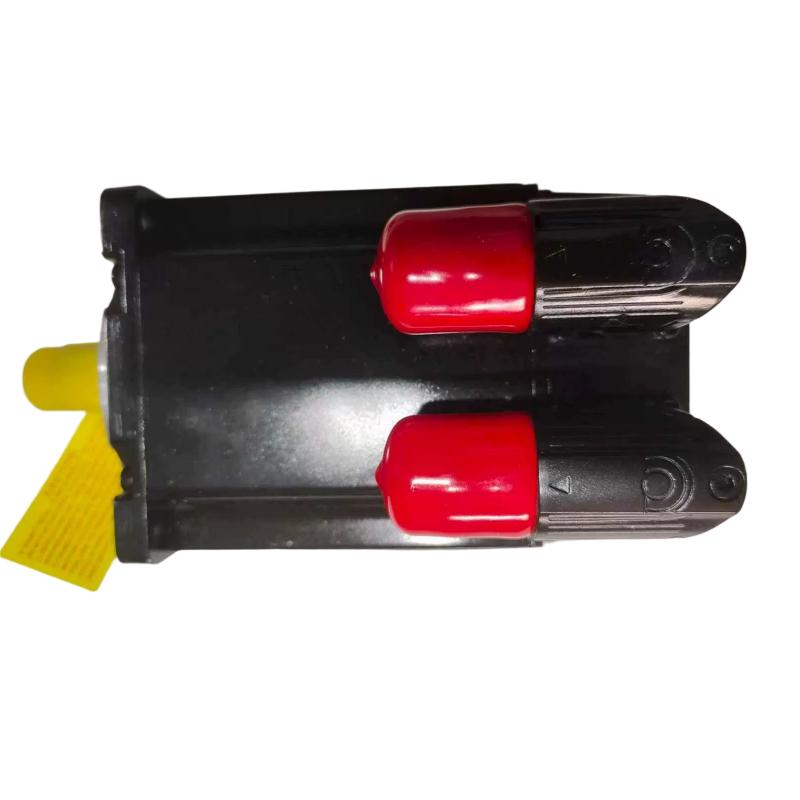

1. What industrial applications is the MPL-A310F-HJ74AA suitable for?

The MPL-A310F-HJ74AA is a low-inertia brushless AC servo motor designed for industrial motion control applications requiring accurate speed, torque, and position regulation. Typical uses include packaging machinery, automated assembly lines, material handling systems, and precision positioning equipment. Its rated speed of 3000 rpm and continuous stall torque of 1.58 N·m make it suitable for appropriately sized loads that require controlled acceleration and repeatable motion. Before selecting the motor, engineers should evaluate the load inertia, operating cycle, required acceleration, and mechanical transmission characteristics to ensure that the motor can meet the application’s performance requirements.

2. Which servo drives are compatible with the MPL-A310F-HJ74AA?

This motor belongs to the Allen-Bradley MP-Series MPL family and can be used with compatible servo drive systems, including certain Kinetix and Ultra 3000 models. Compatibility must be verified against the exact drive catalog number and configuration. The motor’s voltage class, feedback interface, brake requirements, and drive firmware should all be checked before installation. Using a drive from the same product family does not automatically guarantee compatibility. Correct motor identification and parameter configuration are essential for reliable startup, stable closed-loop control, and accurate positioning.

3. How does the incremental encoder support precise motor control?

The incremental encoder generates electrical pulses as the motor shaft rotates. The servo drive processes these signals to determine shaft movement and regulate speed and position according to the motion command. The specified feedback resolution is 2000 pulses per revolution, although the effective position count depends on the drive’s signal-processing and counting method. Unlike an absolute encoder, an incremental encoder generally requires the control system to establish a reference position after startup. A homing routine using a suitable sensor or reference switch is therefore commonly used when the application requires repeatable absolute positioning.

4. What is the function of the integrated 24 V DC holding brake?

The integrated holding brake helps prevent the motor shaft from moving when the motor is stopped and the brake is engaged. It is particularly useful for applications that require a load to remain in position during machine stops or power interruptions. The brake is designed primarily for holding rather than repeated dynamic stopping. Its supply voltage, release timing, and engagement sequence must follow the manufacturer’s specifications and the drive system’s control requirements. For vertical axes, additional risk assessment and suitable load-retention measures are important to prevent uncontrolled movement if the brake or electrical supply fails.

5. Why might the motor trigger an overload or overcurrent fault?

Overload and overcurrent faults may result from excessive mechanical load, a jammed transmission, unsuitable acceleration settings, incorrect motor parameters, or damaged electrical connections. Start troubleshooting by recording the drive’s fault code and identifying the operating conditions under which it occurs. Check whether the driven mechanism moves freely, verify the motor and drive configuration, and compare the commanded torque and acceleration with the application’s requirements. Inspect the power and feedback cables for damage or loose connections. Before handling electrical components, isolate the power supply and follow the manufacturer’s procedures for confirming that stored electrical energy has been safely discharged.

6. What should be checked if the motor does not start or the encoder feedback is lost?

First, confirm that the servo drive has the correct supply voltage and that the enable signal, emergency-stop circuit, and safety interlocks permit operation. Then verify that the configured motor model matches MPL-A310F-HJ74AA and that the feedback cable is connected securely. Inspect the connector pins, cable shielding, and wiring for damage or electrical interference. If the drive reports an encoder fault, review its diagnostic information and confirm that the feedback interface and cable are compatible with the motor. Avoid disconnecting or reconnecting cables while the system is energized, as this can damage equipment or cause unexpected motion.

7. How can overheating and vibration be reduced during continuous operation?

Excessive temperature or vibration can be caused by mechanical misalignment, high load inertia, poor mounting, unsuitable control gains, or operation beyond the motor’s intended duty cycle. Begin by checking the coupling, mounting flange, transmission components, and cooling conditions. Confirm that the commanded acceleration and deceleration profiles are appropriate for the load. If the mechanical installation is satisfactory, review the servo tuning parameters according to the drive manufacturer’s procedures. Large changes to control gains should be avoided without stability testing. Persistent overheating, unusual noise, or repeated vibration faults should be investigated before returning the equipment to normal production.

8. What should be considered when replacing the MPL-A310F-HJ74AA?

Before replacing this motor, verify the complete catalog number, rated speed, torque requirements, encoder type, holding brake, shaft configuration, connector arrangement, and mounting interface. A replacement with the same frame size may still have different electrical or feedback characteristics, so physical fit alone is not sufficient. Confirm that the replacement is supported by the existing servo drive and determine whether motor parameters or control settings need to be updated. After installation, inspect all connections, verify encoder feedback and brake operation, and perform controlled low-speed tests. Confirm the direction of rotation, positioning response, and fault-free operation before returning the machine to its normal production cycle.
