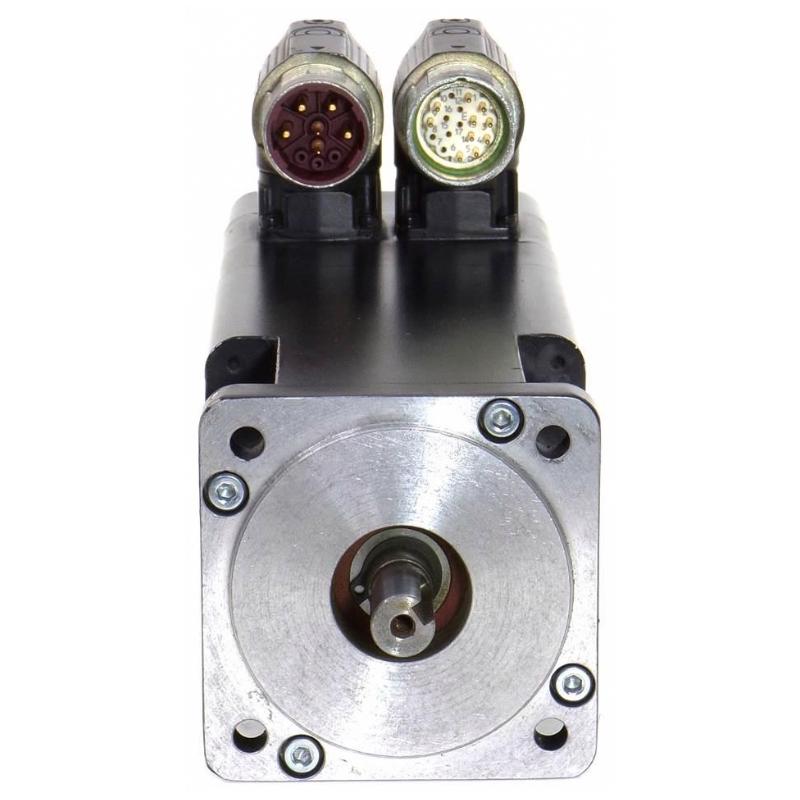

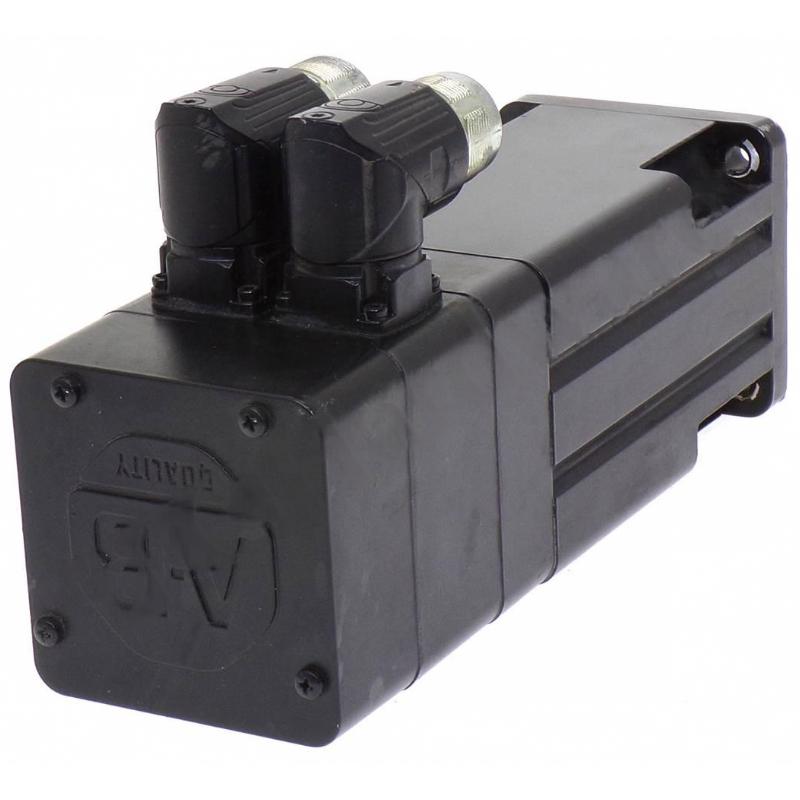

1. What industrial applications is the MPL-A230P-VJ74AA servo motor suitable for?

The MPL-A230P-VJ74AA is a low-inertia AC servo motor designed for applications requiring accurate speed, torque, and position control. Typical uses include automated assembly systems, packaging machinery, material handling equipment, precision positioning mechanisms, and CNC machinery. Its suitability depends on the required motion profile, load inertia, acceleration, duty cycle, and positioning accuracy. Before installation, engineers should evaluate the complete mechanical system to ensure that the motor can deliver the required performance without excessive heating or repeated overload conditions.

2. Which servo drives are compatible with the MPL-A230P-VJ74AA?

Compatibility depends on the drive model, firmware, feedback interface, and system configuration. Certain Allen-Bradley Kinetix and Ultra 3000 drive families may support motors from the MP-Series MPL range, but compatibility should never be assumed from the product family alone. Before commissioning, verify the exact motor catalog number against the drive’s supported motor list. Also confirm the feedback connection, voltage requirements, brake control arrangements, and motor configuration parameters. Incorrect drive selection or motor identification settings can cause startup faults, feedback errors, or unreliable motion control.

3. What is the function of the multi-turn absolute encoder?

The multi-turn absolute encoder provides position feedback by identifying the motor shaft’s angular position and tracking position across multiple revolutions. This information allows the servo drive or motion controller to monitor the motor’s position and coordinate precise movements. Compared with an incremental encoder, an absolute encoder can reduce the need to re-establish the position reference after a power cycle, depending on the encoder design and system configuration. Engineers should confirm the encoder’s supported operating mode and the controller’s position-retention requirements before commissioning the machine.

4. How does the integrated 24 V DC holding brake operate?

The integrated holding brake is designed to help maintain the motor shaft’s position when the motor is stopped or when power is removed. It is particularly useful in applications where an uncontrolled load movement could create operational or safety risks. However, a holding brake is not intended to serve as the primary means of repeatedly stopping a moving load. The brake supply, release sequence, and engagement timing must follow the manufacturer’s requirements. For vertical axes, the complete system should also include appropriate safeguards to prevent the load from dropping if the brake or power supply fails.

5. What causes overcurrent or overload faults during servo motor operation?

Overcurrent and overload faults may result from excessive mechanical load, a jammed transmission mechanism, aggressive acceleration settings, incorrect motor parameters, damaged cables, or an unsuitable drive configuration. Begin troubleshooting by recording the drive’s fault code and identifying when the fault occurs, such as during startup, acceleration, or steady operation. Inspect the mechanical system for binding, verify the motor power connections, and compare the commanded motion profile with the motor’s rated capabilities. Before inspecting electrical connections, isolate the power supply and follow the equipment manufacturer’s procedures for verifying that hazardous stored energy has been discharged.

6. What should be checked if the motor fails to start or the drive cannot recognize the encoder?

First, verify that the servo drive is powered correctly and that the emergency-stop circuit, safety interlocks, and enable signals permit operation. Next, check whether the correct motor catalog number and configuration have been selected in the drive software. Inspect the feedback cable, connector pins, shielding, and connection points for looseness or damage. If the drive continues to report an encoder fault, verify the feedback interface and cable compatibility against the applicable technical documentation. Avoid connecting or disconnecting feedback cables while the equipment is energized, as this may damage components or cause unexpected machine behavior.

7. How can operating temperature and mechanical vibration be reduced?

Excessive temperature and vibration can be caused by high load inertia, prolonged operation near the motor’s limits, incorrect servo tuning, poor shaft alignment, or mechanical resonance. Check the coupling alignment, mounting flange, transmission components, and cooling conditions before changing control parameters. If the mechanical installation is correct, review acceleration and deceleration profiles and adjust the speed and position loop settings according to the drive manufacturer’s tuning procedures. Avoid increasing control gains without evaluating system stability. Persistent vibration, abnormal noise, or excessive heating should be investigated before the motor returns to continuous production service.

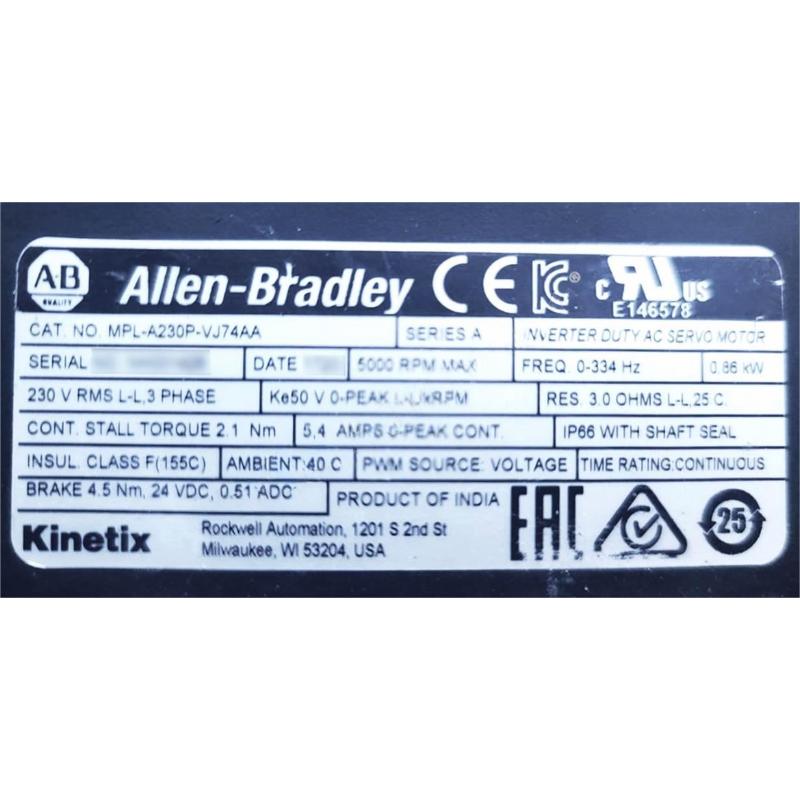

8. What should be verified when replacing the MPL-A230P-VJ74AA with another servo motor?

Before replacement, compare the complete catalog number and verify the electrical, mechanical, and feedback specifications. Important considerations include rated voltage, continuous and peak torque, rated speed, encoder type, brake configuration, shaft design, flange dimensions, and connector arrangement. A motor with the same frame size may still have different feedback or braking requirements and may not be a direct replacement. After installation, inspect the power and feedback connections, verify the motor configuration in the drive, and test the brake operation according to the manufacturer’s procedure. Perform initial motion tests at low speed and under controlled load conditions, confirming direction, feedback stability, and fault-free operation before restoring normal production.
