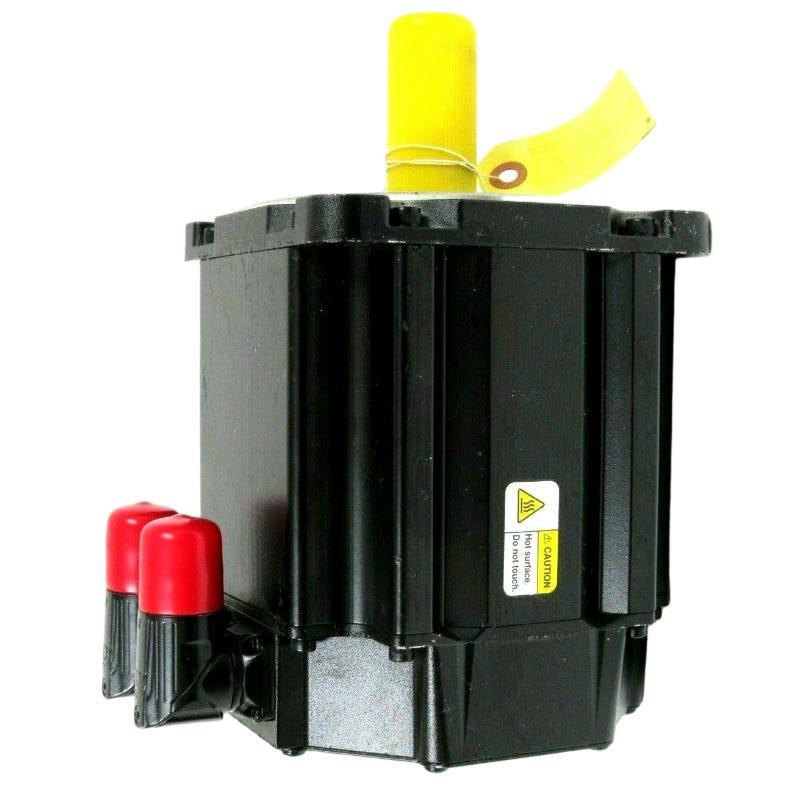

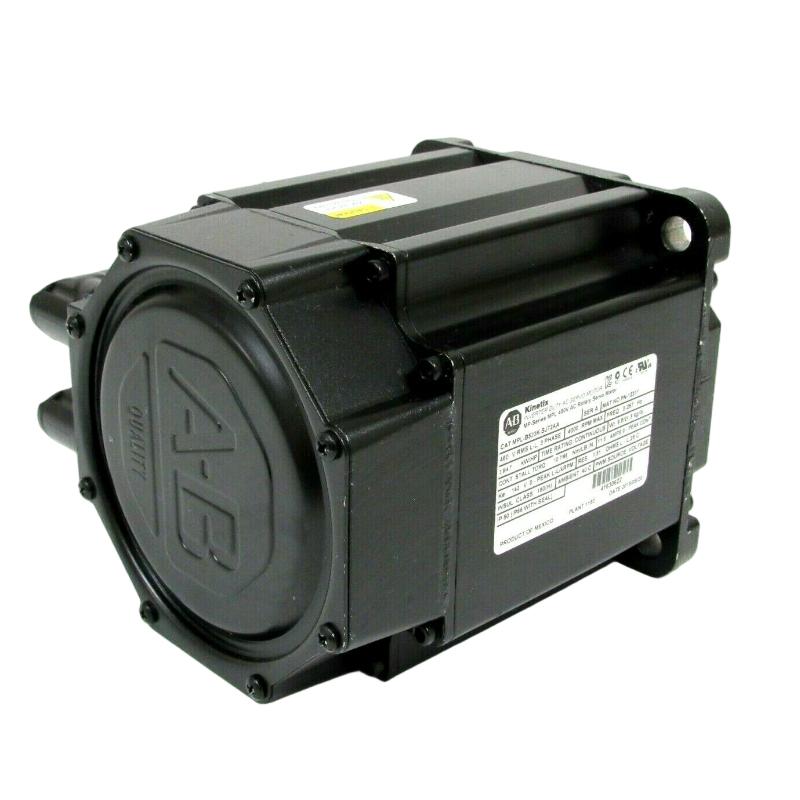

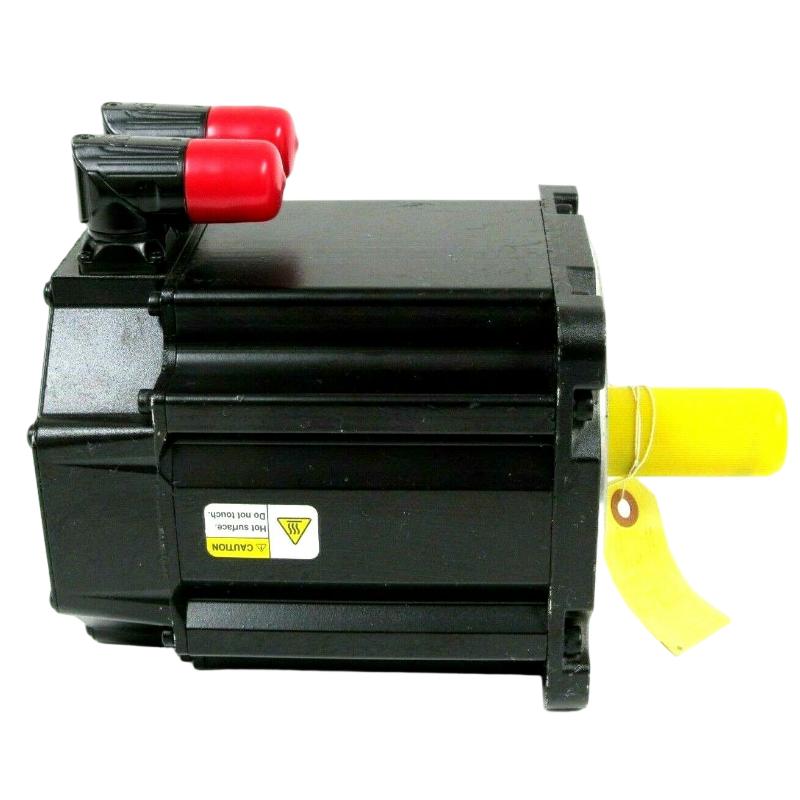

Allen Bradley MPL-A310F-MJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPL-A310F-MJ72AA |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3000 rpm |
| Continuous Stall Torque | 1.58 N·m |
| Peak Torque | 3.61 N·m |
| Continuous Rated Output Power | 0.46 kW |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Encoder Resolution | Sin/Cos, 1024 cycles/revolution |
| Brake | No Integrated Brake |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No Shaft Seal |
| Connector Type | SpeedTEC DIN Circular Connector, Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange, Free Mounting Holes |
| Protection Rating | IP50 without shaft seal; IP66 with optional shaft seal and suitable environmentally sealed cable connectors |
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% RH |
| Rotor Inertia | 4.4 × 10⁻⁵ kg·m² |
| Compatible Drive Series | Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, Ultra 3000; verify compatibility with the specific drive configuration |
| Weight | 2.7 kg |
FAQ
1. What applications is the Allen-Bradley MPL-A310F-MJ72AA suitable for?
The MPL-A310F-MJ72AA is a low-inertia servo motor designed for applications requiring responsive acceleration, precise positioning, and stable speed control. Typical uses include packaging machinery, automated assembly systems, material handling equipment, and industrial positioning systems. Motor selection should account for load inertia, operating cycles, acceleration requirements, and continuous torque demand.
2. What type of encoder does the MPL-A310F-MJ72AA use?
This model uses a multi-turn, high-resolution absolute encoder with Hiperface feedback. The encoder supplies position information to a compatible servo drive for closed-loop motion control. Before installation, confirm that the drive supports the encoder protocol and that the feedback cable and connector are compatible with the motor.
3. Which servo drives are compatible with this motor?
The motor is listed for use with selected Allen-Bradley Kinetix and Ultra servo drive families, including Kinetix 5500, 6000, 6200/6500, 300, 350, 2000, 7000, and Ultra 3000. Compatibility depends on the exact drive model, feedback interface, electrical ratings, and system configuration. Verify the drive documentation before commissioning.
4. Does the MPL-A310F-MJ72AA include a holding brake?
No. This model does not have an integrated brake. If the application requires a load to remain stationary after power is removed, an appropriate external holding or mechanical braking arrangement may be necessary. This is particularly important for vertical axes, where an unsupported load could move under gravity.
5. What should be checked if the motor reports an overcurrent or overload fault?
Check for mechanical binding, excessive load, incorrect acceleration settings, and problems with the motor power connections. Review the servo drive’s fault code and current history to determine when the fault occurs. If the alarm appears during acceleration or frequent direction changes, assess whether the load inertia and torque demand are within the system’s operating limits.
6. How can encoder feedback faults be diagnosed?
Start by checking the feedback cable, connector pins, cable shielding, and grounding. Inspect the drive’s diagnostic information for encoder communication or position feedback errors. Electrical interference, loose connections, damaged cables, or an incompatible feedback configuration can cause unstable operation. If the external connections are correct, further testing of the encoder and motor may be required.
7. Why might the motor overheat or vibrate during operation?
Potential causes include excessive mechanical load, poor coupling alignment, loose mounting, mechanical resonance, or unsuitable servo gain settings. Frequent acceleration and deceleration can also increase motor heating. Compare drive current and following-error data under different operating conditions, and inspect the mechanical transmission before changing control parameters.
8. What should be considered when replacing the MPL-A310F-MJ72AA?
Verify the complete catalog number and suffix, voltage class, rated speed, torque ratings, multi-turn absolute feedback protocol, keyed shaft, connector configuration, and mounting arrangement. Confirm that the replacement is supported by the existing drive and that the feedback and power cables match. A motor with similar power or appearance may still be unsuitable if its encoder, shaft, or electrical configuration differs.
Allen Bradley MPL-A310F-MJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
