1. What industrial applications is the MPL-A310F-HK72AA suitable for?

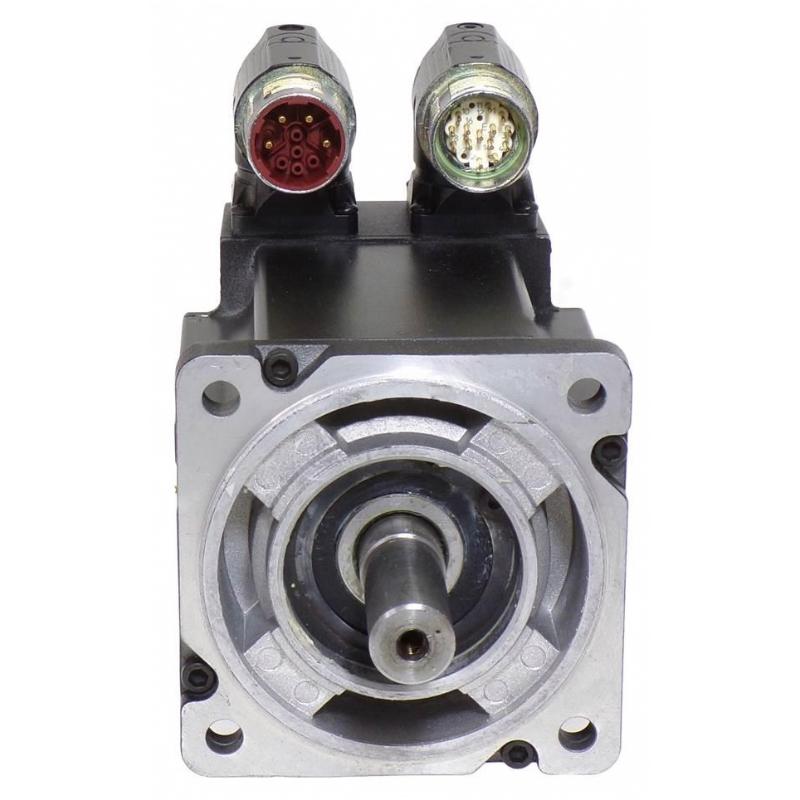

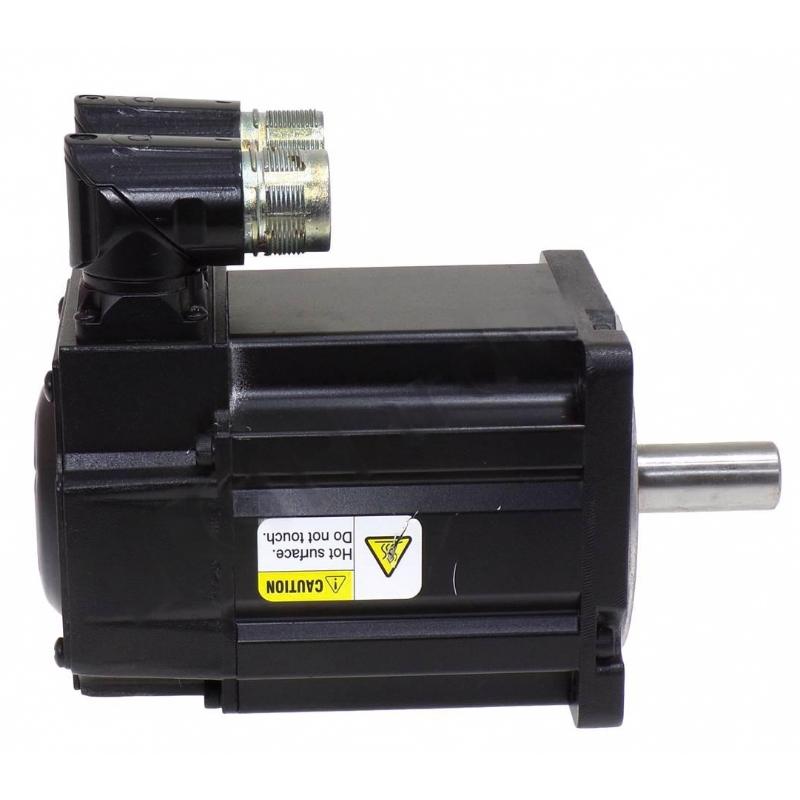

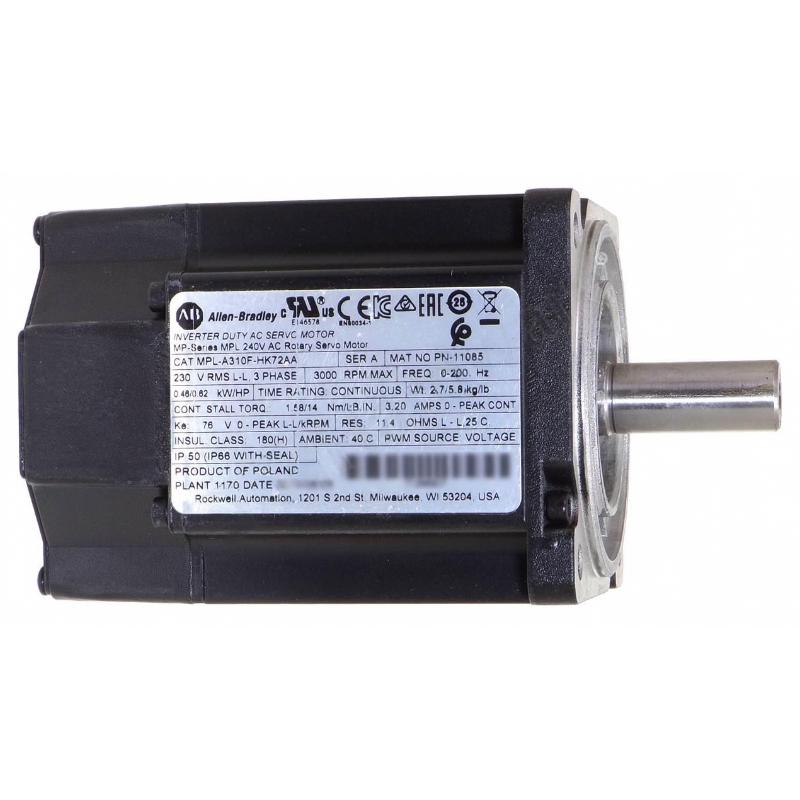

The MPL-A310F-HK72AA is a low-inertia brushless AC servo motor designed for industrial motion control applications that require accurate speed and position regulation. Typical uses include automated assembly equipment, packaging machinery, material handling systems, and precision positioning mechanisms. Its 3000 rpm rated speed and 1.58 N·m continuous stall torque make it suitable for appropriately sized loads requiring responsive acceleration and controlled movement. Before selecting this motor, evaluate the load inertia, operating cycle, acceleration requirements, and transmission characteristics to ensure that the motor can deliver stable performance under actual working conditions.

2. Which servo drives are compatible with the MPL-A310F-HK72AA?

The motor belongs to the Allen-Bradley MP-Series MPL family and can be integrated with compatible Kinetix and Ultra 3000 servo drive systems. Compatibility depends on the exact drive catalog number, feedback interface, firmware, and electrical configuration. Before installation, confirm that the drive supports the motor’s 200 V AC voltage class and incremental encoder feedback. Verify the required motor parameters and cable connections before enabling the system. Selecting a drive solely because it belongs to the same product family is insufficient; an incorrect configuration can cause startup faults, feedback errors, or unstable motion control.

3. How does the incremental encoder contribute to motion accuracy?

The incremental encoder generates electrical pulses as the motor shaft rotates. The servo drive uses these signals to calculate movement and regulate motor speed and position through closed-loop control. The specified feedback resolution is 2000 pulses per revolution, while the effective position count depends on the drive’s signal-processing and counting method. Because incremental feedback does not inherently provide an absolute shaft position after every power cycle, the machine may need a homing procedure to establish its reference point. Correct encoder wiring, suitable drive parameters, and proper electrical shielding are important for reliable position feedback.

4. Why does the MPL-A310F-HK72AA have no integrated holding brake?

This model is configured without an integrated holding brake, so it cannot mechanically hold a load when motor torque is removed. In applications involving vertical axes, suspended loads, or mechanisms that could move unexpectedly during a power interruption, an appropriately rated external brake or other load-retention mechanism may be necessary. The required solution depends on the mechanical design, drive functions, and safety requirements of the machine. During commissioning, verify how the system behaves during a controlled stop, emergency stop, and loss of power. Do not rely on the servo motor’s electromagnetic torque alone to provide safe mechanical holding.

5. What causes overcurrent or overload faults during operation?

Overcurrent and overload faults may be triggered by excessive load, mechanical binding, aggressive acceleration settings, incorrect motor parameters, or damaged power cables. Begin by recording the drive fault code and determining whether the alarm occurs during startup, acceleration, deceleration, or continuous operation. Check the driven mechanism for obstructions and confirm that the commanded motion remains within the motor’s operating capabilities. Inspect electrical connections only after isolating the power supply and verifying that stored electrical energy has been safely discharged. If the fault continues, review the drive configuration and motor diagnostics rather than repeatedly resetting the alarm without identifying its cause.

6. How should incremental encoder faults be diagnosed?

Start by checking the feedback cable, connector pins, and cable shielding for loose connections, physical damage, or electrical interference. Confirm that the drive is configured for the correct motor model and incremental encoder interface. Inspect whether feedback and power cables have been routed according to the manufacturer’s recommendations, since electrical interference can disrupt encoder signals. Review the drive’s diagnostic codes to determine whether the problem is related to signal loss, incorrect configuration, or possible encoder failure. If the fault persists after the wiring and settings have been verified, further testing by a qualified technician may be necessary.

7. How can overheating and vibration be minimized?

Excessive heating and vibration may result from high load inertia, poor shaft alignment, mechanical resonance, insufficient cooling, or unsuitable servo tuning. Inspect the mounting arrangement, coupling, and transmission mechanism for looseness or excessive friction. Confirm that the load profile and acceleration settings are appropriate for the motor’s capabilities. If the mechanical installation is correct, review the drive’s tuning parameters using the manufacturer’s procedures and check the system for resonance. Avoid making large control-gain adjustments without stability testing. Persistent overheating, unusual noise, or repeated vibration faults should be investigated before returning the machine to normal production.

8. What should be checked when replacing the MPL-A310F-HK72AA?

Before replacement, verify the complete catalog number, voltage class, rated speed, torque requirements, incremental encoder, keyless shaft, connector arrangement, and mounting interface. A replacement motor must also be compatible with the existing servo drive and motion-control configuration. This model was discontinued by the manufacturer on July 23, 2024, and the suggested engineering replacement is MPL-A310F-SK72AA. However, the replacement should still be checked against the actual machine requirements and existing drive configuration before installation. After replacement, verify all electrical connections, confirm encoder feedback and rotation direction, and conduct controlled motion tests before returning the equipment to production.
