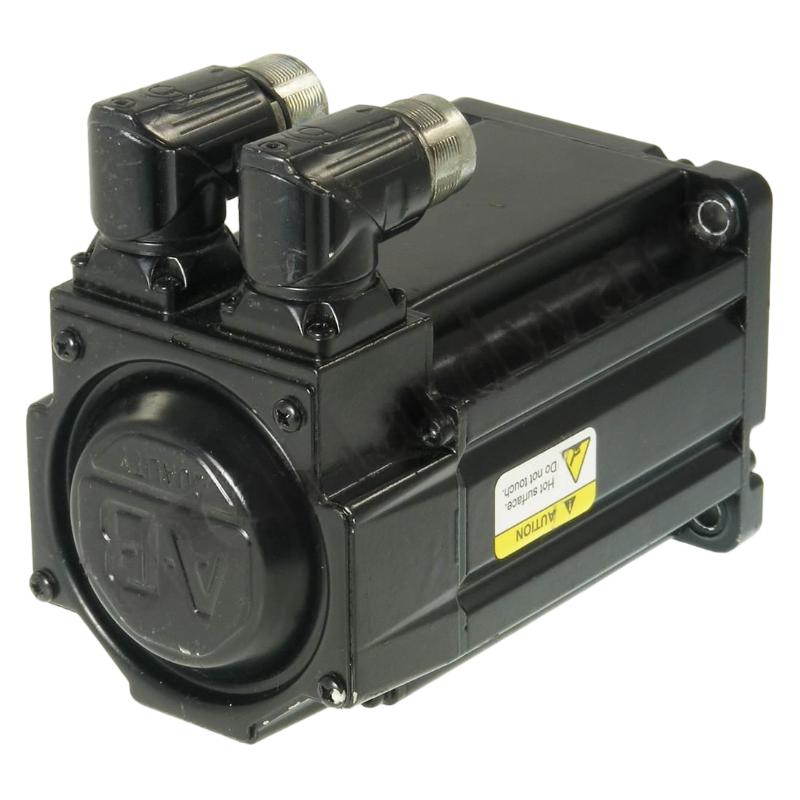

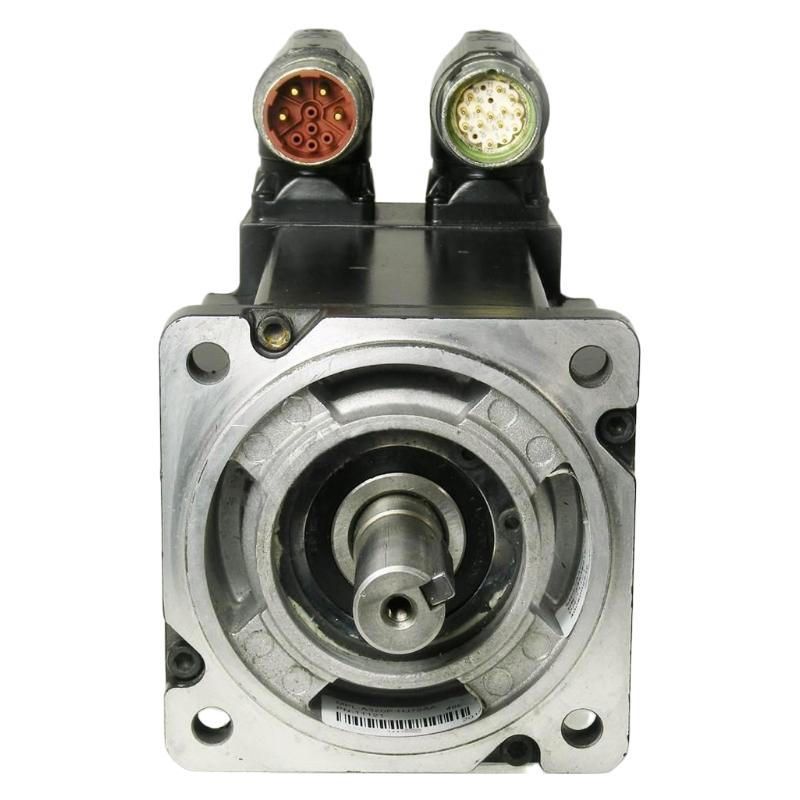

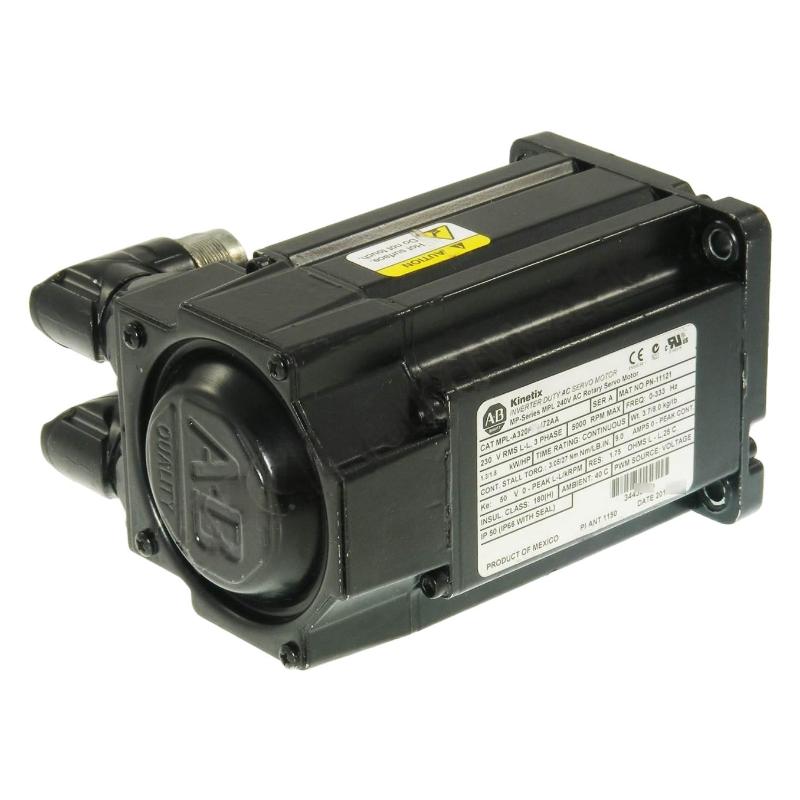

Allen Bradley MPL-A320H-SK72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A320H-SK72AA |
| Product Type | Low-Inertia Brushless Servo Motor |
| Motor Type | AC Rotary Servo Motor |
| Voltage Class | 200 V AC |
| Rated Power | 1 kW |
| Rated Speed | 3500 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback Device | High-Resolution Absolute Encoder |
| Encoder Protocol | Hiperface |
| Encoder Resolution | 1024 cycles/revolution (Sin/Cos) |
| Shaft Type | Keyless Shaft |
| Shaft Seal | No |
| Brake | No |
| Connector Type | Right-Angle SpeedTEC DIN Circular Connector |
| Connector Orientation | Rotatable 180° |
| Mounting Type | IEC Metric Flange Mounting |
| Protection Rating | IP50 |
| Rotor Inertia | 7.8 × 10⁻⁵ kg·m² |
| Maximum Operating Temperature | 40°C |
| Weight | 3.7 kg |
FAQ
Q1: What is the Allen-Bradley MPL-A320H-SK72AA servo motor?
A: The MPL-A320H-SK72AA is a low-inertia brushless AC servo motor designed for precision motion control. It is suitable for industrial automation systems that require accurate positioning, responsive acceleration, and stable speed control.
Q2: What is the rated power of the MPL-A320H-SK72AA?
A: This servo motor has a rated continuous power of 1 kW. Its power and torque characteristics make it suitable for applications involving frequent starts, stops, and controlled positioning.
Q3: What is the rated speed of this servo motor?
A: The MPL-A320H-SK72AA has a rated speed of 3500 RPM. Actual operating performance depends on the servo drive, load conditions, control settings, and application requirements.
Q4: Which feedback device does the MPL-A320H-SK72AA use?
A: The motor uses a high-resolution absolute encoder with Hiperface feedback. This feedback system provides position and speed information to support precise motion control when paired with a compatible servo drive.
Q5: Does the MPL-A320H-SK72AA include a holding brake?
A: No. This model does not include an integrated holding brake. If the application requires the motor to hold a vertical load or maintain position when power is removed, an appropriate external braking or load-holding solution may be necessary.
Q6: Is the MPL-A320H-SK72AA compatible with every servo drive?
A: No. Compatibility depends on the drive’s voltage class, motor feedback interface, power rating, and supported motor configuration. Confirm the drive model and system requirements before installation or replacement.
Q7: What applications is the MPL-A320H-SK72AA suitable for?
A: Typical applications include automated assembly equipment, packaging machinery, material handling systems, and other industrial machines requiring accurate positioning and dynamic motion control. Final suitability depends on the required torque, speed, duty cycle, and mechanical configuration.
Q8: What should be checked when replacing an MPL-A320H-SK72AA servo motor?
A: Verify the complete model number, mounting dimensions, shaft configuration, connector orientation, encoder compatibility, voltage class, and torque requirements. Also inspect the motor cable and servo drive settings before commissioning to help ensure reliable operation.
Allen Bradley MPL-A320H-SK72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
