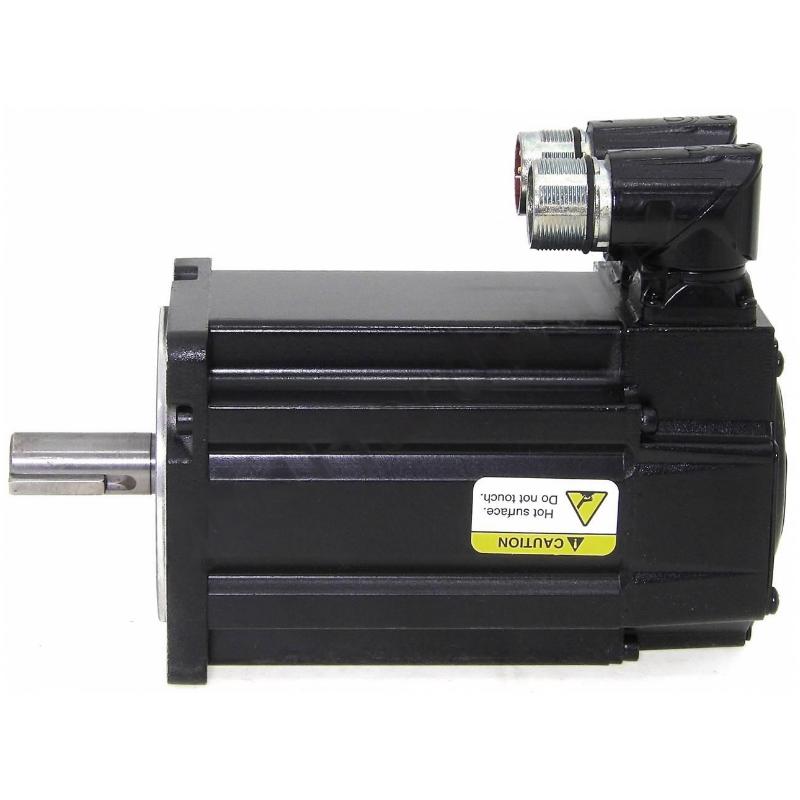

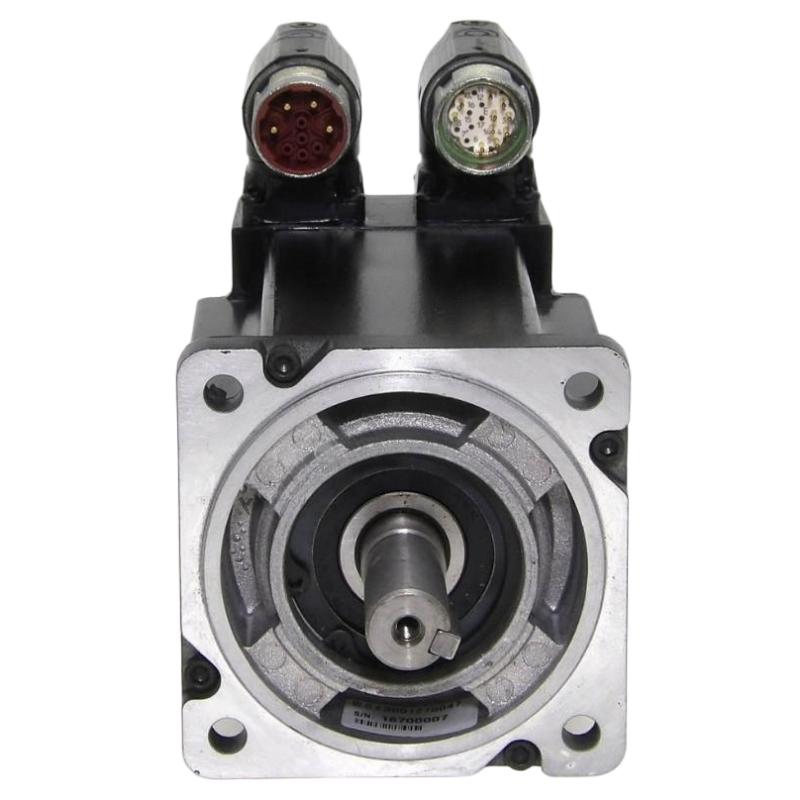

Allen Bradley MPL-A320P-MJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

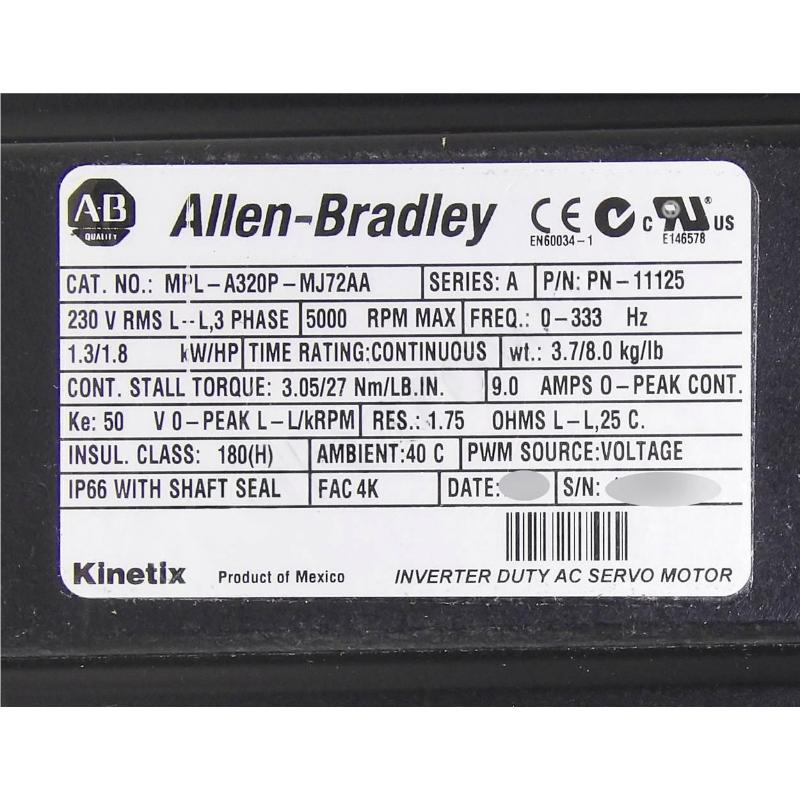

Technical Specifications
| Parameter | Description |
|---|---|
| Model | MPL-A320P-MJ72AA |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Series | MP-Series MPL |
| Product Type | AC Brushless Low-Inertia Servo Motor |
| Voltage Class | 200 V AC |
| Armature Voltage | 230 V |
| Continuous Rated Power | 1.3 kW |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Feedback Device | Multi-turn Absolute High-Resolution Encoder |
| Encoder Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft |
| Holding Brake | No Integrated Brake |
| Connector Type | SpeedTEC DIN Circular Connector |
| Connector Orientation | Right-Angle Connector, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Magnet Stack Length | 50.8 mm |
| Frame Size | 100 mm |
| Weight | 3.7 kg |
| Protection Rating | IP50 (Without Shaft Seal) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Rotor Inertia | 7.8 × 10⁻⁵ kg·m² |
| Compatible Servo Drives | Kinetix 5500, 6000, 6200, 6500, 300, 350, 2000, 7000, Ultra 3000 (subject to drive and configuration compatibility) |
FAQ
1. What type of servo motor is the Allen-Bradley MPL-A320P-MJ72AA?
The Allen-Bradley MPL-A320P-MJ72AA is an AC brushless low-inertia servo motor from the MP-Series MPL family. It is designed for industrial motion control applications that require accurate speed regulation, responsive acceleration, and precise positioning. Its low-inertia rotor design supports dynamic motion profiles in automated machinery.
2. What applications is the MPL-A320P-MJ72AA suitable for?
This servo motor can be used in packaging equipment, automated assembly lines, material handling systems, indexing machinery, and other industrial automation applications. It is suitable for systems that require controlled motion, repeatable positioning, and rapid changes in operating speed. Final selection should consider the machine’s load inertia, torque requirements, duty cycle, and operating environment.
3. Which servo drives can be used with the MPL-A320P-MJ72AA?
The motor belongs to the Allen-Bradley MP-Series MPL family and may be used with compatible Rockwell Automation servo drive systems. Drive selection should be based on the motor’s electrical ratings, feedback interface, connector configuration, and the specific drive’s supported motor profiles. Always verify compatibility using the drive and motor documentation before installation.
4. What feedback system does this servo motor use?
The MPL-A320P-MJ72AA is specified with a multi-turn absolute high-resolution encoder and Hiperface feedback. This feedback system provides position information to the servo drive, supporting accurate motion control and positioning. Correct feedback wiring and parameter configuration are essential for reliable operation.
5. Does the MPL-A320P-MJ72AA have an integrated holding brake?
The configuration listed for this model does not include an integrated holding brake. If the application requires the motor shaft to remain stationary when power is removed, an appropriately engineered external holding or mechanical braking solution may be necessary. The machine’s safety requirements should be evaluated separately.
6. What should be checked if the servo motor experiences positioning errors?
Start by checking the feedback cable, connector condition, grounding, and shielding. Then verify the motor configuration and feedback parameters in the servo drive. Mechanical factors such as coupling misalignment, excessive backlash, loose mounting hardware, or unexpected load changes can also cause positioning errors. Review drive alarms and diagnostic data before replacing components.
7. How can overheating of the MPL-A320P-MJ72AA be prevented?
Check whether the motor is operating within its rated torque, speed, and duty-cycle limits. Excessive mechanical load, frequent acceleration and deceleration, poor ventilation, incorrect drive tuning, or unsuitable operating conditions may contribute to overheating. Inspect the motor installation and load system, and review drive current and temperature-related diagnostics.
8. What maintenance is recommended for the MPL-A320P-MJ72AA servo motor?
Regular maintenance should include inspecting the motor housing, mounting bolts, shaft coupling, connectors, and cables. Check for unusual noise, vibration, excessive temperature, and signs of contamination. Also review servo drive alarms and feedback performance. Maintenance intervals should be determined by the operating environment, machine duty cycle, and the manufacturer’s maintenance recommendations.
Allen Bradley MPL-A320P-MJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
