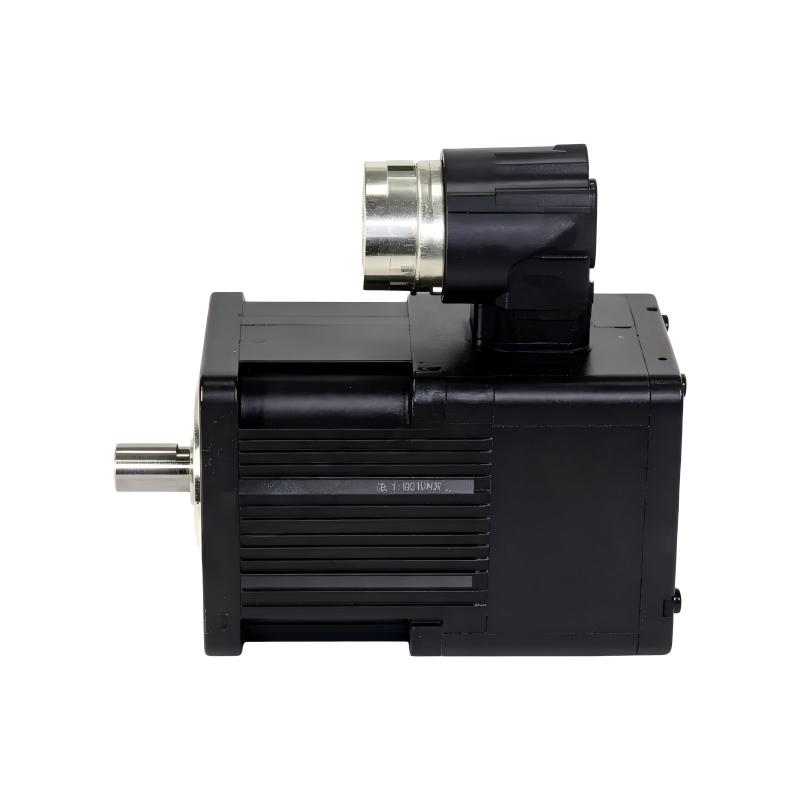

Allen-Bradley MPL-B1520U-VJ72AA MP-Series Low-Inertia Rotary Servo Motor
The Allen-Bradley MPL-B1520U-VJ72AA is a low-inertia brushless AC servo motor designed for precision motion control in industrial automation systems. It features a 460 V AC rating, a 63 mm frame, a keyed shaft, and a high-resolution multi-turn absolute encoder. Its compact construction and high-speed capability make it suitable for automated machinery, positioning systems, and other applications requiring accurate and responsive motion control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B1520U-VJ72AA |
| Product Type | Low-Inertia Rotary Servo Motor |
| Product Series | MP-Series |
| Motor Technology | Brushless AC Servo |
| Voltage Rating | 460 V AC |
| Voltage Class | 400 V class |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm (2 in.) |
| Rated Speed | 7,000 RPM |
| Rated Output Power | 0.27 kW |
| Continuous Stall Torque | 0.49 N·m |
| Peak Stall Torque | 1.58 N·m |
| Feedback Device | Multi-turn high-resolution absolute encoder |
| Shaft Type | Keyed shaft extension |
| Shaft Seal | No shaft seal |
| Holding Brake | No brake |
| Connector | Right-angle SpeedTEC DIN connector, rotatable 180° |
| Mounting | IEC metric flange, free mounting holes (Type FF) |
| Protection Rating | IP50 standard configuration; verify the required protection level for the installation |
| Operating Temperature | 0–40°C |
| Dimensions | 165 mm |
| Weight | Approximately 1.28 kg |
| Product Status | Active according to the manufacturer’s product listing |
FAQ
Q1: What is the Allen-Bradley MPL-B1520U-VJ72AA?
The MPL-B1520U-VJ72AA is a low-inertia brushless AC servo motor from the MP-Series, designed for industrial automation and precision motion-control applications.
Q2: What is the rated voltage of this servo motor?
The motor is designed for 460 V AC systems and belongs to the 400 V voltage class. Always verify drive compatibility before installation.
Q3: What is the maximum rated speed?
The specified rated speed is 7,000 RPM. Actual operating speed depends on the servo drive configuration, mechanical load, and application requirements.
Q4: What feedback system does the motor use?
It uses a multi-turn high-resolution absolute encoder to provide position feedback for accurate motion control.
Q5: Does the MPL-B1520U-VJ72AA include a holding brake?
No. This model is supplied without a holding brake. Applications requiring load holding must provide an appropriate external solution where necessary.
Q6: What are the shaft and connector configurations?
The motor has a keyed shaft extension and a right-angle SpeedTEC DIN connector that can rotate 180 degrees, helping accommodate different installation layouts.
Q7: What are the dimensions and weight of this model?
The frame size is 63 mm, and the magnet stack length is 50.8 mm. The listed weight is approximately 1.28 kg. Confirm the complete dimensions and weight against the applicable manufacturer’s documentation before installation.
Q8: What should be checked when replacing this servo motor?
Verify the voltage rating, encoder compatibility, shaft dimensions, mounting arrangement, connector type, torque requirements, and brake requirements. The replacement must be compatible with the existing servo drive and control system.
Allen-Bradley MPL-B1520U-VJ72AA MP-Series Low-Inertia Rotary Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
