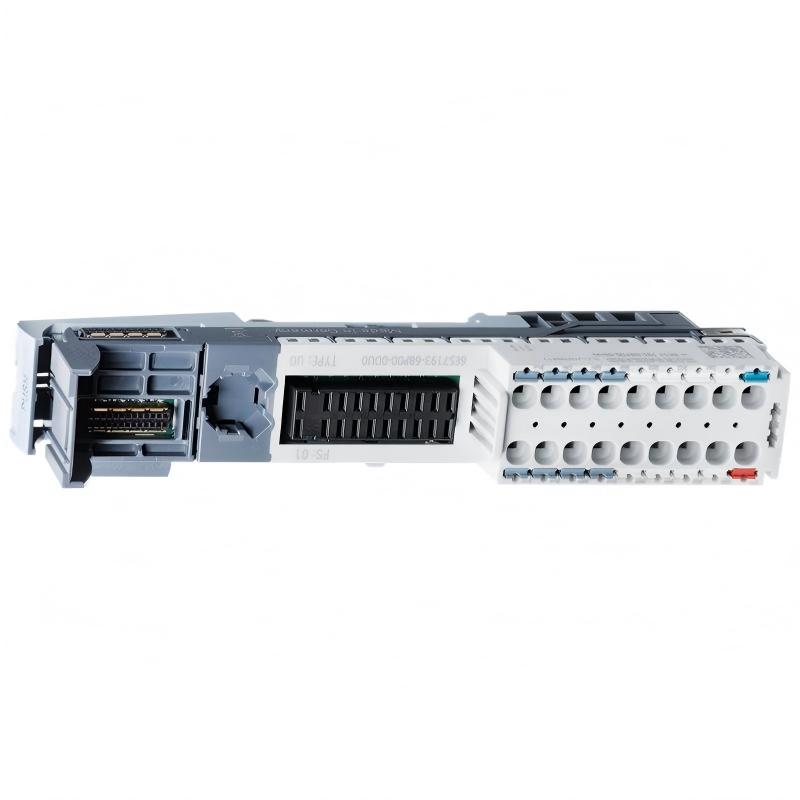

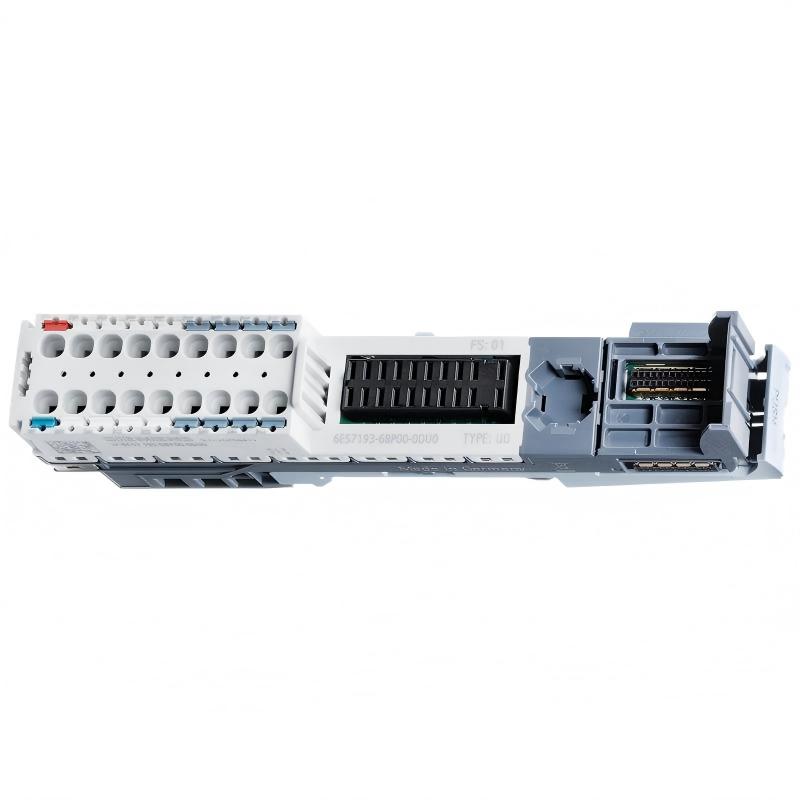

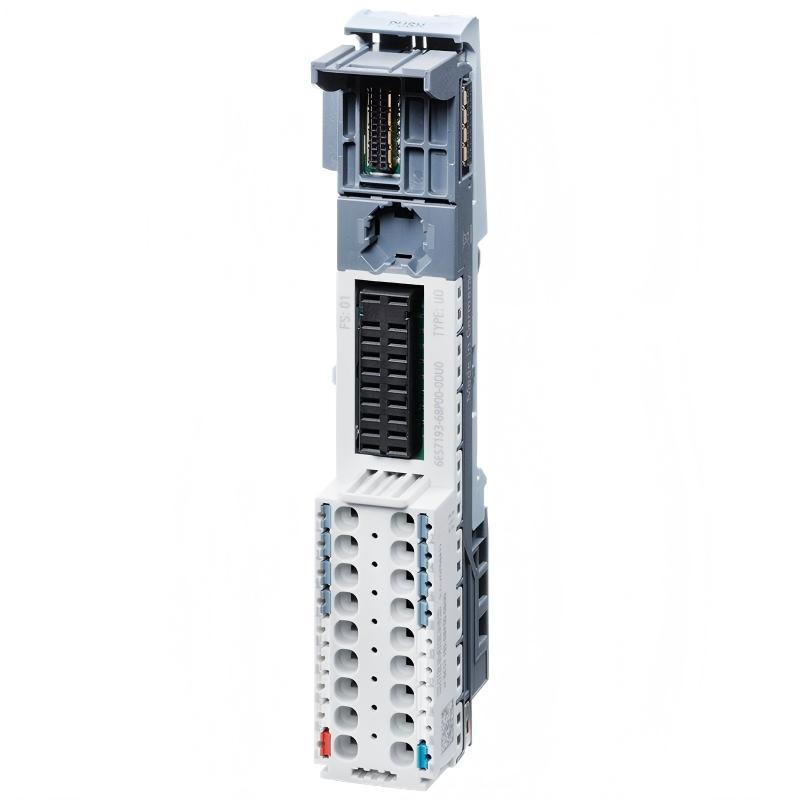

Siemens 6AG1193-6BP00-7DU0 Base Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Siemens |
| Model | 6AG1193-6BP00-7DU0 |
| Product Type | SIPLUS ET 200SP BaseUnit |
| Base Model | 6ES7193-6BP00-0DU0 |
| Product Designation | BU20-P16+A0+2D |
| BaseUnit Type | U0 |
| Application | BaseUnit for distributed I/O systems |
| Terminal Type | Push-in terminals |
| Number of Process Terminals | 16 |
| P1/P2 Bus Terminals | 2 |
| AUX Terminals | None |
| Potential Group | Starts a new potential group |
| Potential Group Continuation | Not bridged from the left |
| Number of Slots | 1 |
| Rated DC Voltage | 120 V DC |
| Rated AC Voltage | 240 V AC; 400 V AC for L1–L2–L3 |
| Maximum Current-Carrying Capacity | 10 A |
| Maximum P1/P2 Bus Current | 10 A |
| Electrical Isolation | Isolation between the backplane bus and supply voltage |
| Isolation Test Voltage | 2,545 V DC for 2 seconds |
| Environmental Protection | Conformal coating |
| Operating Temperature, Horizontal Installation | -40°C to +70°C |
| Operating Temperature, Vertical Installation | -40°C to +50°C |
| Compatible System | Siemens SIMATIC ET 200SP |
| Dimensions | 20 × 117 × 35 mm |
| Weight | 0.05 kg |
FAQ
Q1: What is the main function of the Siemens 6AG1193-6BP00-7DU0 BaseUnit?
The 6AG1193-6BP00-7DU0 provides the electrical connection and mounting interface for compatible I/O modules in a Siemens SIMATIC ET 200SP station. It supports field wiring and power distribution within the distributed automation system.
Q2: What is the difference between the 6AG1193-6BP00-7DU0 and the 6AG1193-6BP00-7BU0?
Both are SIPLUS ET 200SP BaseUnits with U0 type designations and 16 process terminals. The 7DU0 is designed to start a new potential group, while the 7BU0 is designed to continue the potential group from the left. Select the version according to the station’s power-distribution layout.
Q3: Which terminal technology does this BaseUnit use?
It uses Push-in terminals, allowing compatible conductors to be connected without conventional screw tightening. Follow the specified conductor types, wire preparation requirements, and installation procedures when wiring the unit.
Q4: What are the voltage and current ratings of the 6AG1193-6BP00-7DU0?
The published specifications list a rated voltage of 120 V DC and 240 V AC, with 400 V AC specified for three-phase L1–L2–L3 applications. The maximum current-carrying capacity is 10 A. Always verify the permitted voltage and wiring arrangement for the specific circuit before installation.
Q5: Can this BaseUnit be used in harsh industrial environments?
The SIPLUS version features conformal coating and an extended operating temperature range. It is designed for demanding industrial conditions, but suitability still depends on the actual temperature, humidity, chemical exposure, and installation environment.
Q6: Does the 6AG1193-6BP00-7DU0 have AUX terminals?
No. This model has no AUX terminals. It provides 16 process terminals for the I/O module and two terminals connected to the P1/P2 bus. Additional auxiliary distribution requirements must be addressed through an appropriate system configuration.
Q7: Which I/O modules are compatible with this BaseUnit?
The BaseUnit is designed for the SIMATIC ET 200SP platform. Compatibility should be checked against the selected I/O module’s requirements, including BaseUnit type, potential-group arrangement, voltage rating, and wiring configuration.
Q8: What should be checked when replacing a faulty 6AG1193-6BP00-7DU0?
Confirm the full order number and the required BaseUnit type. Check the potential-group arrangement, terminal wiring, voltage and current ratings, and the condition of connected conductors. Before replacing the unit, isolate the power supply and follow the applicable Siemens safety and installation instructions.
Siemens 6AG1193-6BP00-7DU0 Base Unit is in stock. Please contact us for a quick quote and competitive pricing.
