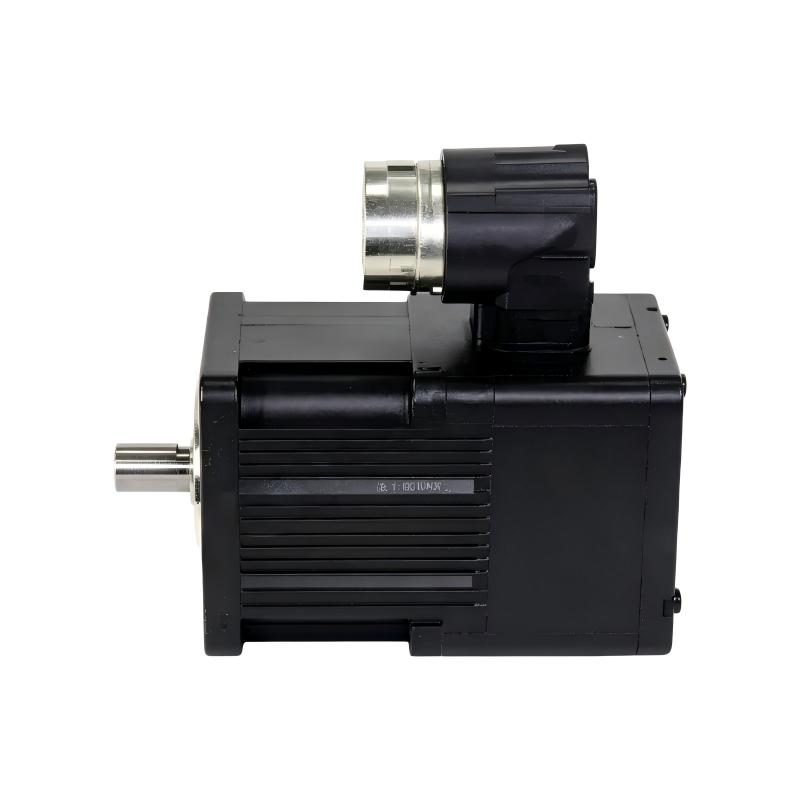

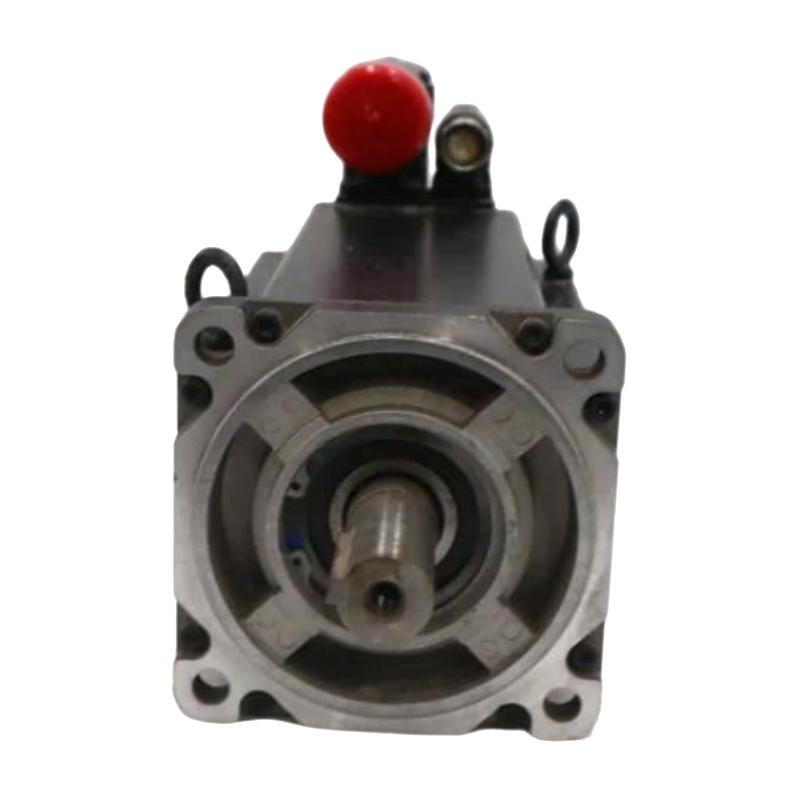

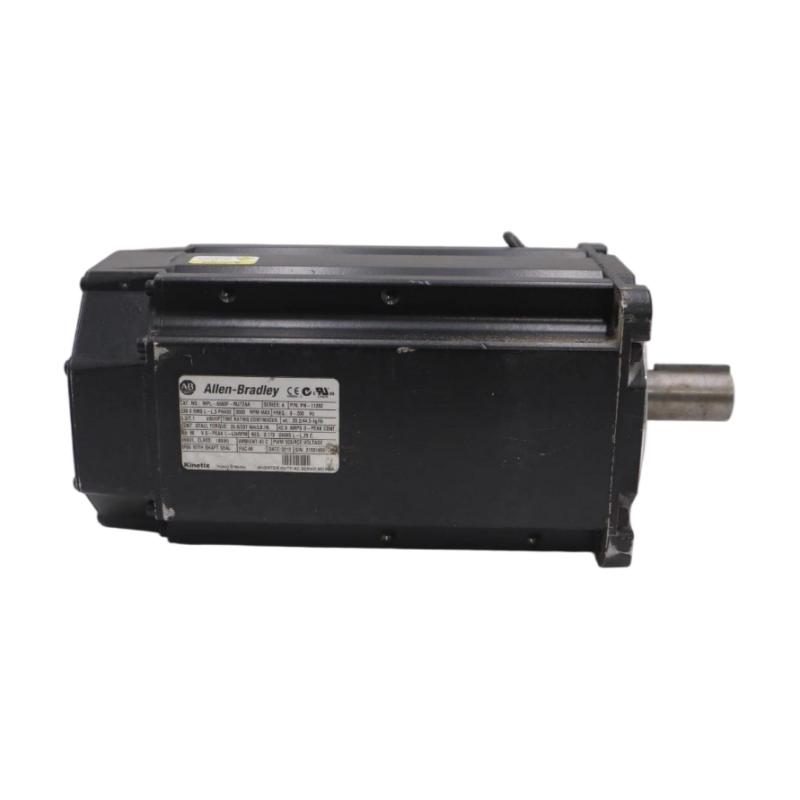

Allen-Bradley MPL-B1520U-VJ74AA MP-Series Low-Inertia Rotary Servo Motor
The Allen-Bradley MPL-B1520U-VJ74AA is a low-inertia brushless AC servo motor designed for precision motion control in industrial automation. It features a 63 mm frame, a 50.8 mm magnet stack, high-resolution multi-turn absolute feedback, and an integrated 24 V DC holding brake. Its compact design and high-speed performance make it suitable for automated machinery, positioning systems, and applications requiring accurate, repeatable motion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B1520U-VJ74AA |
| Product Type | Low-Inertia Rotary Servo Motor |
| Product Series | MP-Series |
| Motor Technology | Brushless AC Servo |
| Voltage Class | 400 V class |
| Rated System Voltage | 460 V AC |
| Frame Size | 63 mm (2.48 in.) |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Rated Speed | 7,000 RPM |
| Continuous Stall Torque | Approximately 0.49 N·m |
| Peak Stall Torque | Approximately 1.58 N·m |
| Feedback Device | Multi-turn high-resolution absolute encoder |
| Shaft Type | Keyed shaft extension |
| Shaft Seal | No shaft seal in standard configuration |
| Holding Brake | 24 V DC |
| Connector | 7-pin SpeedTEC DIN connector, right-angle, 180° rotatable |
| Mounting Flange | IEC metric, free mounting holes (Type FF) |
| Protection Rating | IP50 without shaft seal; higher protection depends on configuration |
| Operating Temperature | 0–40°C |
| Dimensions | 165 mm |
| Weight | Approximately 1.2kg, depending on the specification source |
| Product Status | Active in the manufacturer’s product listing |
FAQ
Q1: What is the Allen-Bradley MPL-B1520U-VJ74AA used for?
This servo motor is designed for industrial motion-control applications that require accurate positioning, controlled acceleration, and reliable speed regulation. Typical applications include automated machinery, indexing systems, and material-handling equipment.
Q2: What is the rated voltage of this motor?
The motor belongs to the 400 V class and is specified for 460 V AC systems. Confirm compatibility with the servo drive before installation.
Q3: What is the rated speed?
The specified rated speed is 7,000 RPM. Actual operating performance depends on the servo drive, load, and motion profile.
Q4: Does the motor include a holding brake?
Yes. The MPL-B1520U-VJ74AA includes an integrated 24 V DC holding brake. The brake is intended to hold a stationary load and should not be used as a substitute for a properly designed emergency-stop system.
Q5: What type of encoder does it use?
It uses a high-resolution multi-turn absolute encoder to provide position feedback to a compatible servo drive.
Q6: What shaft and connector configurations does this model have?
It features a keyed shaft extension and a right-angle, 180° rotatable 7-pin SpeedTEC DIN connector, providing flexibility for installation and cable routing.
Q7: What are the dimensions and weight of this servo motor?
The frame size is 63 mm, and the magnet stack length is 50.8 mm. Published specifications list a weight of approximately 1.2–1.4 kg. Consult the mechanical drawing for exact overall dimensions and mounting measurements.
Q8: What should be checked before replacing an existing servo motor with this model?
Verify the voltage class, encoder compatibility, brake wiring, shaft dimensions, mounting flange, connector type, and drive configuration. Matching the model number alone does not guarantee compatibility with the existing motion-control system.
Allen-Bradley MPL-B1520U-VJ74AA MP-Series Low-Inertia Rotary Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
