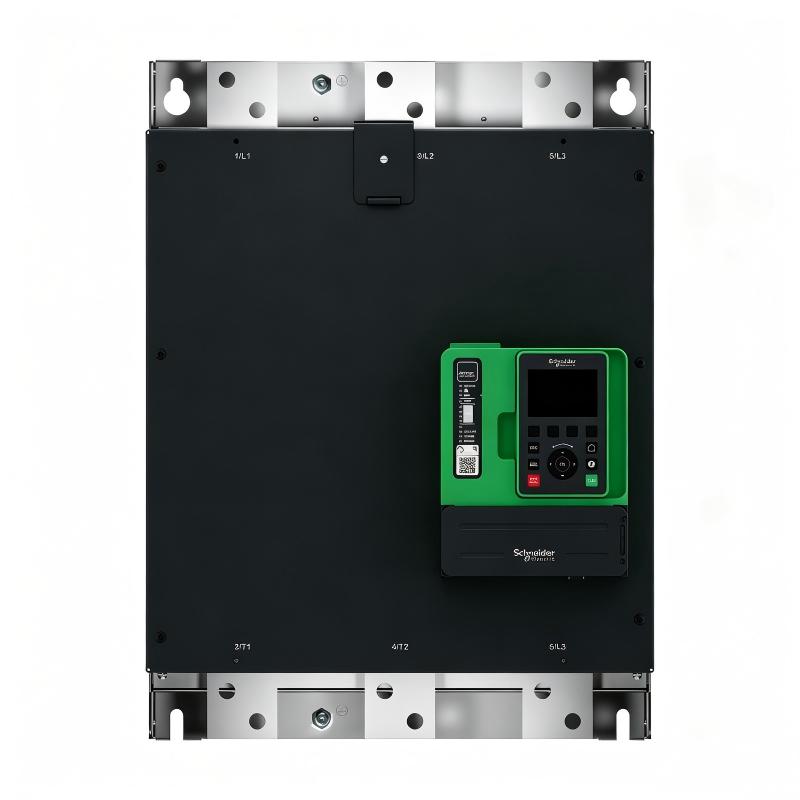

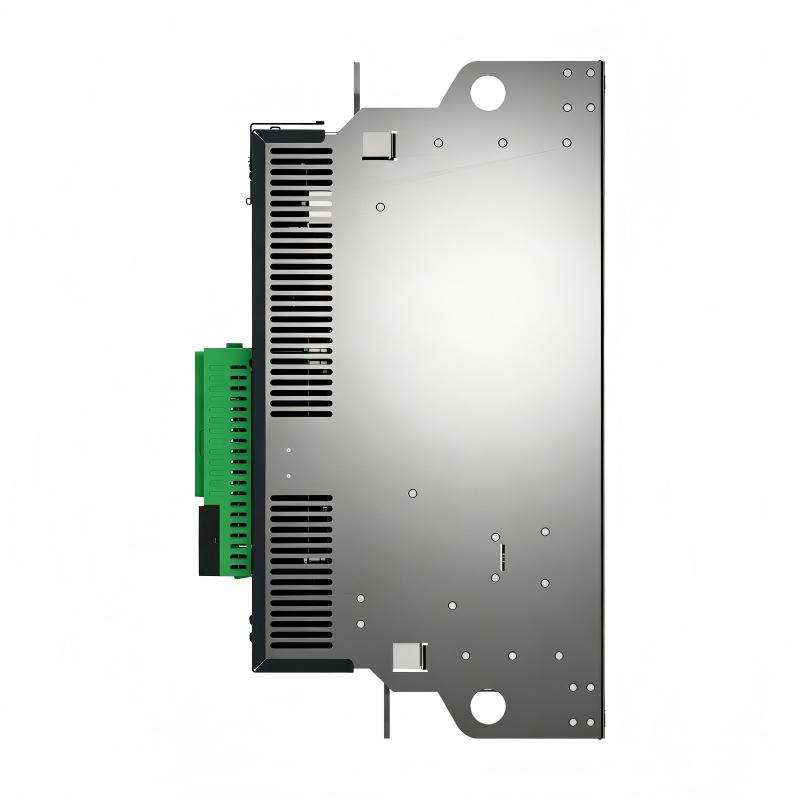

1. What is the main function of the Schneider ATS490C79Y?

The Schneider ATS490C79Y is a high-current soft starter designed to control the starting and stopping of large three-phase asynchronous AC motors. Rather than applying full line voltage to the motor immediately, it gradually controls the motor voltage and torque during acceleration. This reduces mechanical shock, limits starting stress and provides smoother motor acceleration. The 790 A current rating and 208–690 V AC operating range make it suitable for demanding industrial equipment. The ATS490 platform also provides advanced functions such as torque control, motor thermal protection, dynamic braking, DC injection, energy monitoring and equipment condition monitoring. An integrated bypass allows the motor to operate efficiently after the starting sequence has been completed.

2. What applications are suitable for the ATS490C79Y?

The ATS490C79Y is suitable for large industrial machines requiring controlled motor starting and stopping. Typical applications include pumps, fans, compressors, conveyors, crushers, mills and mixers. It is especially useful where direct-on-line starting could create excessive mechanical shock, high starting current or process disturbances. In pumping systems, controlled acceleration and deceleration can help reduce sudden pressure changes. In conveyor applications, smoother starting can reduce stress on belts, couplings and gearboxes. For fans and compressors, the soft starter can provide controlled acceleration for high-inertia loads. The correct selection should be based on the motor rated current, supply voltage, load characteristics, starting frequency and required operating duty.

3. What are the rated current and voltage specifications of the ATS490C79Y?

The ATS490C79Y has a 790 A rated operational current and supports an operational voltage range of 208–690 V AC. The control supply operates from 110–230 V AC. When selecting this soft starter, the motor’s actual rated current should be carefully compared with the applicable current rating of the unit. Motor power alone should not be used as the only selection criterion because actual motor current varies according to voltage, efficiency, power factor and operating conditions. The application duty must also be considered. A motor operating under heavy starting conditions may require different sizing from a motor operating under a relatively light load. The starting frequency, acceleration time, load inertia and ambient operating conditions should also be considered during selection.

4. Does the ATS490C79Y have an integrated bypass function?

Yes. The ATS490C79Y incorporates an integrated bypass function. After the motor has completed the controlled starting process, the bypass reduces the continuous losses associated with the soft-starting power components. This is particularly useful for motors that operate continuously for extended periods after startup. The bypass also helps reduce heat generation inside the control cabinet and can improve the overall efficiency of the motor starting system. The bypass does not replace upstream circuit protection, motor protection or electrical isolation. During commissioning, the bypass transition should be checked to ensure that the motor changes from the starting state to normal operation smoothly without unexpected current fluctuations or control interruptions.

5. What communication functions can be used with the ATS490C79Y?

The ATS490 platform supports several industrial communication options. Standard communication capabilities include Modbus TCP, EtherNet/IP and Modbus Serial Line, while optional communication interfaces can support PROFINET, CANopen and PROFIBUS DP V1. These communication functions allow the soft starter to exchange status information, operating data, alarms and control commands with PLCs, SCADA systems and other industrial automation equipment. Communication can also be used for monitoring motor operating conditions and integrating the soft starter into a larger plant control system. During commissioning, the network address, communication parameters, protocol configuration and PLC settings should be checked carefully. Incorrect addressing, incompatible settings or wiring problems can cause communication failures even when the power and motor control functions are operating normally.

6. What should be checked if the ATS490C79Y cannot start the motor properly?

Troubleshooting should begin by checking the three-phase input supply and confirming that the voltage is within the permitted operating range. Next, verify the motor wiring, motor rated current and programmed motor parameters. The mechanical load should also be inspected for blocked shafts, excessive friction, seized bearings, overloaded pumps or other conditions that require excessive starting torque. If the motor begins to accelerate but cannot reach normal speed, the current limitation and starting parameters should be reviewed. The control circuit should also be checked to confirm that the start command is being received correctly and that no external interlock is preventing operation. If the soft starter displays a fault, the diagnostic information should be reviewed before resetting the unit. Repeated resets without identifying the underlying problem should be avoided because the fault may be caused by a persistent electrical or mechanical condition.

7. What motor protection and monitoring functions are available on the ATS490C79Y?

The ATS490 platform provides multiple functions for monitoring and protecting the motor and soft starter. Electronic motor thermal protection can be used to monitor the motor’s thermal condition, while compatible temperature sensors include PTC, PT100, PT1000 and KTY devices. The system also supports condition monitoring for the soft starter and driven equipment. Energy and power quality monitoring functions provide additional information about the electrical operating condition of the motor system. These functions can be useful for preventive maintenance because abnormal current, temperature, power consumption or operating behavior can indicate developing mechanical or electrical problems. Properly configured monitoring parameters can therefore help maintenance personnel identify abnormal operating trends before they result in an unexpected shutdown or equipment failure.

8. What precautions should be followed when installing and commissioning the ATS490C79Y?

The ATS490C79Y is a high-current industrial soft starter, so installation and commissioning should be performed by qualified electrical personnel. The incoming power circuit must have suitable short-circuit protection and isolation, while the power cables and terminals must be correctly selected for the operating current and installation environment. The control cabinet should provide adequate ventilation and sufficient clearance for heat dissipation. Before energizing the equipment, verify the incoming voltage, motor voltage, motor rated current, phase connections, control supply, protective earth and all control wiring. Motor protection and starting parameters should then be configured according to the actual motor and mechanical load. The Safe Torque Off function should be integrated correctly into the machine safety system where required. During initial commissioning, the motor should first be operated under controlled conditions while checking acceleration, running current, bypass operation, stopping behavior and fault indications. Any abnormal current, overheating, vibration, unsuccessful acceleration or repeated fault should be investigated before the system is placed into continuous production operation.
