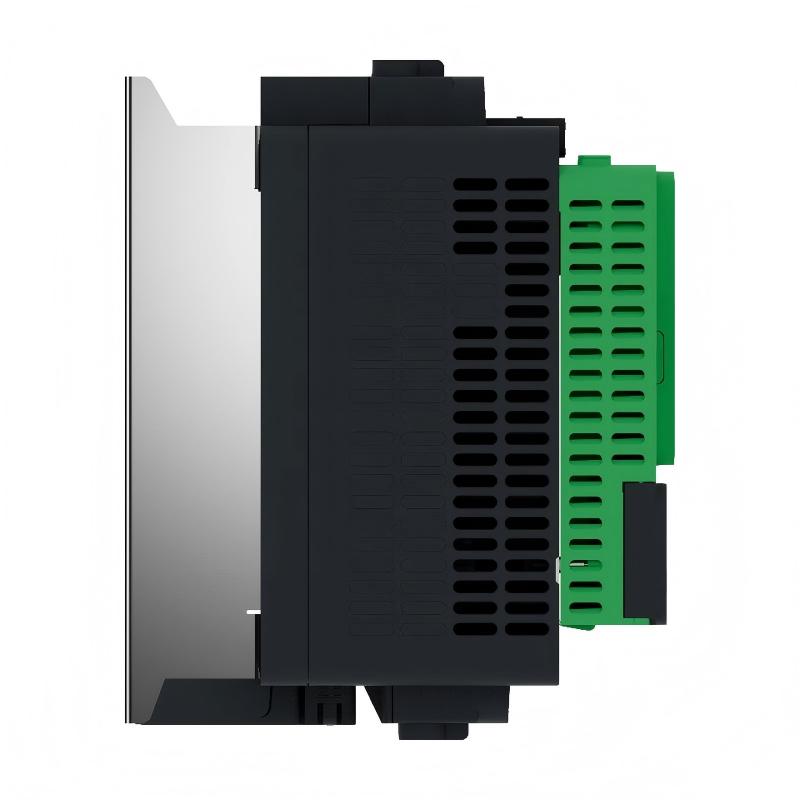

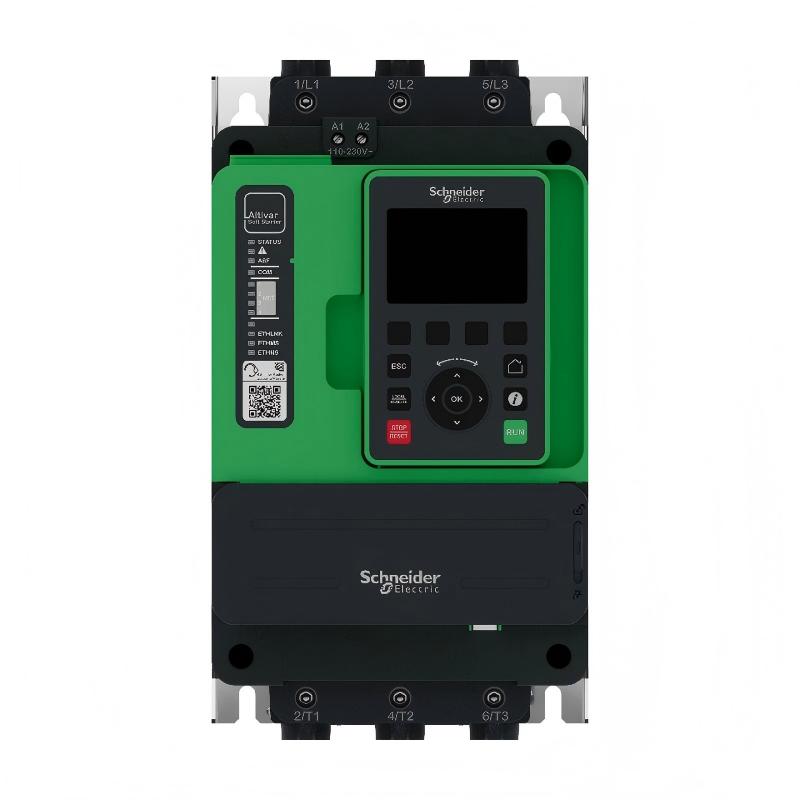

1. What is the main function of the Schneider ATS490D62Y?

The Schneider ATS490D62Y is a three-phase soft starter designed to provide controlled starting and stopping of asynchronous AC motors. Instead of applying the full supply voltage to the motor immediately, the soft starter manages the motor acceleration process to reduce mechanical shock and electrical stress. The unit has a rated operational current of 62 A under normal-duty conditions and supports supply voltages from 208 to 690 V AC. It is intended for process and infrastructure applications such as pumps, fans, compressors, conveyors, mixers, cutters, grinders and crushers. The ATS490D62Y also provides torque control, integrated motor protection, condition monitoring, power monitoring and an integrated bypass, making it suitable for applications where controlled motor operation and system monitoring are important.

2. What motor power can the ATS490D62Y control?

The applicable motor power depends on the supply voltage, connection method and operating duty. Under normal-duty operation, the ATS490D62Y can be used with motors rated up to 45 kW at 660–690 V AC when connected in the motor supply line. At 400 or 440 V AC, the corresponding normal-duty rating is 30 kW, while at 500 or 525 V AC it is 37 kW. For heavy-duty operation, the available motor power is lower because heavy-duty starting places greater thermal and electrical demands on the soft starter. For example, the heavy-duty rating is 22 kW at 400/440 V and 37 kW at 660/690 V. When selecting the unit, the motor’s actual rated current, starting requirements, load characteristics and operating cycle should be considered rather than selecting solely from the motor’s kW rating.

3. What is the difference between normal duty and heavy duty for the ATS490D62Y?

Normal-duty and heavy-duty operation represent different levels of thermal and starting stress placed on the soft starter. The ATS490D62Y is rated at 62 A for normal duty and 47 A for heavy duty at 40 °C. Heavy-duty applications generally involve more demanding starting conditions, higher inertia, longer acceleration or more frequent stressful starting cycles. Because the soft starter experiences greater thermal loading under these conditions, the permitted motor power is reduced compared with normal-duty operation. The correct duty rating should therefore be selected based on the actual machine operating cycle. A motor that appears suitable based on its power rating may still require a larger soft starter if it has a high-inertia load, frequent starts or a prolonged acceleration period.

4. Does the ATS490D62Y support torque control?

Yes. The ATS490D62Y provides torque control, allowing the motor starting and stopping process to be managed according to the torque requirements of the driven machine. Torque-based control can be particularly useful for applications where a simple voltage ramp does not provide sufficient control of the mechanical process. It can help produce smoother acceleration and deceleration while reducing unwanted mechanical stress. This is useful for equipment such as pumps, conveyors, mixers and other machinery where the load torque changes significantly during operation. During commissioning, torque-related parameters should be adjusted according to the actual motor and load characteristics. Excessively aggressive settings should be avoided because they may produce unnecessary motor current or mechanical stress.

5. What protection functions are available on the ATS490D62Y?

The ATS490D62Y provides a broad range of motor and system protection functions. These include mains phase failure detection, motor thermal protection, motor current overload protection, motor underload detection, excessive acceleration-time monitoring, motor phase-loss detection and protection against line phase inversion. It also supports external thermal protection and protection against short circuits between the motor phase and earth. Motor thermal protection is classified as Class 10E. These functions allow the soft starter to respond to abnormal electrical or mechanical conditions rather than simply operating until a serious fault occurs. Correct parameter configuration is important because protection thresholds should correspond to the connected motor and actual machine operating conditions.

6. What communication protocols are supported by the ATS490D62Y?

The ATS490D62Y provides standard communication through Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can extend connectivity to networks such as CANopen, PROFIBUS DP V1 and PROFINET. This allows the soft starter to be integrated with PLCs, SCADA systems, HMIs and other industrial automation equipment. Communication can be used to monitor motor current, operating status, alarms, fault conditions and other diagnostic information, while appropriate control commands can also be exchanged with the automation system. When commissioning communication, the network address, communication speed, protocol settings and PLC configuration should be checked carefully. A communication fault does not necessarily indicate a power-stage problem, so network troubleshooting should be performed separately from motor and power-circuit troubleshooting.

7. What should be checked if the ATS490D62Y trips during motor starting?

If the ATS490D62Y trips during startup, first check the incoming three-phase supply and confirm that the voltage is within the permitted 208–690 V AC range. Next, verify the motor rated current and confirm that the soft starter has been selected according to the correct normal-duty or heavy-duty requirements. The mechanical load should also be inspected for excessive friction, blockage, seized bearings, excessive inertia or a starting torque requirement beyond the application’s expected range. The programmed current limit and acceleration parameters should then be checked. A motor that takes too long to accelerate can create excessive thermal stress and trigger protection. Motor phase connections, phase sequence, thermal sensors and control signals should also be inspected. If the soft starter repeatedly trips after reset, the underlying fault should be identified before further operation rather than repeatedly resetting the device.

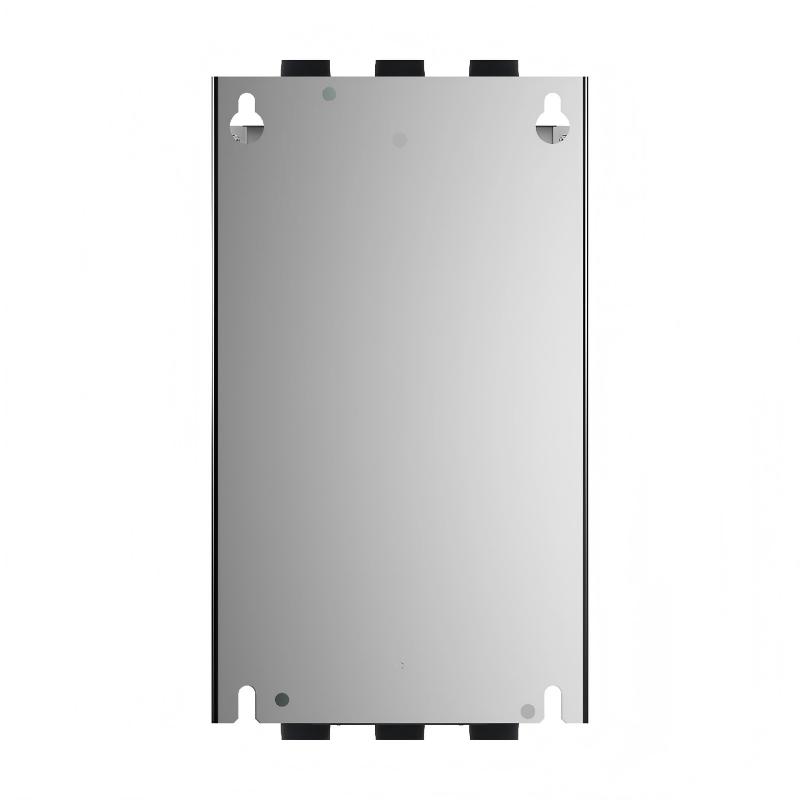

8. What installation and commissioning precautions should be followed for the ATS490D62Y?

The ATS490D62Y should be installed by qualified electrical personnel in accordance with applicable electrical and machine-safety requirements. The unit is designed for vertical installation with an allowable position of approximately ±10°, and the control cabinet should provide adequate ventilation and clearance. Before energizing the equipment, verify the supply voltage, motor voltage, motor rated current, phase connections, control supply, protective earth and all control wiring. Appropriate upstream short-circuit protection and isolation should be provided. During commissioning, configure the motor protection parameters, starting characteristics, current limitation and applicable communication settings according to the actual machine. The motor should initially be tested under controlled conditions while checking starting current, acceleration, running current, thermal behavior, bypass operation and fault indications. The integrated STO safety function should also be incorporated correctly into the machine’s overall safety circuit when required. Any abnormal vibration, excessive current, overheating, unsuccessful acceleration or repeated protection event should be investigated before the equipment is placed into continuous production operation.
