1. What is the main function of the Schneider ATV310HD18N4A?

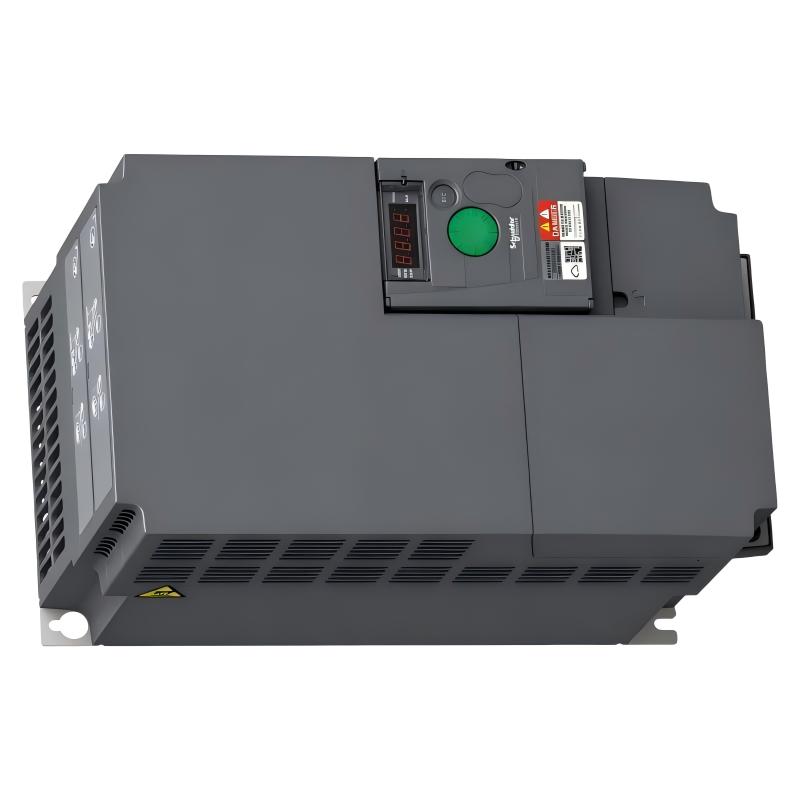

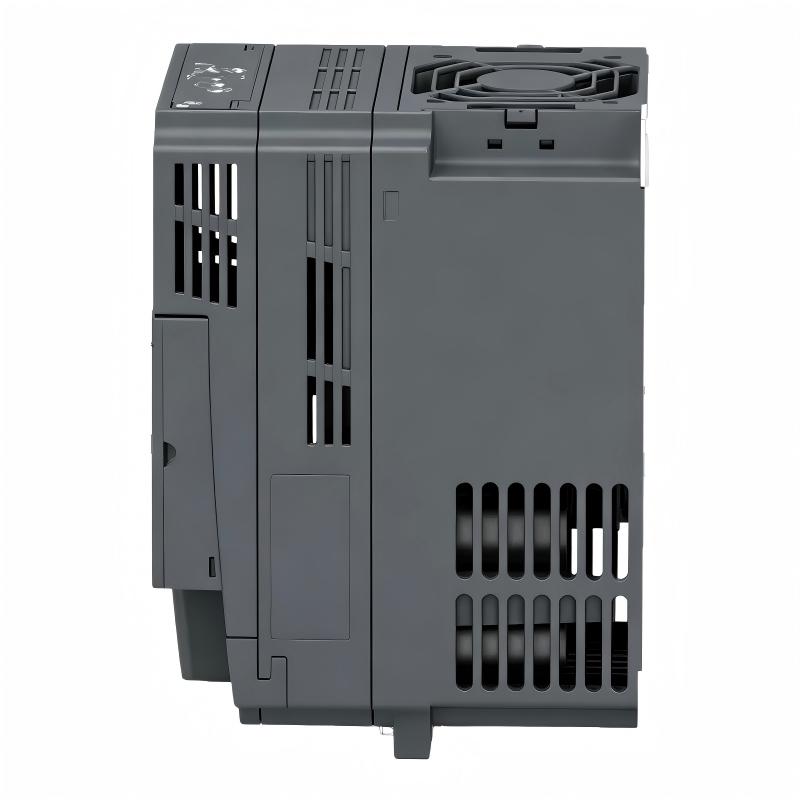

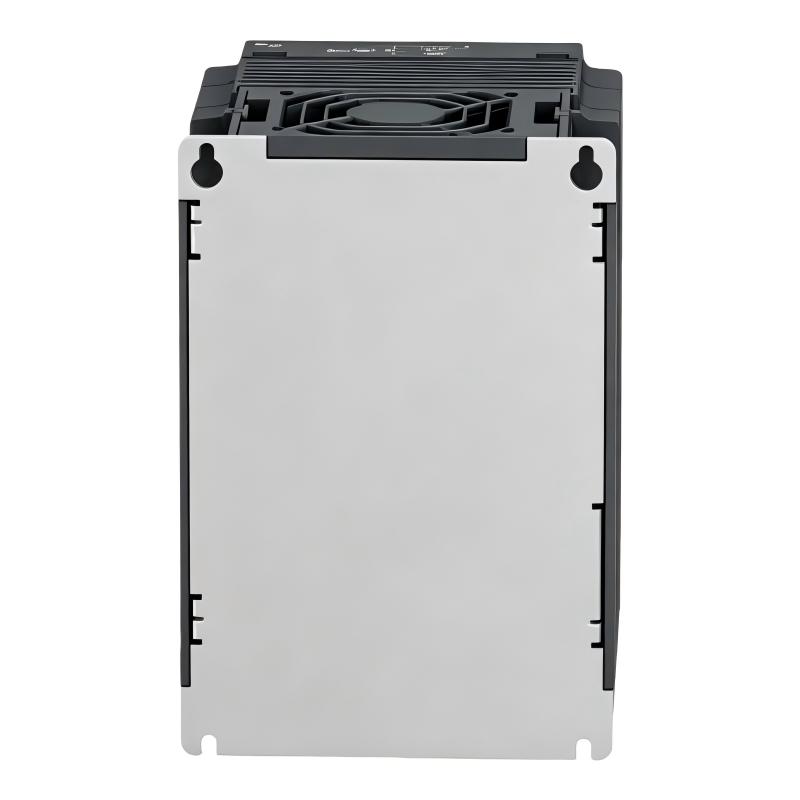

The Schneider Electric ATV310HD18N4A is a variable-speed drive designed to control three-phase asynchronous motors. It regulates motor speed, torque, acceleration, and deceleration by controlling the frequency and voltage supplied to the motor. The unit supports both V/F control and sensorless vector control, making it suitable for a range of industrial motor-control applications.

2. What motor power is supported by the ATV310HD18N4A?

The ATV310HD18N4A is rated for 22 kW / 30 hp under normal-duty operation and 18.5 kW / 25 hp under heavy-duty operation. The appropriate rating depends on the application load profile and required overload capability. For applications with frequent or significant overload conditions, the heavy-duty rating should be used when selecting the drive.

3. What input power supply does the ATV310HD18N4A require?

The drive is designed for a three-phase AC supply in the 380–460 V range with a supply frequency of 50 or 60 Hz ±5%. The input power system should be checked against the drive’s rated electrical requirements before installation. Correct phase connection and suitable upstream protection are also important for reliable operation.

4. Does the ATV310HD18N4A support sensorless vector control?

Yes. The ATV310HD18N4A supports both V/F control and sensorless vector control. V/F control is suitable for applications where straightforward speed control is sufficient, while sensorless vector control can provide improved motor torque and speed regulation without requiring a physical motor encoder. The appropriate control mode should be selected according to the motor characteristics and application requirements.

5. What protection functions are available on the ATV310HD18N4A?

The drive incorporates several protection functions, including input undervoltage and overvoltage protection, overcurrent protection, overheating protection, output phase-to-earth short-circuit protection, motor phase short-circuit protection, and three-phase input phase-loss protection. It also provides motor thermal protection through continuous I²t calculation. These functions help protect both the drive and connected motor during abnormal operating conditions.

6. What should be checked if the ATV310HD18N4A trips during motor acceleration?

First check the acceleration ramp and motor operating parameters. A ramp that is too short can demand excessive current during acceleration and cause an overcurrent trip. The motor nameplate data should also be entered correctly into the drive configuration. In addition, inspect the motor cable, motor insulation, mechanical load, and power supply. If the motor is heavily loaded or mechanically blocked, the drive may reach its current limit even when the electrical connections are correct.

7. How can an ATV310HD18N4A overcurrent fault be diagnosed?

Check whether the overcurrent occurs during startup, acceleration, steady-state operation, or deceleration. Inspect the motor cable and terminals for short circuits or insulation problems, and verify that the motor parameters are correctly configured. Check the mechanical load for excessive torque requirements or sudden load changes. The acceleration and deceleration ramps should also be reviewed. If the fault continues with the motor disconnected from the mechanical load, the drive output circuit and associated motor wiring should be examined more closely.

8. What should be checked when commissioning a replacement ATV310HD18N4A?

Before commissioning, verify the three-phase supply voltage, motor wiring, grounding, control connections, and protective devices. Enter the motor nameplate parameters accurately, including rated voltage, current, frequency, speed, and power. Select the appropriate control mode and configure the acceleration and deceleration ramps according to the application. Perform an initial low-speed test and confirm the motor rotates in the correct direction. After verifying current, speed, and operating response, gradually increase the load and confirm that no abnormal alarms or protection trips occur.
