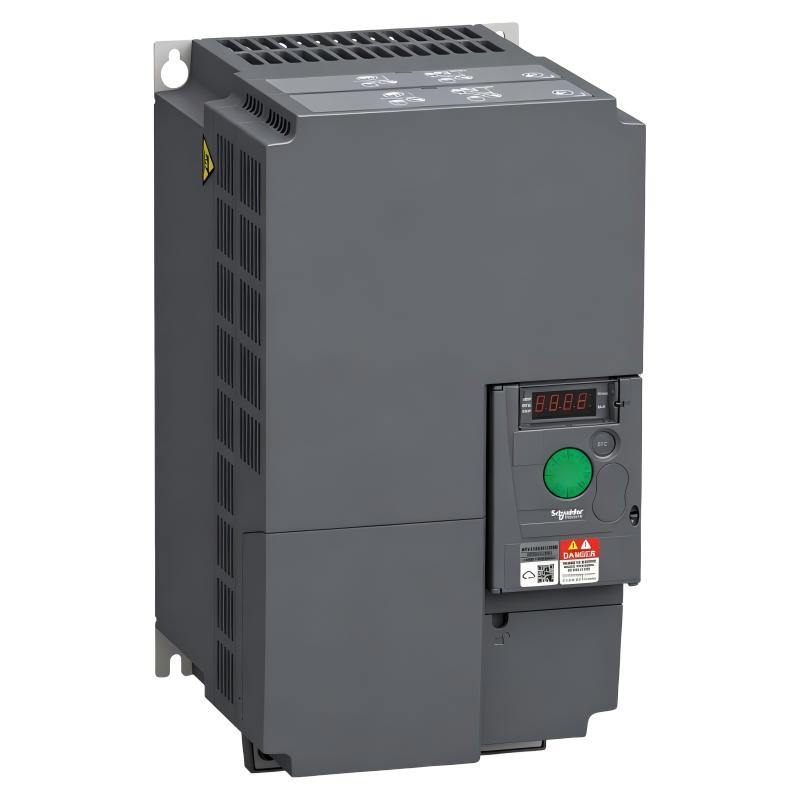

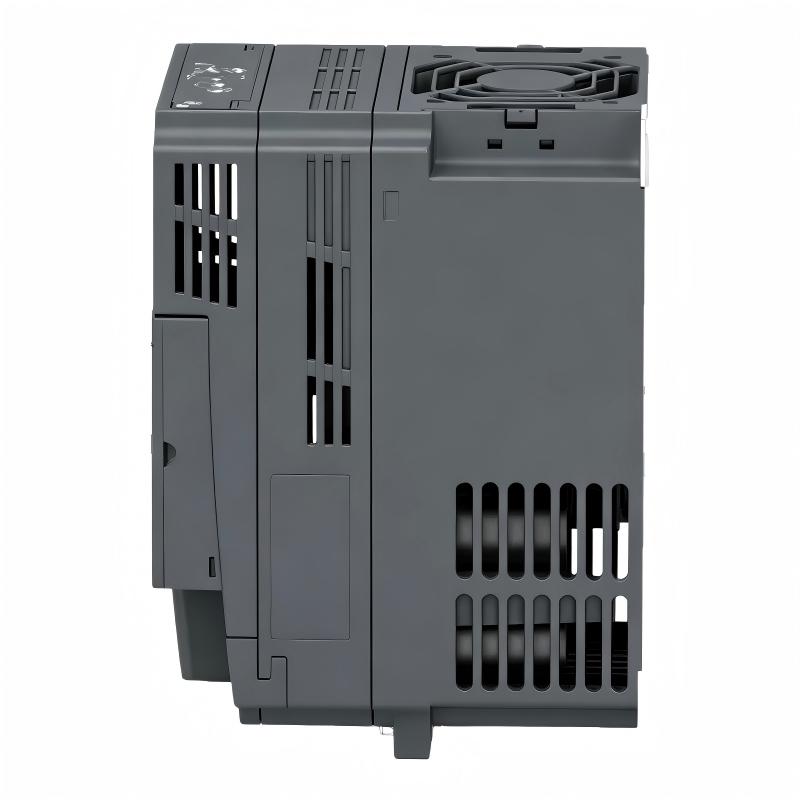

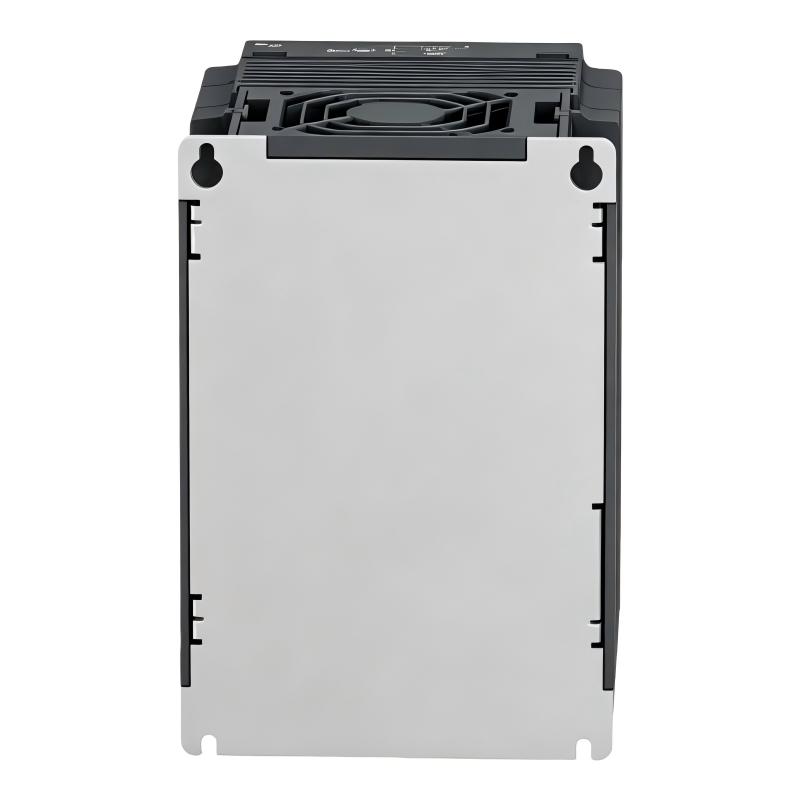

1. What is the main function of the Schneider ATV310HD18N4E?

The Schneider ATV310HD18N4E is a variable-speed drive designed to control the speed, torque, acceleration, and deceleration of three-phase asynchronous motors. It regulates the voltage and frequency supplied to the motor according to the selected control mode and operating requirements. The drive is suitable for industrial machinery where controlled motor starting, adjustable speed, and reliable stopping are required. It also provides monitoring and protection functions that help prevent damage caused by abnormal electrical or operating conditions.

2. What motor power can the ATV310HD18N4E control?

The ATV310HD18N4E is designed for an 18.5 kW / 25 hp motor under heavy-duty operating conditions and can be applied to a 22 kW / 30 hp motor under normal-duty conditions. The appropriate rating depends on the actual machine load, starting requirements, overload duration, and operating cycle. For applications with frequent acceleration, high starting torque, or repeated overloads, the heavy-duty rating should be considered when selecting the drive. The motor’s rated current should always be compared with the drive’s applicable output-current rating rather than selecting the drive based only on motor power.

3. What input power supply is required for the ATV310HD18N4E?

The ATV310HD18N4E is designed for a three-phase AC input supply in the 380–460 V range with a 50/60 Hz supply frequency. Before installation, the actual incoming voltage should be measured and confirmed to be within the permitted range. The power supply should also have appropriate upstream circuit protection and disconnecting equipment. Correct phase connections, grounding, and cable sizing are important because inadequate wiring or an unsuitable power source can result in drive alarms, excessive heating, unstable operation, or premature component failure.

4. Does the ATV310HD18N4E support sensorless vector control?

Yes. The ATV310HD18N4E supports U/F control as well as sensorless vector control. U/F control is generally suitable for applications where straightforward speed regulation is sufficient, such as fans, pumps, and certain conveyor applications. Sensorless vector control provides more advanced motor control and can deliver improved torque response and speed regulation without requiring a physical encoder on the motor. When using sensorless vector control, accurate motor nameplate information and appropriate motor parameter settings are important for achieving stable performance.

5. What communication functions are available on the ATV310HD18N4E?

The ATV310HD18N4E provides Modbus RTU communication through a two-wire RS-485 interface. This allows the drive to exchange control commands, operating parameters, status information, and diagnostic data with a PLC, HMI, or other industrial control system. Communication parameters such as baud rate, address, and other protocol settings must be configured consistently between the drive and the connected master device. When communication problems occur, the RS-485 wiring, terminal arrangement, communication parameters, device address, and network termination should be checked systematically.

6. Why does the ATV310HD18N4E trip during motor acceleration?

An acceleration trip can have several causes. The most common issue is an acceleration time that is too short for the connected motor and mechanical load. During rapid acceleration, the motor can require a large amount of current, potentially causing the drive to activate its overcurrent protection. The motor’s rated voltage, current, frequency, speed, and power parameters should therefore be checked first. The mechanical system should also be inspected for excessive inertia, blocked components, excessive friction, or a load that is too large for the motor. If the motor and drive parameters are correct, increasing the acceleration time can reduce the current demand during startup.

7. How should an overcurrent fault on the ATV310HD18N4E be diagnosed?

First determine exactly when the overcurrent fault occurs. If it occurs immediately when the motor starts, inspect the motor cable, motor terminals, output wiring, and motor insulation for short circuits or incorrect connections. If the fault occurs during acceleration, check the acceleration ramp and mechanical load. If it occurs during normal operation, investigate excessive load torque, mechanical blockage, motor condition, and incorrect motor parameters. If it occurs during deceleration, the deceleration ramp and braking conditions should be reviewed. Repeated overcurrent faults should not be resolved simply by increasing current limits, because doing so may hide an underlying motor, wiring, or mechanical problem.

8. What should be checked when commissioning a replacement ATV310HD18N4E?

Before commissioning, verify that the incoming three-phase supply, motor wiring, protective grounding, control terminals, and external protection devices are correctly installed. Enter the motor nameplate information accurately, including rated voltage, current, frequency, speed, and power. Select the appropriate motor-control mode and configure suitable acceleration and deceleration ramps. During the first startup, run the motor at a low speed and confirm the rotation direction, output current, frequency, and operating response. Check the drive for active or stored fault conditions and verify that control commands are functioning correctly. If Modbus communication is used, test communication with the PLC or supervisory system before placing the machine into automatic operation. After confirming stable low-load operation, gradually increase the load and monitor motor current, drive temperature, speed response, and alarm status.
