1. What is the main function of the Schneider ATV320U04N4C?

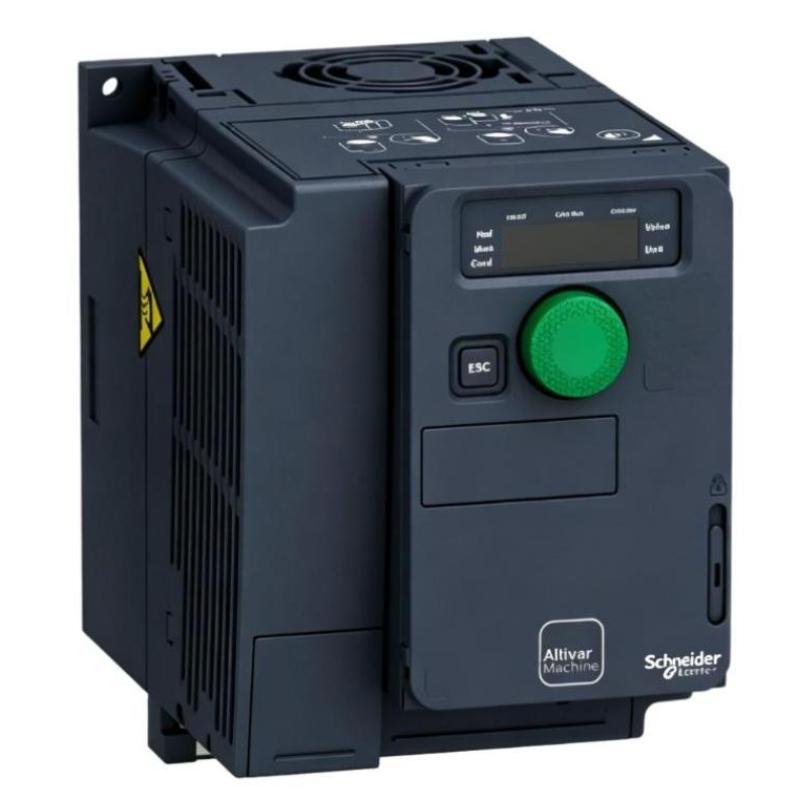

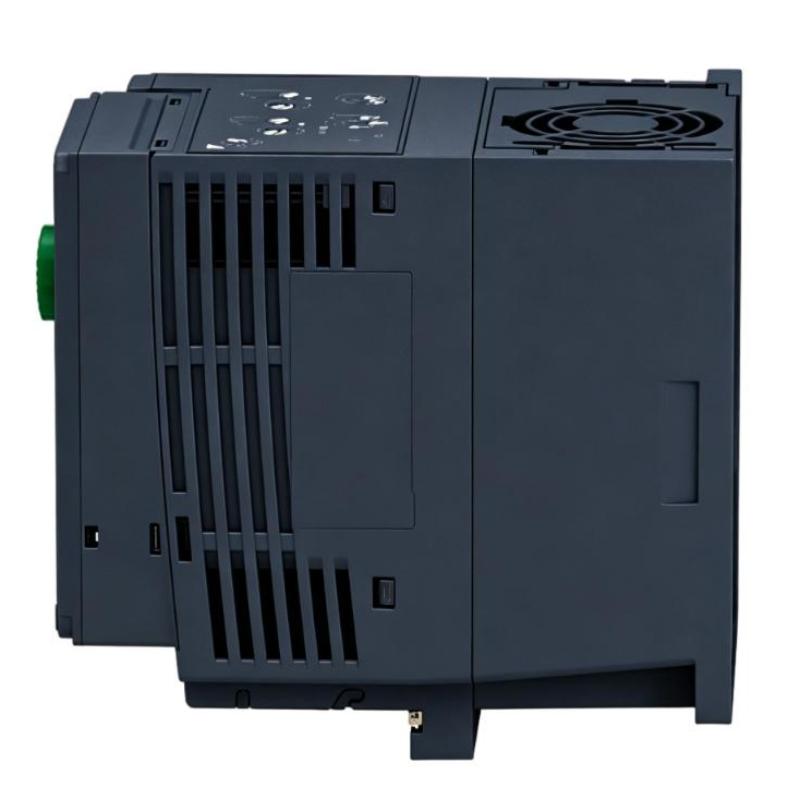

The Schneider Electric ATV320U04N4C is a variable frequency drive designed to control three-phase AC motors in industrial machinery and automation systems. It regulates the motor’s output voltage and frequency to provide controlled starting, stopping, acceleration, deceleration and speed adjustment. With a 0.37 kW motor rating and a three-phase 380–500 V AC supply, it is suitable for compact industrial equipment such as conveyors, pumps, fans, machine tools and material-handling systems. Its integrated control and communication functions also allow it to be incorporated into PLC-based automation architectures.

2. What types of motors can the ATV320U04N4C control?
The ATV320U04N4C is designed for compatible asynchronous and synchronous motors. It supports V/F control and sensorless vector control, allowing the drive to be configured according to the required motor performance and mechanical load. During commissioning, the actual motor nameplate data should be entered accurately, including rated voltage, current, frequency, power and speed. Correct motor data helps the drive provide stable speed regulation and appropriate torque. Incorrect settings can result in excessive current, poor starting performance, unstable low-speed operation or unexpected protection faults.

3. How should the motor parameters be configured on the ATV320U04N4C?
Motor parameters should always be based on the actual connected motor’s nameplate. Typical settings include rated voltage, rated current, rated frequency, rated power and rated speed. After entering the motor data, select the appropriate control profile according to the motor type and application requirements. Acceleration and deceleration times should also be adjusted according to the mechanical load. If the motor has excessive current, unstable speed or insufficient torque, verify the motor parameters first before making major changes to protection settings. Motor wiring and mechanical loading should also be checked to ensure the drive and motor are correctly matched.

4. What can cause an overcurrent fault on the ATV320U04N4C?
An overcurrent fault may be caused by excessive mechanical load, motor blockage, incorrect motor parameters, an acceleration time that is too short, incorrect output wiring or a motor fault. If the fault occurs immediately when the motor starts, check the motor wiring and mechanical system first. If it occurs mainly during acceleration, inspect the acceleration ramp and motor-control parameters. The actual motor rated current should also be compared with the configured motor data. A sudden increase in mechanical torque can produce a corresponding increase in motor current. Reviewing when the fault occurs can help determine whether the cause is related to the motor, load, wiring or parameter configuration.

5. Why does the ATV320U04N4C trip during motor acceleration?
During acceleration, the motor requires additional torque, so the current naturally increases. If the connected machine has a high starting load, the acceleration time is too short or the motor parameters are incorrect, the drive may reach its protection limit. Troubleshooting should begin by checking whether the mechanical system can move freely and whether the load is within the expected operating range. The motor nameplate data should then be verified in the drive. If the application permits a slower acceleration profile, increasing the acceleration time can reduce the instantaneous current demand. If the problem remains, inspect the motor, output wiring, mechanical load and selected control mode.

6. How can communication problems with the ATV320U04N4C be diagnosed?
The ATV320U04N4C supports Modbus Serial and CANopen communication for integration with PLCs and other industrial controllers. If communication fails, first confirm that the selected protocol and communication parameters match the PLC or network controller. Check the device address, communication settings, cables and connectors. If the PLC can send commands but cannot correctly read drive status information, inspect the control-word, status-word and data-mapping configuration. Intermittent communication problems may be caused by poor shielding, grounding, termination or electromagnetic interference. Communication cables should be routed appropriately and kept away from motor power cables whenever possible.

7. What should be checked if the ATV320U04N4C experiences overheating?

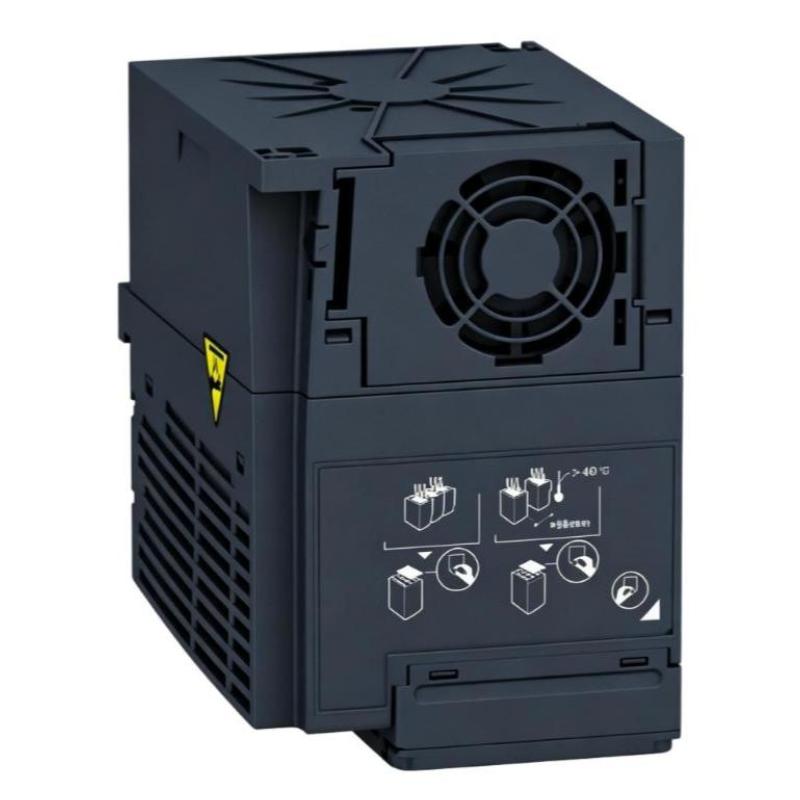

If the drive experiences a thermal protection condition, check the installation environment, ventilation and cooling system. The ATV320U04N4C uses fan-assisted cooling, so the cooling path and fan should remain unobstructed and clean. The motor load and actual output current should also be monitored because continuous high-current operation increases thermal stress. Frequent starting, rapid acceleration and deceleration, high torque requirements and prolonged operation near the rated load can contribute to overheating. Ambient temperature should also be considered, since higher temperatures may require drive derating. If overheating continues under normal conditions, inspect the cooling system, motor parameters, mechanical load and operating cycle.

8. What precautions should be taken when installing and commissioning the ATV320U04N4C?
Before installation, replacement or maintenance, completely disconnect the drive from the power supply and follow the applicable electrical safety procedures. Check the three-phase input connections, motor output wiring, protective grounding and control terminals before energizing the unit. During commissioning, enter the actual motor nameplate data and select the appropriate control mode. Acceleration, deceleration and protection parameters should be configured according to the machine’s operating requirements. The first motor test should be performed under controlled conditions while checking motor rotation direction, operating current, acceleration response and fault indications. If the drive is connected to a PLC or industrial network, verify both command transmission and status feedback. Any repeated overcurrent, thermal protection, communication fault or abnormal motor behavior should be resolved before continuous production operation.
