FAQ

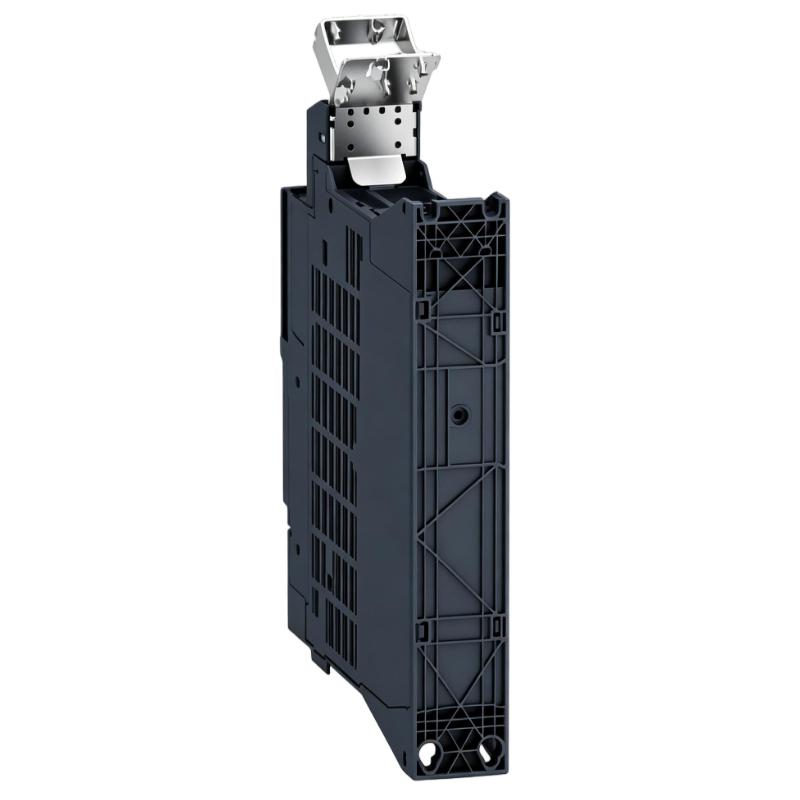

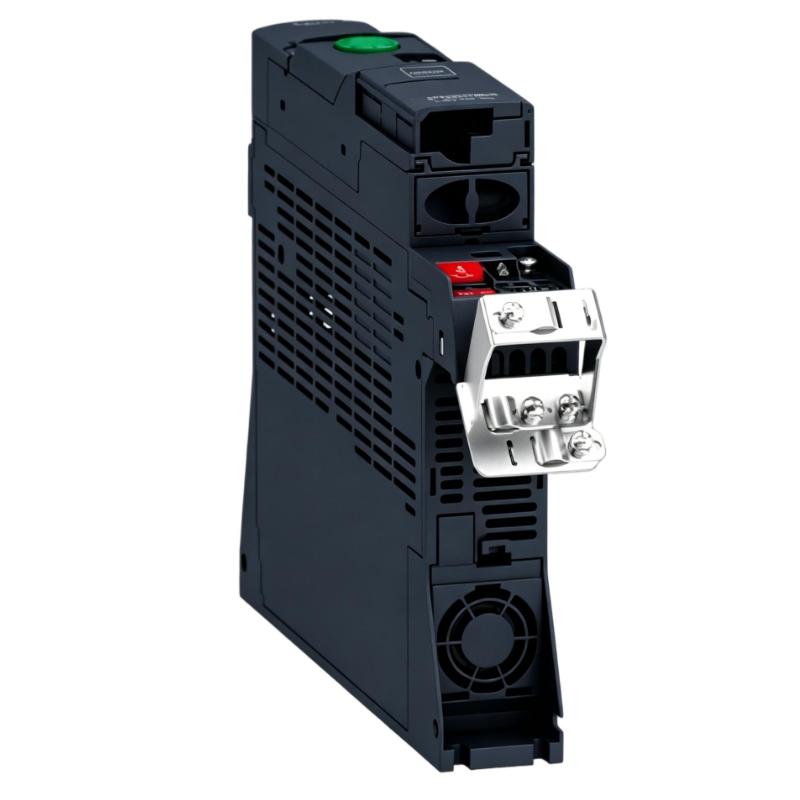

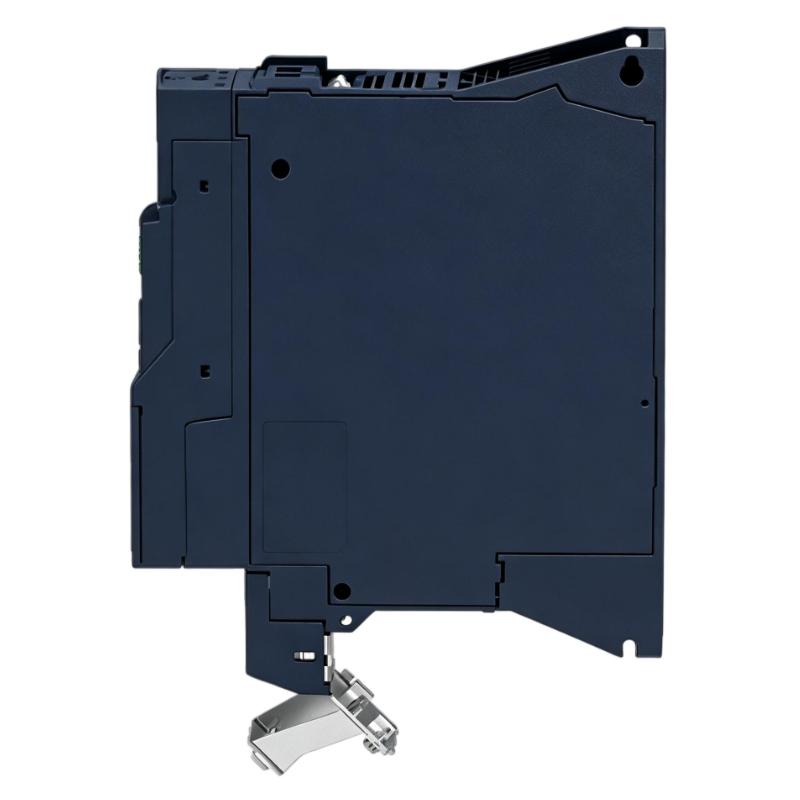

1. What is the main function of the Schneider ATV320U06M2B?
The Schneider Electric ATV320U06M2B is a variable-speed drive designed to control AC motors in industrial machinery and automation applications. It regulates the motor’s output voltage and frequency to provide controlled starting, stopping, acceleration, deceleration and speed adjustment. With a rated motor power of 0.55 kW and a single-phase 200–240 V AC input, it is suitable for compact machinery requiring precise and reliable motor control. The drive can also be integrated into automation systems through Modbus Serial and CANopen communication.

2. What type of motor can the ATV320U06M2B control?
The ATV320U06M2B supports compatible asynchronous and synchronous motors. It provides V/F control and sensorless vector control, allowing the control method to be selected according to the motor and mechanical load. For commissioning, the motor nameplate information should be entered accurately, including rated voltage, rated current, rated frequency, rated power and rated speed. Correct parameter configuration is important for stable motor operation, particularly during starting and low-speed operation. Incorrect motor data can result in excessive current, insufficient torque, unstable speed or unnecessary protection trips.

3. How should the motor parameters be configured on the ATV320U06M2B?
Motor parameters should be taken directly from the connected motor’s nameplate. The main parameters normally include rated voltage, rated current, rated frequency, rated power and rated speed. After entering these values, the appropriate motor-control mode should be selected according to the application. Acceleration and deceleration times should also be adjusted based on the mechanical characteristics of the machine. If the motor operates with excessive current or does not accelerate smoothly, the motor parameters should be checked first. Motor wiring, load conditions and the selected control mode should also be verified before changing current limits or protection settings.

4. What can cause an overcurrent fault on the ATV320U06M2B?
Overcurrent can be caused by excessive mechanical load, motor blockage, incorrect motor parameters, excessively short acceleration time, incorrect motor wiring or a motor fault. If the fault occurs immediately after a start command, inspect the motor connections and mechanical system first. If it occurs mainly during acceleration, check the acceleration ramp and motor-control parameters. The configured motor rated current should also match the actual motor nameplate. A sudden increase in mechanical load can produce a rapid increase in motor current. Checking when the fault occurs—during startup, acceleration or normal running—can help identify whether the problem is related to the motor, machine or drive configuration.

5. Why does the ATV320U06M2B trip during motor acceleration?
Motor acceleration requires additional torque and therefore normally causes a temporary increase in current. If the machine has excessive starting resistance, the acceleration time is too short or the motor parameters are incorrect, the drive may reach its protection threshold. First check that the mechanical system can move freely and that there is no blockage or abnormal load. Then verify the motor nameplate parameters configured in the drive. If the application permits a slower acceleration profile, increasing the acceleration time can reduce the instantaneous current demand. If the problem continues, inspect the motor, output wiring, mechanical load and selected control mode.

6. How can communication faults with the ATV320U06M2B be diagnosed?
The ATV320U06M2B provides Modbus Serial and CANopen communication through an RJ45 interface using a two-wire RS-485 physical interface for Modbus. When communication fails, first verify that the communication protocol and parameters match those configured in the PLC or controller. Check the device address, transmission rate, parity settings where applicable, communication cable and connectors. If the PLC can send commands but cannot correctly read drive status, check the control-word, status-word and data-mapping configuration. For intermittent communication problems, inspect cable shielding, grounding and network termination. Communication wiring should also be separated from motor power cables as much as practical to reduce electromagnetic interference.

7. What should be checked if the ATV320U06M2B overheats?
If the drive reports an overheating or thermal protection condition, check the cooling system, cabinet ventilation and ambient temperature first. The ATV320U06M2B uses forced-air cooling, so the cooling path and fan should remain unobstructed and clean. The actual motor current and mechanical load should also be monitored. Continuous operation at high current, frequent starts, rapid acceleration and deceleration, or high torque requirements can increase thermal stress. Excessive ambient temperature can further reduce the available thermal margin. If overheating continues even when the machine is operating within its normal load range, inspect the cooling system, motor parameters, load profile and installation environment.

8. What precautions should be taken when installing and commissioning the ATV320U06M2B?
Before installation, replacement or maintenance, completely disconnect the drive from the power supply and follow the required electrical safety procedures. Verify the single-phase input connections, motor output wiring, protective grounding and control terminals before energizing the unit. During commissioning, enter the actual motor nameplate parameters and select the appropriate control mode. Set acceleration, deceleration and protection parameters according to the mechanical characteristics of the machine. During the initial motor test, check the motor rotation direction, operating current, acceleration response and fault indications under controlled conditions. If the drive is connected to a PLC or industrial network, verify both command transmission and status feedback. Repeated overcurrent, overheating, communication faults or abnormal motor behavior should be investigated before the equipment is placed into continuous operation.
