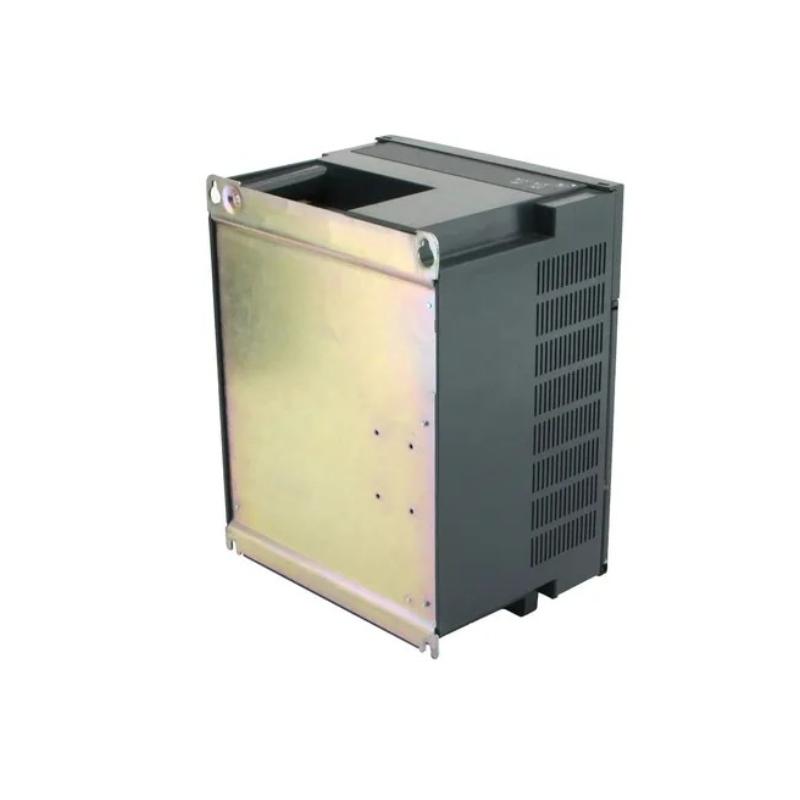

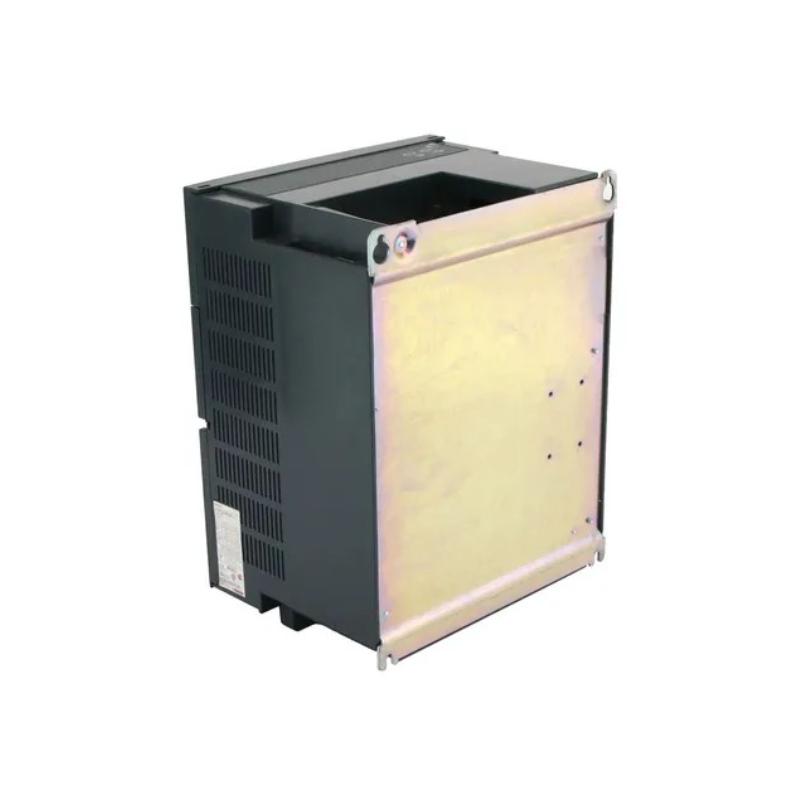

Schneider ATV320U11N4C Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
ATV320U11N4C Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ATV320U11N4C Variable Frequency Drive |
| Brand | Schneider Electric |
| Product Type | Industrial Equipment |
| Series | Altivar 320 |
| Drive Type | Variable Frequency Drive (VFD) |
| Input Voltage | 380–500 V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–500 V AC |
| Rated Output Current | 3.2 A |
| Rated Power | 1.1 kW (1.5 HP) |
| Motor Control Type | V/Hz Control, Sensorless Flux Vector Control |
| Output Frequency Range | 0–599 Hz |
| Overload Capacity | 150% of Rated Current for 60 Seconds |
| Integrated EMC Filter | Class C2 EMC Filter |
| Communication Protocols | Modbus RTU, CANopen |
| Digital Inputs | 6 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Relay Outputs | 2 |
| Safety Function | Safe Torque Off (STO) |
| Protection Rating | IP20 |
| Mounting Type | Book-Style Panel Mount |
| Cooling Method | Natural Convection |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Certifications | CE, UL, cUL, RoHS |
| Lifecycle Status | Active |
| Dimensions (H × W × D) | Approx. 143 × 72 × 138 mm |
| Weight | Approx. 1.2 kg |
| Typical Applications | Conveyors, pumps, fans, packaging equipment, textile machinery, material handling systems, food processing equipment, and industrial automation systems |
FAQ
What is the ATV320U11N4C used for?
The ATV320U11N4C is a compact variable frequency drive designed to control the speed and torque of three-phase AC motors in industrial automation and machine-building applications.
What motor power can this drive support?
This model is rated for motors up to 1.1 kW (1.5 HP) operating on a 380–500 V AC three-phase power supply.
Which motor control technologies are available?
The drive supports both V/Hz control and Sensorless Flux Vector Control, providing efficient operation and stable performance across a wide speed range.
Does the drive include built-in safety features?
Yes. The ATV320U11N4C includes Safe Torque Off (STO), which helps improve machine safety while reducing the need for additional external safety components.
What communication protocols are supported?
The drive comes with integrated Modbus RTU and CANopen communication interfaces for easy integration into industrial control networks.
What protection functions are included?
The drive provides protection against motor overload, overcurrent, overvoltage, undervoltage, overheating, phase loss, and short-circuit conditions.
What are the installation requirements?
The drive is designed for book-style panel mounting and uses natural convection cooling, making it suitable for compact electrical cabinets.
Which applications commonly use the ATV320U11N4C?
It is commonly used in conveyors, packaging machines, pumps, fans, textile equipment, material handling systems, and other industrial automation applications requiring precise motor control.
Schneider ATV320U11N4C Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
