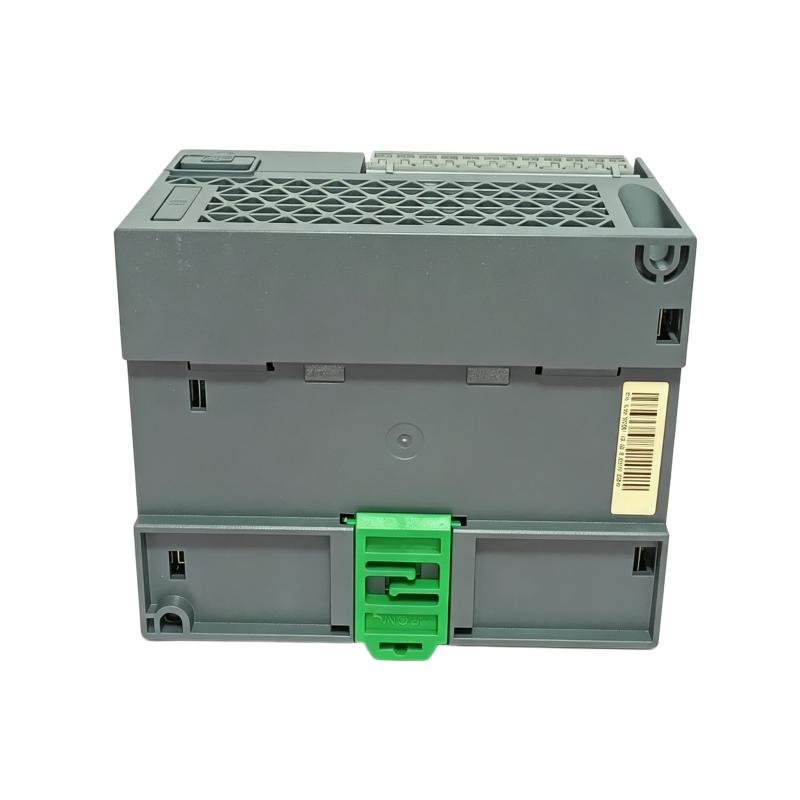

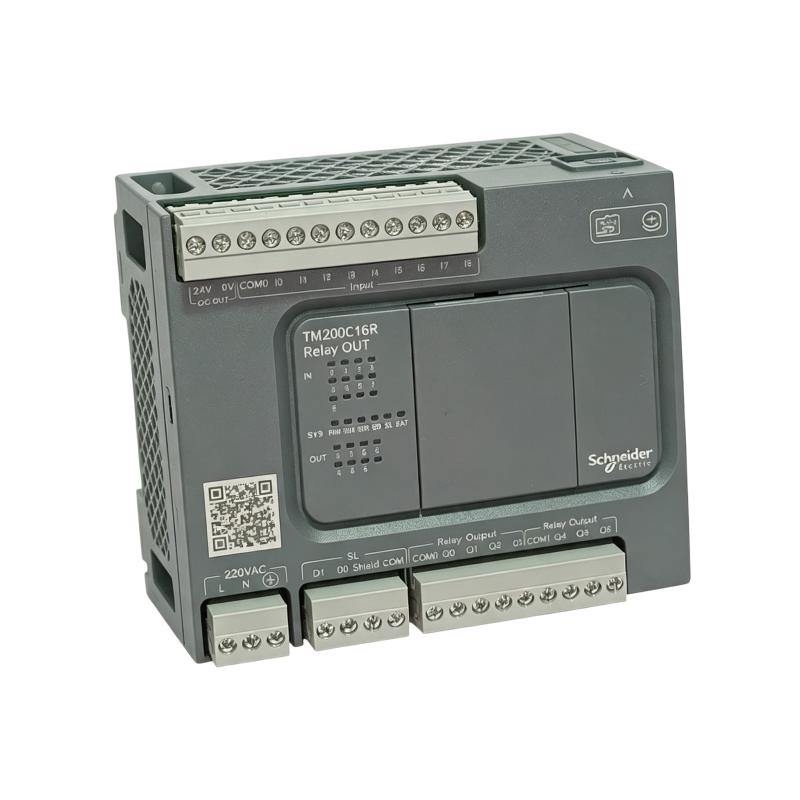

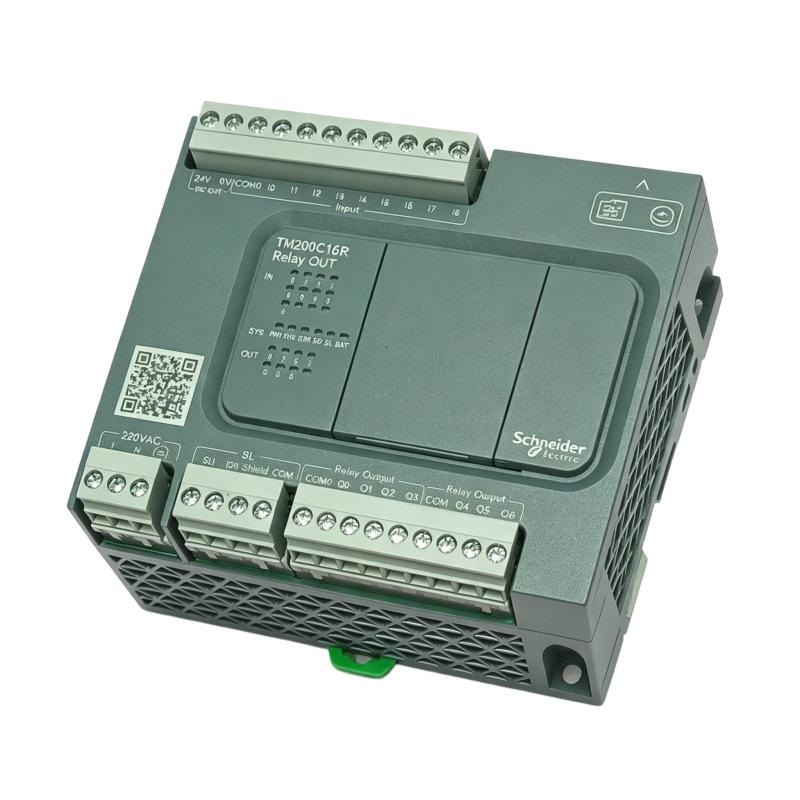

Schneider TM200C16R Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200C16R |
| Product Name | Easy Modicon M200 Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 16 points |
| Digital Inputs | 9 × 24 V DC inputs |
| Input Configuration | Sink/source, positive/negative logic |
| High-Speed Inputs | 4 inputs for high-speed counting (HSC) |
| Fast Inputs | 4 inputs for frequency counting (FC) |
| Regular Inputs | 1 regular input |
| Digital Outputs | 7 relay outputs, normally open |
| Rated Power Supply | 100–240 V AC |
| Supply Voltage Limits | 85–264 V AC |
| Network Frequency | 50/60 Hz |
| Output Voltage | 24 V DC or 220 V AC, depending on application |
| Maximum Output Current | 2 A |
| Communication Interface | Embedded serial communication link |
| Programming Port | USB Mini-B |
| Memory Card Support | Micro SD card |
| Mounting Type | DIN rail mounting |
| Protection Rating | IP20 |
| Applicable Standards | IEC 61131-2, IEC 61010-2-201 |
| Typical Applications | Packaging machinery, machine tools, material handling, pumping and assembly equipment |
| Dimensions | 110 × 90 × 70 mm |
| Weight | 0.359 kg |
FAQ
Q1: What is the main function of the Schneider Electric TM200C16R controller?
A: The TM200C16R is a programmable logic controller designed for small and medium-sized machine automation. It processes input signals, executes the user program, and controls connected actuators through its relay outputs.
Q2: How many digital inputs and outputs does the TM200C16R provide?
A: The controller has 16 digital I/O points in total, comprising 9 digital inputs and 7 relay outputs. The inputs support 24 V DC signals, while the relay outputs can switch compatible loads within their specified electrical ratings.
Q3: What power supply does the TM200C16R require?
A: The controller uses a 100–240 V AC rated power supply and supports a supply range of 85–264 V AC. The supply frequency is 50/60 Hz. Always verify the supply conditions and wiring requirements before energizing the unit.
Q4: Does the TM200C16R support high-speed counting?
A: Yes. Four inputs are designated for high-speed counting (HSC), and four inputs support fast counting (FC). These functions are useful for applications involving pulse signals, counting operations, and certain speed-monitoring tasks.
Q5: What types of loads can the relay outputs control?
A: The seven normally open relay outputs can control compatible AC or DC loads, subject to the specified voltage and current limits. Inductive loads, such as contactor coils and solenoid valves, may require suitable suppression components to protect the relay contacts.
Q6: How can the TM200C16R be programmed and maintained?
A: The controller provides a USB Mini-B programming port and supports a Micro SD card for program handling and duplication. Use Schneider Electric’s compatible programming software and follow the relevant procedures for downloading, backing up, and restoring the application program.
Q7: What should be checked if the controller does not respond to input signals?
A: Check the 24 V DC input supply, common wiring, input polarity, terminal connections, and the status indicators. Also verify that the PLC program uses the correct input addresses and that any configured input filtering or logic conditions are appropriate.
Q8: Can the TM200C16R be expanded for larger automation systems?
A: The Easy Modicon M200 platform supports expansion options, with the supported number and type depending on the controller model and configuration. Check the official hardware documentation for compatible expansion modules, maximum I/O capacity, and communication requirements before designing an expanded system.
Schneider TM200C16R Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
