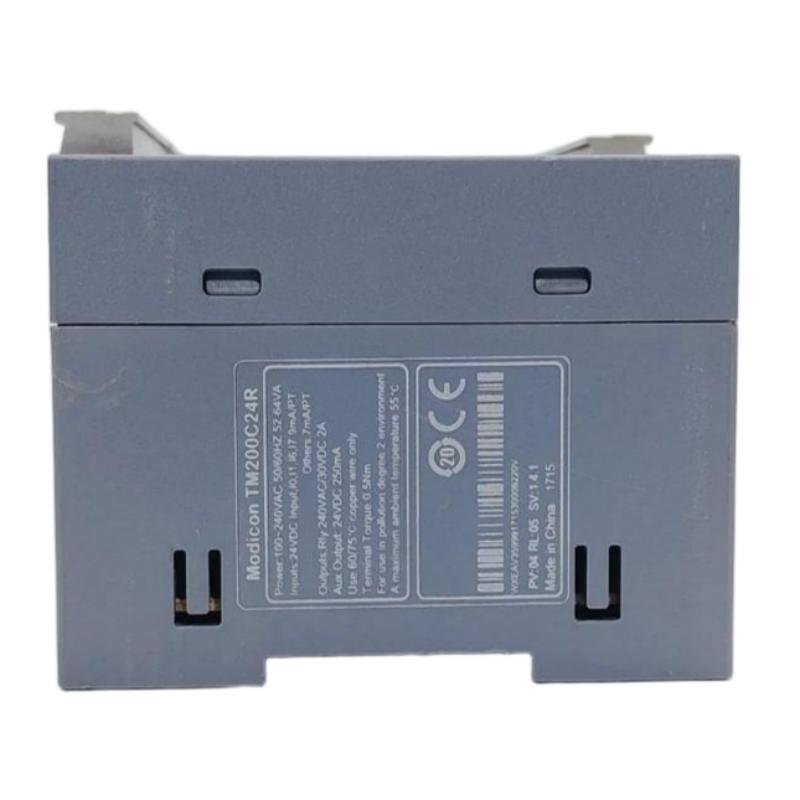

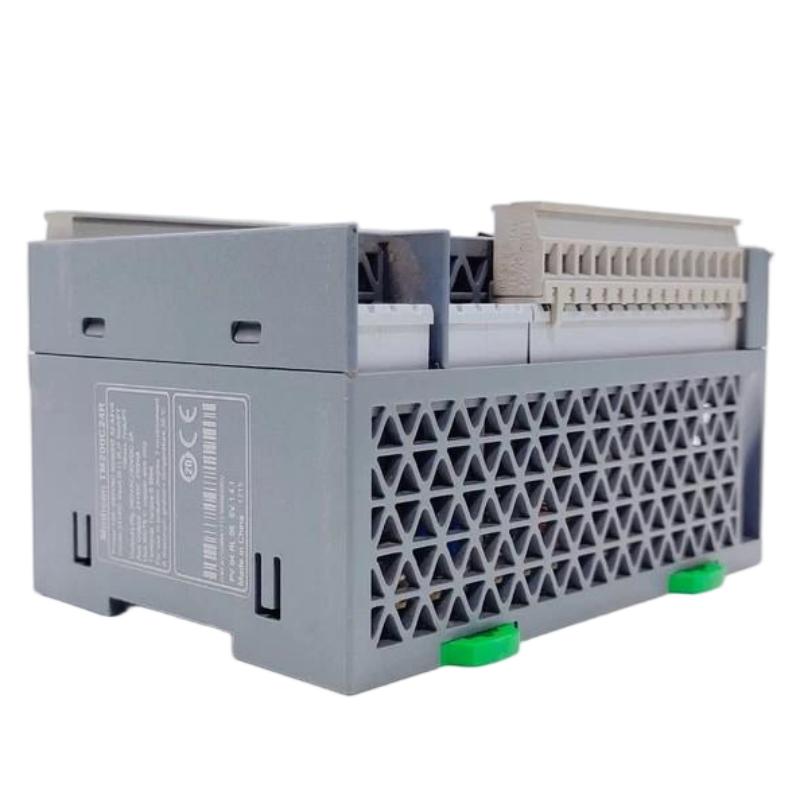

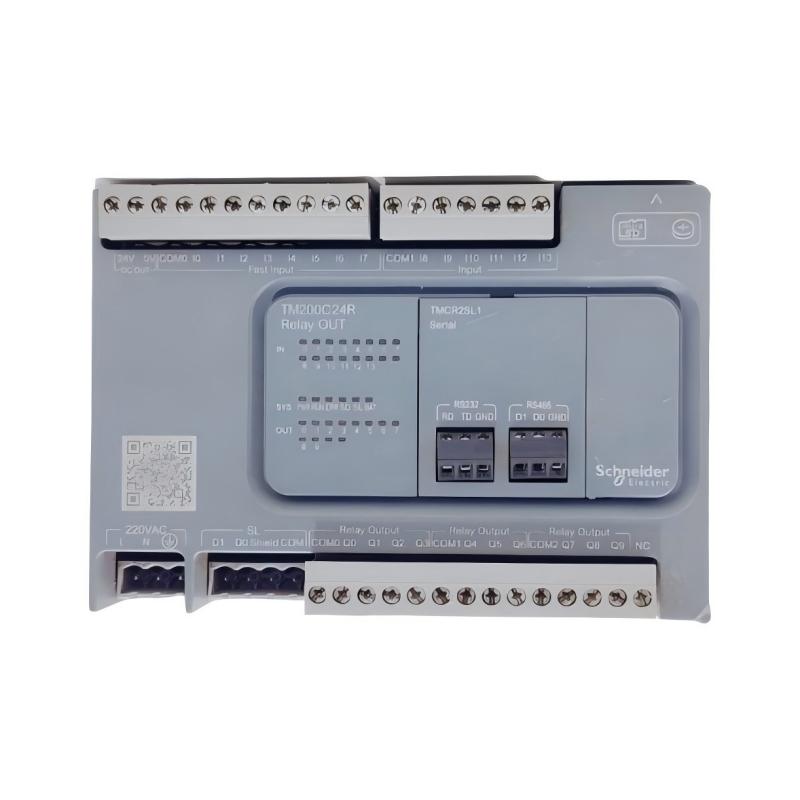

Schneider TM200C24R Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200C24R |
| Product Name | Easy Modicon M200 Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 × 24 V DC inputs |
| Digital Outputs | 10 relay outputs |
| Output Type | Normally open relay outputs |
| Input Configuration | Sink/source, depending on wiring configuration |
| High-Speed Counting | Supports high-speed counting on designated input channels |
| Output Switching | Relay-based switching for compatible AC and DC loads |
| Rated Power Supply | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Communication Interface | Embedded serial communication interface |
| Programming Port | USB Mini-B |
| Memory Card Support | Micro SD card |
| Programming Software | Schneider Electric compatible PLC programming software |
| Expansion Capability | Supports compatible expansion modules, subject to system limits |
| Mounting Type | DIN rail mounting |
| Protection Rating | IP20 |
| Typical Applications | Packaging machinery, assembly equipment, conveyor systems, pumping systems, and machine automation |
| Dimensions | 130 × 90 × 70 mm |
| Weight | 0.405 kg |
FAQ
Q1: What is the main function of the Schneider Electric TM200C24R controller?
A: The TM200C24R is a programmable logic controller in the Easy Modicon M200 series. It executes user-defined logic, processes field input signals, and controls connected equipment through relay outputs. It is designed for general-purpose machine automation.
Q2: How many digital inputs and outputs does the TM200C24R provide?
A: The controller provides 24 digital I/O points, consisting of 14 digital inputs and 10 relay outputs. This configuration supports a range of basic machine-control tasks without requiring a separate output module for every application.
Q3: What power supply does the TM200C24R require?
A: The controller uses an AC power supply rated at 100–240 V AC, with an allowable range of 85–264 V AC and a frequency of 50/60 Hz. Check the product label and wiring documentation before connecting the power supply.
Q4: What types of loads can the TM200C24R relay outputs control?
A: The relay outputs can switch compatible AC or DC loads within their specified voltage and current ratings. For inductive loads such as contactor coils and solenoid valves, suitable suppression components may be required to reduce electrical arcing and extend contact life.
Q5: Does the TM200C24R support high-speed counting?
A: Designated input channels can support high-speed counting functions, depending on the controller configuration. Before using high-frequency pulse signals, verify the supported input channels, maximum counting frequency, and wiring requirements in the technical documentation.
Q6: How can the TM200C24R be programmed?
A: The controller provides a USB Mini-B programming interface and uses compatible Schneider Electric PLC programming software. The software allows users to develop, download, monitor, and maintain the control program.
Q7: What should be checked if the relay outputs do not switch correctly?
A: Check the controller’s power supply, output wiring, load current, terminal connections, and PLC program logic. Also inspect the status indicators and verify that the connected load is within the relay’s electrical ratings.
Q8: Can the TM200C24R be expanded with additional I/O modules?
A: Compatible expansion modules may be used to increase I/O capacity or add supported functions. The available options and maximum configuration depend on the controller and expansion-module specifications. Confirm compatibility before adding modules to an existing installation.
Schneider TM200C24R Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
