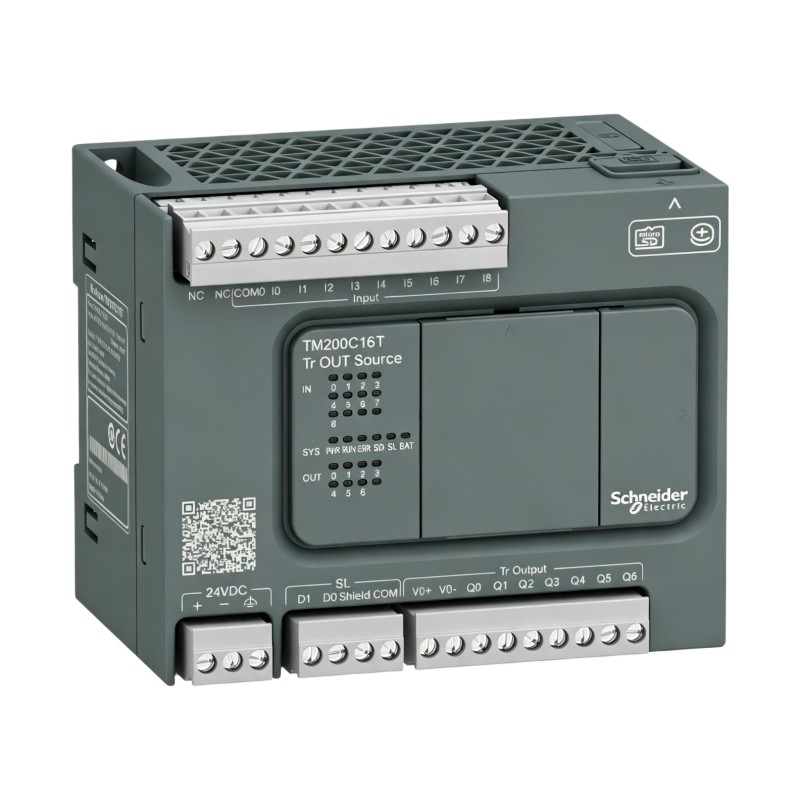

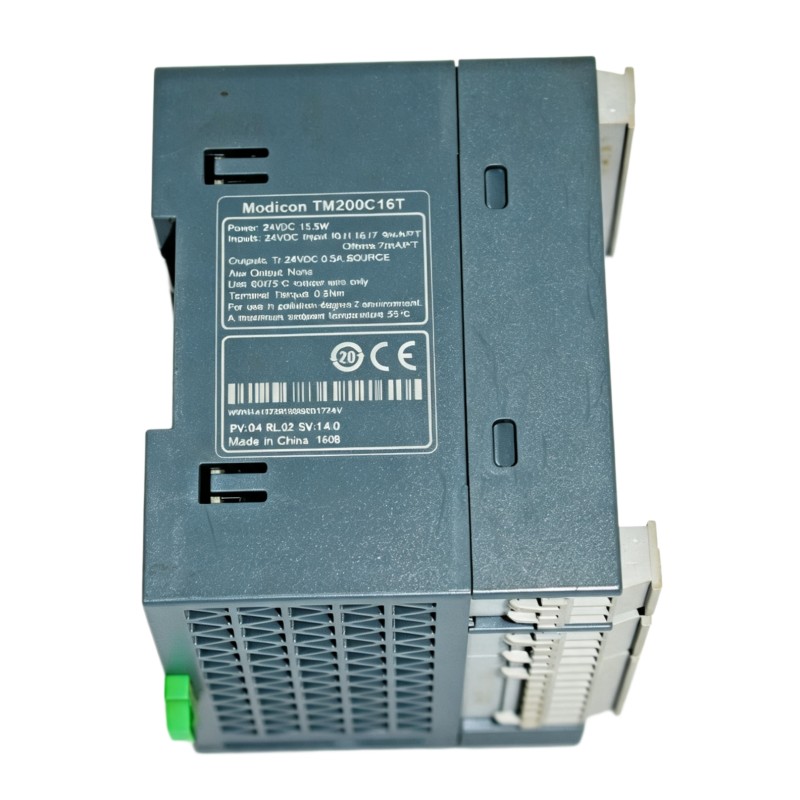

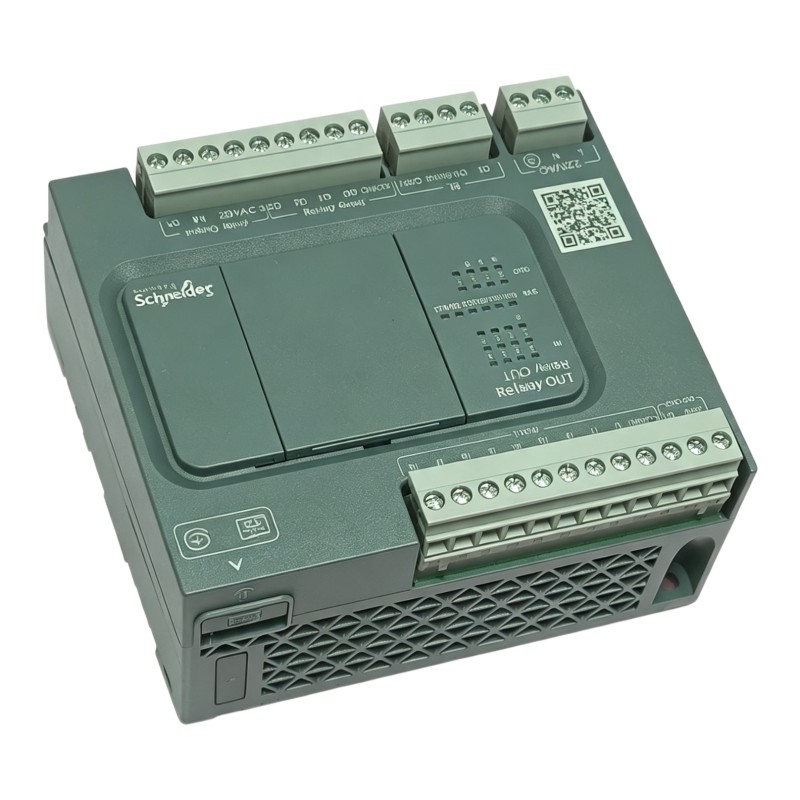

Schneider TM200C16T Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200C16T |
| Product Name | Easy Modicon M200 Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 16 points |
| Digital Inputs | 9 × 24 V DC inputs |
| Input Configuration | Sink/source, positive/negative logic |
| High-Speed Inputs | 4 inputs for high-speed counting (HSC) |
| Fast Inputs | 4 inputs for fast counting (FC) |
| Regular Inputs | 1 regular input |
| Digital Outputs | 7 transistor outputs |
| Output Type | Source transistor outputs (positive logic) |
| Fast Outputs | 2 outputs supporting PWM, PLS, and PTO functions |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 20.4–28.8 V DC |
| Digital Output Voltage | 24 V DC |
| Rated Output Current | 0.5 A per output, subject to specified operating conditions |
| Maximum Output Frequency | 100 kHz for fast outputs in PWM/PLS mode |
| Communication Interface | Embedded serial communication link |
| Programming Port | USB Mini-B |
| Memory Card Support | Micro SD card, up to 32 GB |
| Program Backup Memory | 512 bytes internal flash |
| Expansion Capability | Supports compatible expansion modules; configuration limits depend on output type |
| Mounting Type | DIN rail mounting |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Applicable Standards | IEC 61131-2, IEC 61010-2-201 |
| Typical Applications | Packaging machinery, machine tools, material handling, pumping systems, and assembly equipment |
| Dimensions | 110 × 90 × 70 mm |
| Weight | 0.365 kg |
FAQ
Q1: What is the main function of the Schneider Electric TM200C16T controller?
A: The TM200C16T is a compact PLC from the Easy Modicon M200 series. It processes digital input signals, executes programmed logic, and controls connected equipment through transistor outputs. It is suitable for machine automation and basic motion-control applications.
Q2: How many digital inputs and outputs does the TM200C16T provide?
A: The controller provides 16 digital I/O points, consisting of 9 digital inputs and 7 transistor outputs. The input channels include high-speed counting, fast counting, and a regular input channel.
Q3: What power supply is required for the TM200C16T?
A: The controller requires a 24 V DC power supply, with an allowable supply range of 20.4–28.8 V DC. The power supply should be appropriately rated for the controller and its connected loads.
Q4: What is the difference between the TM200C16T and TM200C16U?
A: Both models belong to the Easy Modicon M200 series and provide 16 digital I/O points. The TM200C16T uses source-type transistor outputs, while the TM200C16U uses sink-type transistor outputs. The choice depends on the wiring arrangement and the electrical requirements of the connected devices.
Q5: Does the TM200C16T support high-speed pulse control?
A: Yes. Two transistor outputs support fast functions such as PWM, PLS, and PTO, with an output frequency of up to 100 kHz in PWM/PLS mode under specified conditions. These functions can be used in applications involving pulse generation and certain motion-control tasks.
Q6: What programming and data storage options are available?
A: The TM200C16T provides a USB Mini-B programming port and supports a Micro SD card with a capacity of up to 32 GB. Compatible Schneider Electric programming software can be used to develop, download, back up, and maintain PLC programs.
Q7: What should be checked if a transistor output does not operate correctly?
A: Check the 24 V DC supply, output wiring polarity, load current, common-terminal connections, and PLC program logic. Also inspect the controller’s status indicators and verify that the connected load is compatible with the source-type output.
Q8: Can the TM200C16T be expanded with additional I/O modules?
A: Yes. The Easy Modicon M200 platform supports compatible expansion modules. The supported module count and total I/O capacity depend on the expansion configuration and output type. Check the controller’s hardware documentation before adding modules to an existing system.
