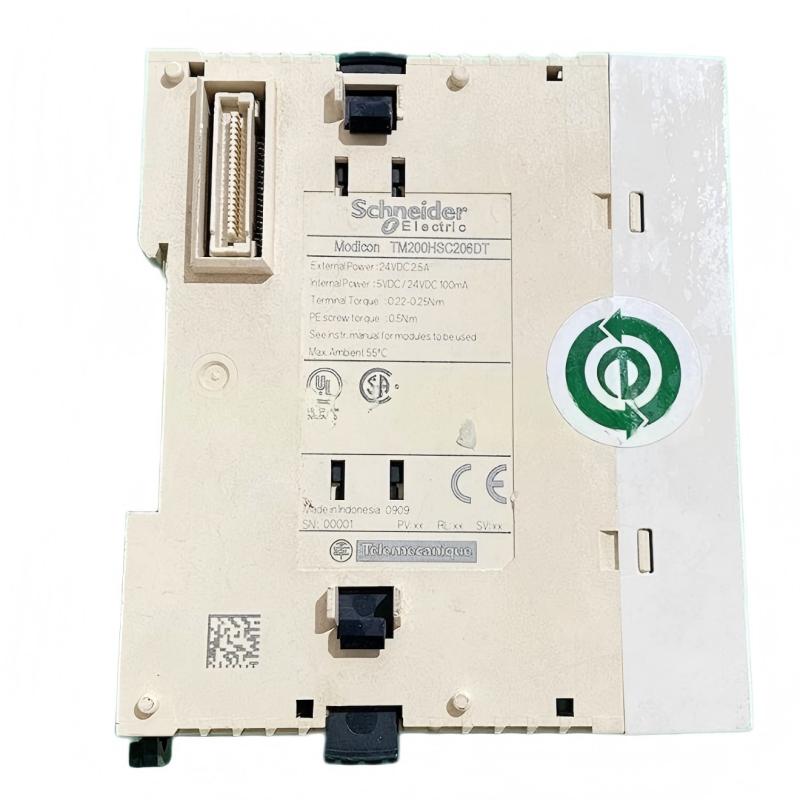

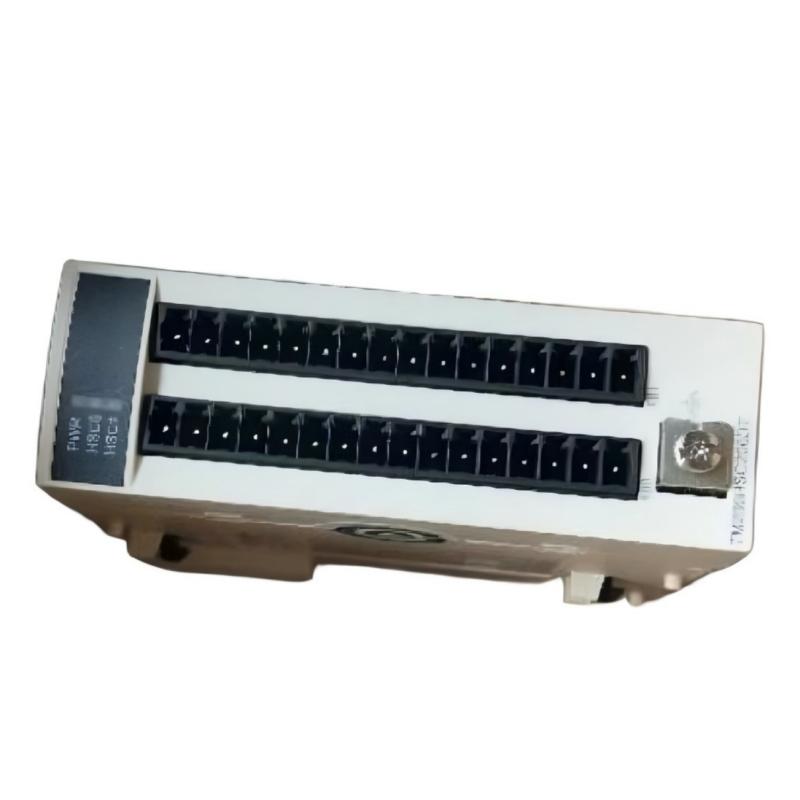

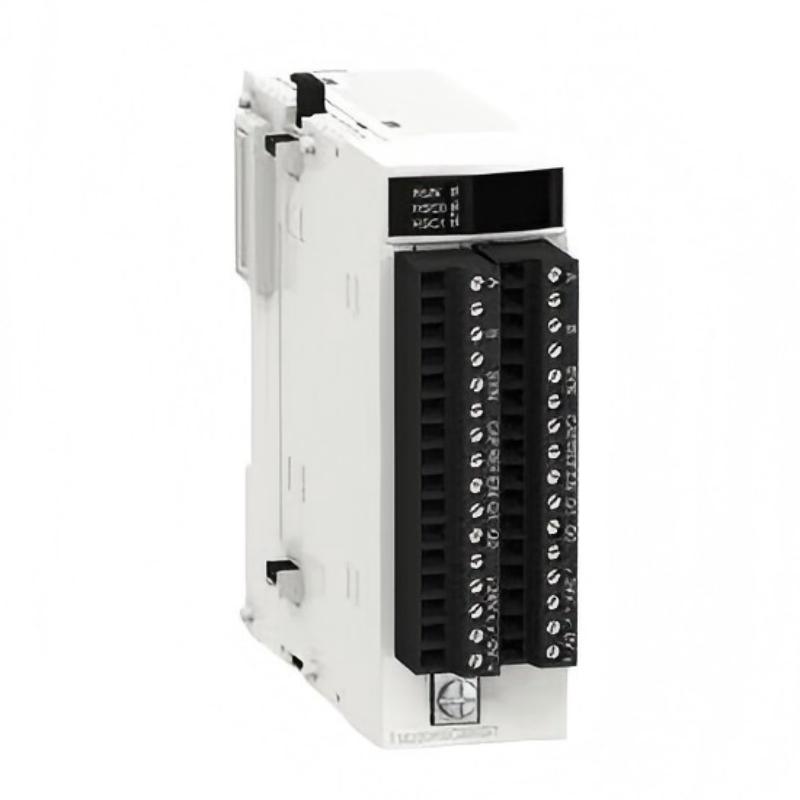

Schneider TM200HSC206DT High-Speed Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200HSC206DT |
| Product Name | Modicon M238 High-Speed Counter Module |
| Product Type | High-Speed Counter / Expert I/O Module |
| Compatible Controller | Modicon M238 series |
| Number of Counter Channels | 2 independent channels |
| Maximum Counting Frequency | 60 kHz |
| Number of Digital Inputs | 12 |
| Number of Digital Outputs | 4 |
| Input Voltage | 24 V DC |
| Input Voltage Range | 15–30 V DC for guaranteed ON state |
| Input Logic | Positive logic, sink input |
| Input Types | High-speed A/B/SYNC inputs and auxiliary CAP, EN, REF inputs |
| Output Type | Transistor output, source logic |
| Output Voltage | 24 V DC (19.2–30 V DC) |
| Maximum Output Current | 0.5 A per output |
| Maximum Total Output Load | 2 A per module |
| Counter Resolution | 31 bits + sign |
| Counting Functions | Up-counting, down-counting, frequency measurement, period measurement, axis monitoring |
| Configurable Modes | 8 counting modes |
| Typical Cycle Time | 1 ms |
| Output Response Time | ≤ 200 μs |
| Sensor Compatibility | 2-wire and 3-wire 24 V sensors; incremental encoders with 15–30 V source outputs |
| Electrical Isolation | 1500 V for 1 minute between channels and internal logic |
| Electrical Connection | 2 removable screw terminal blocks |
| Mounting | Expert module for compatible Modicon M238 controller |
| Protection Rating | IP20 |
| Operating Temperature | -10 to +55°C |
| Dimensions (W × H × D) | 39.1 × 90 × 81.3 mm |
| Weight | 0.449 kg |
FAQ
Q1: What is the Schneider Electric TM200HSC206DT used for?
The TM200HSC206DT is a high-speed counter module designed for compatible Modicon M238 controllers. It processes high-frequency signals from sensors and incremental encoders for applications such as position tracking, speed measurement, pulse counting, and machine synchronization.
Q2: How many counter channels does the TM200HSC206DT support?
The module provides two independent high-speed counter channels. Each channel can be configured separately for supported counting and measurement functions, allowing one module to handle signals from two counting sources.
Q3: What is the maximum counting frequency?
The maximum counting frequency is 60 kHz. Actual performance depends on the selected counting mode, signal quality, wiring, and encoder configuration. Ensure that the input signal meets the module’s electrical requirements for reliable counting.
Q4: Which sensors and encoders are compatible with this module?
The module supports compatible 24 V DC two-wire and three-wire sensors, as well as incremental encoders with 15–30 V DC source outputs. Check the sensor output type, signal voltage, wiring arrangement, and pulse frequency before connecting the device.
Q5: What counting and measurement functions are available?
The module supports up-counting, down-counting, frequency measurement, period measurement, and axis monitoring. It also provides configurable counting modes and functions such as capture, reference, reset, and comparison, depending on the selected operating mode.
Q6: What are the electrical specifications of the digital outputs?
The module has four transistor outputs with a nominal 24 V DC output voltage. Each output supports up to 0.5 A, with a maximum combined load of 2 A per module. The load type and wiring must comply with the manufacturer’s electrical specifications.
Q7: Which controller and programming software are required?
The TM200HSC206DT is designed for the Modicon M238 controller platform. Configuration and programming are performed using compatible SoMachine software and the relevant high-speed counter library. Confirm the controller model and software version before integrating the module into an existing project.
Q8: What should be checked before replacing or installing a TM200HSC206DT?
Verify controller compatibility, terminal-block wiring, sensor signal levels, encoder type, counting mode, output load, and grounding arrangements. Shielded cables are recommended for signal wiring in electrically noisy environments. The module is a legacy product, so check its availability and compatibility with the existing system before planning a replacement.
Schneider TM200HSC206DT High-Speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
