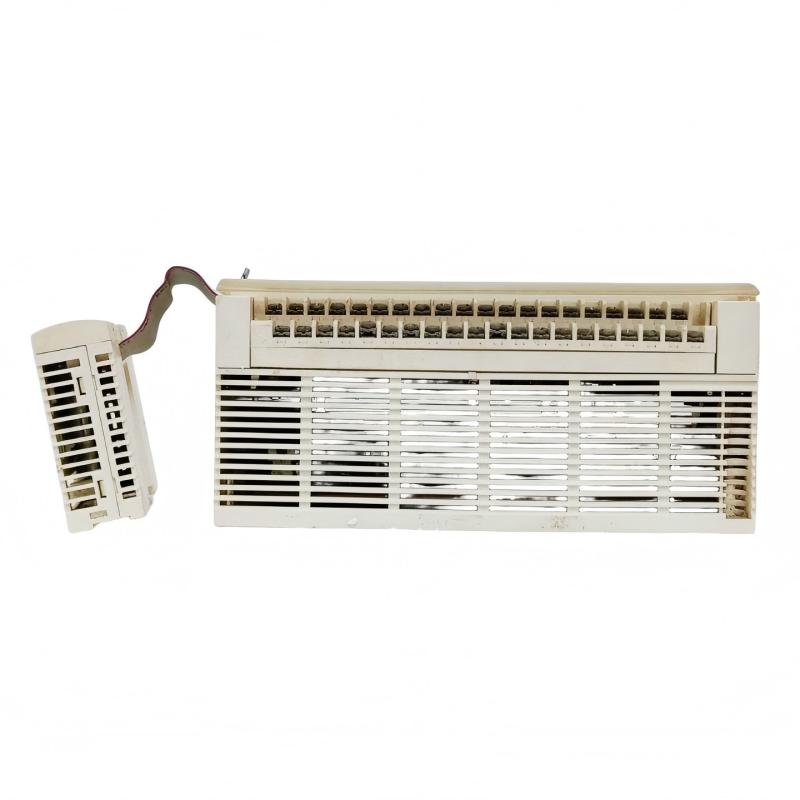

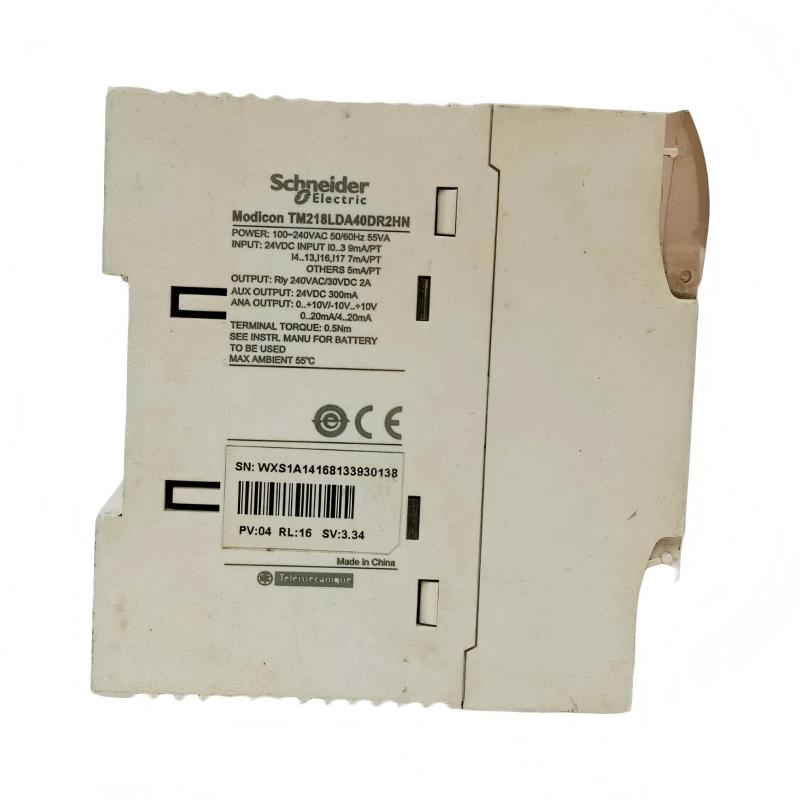

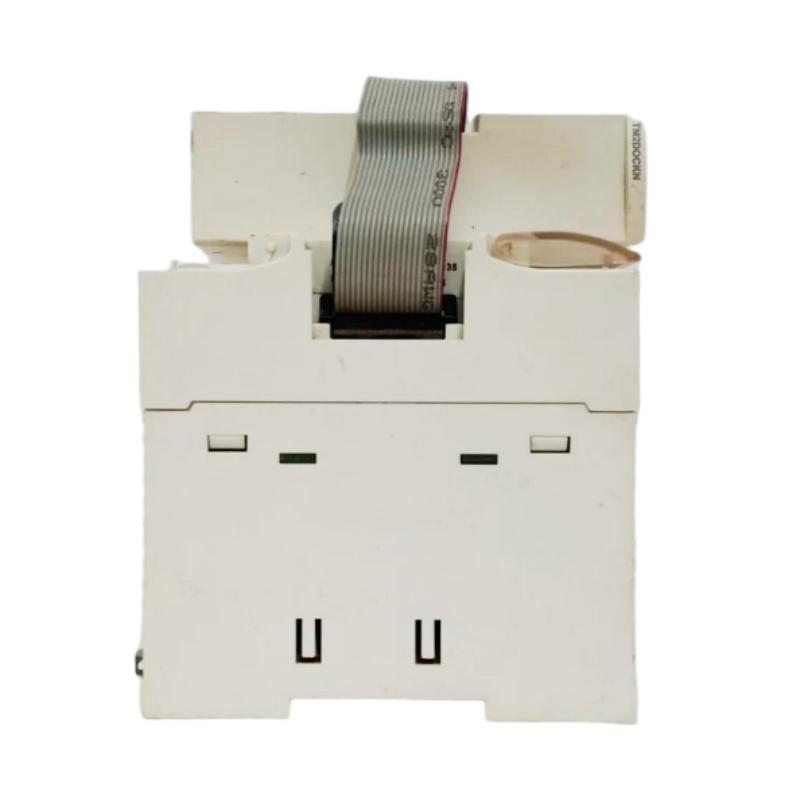

Schneider TM218LDA40DR2HN Modicon M218 Logic Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM218LDA40DR2HN |
| Product Name | Modicon M218 Logic Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Modicon M218 |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 digital inputs |
| High-Speed Inputs | 4 inputs available for high-speed functions, depending on configuration |
| Standard Digital Inputs | 20 inputs |
| Digital Outputs | 16 relay outputs |
| Analog Inputs | Not available |
| Analog Outputs | 2 analog outputs |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Digital Input Voltage | 24 V DC |
| High-Speed Counter | Supported, depending on configuration |
| Maximum High-Speed Counting Frequency | Depends on the selected counting mode and configuration |
| Relay Output Type | Electromechanical relay |
| Relay Output Current | Up to 2 A per point, subject to load conditions and derating |
| Maximum Relay Switching Voltage | 250 V AC / 30 V DC |
| Analog Output Resolution | 12-bit |
| Analog Output Signal | Voltage or current, depending on configuration |
| Programming Interface | USB Mini-B |
| Serial Communication Interfaces | 2 non-isolated RS485 ports |
| Communication Protocols | Compatible serial protocols, such as Modbus RTU/ASCII, depending on configuration |
| Built-in Ethernet | Not available |
| Expansion Capability | Supports compatible expansion modules, subject to system configuration |
| Protection Rating | IP20 |
| Mounting Type | DIN rail or suitable panel mounting |
| Dimensions | 232 × 100 × 81 mm |
| Weight | 0.91 kg |
FAQ
Q1: What is the Schneider Electric TM218LDA40DR2HN used for?
The TM218LDA40DR2HN is a programmable logic controller from the Modicon M218 series. It is designed for machine automation, production line control, equipment sequencing, and applications requiring digital control and analog output signals. Its integrated I/O can help reduce the need for additional modules in suitable applications.
Q2: How many digital inputs and outputs does the TM218LDA40DR2HN provide?
The controller provides 24 digital inputs and 16 relay outputs. The input configuration includes standard inputs and inputs intended for high-speed functions. The available functions depend on the hardware configuration and application settings.
Q3: What analog output functions does this PLC support?
The controller provides two analog outputs for sending control signals to compatible equipment, such as variable frequency drives and regulating devices. The supported signal ranges and electrical characteristics should be confirmed against the product’s technical documentation before connecting external equipment.
Q4: What applications can use the high-speed inputs?
High-speed inputs can be used for pulse counting, event detection, and selected encoder-related applications when supported by the configured operating mode. The actual maximum counting frequency depends on the input channel, counting mode, signal characteristics, and controller configuration. Verify these limits before using the PLC in high-speed applications.
Q5: Can the relay outputs directly control motors or solenoid valves?
Relay outputs can switch compatible loads within their rated electrical limits, but the maximum current rating alone does not determine whether a load can be connected directly. Motors and other inductive loads may produce high starting currents or switching surges. Contactors, interposing relays, and suitable suppression devices may be required to protect the output contacts and improve service life.
Q6: Which communication interfaces are available on the TM218LDA40DR2HN?
The controller provides a USB Mini-B programming interface and two non-isolated RS485 serial communication interfaces. Supported protocols and communication settings depend on the system configuration. Check the required interface and protocol compatibility before integrating the controller with HMIs, drives, or other automation equipment.
Q7: Which programming software is used for the TM218LDA40DR2HN?
The appropriate Schneider Electric programming environment and software version should be confirmed for the specific M218 controller and firmware. Before modifying an existing application, check project compatibility, communication settings, and the availability of the original program. Back up the current project before making changes to a running system.
Q8: What should be checked when purchasing or replacing the TM218LDA40DR2HN?
Verify the complete model number, power supply requirements, digital I/O configuration, relay output ratings, analog output signal requirements, serial communication settings, and compatibility with installed expansion modules. For replacement projects, also check terminal assignments, program compatibility, and the existing control logic to avoid wiring errors or unexpected equipment behavior.
