Q1: What is the Siemens 6AG1193-6AR00-7AA0 PROFINET BusAdapter used for?

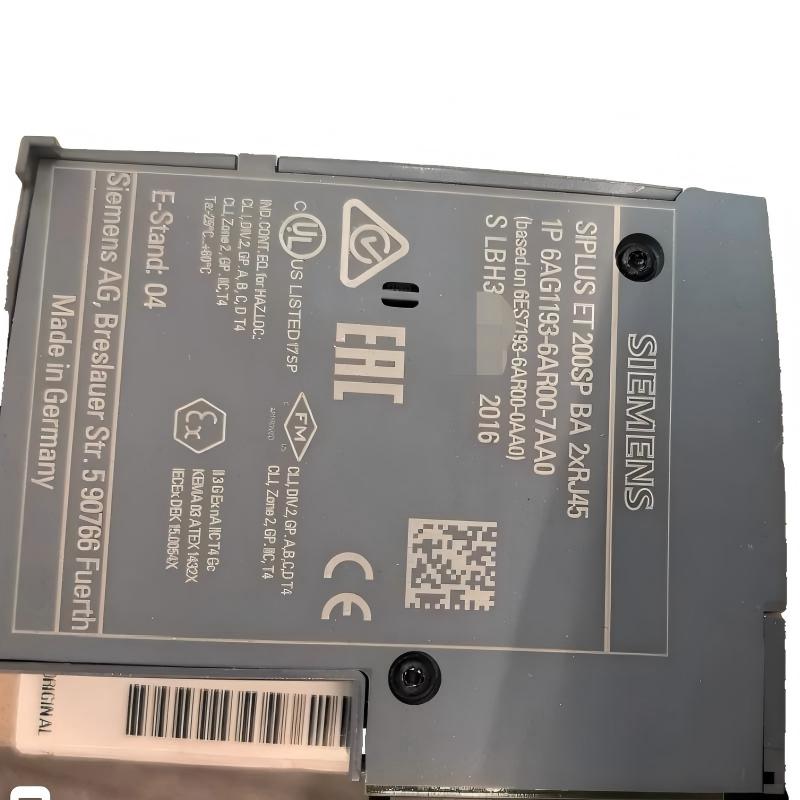

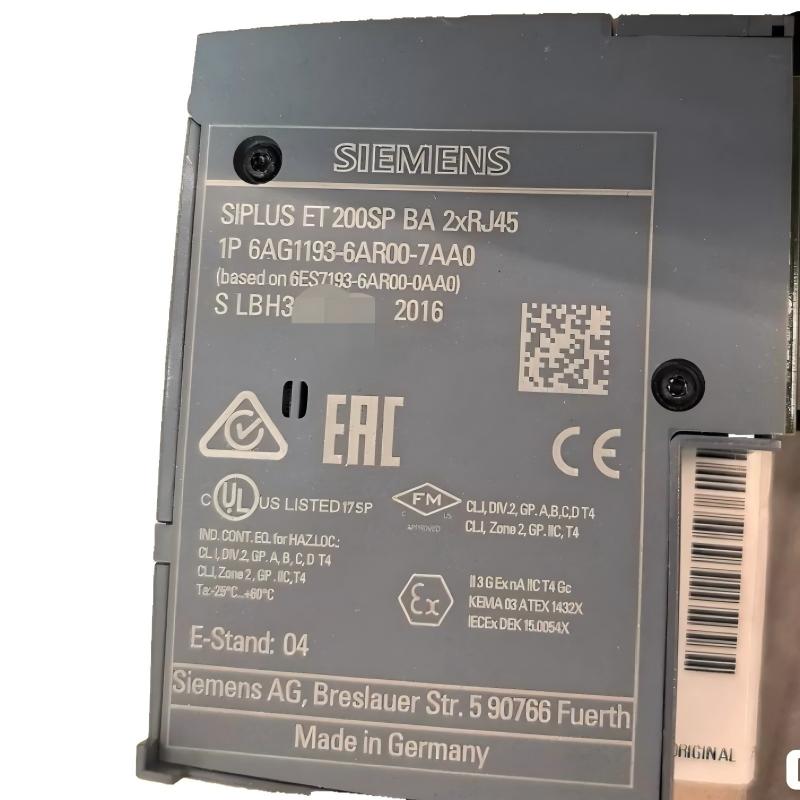

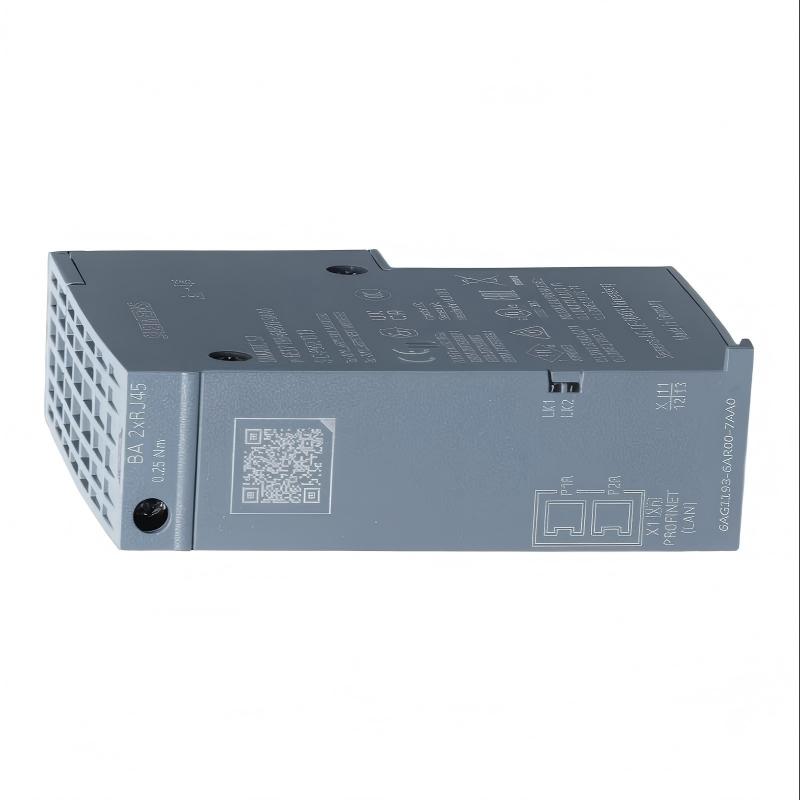

The Siemens 6AG1193-6AR00-7AA0 is a SIPLUS ET 200SP BA 2xRJ45 BusAdapter designed to connect compatible ET 200SP distributed I/O stations to a PROFINET industrial network. It provides two RJ45 ports for copper Ethernet connections, allowing network communication between the distributed I/O station and a PLC or other compatible PROFINET controller. The SIPLUS version features conformal coating and supports a wide operating temperature range, making it suitable for specified demanding industrial environments. It is a communication accessory for the ET 200SP system, not a standalone PLC.

Q2: How many communication ports does the 6AG1193-6AR00-7AA0 have?

This BusAdapter has one PROFINET interface with two RJ45 ports connected through an integrated switch. The two-port design supports network connections between compatible devices and can be used in suitable line or device-to-device network arrangements. The actual topology depends on the controller, network configuration, and application requirements. During commissioning, configure the PROFINET devices correctly and verify the physical connections, device names, and network settings. The two RJ45 ports are intended for industrial Ethernet communication, not for serial RS232 or RS485 connections.

Q3: What type of cable does the 6AG1193-6AR00-7AA0 support?

The adapter uses two RJ45 sockets for copper-based Ethernet cabling. In a typical PROFINET installation, suitable industrial Ethernet cables with compatible RJ45 connectors are used to connect the ET 200SP station to a controller, switch, or another network device. Cable selection should consider the installation environment, electromagnetic interference, mechanical stress, and required transmission distance. For standard copper Ethernet links, the typical maximum cable segment length is 100 m, provided the cable and network components meet the applicable requirements. Use appropriate industrial cabling and follow the network design specifications to maintain reliable communication.

Q4: What is the difference between the 6AG1193-6AR00-7AA0 and the standard 6ES7193-6AR00-0AA0?

The 6AG1193-6AR00-7AA0 is the SIPLUS version based on the standard 6ES7193-6AR00-0AA0 BusAdapter. It includes conformal coating and is specified for operation from -40 to +70°C under the applicable conditions. These characteristics make it suitable for installations where temperature variation and environmental exposure are important selection factors. The standard model has its own environmental ratings, so the two versions should not be treated as identical in every operating condition. Before replacing one with the other, verify the complete part number, system compatibility, operating environment, and relevant installation requirements.

Q5: Is the 6AG1193-6AR00-7AA0 compatible with Siemens SIMATIC ET 200SP?

Yes. The 6AG1193-6AR00-7AA0 is designed for use with compatible Siemens SIMATIC ET 200SP configurations. It provides the RJ45 connections required for copper-based PROFINET communication through a suitable ET 200SP interface module and BaseUnit arrangement. Compatibility should be confirmed against the exact interface module and the system’s hardware configuration. The BusAdapter does not replace the interface module or perform the PLC’s control logic. When purchasing a replacement, check the existing adapter’s article number and connector type to ensure the new unit matches the installed configuration.

Q6: Can the 6AG1193-6AR00-7AA0 operate in high- or low-temperature environments?

The SIPLUS 6AG1193-6AR00-7AA0 is specified for an operating temperature range of -40 to +70°C under the manufacturer’s stated conditions. Its minimum startup temperature is -25°C, which is an important distinction when equipment has been exposed to very low temperatures. The permitted operating conditions can also depend on installation altitude, ambient pressure, and the overall system configuration. Although the conformal coating improves resistance to certain environmental influences, it does not make the product waterproof or eliminate the need for proper enclosure protection. Always check the installation requirements before operating the device in extreme conditions.

Q7: Does the 6AG1193-6AR00-7AA0 support a ring or line network topology?

The two RJ45 ports and integrated switch make the adapter suitable for network arrangements that use daisy-chain connections between compatible devices. A line topology is possible when supported by the connected equipment and network design. Ring redundancy, however, depends on the capabilities and configuration of the complete PROFINET network, including the controller and participating devices. Do not assume that two ports alone guarantee ring redundancy. If a redundant network is required, verify support for the relevant redundancy mechanisms and configure the network according to the system documentation.

Q8: What should be checked before purchasing or replacing the 6AG1193-6AR00-7AA0?

Before purchasing or replacing this BusAdapter, verify the full Siemens part number, compatibility with the installed ET 200SP interface module, RJ45 connection requirements, PROFINET configuration, and cable specifications. Confirm that the operating temperature and environmental ratings meet the application requirements. For copper Ethernet links, check cable quality, connector condition, grounding practices, and the required cable length. If replacing a failed adapter, inspect the connected cables and network ports as well as the module itself. After installation, confirm that the PROFINET device is recognized by the controller and that communication with the distributed I/O station is functioning correctly.
