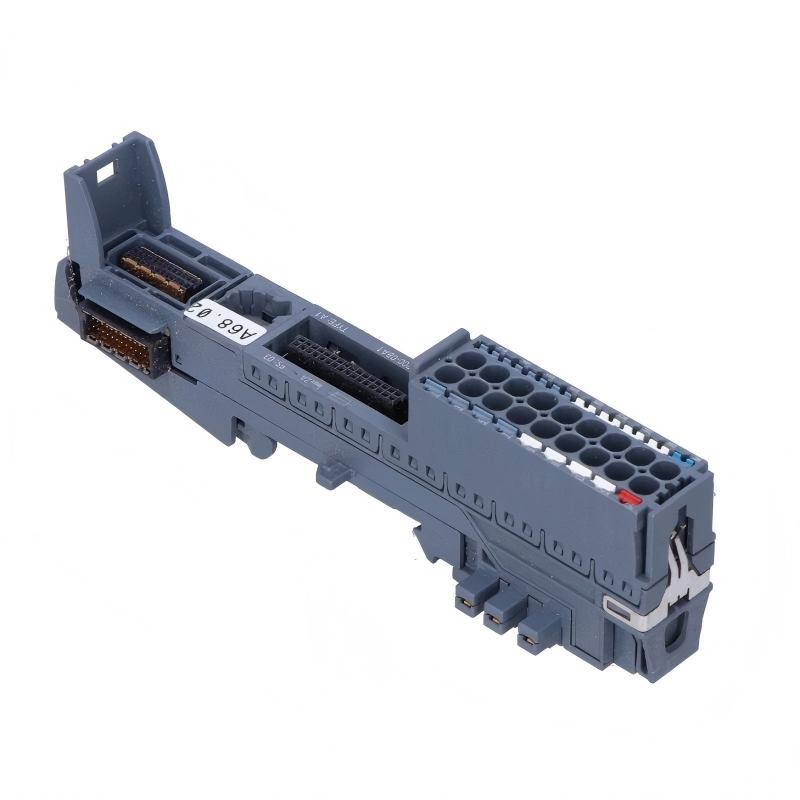

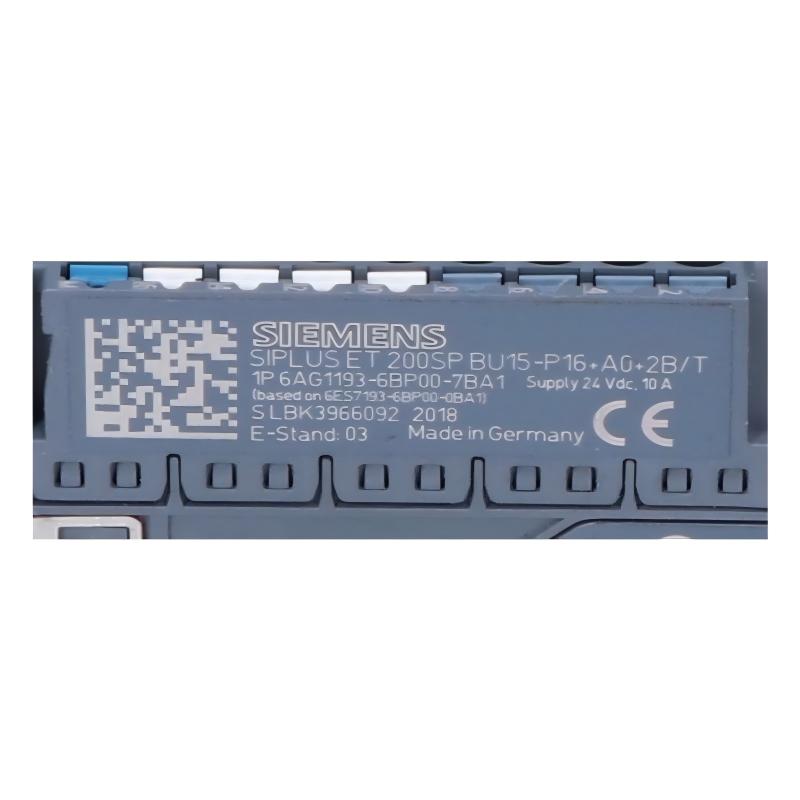

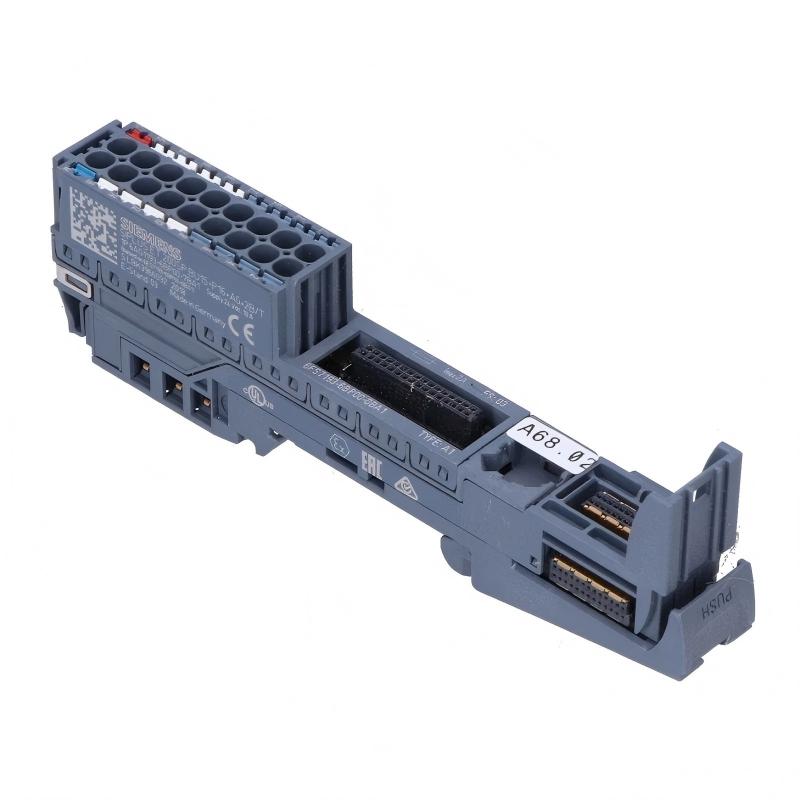

Siemens 6AG1193-6BP00-7BA1 Base Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1193-6BP00-7BA1 |
| Product Name | SIPLUS ET 200SP BaseUnit BU15-P16+A0+2B/T |
| Product Series | SIPLUS ET 200SP |
| Base Model | 6ES7193-6BP00-0BA1 |
| BaseUnit Type | A1 |
| Product Function | Base unit for connecting ET 200SP I/O modules and field wiring |
| Terminal Type | Push-in terminals |
| Number of Process Terminals | 16 |
| AUX Terminals | No AUX terminals |
| Bridging Configuration | Bridged to the left |
| Temperature Acquisition | Yes, with integrated temperature acquisition |
| Rated Supply Voltage | 24 V DC |
| Maximum P1/P2 Bus Current | 10 A |
| Maximum Process Terminal Current | 2 A |
| External Power Supply Protection | 24 V DC, 10 A circuit breaker with B-type or C-type tripping characteristic |
| Number of Slots | 1 |
| Electrical Isolation | Isolation between the backplane bus and supply voltage |
| Isolation Test Voltage | 707 V DC |
| Conformal Coating | Yes |
| Operating Temperature | -40°C to +70°C under specified conditions |
| Maximum Installation Altitude | 5,000 m, subject to temperature and atmospheric pressure restrictions |
| Compatible System | Siemens SIMATIC ET 200SP |
| Dimensions | 15 × 117 × 35 mm |
| Weight | 0.04 kg |
FAQ
Q1: What is the Siemens 6AG1193-6BP00-7BA1 BaseUnit used for?
A1: The Siemens 6AG1193-6BP00-7BA1 is a SIPLUS ET 200SP BaseUnit designed to connect field wiring to compatible ET 200SP I/O modules. It provides the required process terminals and backplane bus connections. This model also supports temperature acquisition, making it suitable for compatible applications that require temperature compensation.
Q2: What type of terminals does the 6AG1193-6BP00-7BA1 use?
A2: This BaseUnit uses Push-in terminals for field wiring. The design simplifies installation and maintenance by allowing compatible conductors to be inserted directly into the terminals. The conductor type and cross-section must comply with Siemens specifications, and all connections should be checked before the system is powered on.
Q3: What are the electrical ratings of this BaseUnit?
A3: The rated supply voltage is 24 V DC. The maximum current-carrying capacity of the P1/P2 bus is 10 A, while the process terminals support a maximum of 2 A. The power supply and external protection must be selected according to the connected load and the requirements of the complete ET 200SP installation.
Q4: Does the 6AG1193-6BP00-7BA1 support temperature acquisition?
A4: Yes. This is a BU type A1 BaseUnit with temperature acquisition capability. It supports the temperature compensation function required by compatible thermocouple applications. Actual functionality depends on the connected I/O module and its configuration, so the BaseUnit and module must be selected as a compatible combination.
Q5: What is the difference between the 6AG1193-6BP00-7BA1 and the standard 6ES7193-6BP00-0BA1?
A5: The 6AG1193-6BP00-7BA1 is the SIPLUS version based on the standard 6ES7193-6BP00-0BA1. It features conformal coating and a specified operating temperature range of -40°C to +70°C, making it suitable for more demanding industrial environments. The coating does not make the unit waterproof, and installation must follow the applicable environmental requirements.
Q6: Can this BaseUnit replace a BU type A0 BaseUnit?
A6: Not automatically. The 6AG1193-6BP00-7BA1 is a BU type A1 model, while A0 BaseUnits have a different configuration. Before replacing an existing unit, check the I/O module compatibility, temperature acquisition requirements, terminal arrangement, and system documentation. A matching physical appearance does not guarantee electrical or functional compatibility.
Q7: What should be checked when installing the 6AG1193-6BP00-7BA1?
A7: Verify the 24 V DC supply, terminal assignments, conductor specifications, current limits, and external circuit protection before commissioning. The unit should be installed in a compatible ET 200SP station according to Siemens installation instructions. Disconnect the relevant power supply before wiring, and ensure that all connections are secure.
Q8: What should be checked when troubleshooting or replacing this BaseUnit?
A8: First, confirm the complete order number and the BU type A1 configuration. Check the supply voltage, field wiring, terminal condition, and installation of the connected I/O module. If temperature compensation is involved, verify that the selected module supports the required function and that its configuration is correct. After replacement, confirm that the station recognizes the module and that the relevant process signals operate normally.
