Q1: What is the Siemens 6AG1193-6AP00-2AA0 PROFINET BusAdapter used for?

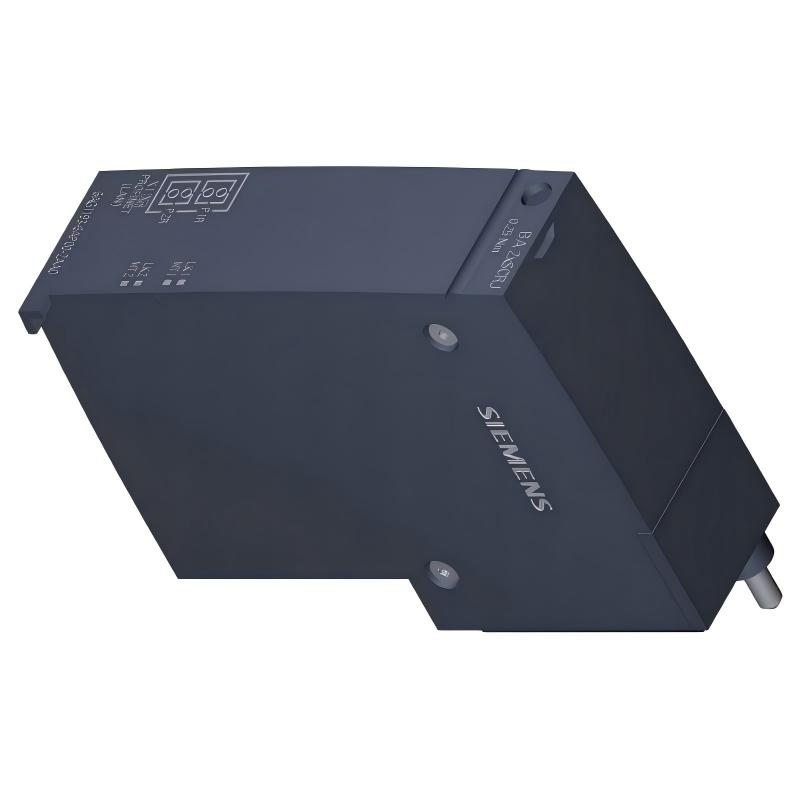

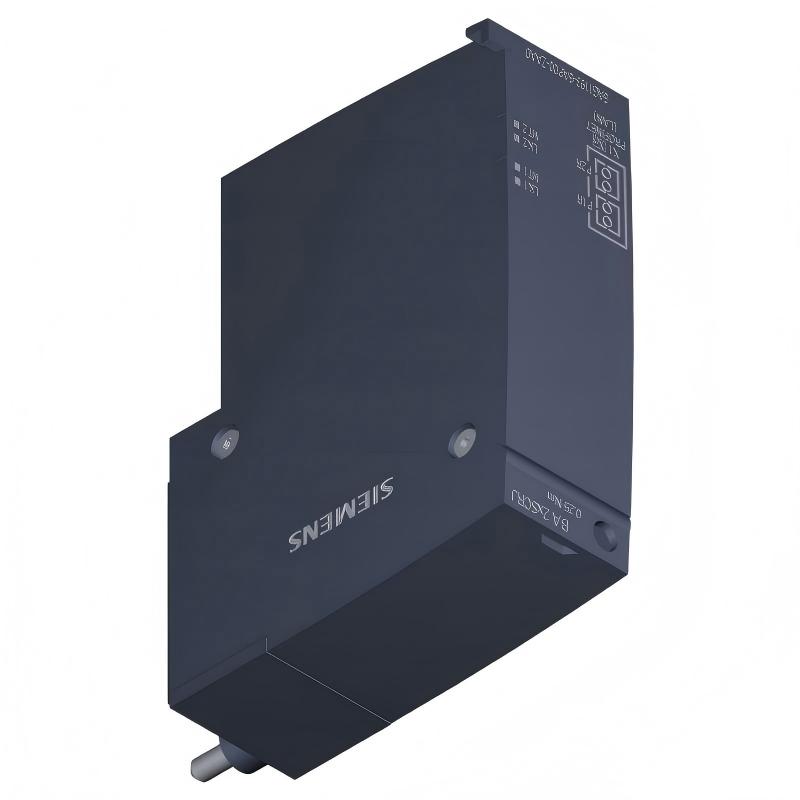

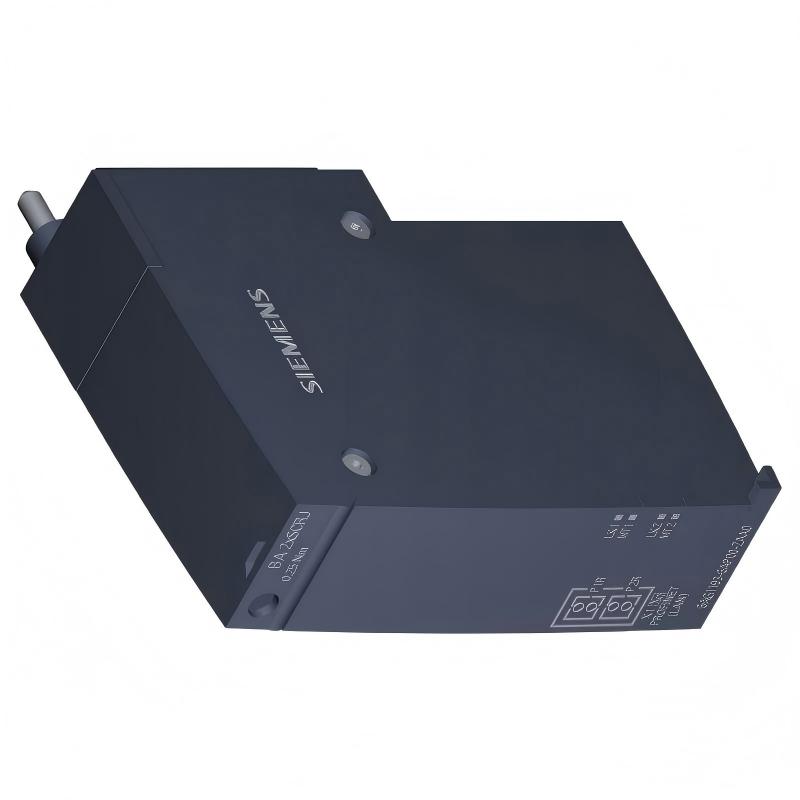

The Siemens 6AG1193-6AP00-2AA0 is a SIPLUS ET 200SP BA 2xSCRJ PROFINET BusAdapter designed to connect compatible ET 200SP automation stations to a PROFINET network using fiber-optic cables. It supports communication through two SCRJ fiber-optic ports and is suitable for industrial applications where electrical isolation and resistance to electromagnetic interference are important. Its SIPLUS design includes conformal coating, making it suitable for specified demanding environmental conditions. It is an interface accessory for compatible ET 200SP configurations rather than a standalone PLC or a general-purpose fiber-optic converter.

Q2: Which communication protocol does the 6AG1193-6AP00-2AA0 support?

This BusAdapter supports PROFINET IO communication. It provides one PROFINET interface with two SCRJ fiber-optic ports connected through an integrated switch. The two-port design can support device-to-device network connections in an appropriate topology. Before commissioning, verify that the ET 200SP interface module and the configured PROFINET network support the intended application. Device names, IP configuration where applicable, network topology, and controller settings must be configured correctly to ensure reliable communication between the PLC and distributed I/O station.

Q3: What type of fiber-optic cable does the 6AG1193-6AP00-2AA0 use?

The 6AG1193-6AP00-2AA0 uses SCRJ fiber-optic connectors and supports compatible plastic optical fiber (POF) and polymer-clad fiber (PCF) cable systems. The specified cable distance depends on the fiber type: up to 50 m for POF, up to 100 m for PCF, and up to 300 m for PCF graded-index fiber under the applicable conditions. These cable types are not interchangeable without checking compatibility. Before installation, confirm the cable specification, connector compatibility, and supported distance for the complete communication link. Correct cable selection helps prevent signal loss and intermittent PROFINET communication faults.

Q4: What is the maximum communication distance supported by this BusAdapter?

The maximum supported distance depends on the selected fiber-optic technology. The specified limits are up to 50 m for plastic optical fiber, 100 m for PCF, and 300 m for PCF graded-index fiber. These values should be treated as cable-length limits under the specified technical conditions, not as a guarantee for every installation. Cable quality, connector condition, installation practices, and the optical characteristics of the connected equipment can affect communication reliability. For a new installation, select the fiber type according to the required distance and verify the complete link against Siemens technical documentation.

Q5: What is the difference between the 6AG1193-6AP00-2AA0 and the standard 6ES7193-6AP00-0AA0?

The 6AG1193-6AP00-2AA0 is the SIPLUS version based on the standard 6ES7193-6AP00-0AA0 BA 2xSCRJ BusAdapter. The SIPLUS version features conformal coating and is designed for a wider range of specified environmental conditions. Its operating temperature range extends from -40 to +60°C, with a minimum startup temperature of -25°C. These characteristics make it suitable for applications where environmental conditions are more demanding than those covered by the standard product specifications. When choosing a replacement, confirm the full order number, interface compatibility, installation conditions, and applicable approvals.

Q6: Is the 6AG1193-6AP00-2AA0 compatible with Siemens SIMATIC ET 200SP?

Yes. This BusAdapter is designed for use with compatible Siemens SIMATIC ET 200SP interface modules. It provides the connection between the ET 200SP station and a PROFINET network using SCRJ fiber-optic cabling. However, compatibility should be verified against the exact interface module, hardware configuration, and system documentation. The adapter does not replace the interface module or perform the function of a standalone PLC. When replacing an existing BusAdapter, check the original part number and the fiber-optic connection type to ensure the new unit matches the installed system.

Q7: What environmental conditions can the SIPLUS 6AG1193-6AP00-2AA0 withstand?

The SIPLUS version includes conformal coating and is specified for operating temperatures from -40 to +60°C under the applicable installation conditions. The minimum startup temperature is -25°C, so equipment that has been exposed to lower temperatures may require appropriate conditioning before startup. The maximum operating temperature also depends on mounting orientation; vertical installation has a lower specified maximum than horizontal installation. Conformal coating improves protection against certain environmental contaminants, but it does not make the adapter waterproof. Follow the manufacturer’s installation requirements and check enclosure protection, humidity, and other site conditions before use.

Q8: What should be checked before purchasing or replacing the 6AG1193-6AP00-2AA0?

Before purchasing or replacing this BusAdapter, verify the complete Siemens order number, compatibility with the ET 200SP interface module, PROFINET requirements, SCRJ connector type, and fiber-optic cable specification. Confirm that the selected POF or PCF cable supports the required communication distance. For installations exposed to temperature extremes or environmental contaminants, also check the operating temperature limits, startup conditions, mounting orientation, and required approvals. If replacing a faulty adapter, inspect the fiber-optic cables and connectors for damage or contamination, and confirm that the network configuration is correct before returning the equipment to service.
