Q1: What type of PLC is the Schneider Electric TM221C16R?

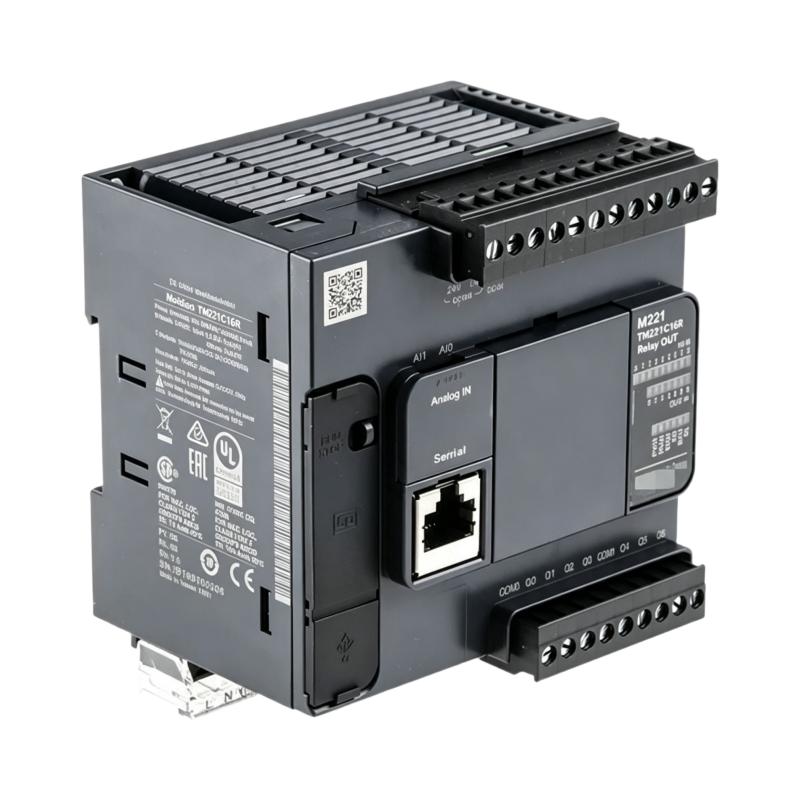

The Schneider Electric TM221C16R is a compact logic controller in the Modicon M221 series, designed for small and medium-sized industrial automation systems. It integrates digital inputs, relay outputs, and analog voltage inputs to collect sensor signals, execute programmed logic, and control external equipment. Typical applications include packaging machinery, conveyor systems, pumping equipment, material handling systems, and general-purpose industrial machines. The controller operates on a 100–240 V AC supply and provides serial communication and USB programming interfaces. It is suitable for applications that require conventional PLC control without a built-in Ethernet interface.

Q2: How many inputs and outputs does the TM221C16R provide?

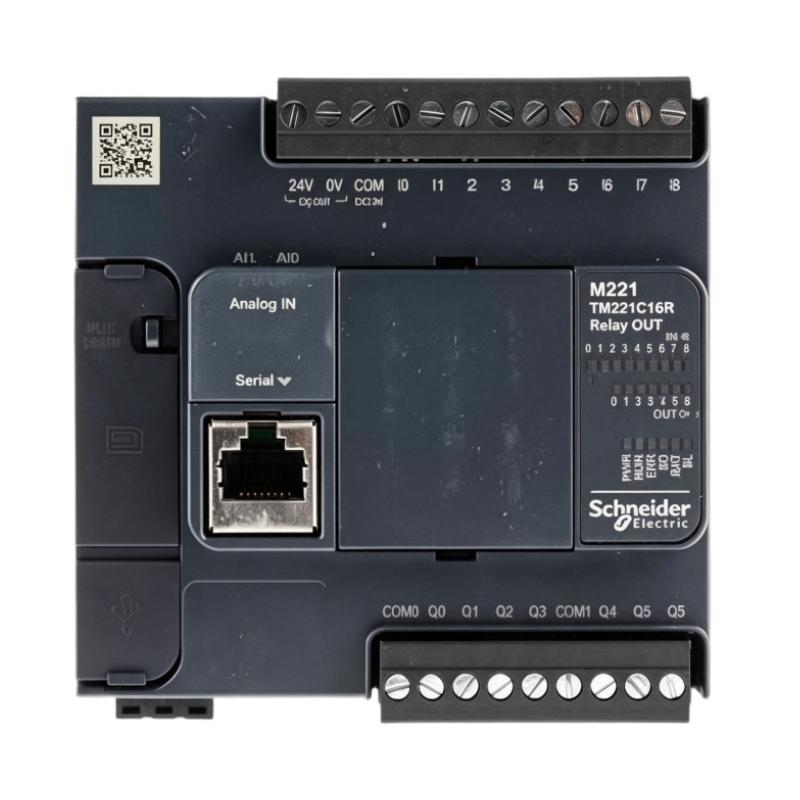

The TM221C16R provides 16 digital I/O points, consisting of 9 digital inputs and 7 relay outputs. It also includes 2 analog inputs for 0–10 V DC voltage signals. Four of the digital inputs support high-speed functions and can be used for compatible high-speed counting applications. The remaining inputs are suitable for standard switching signals. Digital inputs can be connected to compatible push buttons, limit switches, and sensors, while the relay outputs control external loads within their specified electrical ratings. When designing a control system, digital I/O and analog inputs should be counted separately because the two analog channels are additional measurement functions.

Q3: What power supply does the TM221C16R require?

The TM221C16R has a rated supply voltage of 100–240 V AC, with an allowable input range of 85–264 V AC at 50/60 Hz. Before installation, verify that the available power supply meets the controller’s requirements and provide appropriate grounding, circuit protection, and wiring. The PLC’s AC power supply is separate from its 24 V DC digital input signals. When connecting sensors or other peripheral devices, check their rated voltage, current requirements, and common-terminal wiring. Always disconnect the power before installation or maintenance, and follow the wiring diagram for the exact model to ensure safe and reliable operation.

Q4: Which analog signals can the TM221C16R measure?

The TM221C16R has two analog voltage inputs with a range of 0–10 V DC and a resolution of 10 bits. These inputs can acquire voltage signals from compatible sensors and transmitters used for applications such as level, pressure, or position measurement. The analog conversion time is approximately 1 ms per channel, plus one controller cycle. A 0–10 V voltage input is not equivalent to a 4–20 mA current input, so a current-output transmitter should not be connected directly unless a suitable conversion device or compatible interface is provided. Before wiring, verify the signal type, measurement range, grounding arrangement, and permitted input voltage.

Q5: What are the relay output characteristics of the TM221C16R?

The TM221C16R features seven normally open electromechanical relay outputs. Each output supports a current of up to 2 A, with switching voltage ratings of 5–250 V AC or 5–125 V DC, subject to the applicable product specifications and load conditions. These outputs are suitable for conventional on/off control, indicator lights, and controlling external equipment through appropriate interposing relays or contactors. Because electromechanical relays use physical contacts, their switching frequency and electrical service life depend on the load type, inrush current, and switching frequency. They are not intended for high-frequency pulse generation. For inductive loads such as motors and solenoid valves, appropriate protective and switching components may be required.

Q6: Does the TM221C16R support Ethernet communication?

The TM221C16R does not have a built-in Ethernet port, which is an important consideration when selecting this controller. It provides an RJ45 serial communication interface that can support RS232 or RS485 configurations, together with a USB Mini-B programming interface. The RJ45 connector’s physical shape does not mean that it is an Ethernet port; the communication interface must be identified by its actual function. If an application requires Ethernet communication with an HMI, SCADA system, or another PLC, verify that the selected controller provides the required network interface or determine whether a compatible external communication device is appropriate. When replacing an existing controller, check the communication protocol and wiring requirements carefully.

Q7: Can the TM221C16R be expanded with additional I/O modules?

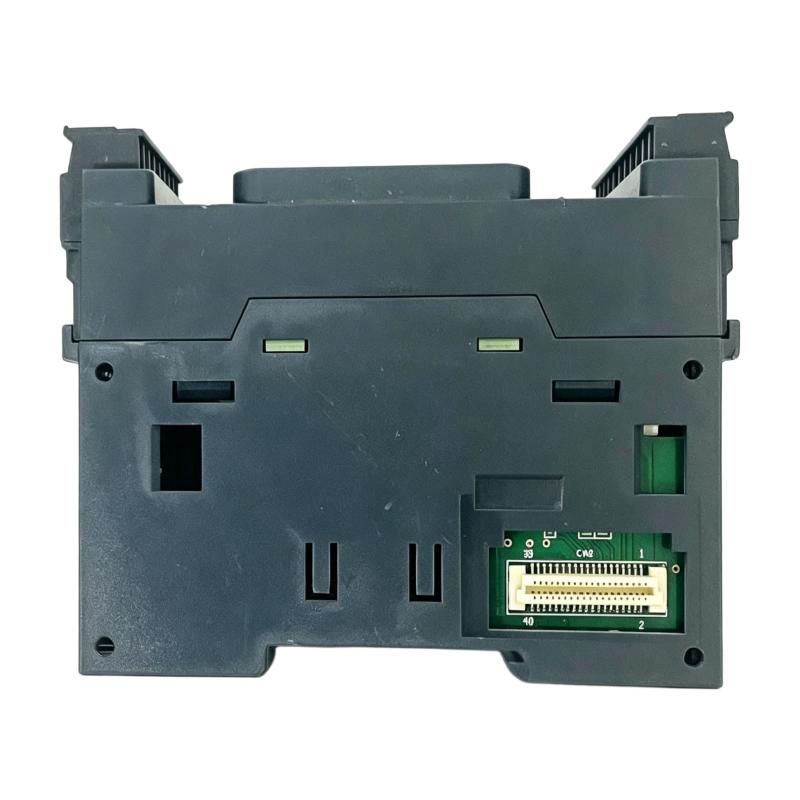

Yes. The TM221C16R supports compatible Modicon TM3 expansion modules, allowing additional digital or analog I/O to be added as required. The supported number of modules depends on the system architecture. Local I/O expansion can generally support up to four modules, while specific remote I/O architectures may support additional modules, subject to Schneider Electric’s compatibility and configuration requirements. Before adding expansion modules, verify the module model, power requirements, available mounting space, communication architecture, and software configuration. After installation, review the I/O addressing and PLC program to ensure that the new signals are correctly read or controlled. Planning expansion capacity early can help reduce future modification costs.

Q8: What should be checked before purchasing or replacing the TM221C16R?

Before purchasing or replacing the TM221C16R, verify the complete model number, supply voltage, number of digital inputs, relay outputs, analog input range, communication interfaces, and expansion requirements. Pay particular attention to Ethernet requirements because the TM221C16R does not include a built-in Ethernet port. It should not be considered directly interchangeable with a similar model that provides Ethernet connectivity. When replacing an existing PLC, also check terminal assignments, the existing program, sensor signal types, output loads, and communication protocols. For equipment already in service, back up the PLC program and configuration before replacement, then test the inputs, outputs, and communication functions before returning the machine to operation.
