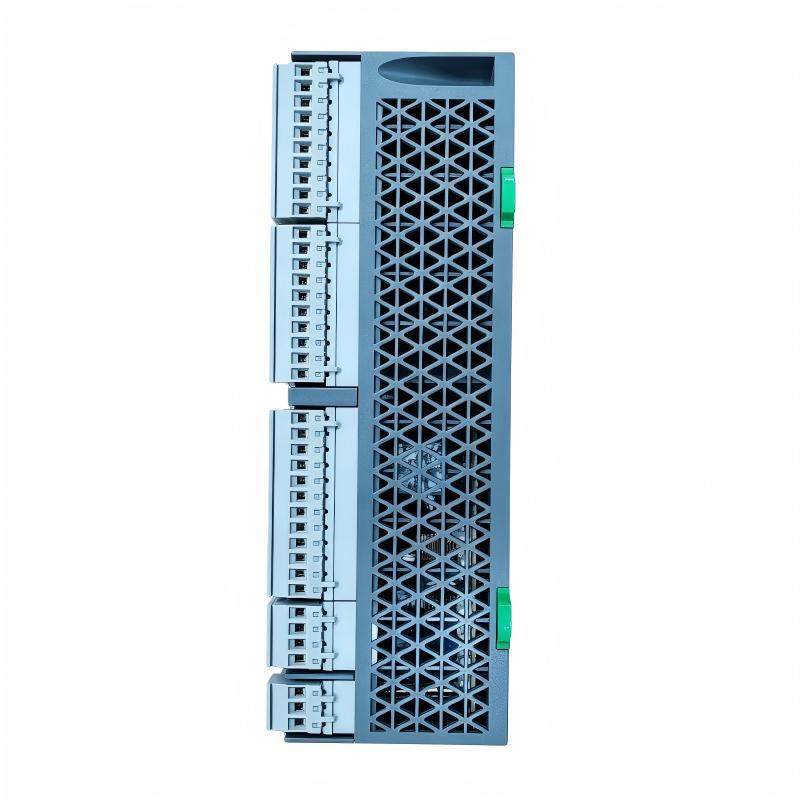

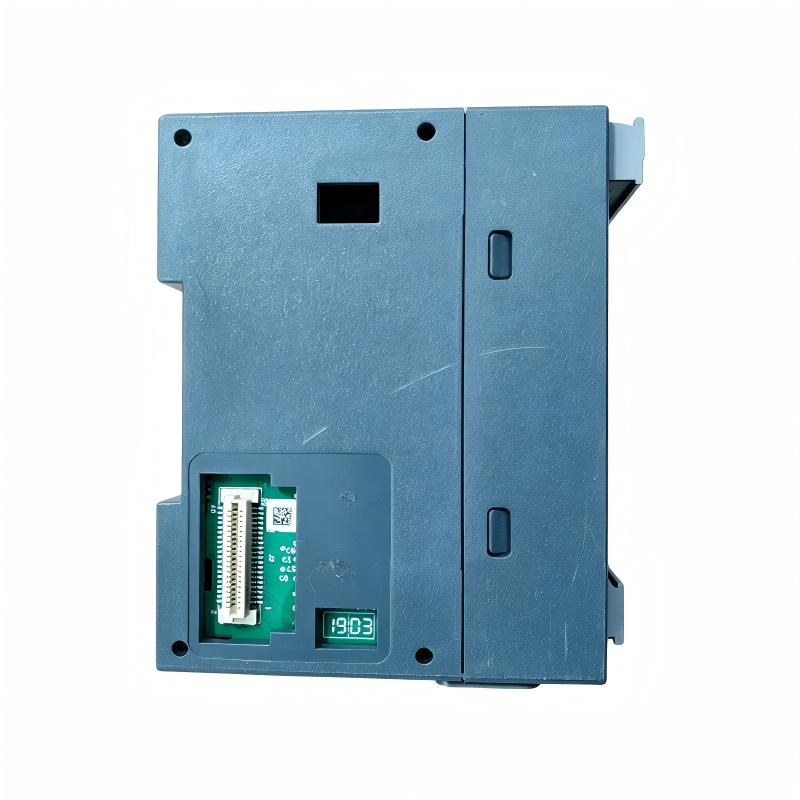

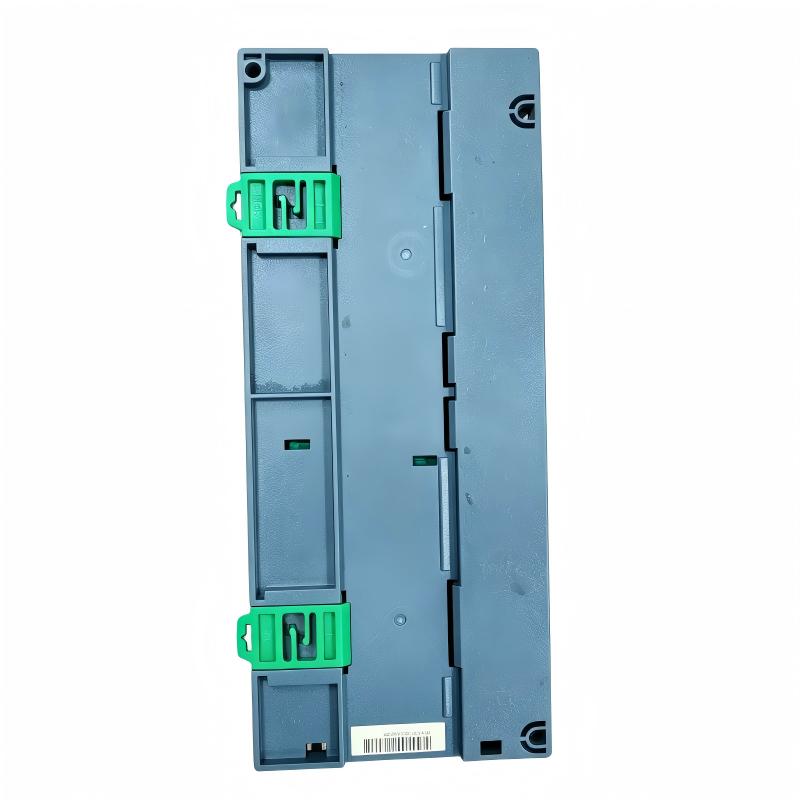

Schneider TM200CE60R Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200CE60R |
| Product Name | Easy Modicon M200 Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 60 points |
| Digital Inputs | 36 inputs: 28 regular inputs, 4 high-speed inputs, and 4 fast inputs |
| Digital Outputs | 24 relay outputs |
| Rated Supply Voltage | 220 V AC |
| Supply Voltage Range | 85–264 V AC |
| Digital Input Voltage | 24 V DC |
| Digital Input Current | 7 mA per input |
| Input Logic | Sink or source (positive or negative logic) |
| Output Type | Normally open relay |
| Output Voltage | 24 V DC / 220 V AC |
| Maximum Current per Output | 2 A |
| Output Voltage Limits | Up to 30 V DC / 250 V AC |
| Maximum Power Consumption | 61–74 VA at 100–240 V AC, depending on I/O load |
| Communication Interfaces | Ethernet, RS232/RS485 serial communication, USB Mini-B |
| Ethernet Protocol | Modbus TCP/IP |
| Ethernet Port | 1 × RJ45, 10/100BASE-T |
| High-Speed Counting | Up to 100 kHz, depending on counting mode and input configuration |
| Program Backup Memory | 512 bytes internal flash memory |
| Memory Card Support | Optional Micro SD card, up to 32 GB |
| Expansion Capability | Up to 4 I/O expansion modules; capacity depends on module type |
| Built-in Sensor Power Supply | 24 V DC, 300 mA |
| Mounting Type | DIN rail or panel mounting with suitable fixing kit |
| Protection Rating | IP20 with protective cover installed |
| Operating Temperature | 0–55°C |
| Dimensions | 225 × 90 × 70 mm |
| Weight | 0.702 kg |
| Typical Applications | Packaging machinery, assembly lines, material handling, pump control, and general industrial automation |
FAQ
Q1: What is the Schneider Electric TM200CE60R used for?
The TM200CE60R is a programmable logic controller from the Easy Modicon M200 series. It is designed for small and medium-sized machine automation, handling digital input signals, executing control logic, and operating connected devices through relay outputs.
Q2: How many inputs and outputs does the TM200CE60R provide?
The controller provides 60 digital I/O points, including 36 digital inputs and 24 relay outputs. The inputs include regular, high-speed, and fast channels, allowing the controller to handle standard machine signals and selected high-speed counting tasks.
Q3: What power supply does the TM200CE60R require?
The controller uses an AC power supply with a rated voltage of 220 V AC and an allowable range of 85–264 V AC. Before installation, verify the actual supply voltage, grounding, protective devices, and wiring requirements. Do not connect a 24 V DC supply to the controller’s AC power terminals.
Q4: What types of loads can the relay outputs control?
The relay outputs can switch compatible AC or DC loads within the specified voltage and current limits. The rated maximum current is 2 A per output, but the permissible load depends on the voltage, load type, switching frequency, and electrical life requirements. Inductive loads may require suitable suppression components to protect the contacts.
Q5: Can the TM200CE60R communicate with an HMI or another PLC?
Yes. The controller provides Ethernet communication with Modbus TCP/IP support, as well as serial communication interfaces and a USB Mini-B programming port. Communication settings, wiring, and protocol configuration must match the connected HMI, PLC, or other industrial device.
Q6: What are the high-speed and fast inputs used for?
The high-speed inputs can support high-speed counter functions, while the fast inputs can be used for faster signal acquisition and counting tasks. The controller supports counting modes up to 100 kHz under supported configurations. Actual performance depends on the input channel, counting mode, and application setup.
Q7: Can additional I/O modules be connected to the TM200CE60R?
Yes. The Easy Modicon M200 platform supports up to four I/O expansion modules, subject to the controller’s configuration and module compatibility. The maximum I/O capacity differs between relay-output and transistor-output expansion configurations. Check the expansion rules and power requirements before adding modules.
Q8: What should be checked before replacing an existing TM200CE60R controller?
Confirm the complete model number, AC supply requirements, input and relay-output configuration, communication interfaces, expansion modules, and program compatibility. Check the existing wiring and load ratings, especially for relay-controlled devices. A replacement should match the original controller’s electrical and functional requirements, not just its series name.
