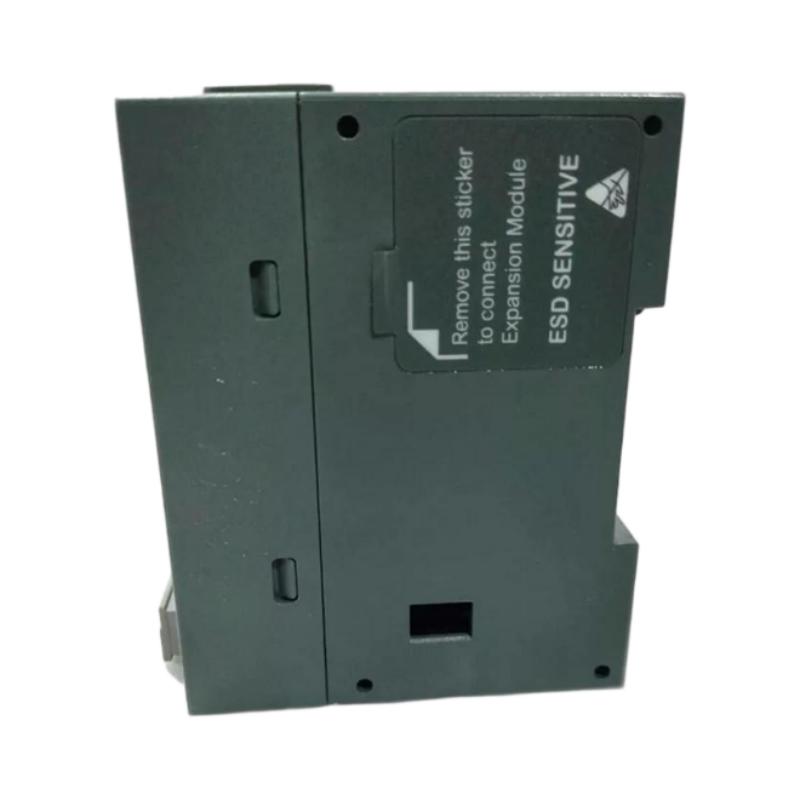

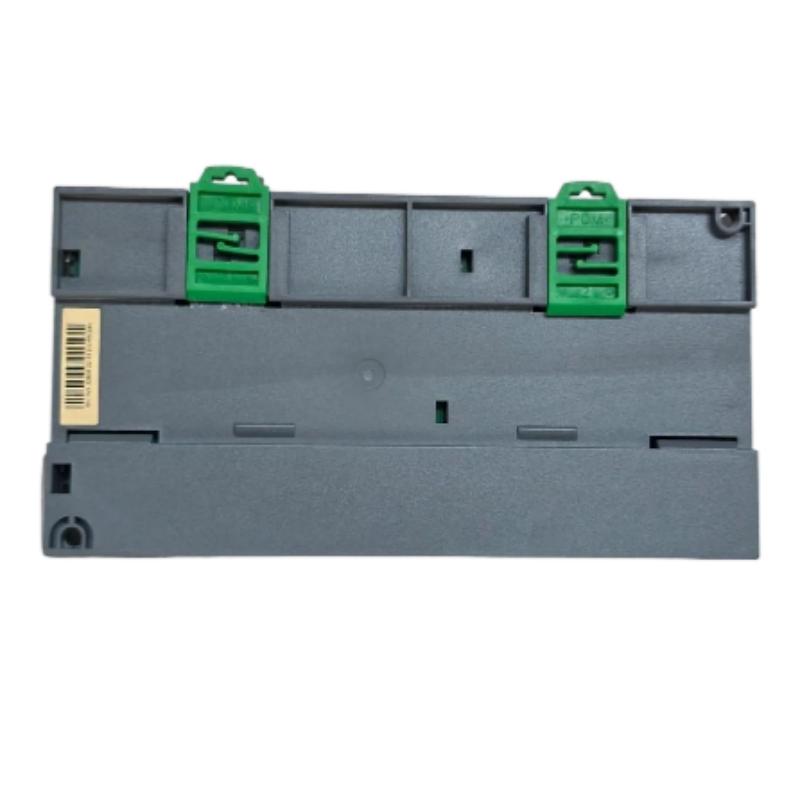

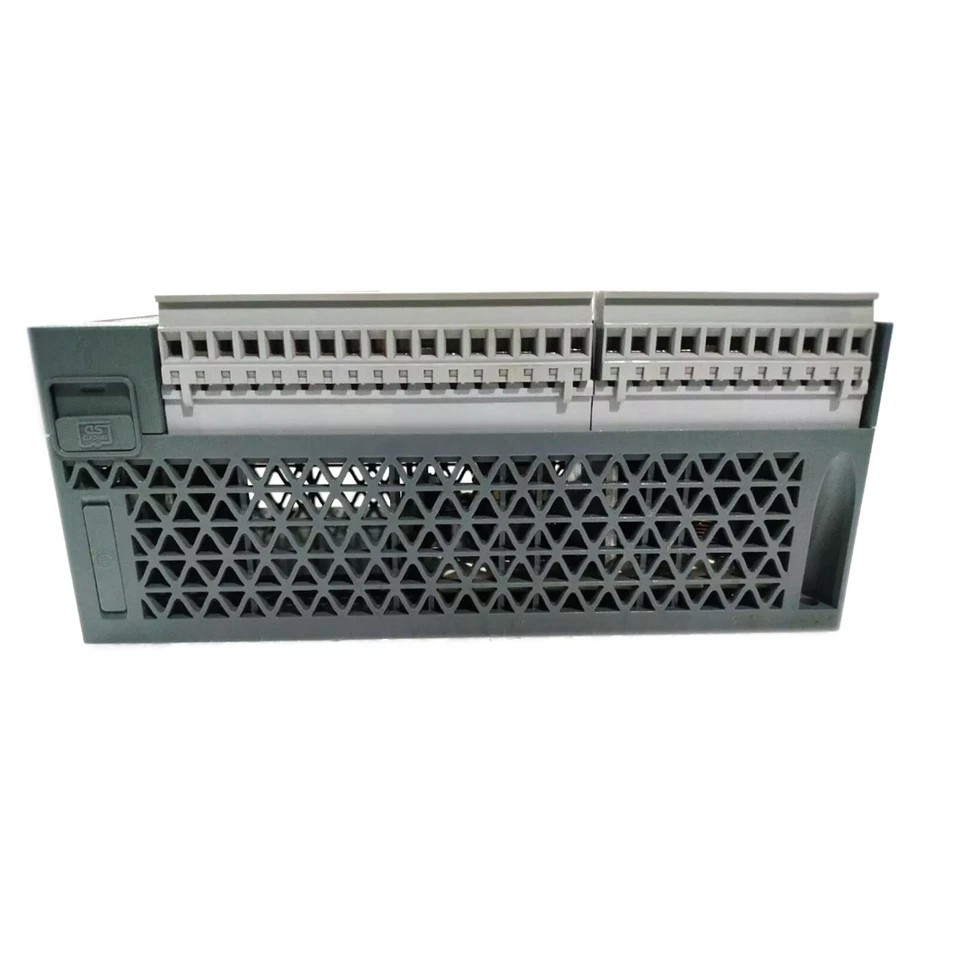

Schneider TM200CE40U Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM200CE40U |
| Product Name | Easy Modicon M200 Controller |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs: 16 regular, 4 high-speed, 4 fast inputs |
| Digital Outputs | 16 sink transistor outputs, including 14 regular outputs and 2 fast outputs |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Input Voltage | 24 V DC |
| Input Current | 7 mA per input |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per output |
| Output Type | Transistor, sink (NPN) |
| Fast Output Functions | PWM, PLS, PTO |
| Communication Interfaces | Ethernet, USB mini-B, serial communication |
| Ethernet Protocol | Modbus TCP/IP |
| Serial Communication | RS485; configurable serial interface according to system requirements |
| Programming Port | USB mini-B |
| Memory Card Support | Micro SD, up to 32 GB |
| Internal Flash Memory | 512 bytes |
| Maximum Power Consumption | 10 W at 24 V DC with maximum I/O load |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Dimensions | 175 × 90 × 70 mm |
| Weight | 0.483 kg |
| Typical Applications | Packaging machinery, machine tools, material handling, pumping systems, and small automation equipment |
FAQ
Q1: What is the Schneider Electric TM200CE40U used for?
The TM200CE40U is a programmable logic controller in the Easy Modicon M200 series. It is designed to control small industrial machines and automation processes by receiving digital input signals, executing programmed logic, and controlling connected actuators through transistor outputs.
Q2: How many input and output points does the TM200CE40U provide?
The controller provides 40 digital I/O points, consisting of 24 digital inputs and 16 transistor outputs. The inputs include regular, high-speed, and fast channels, while two outputs support fast functions such as PWM, PLS, and PTO.
Q3: What power supply does the TM200CE40U require?
The controller uses a nominal 24 V DC supply, with an allowable voltage range of 20.4–28.8 V DC. The power supply should be appropriately rated for the controller and its connected I/O loads, with suitable protection against overloads and electrical interference.
Q4: What is the difference between sink transistor outputs and source transistor outputs?
Sink outputs switch the load toward 0 V, while source outputs supply positive voltage to the load. The TM200CE40U uses sink-type transistor outputs, so the wiring and connected devices must be compatible with this output arrangement.
Q5: Can the TM200CE40U communicate with an HMI or other PLC?
Yes. Its Ethernet interface supports Modbus TCP/IP communication, allowing it to exchange data with compatible HMIs, PLCs, and other industrial devices. The controller also provides serial communication and a USB mini-B programming port. Communication parameters and protocols must be configured for the connected equipment.
Q6: What are the fast inputs and fast outputs used for?
The high-speed inputs can support high-speed counting applications, while the fast inputs are intended for functions such as fast counting. The two fast outputs can support pulse-related functions, including PWM, PLS, and PTO, depending on the application and program configuration.
Q7: Can the TM200CE40U be expanded with additional I/O modules?
The Easy Modicon M200 platform supports expansion, but the available expansion capacity depends on the controller configuration and the selected modules. Before expanding the system, verify the supported module types, total I/O limits, power requirements, and communication or installation constraints in the product documentation.
Q8: What should be checked when replacing an existing TM200CE40U controller?
Confirm the complete model number, input and output types, supply voltage, Ethernet and serial communication requirements, program compatibility, and terminal wiring. Also verify that the replacement supports the existing application logic and connected equipment. The same series name alone does not guarantee that another controller is a direct replacement.
Schneider TM200CE40U Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
