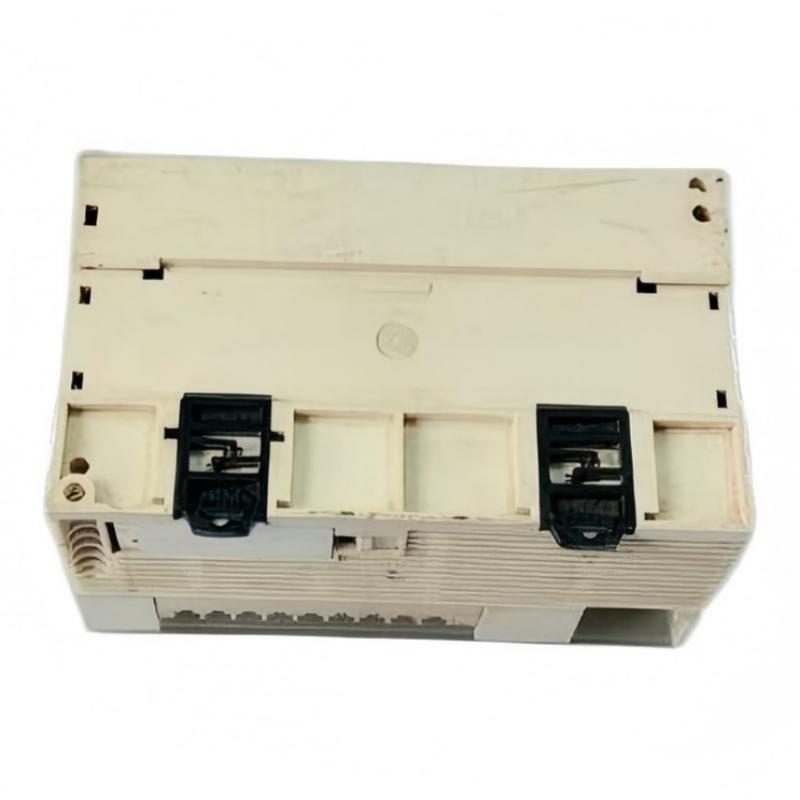

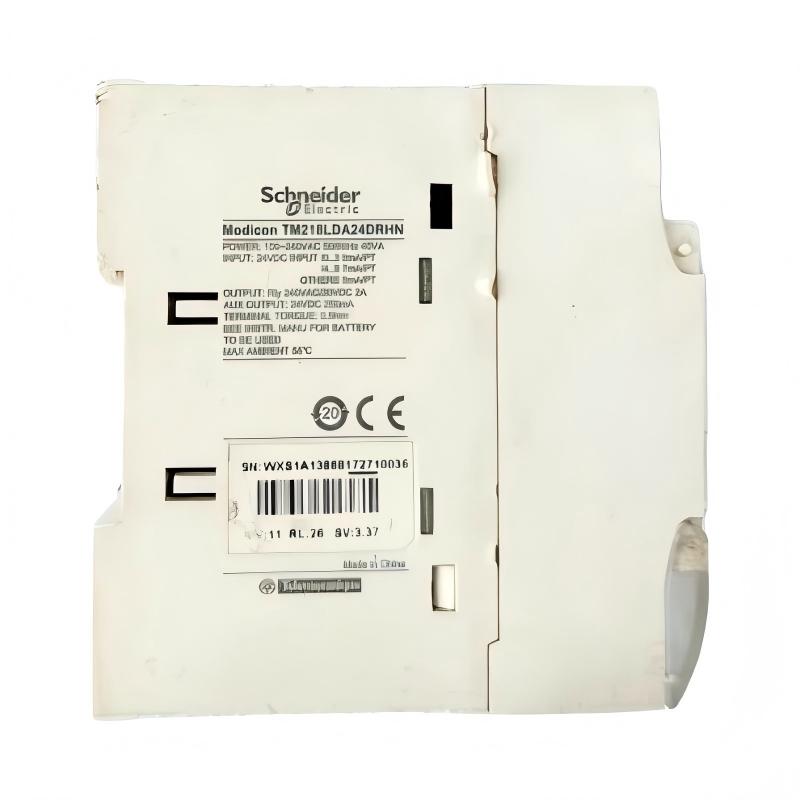

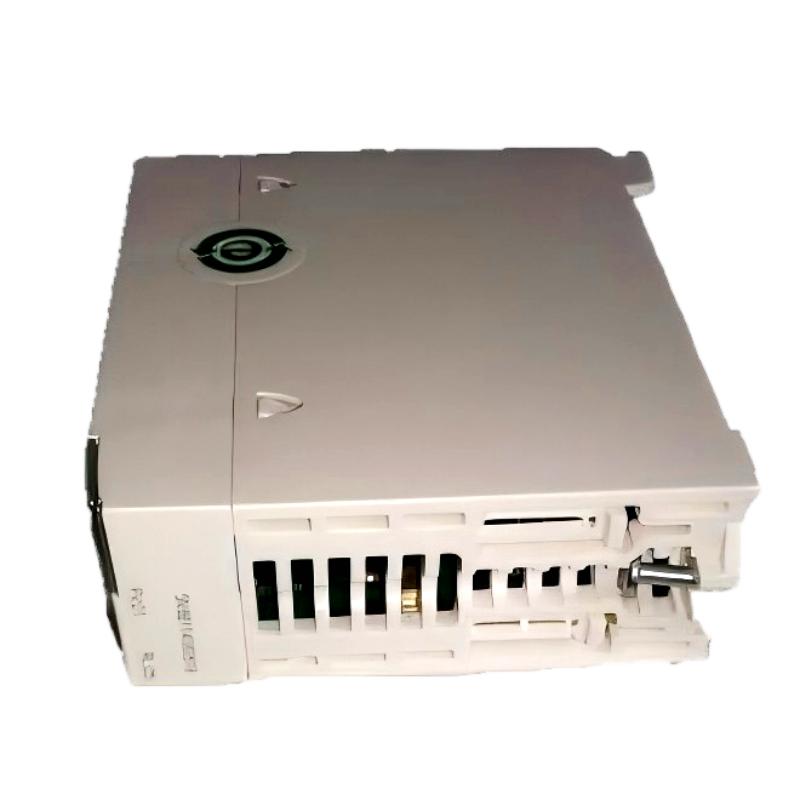

Schneider TM218LDA24DRHN Modicon M218 Logic Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM218LDA24DRHN |
| Product Name | Modicon M218 Logic Controller |
| Product Type | Compact programmable logic controller (PLC) |
| Product Series | Modicon M218 |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 inputs: 10 regular inputs and 4 fast inputs for high-speed counting (HSC) |
| Digital Outputs | 10 relay outputs |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Limits | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Digital Input Voltage | 24 V DC |
| Input Impedance | 4.7 kΩ for standard inputs; 2.8 kΩ for high-speed inputs |
| Input Response Time | Approximately 2 ms for ON/OFF response on standard inputs |
| Output Type | Relay |
| Output Voltage Limits | Depends on the connected load and output circuit; verify the applicable controller specifications |
| High-Speed Counter (HSC) | 4 fast inputs configurable for counting or event functions |
| Analog Inputs | Not available |
| Analog Outputs | Not available |
| Communication Interfaces | USB Mini-B programming port; two serial communication links |
| Serial Communication | RS485; protocol and connector arrangement depend on the serial link |
| Ethernet | Not available on this model |
| Expansion Capability | Supports up to 4 compatible expansion modules |
| Maximum I/O Capacity | Up to 152 I/O points, depending on system configuration |
| Continuous Output Power | 25 W |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Storage Temperature | -25–70°C |
| Relative Humidity | Up to 95%, non-condensing |
| Mounting Type | DIN rail or panel mounting with suitable accessories |
| Dimensions | 175 × 100 × 81 mm |
| Weight | 0.62 kg |
FAQ
Q1: What is the Schneider Electric TM218LDA24DRHN used for?
The TM218LDA24DRHN is a compact PLC from the Modicon M218 series. It is designed for controlling small industrial machines, processing digital input signals, executing control logic, and operating connected equipment through relay outputs.
Q2: How many digital inputs and outputs does this controller provide?
The controller provides 24 digital I/O points, including 14 digital inputs and 10 relay outputs. Four of the inputs can be configured for high-speed counting or event functions, making the controller suitable for applications that require pulse detection.
Q3: What power supply does the TM218LDA24DRHN require?
The controller uses a 100–240 V AC rated supply, with an allowable range of 85–264 V AC at 50/60 Hz. Verify the supply voltage and grounding before installation, and disconnect power before changing wiring.
Q4: What are the high-speed inputs used for?
The four fast inputs can be configured for high-speed counter functions or event detection. They are useful for processing pulse signals from compatible sensors and encoders. The supported counting frequency depends on the operating mode and input configuration.
Q5: What types of loads can the relay outputs control?
The controller has 10 relay outputs for switching compatible AC or DC loads within the specified electrical limits. The permissible current depends on the load type and operating conditions. For inductive loads such as contactor coils, use appropriate suppression components to reduce contact wear.
Q6: What communication interfaces are available?
The TM218LDA24DRHN provides a USB Mini-B programming port and two serial communication links. The serial interfaces support compatible protocols such as Modbus, depending on the configuration. This specific model does not have a built-in Ethernet port, so verify communication requirements before selecting it for a networked application.
Q7: Can the TM218LDA24DRHN be expanded with additional I/O modules?
Yes. The Modicon M218 platform supports up to four compatible expansion modules. The achievable I/O capacity depends on the controller, selected expansion modules, and system configuration. Check module compatibility and power requirements before expanding an existing installation.
Q8: What should be checked before replacing an existing TM218LDA24DRHN?
Confirm the full model number, AC supply requirements, digital input arrangement, relay output configuration, serial communication settings, and installed expansion modules. Also check program compatibility and terminal wiring. Matching the controller series alone does not guarantee a direct replacement.
Schneider TM218LDA24DRHN Modicon M218 Logic Controller is in stock. Please contact us for a quick quote and competitive pricing.
