Technical Specifications
| Parameter | Specification |
|---|---|

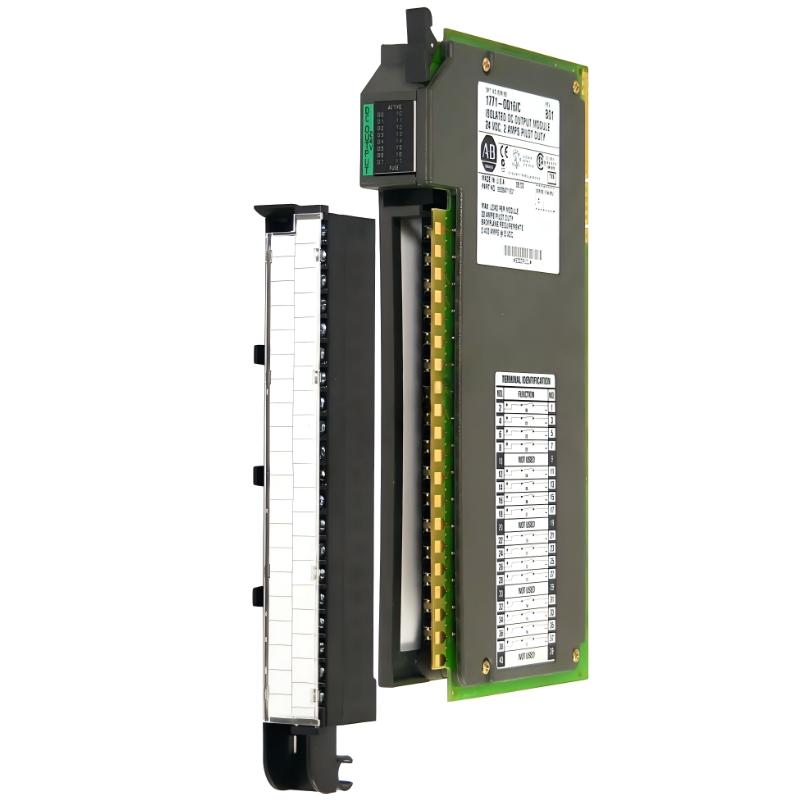

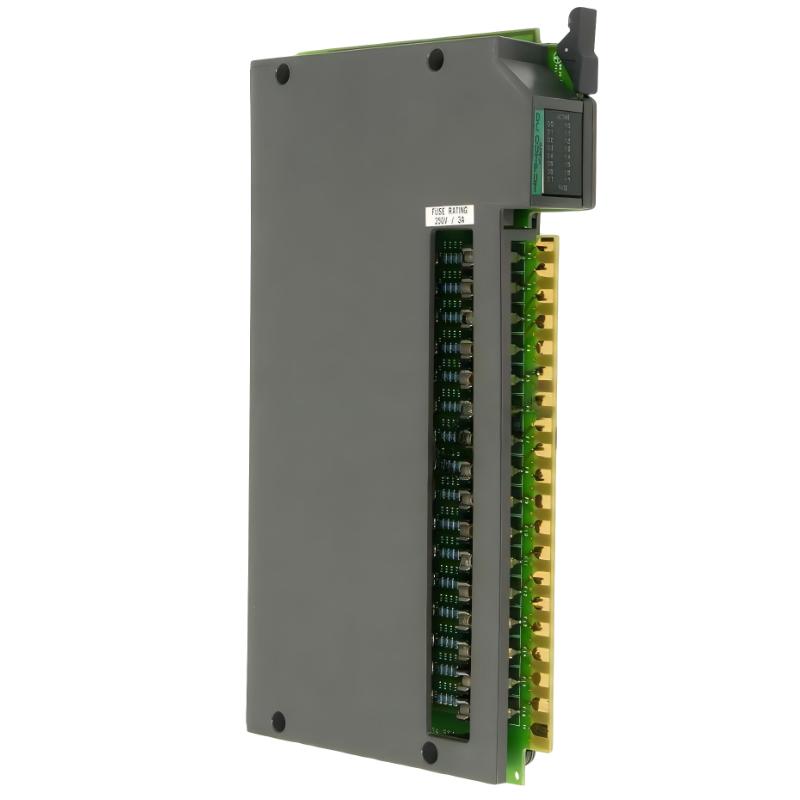

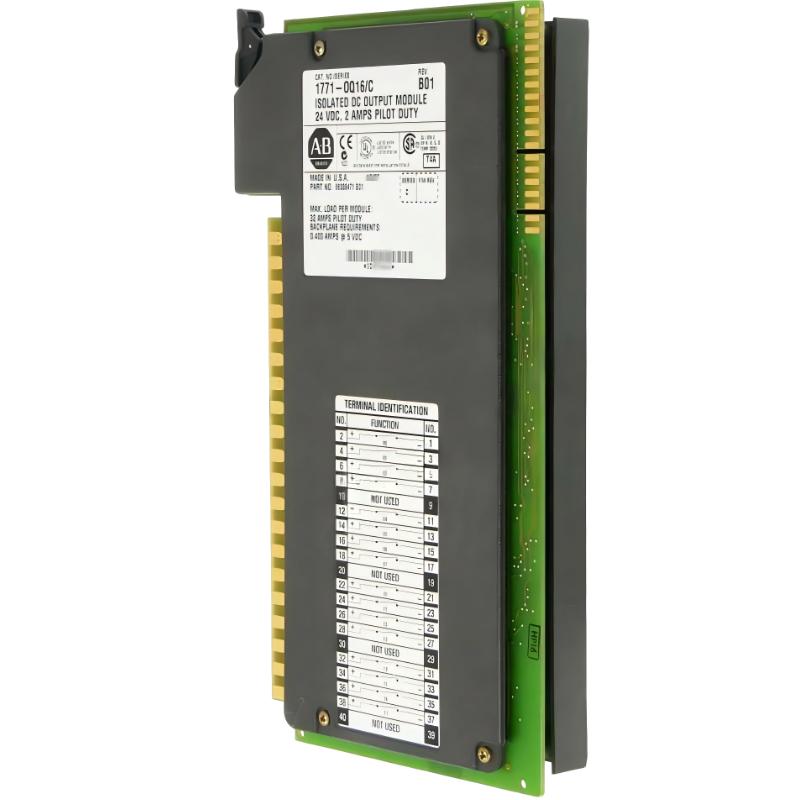

| Product Name | 1771-OQ16 Output Module |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley PLC-5 / 1771 I/O Series |
| Module Type | Discrete DC Output Module |
| Output Channels | 16-point isolated outputs |
| Output Voltage Range | 10–32 V DC |
| Output Type | Sourcing DC outputs |
| Output Current | 2 A per channel (typical) |
| Total Module Current | Up to 32 A max (system dependent) |
| Backplane Power | 5 V DC via 1771 chassis |
| Backplane Current Load | ~400 mA @ 5 V DC |
| Isolation | Optical isolation between channels and backplane |
| Response Time | ~45–50 ms typical switching delay |
| Indicators | LED status indicators for each output channel |
| Wiring System | 1771-WH wiring arm compatible |
| Mounting Type | 1771 I/O chassis rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 250 × 35 × 180 mm |
| Weight | Approx. 0.97 kg |
| Typical Applications | DC solenoids, relays, contactors, industrial actuators, machine control systems |
FAQ
What is the 1771-OQ16 used for?
It is a 16-point DC output module used in PLC-5 systems to control field devices such as solenoids, relays, and actuators.
What type of output does it provide?
It provides sourcing digital DC outputs typically in the 10–32 V DC range.
How many channels are available?
The module supports 16 independent output channels.
Is the 1771-OQ16 still manufactured?
No, it is a discontinued legacy module from the PLC-5 / 1771 I/O platform.
What is the typical output current per channel?
Each channel can typically handle around 2 A, with a higher total module limit depending on configuration.
Does it include electrical isolation?
Yes, it features optical isolation between field outputs and the PLC backplane for noise immunity and safety.
What systems is it compatible with?
It is designed for Allen-Bradley PLC-5 systems using 1771 I/O chassis architecture.
Where is it commonly used?
It is commonly used in industrial automation systems, especially legacy manufacturing lines and process control equipment requiring DC switching outputs.
Allen Bradley 1771-OQ16 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
