Technical Specifications
| Parameter | Specification |
|---|---|

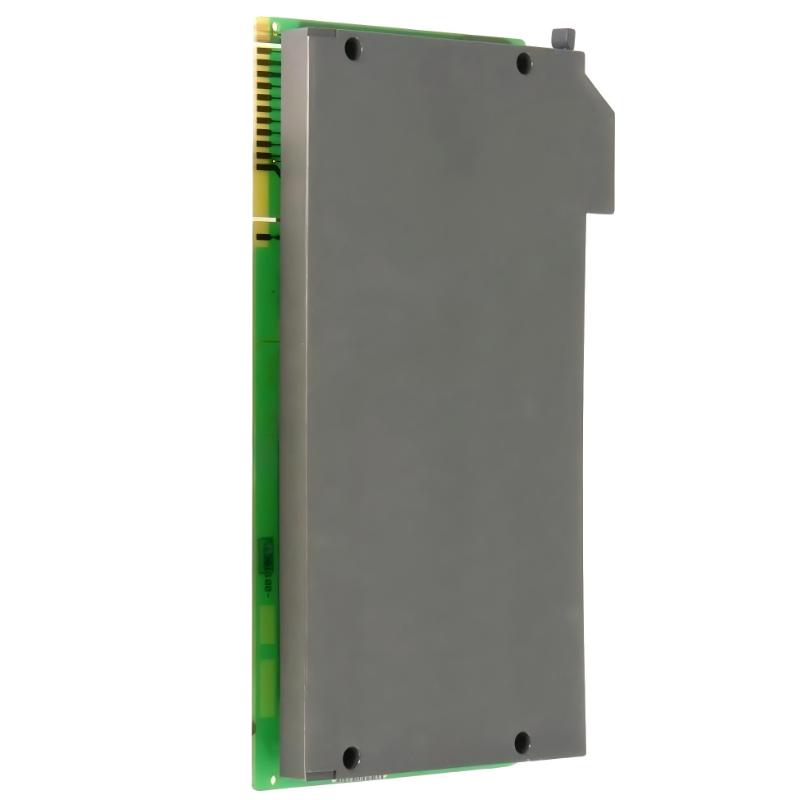

| Product Name | 1771-OW16 Output Module |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley PLC-5 / 1771 I/O Series |
| Module Type | Relay Contact Output Module |
| Output Channels | 16-point relay outputs |
| Contact Configuration | 8 N.O. + 8 selectable N.O./N.C. |
| Output Voltage Range | 24–250 V AC / 24–150 V DC |
| Output Current | Up to 2 A per channel (dependent on voltage) |
| Max Module Load | Up to ~8 A continuous (system dependent) |
| Switching Type | Electromechanical relay |
| Isolation | Channel-to-channel and logic isolation (~1500 V class) |
| Backplane Current | ~1300 mA @ 5 V DC |
| Response Time | ~10–50 ms (typical) |
| Contact Life | ~300,000 operations |

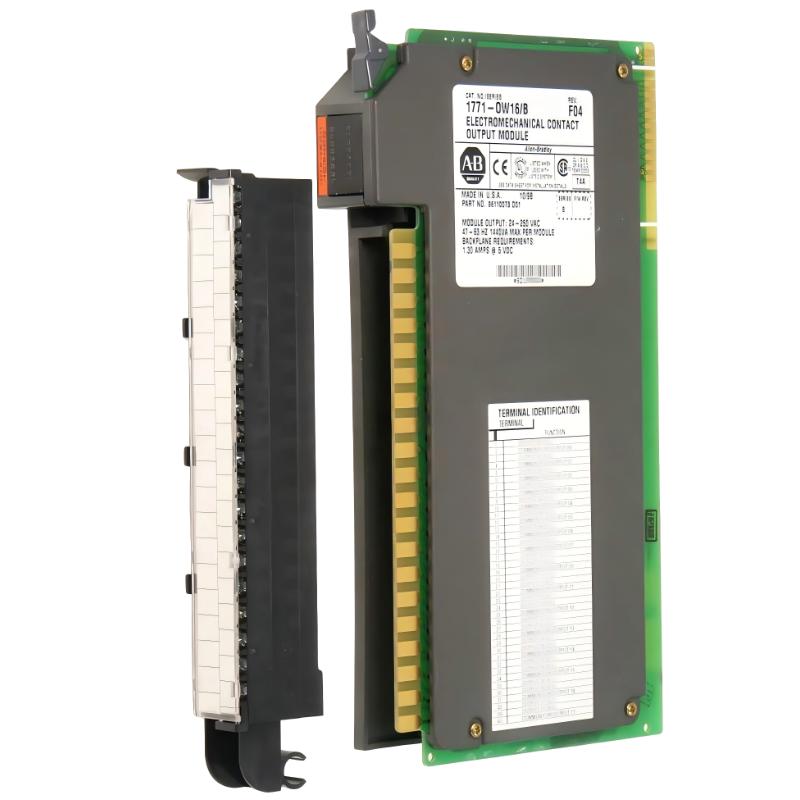

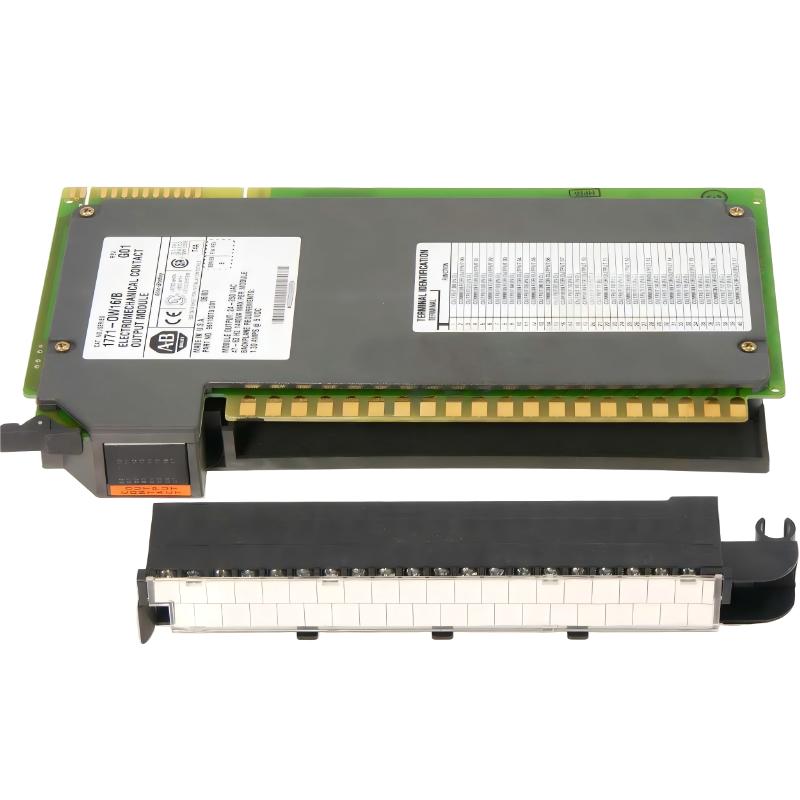

| Wiring System | 1771-WN wiring arm compatible |
| Mounting Type | 1771 I/O chassis rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 250 × 35 × 180 mm |
| Weight | Approx. 0.6–1.0 kg |
| Typical Applications | Solenoids, relays, motor starters, AC/DC load switching, industrial control systems |
FAQ
What is the main function of the 1771-OW16?
It is a relay output module used to switch AC and DC loads in PLC-5 based industrial automation systems.
How many outputs does it provide?
It provides 16 relay outputs, split into 8 normally open and 8 configurable contacts.
What voltage levels can it handle?
It supports 24–250 V AC and 24–150 V DC field loads.
Is the 1771-OW16 still manufactured?
No, it is a discontinued legacy module from the PLC-5 / 1771 platform.
What type of switching does it use?
It uses electromechanical relays for physical contact switching.
Does it provide electrical isolation?
Yes, it provides strong isolation between field wiring and control logic to improve safety and noise immunity.
What is the typical switching speed?
It operates with a response time of approximately 10–50 ms depending on load conditions.
Where is it commonly used?
It is commonly found in legacy industrial systems such as manufacturing lines, machine control panels, and process automation systems.
Allen Bradley 1771-OVN Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
