1. What is the primary function of the Allen-Bradley 440F-EFNNN04220?

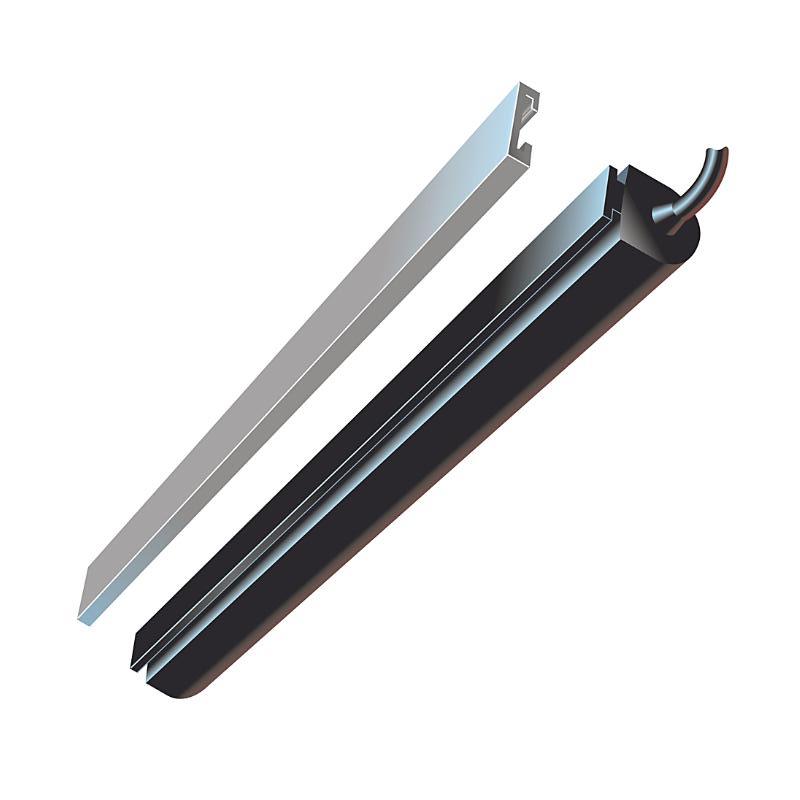

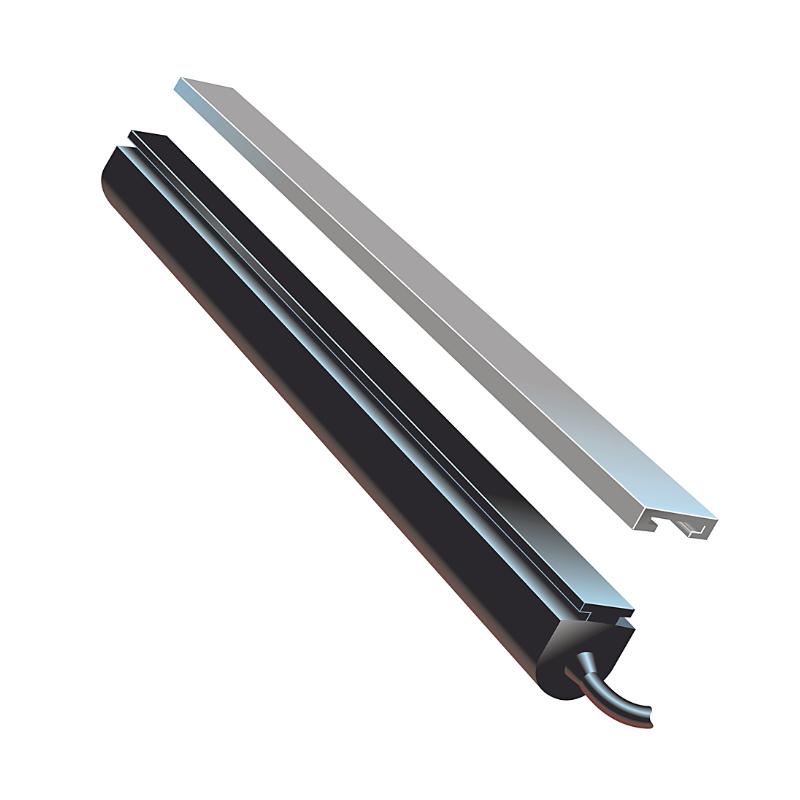

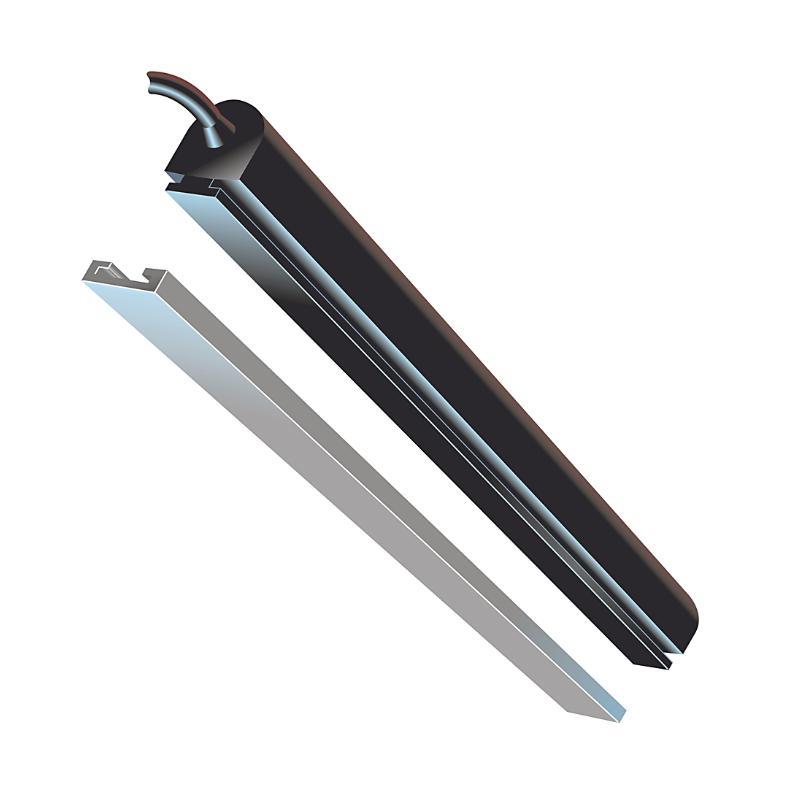

The 440F-EFNNN04220 belongs to the Allen-Bradley Guardmaster Safedge 440F safety edge product series. It is designed to detect contact between a moving machine component and a person or object. When external pressure is applied to the safety edge profile, the electrical state of the sensing circuit changes. A compatible safety controller monitors this change and initiates the appropriate control response. Typical applications include automatic doors, moving machinery, and industrial equipment with potential crushing hazards. Suitability must be assessed according to the machine’s operating speed, stopping distance, and risk assessment. The safety edge should not be considered a complete machine safety solution on its own.

2. Can the 440F-EFNNN04220 be connected directly to a standard PLC?

The 440F-EFNNN04220 should not be assumed to provide complete personnel protection when connected directly to a standard PLC input. A compatible safety edge controller is generally required to monitor the sensing circuit and interface with the machine’s safety system. For applications involving personnel protection, the controller must be selected according to the required safety performance. The design should also account for safety outputs, contactor monitoring, reset logic, and fault detection. A standard PLC may be used for auxiliary monitoring or process control, but it should not replace a safety-rated control function unless the complete system has been appropriately designed and validated for that purpose.

3. What should be checked before installing the 440F-EFNNN04220?

Before installation, verify the complete part number, safety edge profile, mounting arrangement, connection orientation, and termination method. The mounting surface should be stable and properly aligned to prevent twisting, excessive stretching, or localized compression of the profile. Cables and connectors should be protected against mechanical stress, abrasion, and excessive bending. Electrical connections must follow the applicable product documentation. After installation, inspect the complete assembly and test its operation with the compatible safety controller. Confirm that pressure applied to the safety edge produces the expected input response and that the protected machine enters the intended safe state. Commissioning should be performed by qualified personnel using appropriate safety precautions.

4. How can the operating condition of the 440F-EFNNN04220 be verified?

The operating condition can be assessed through visual inspection, electrical circuit testing, and functional testing of the complete safety system. First, inspect the profile for cracks, deformation, loose mounting components, or damaged sealing surfaces. Check the connecting cables, connectors, and termination components for secure installation. Then follow the manufacturer’s test procedure to verify the safety edge circuit and the status indications on the compatible controller. If the controller does not respond as expected when the profile is actuated, investigate circuit continuity, termination components, wiring connections, and controller compatibility. Do not bypass the safety circuit or suppress fault signals to keep the machine running.

5. What can cause repeated false triggering of the 440F-EFNNN04220?

Repeated false triggering may result from incorrect mounting, continuous external pressure, damaged cables, loose connectors, or abnormalities in the termination circuit. Begin by checking whether the safety edge is being unintentionally compressed during normal machine movement. Inspect the mounting rail and surrounding mechanical structure for deformation or misalignment. Next, examine cables and connectors for loose contacts, moisture ingress, or insulation damage. In environments with significant electrical interference, review cable routing and separation from high-power wiring. If the problem persists, test the circuit according to the applicable technical documentation and examine the controller’s diagnostic indications. After corrective work, perform a complete safety function test before returning the equipment to service.

6. Does the 440F-EFNNN04220 require a separate safety controller?

Whether a separate controller is required depends on the supplied configuration and the existing machine safety architecture. A Safedge safety edge assembly generally requires a compatible monitoring device to evaluate the sensing circuit and respond to changes in its electrical state. The factory-assembled system may not include every component required for a complete installation, so the purchase specification should be checked carefully. Confirm whether the controller, power supply, connection cables, and termination components are included or must be ordered separately. If an existing controller is to be reused, verify its compatibility with the safety edge type, circuit arrangement, termination requirements, and permitted system configuration before commissioning.

7. How should the 440F-EFNNN04220 be maintained and inspected?

Maintenance intervals should be established according to operating frequency, environmental conditions, and the machine’s risk assessment. Routine inspections should check the safety edge profile for wear, cuts, deformation, and damage to its sealing surfaces. Mounting hardware, cable insulation, connectors, and termination components should also be examined for looseness or deterioration. Periodic functional tests should verify that the safety edge responds correctly, the controller detects the change in circuit state, and the safety outputs operate as intended. Any damaged or unreliable component should be repaired or replaced in accordance with the manufacturer’s instructions. Following maintenance, repeat the necessary functional and safety tests and document the results before returning the machine to normal operation.

8. How can compatibility be confirmed when replacing the 440F-EFNNN04220?

Compatibility should be confirmed using the complete part number and the original system documentation rather than relying on appearance or product family alone. Check the safety edge type, nominal length, mounting arrangement, connection configuration, termination requirements, and compatibility with the existing safety controller. Also verify that the replacement assembly fits the available installation space and that the cable routing and connection points are suitable. After replacement, inspect all connections, confirm the controller’s status indications, and test the complete safety function under controlled conditions. The machine must respond correctly when the safety edge is actuated. If the original configuration cannot be established, obtain the relevant product documentation and verify the required components before purchasing or installing the replacement.
