1. What is the primary function of the Allen-Bradley 440K-M2NNNDS?

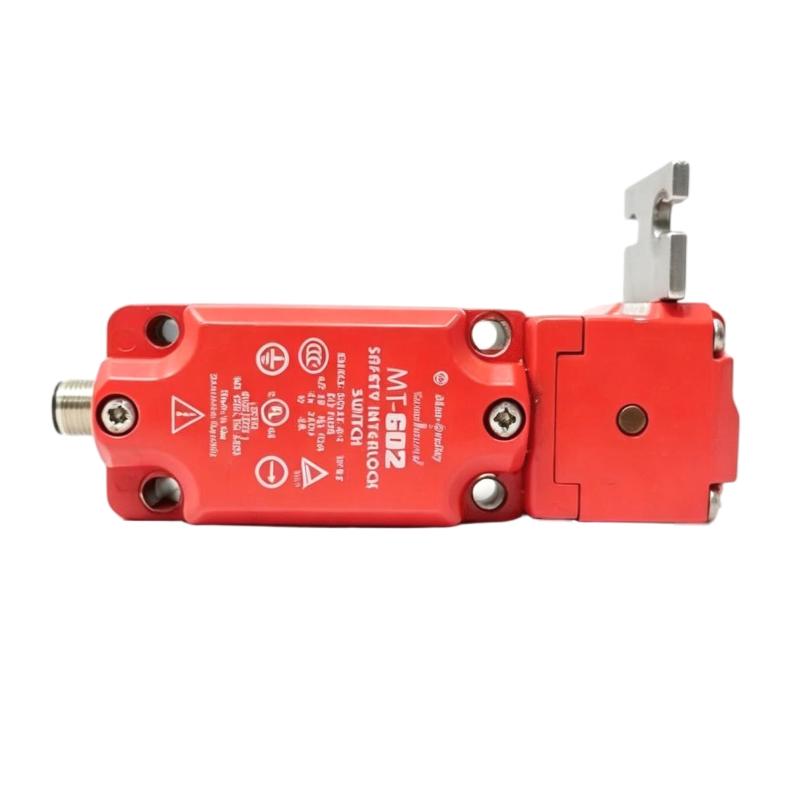

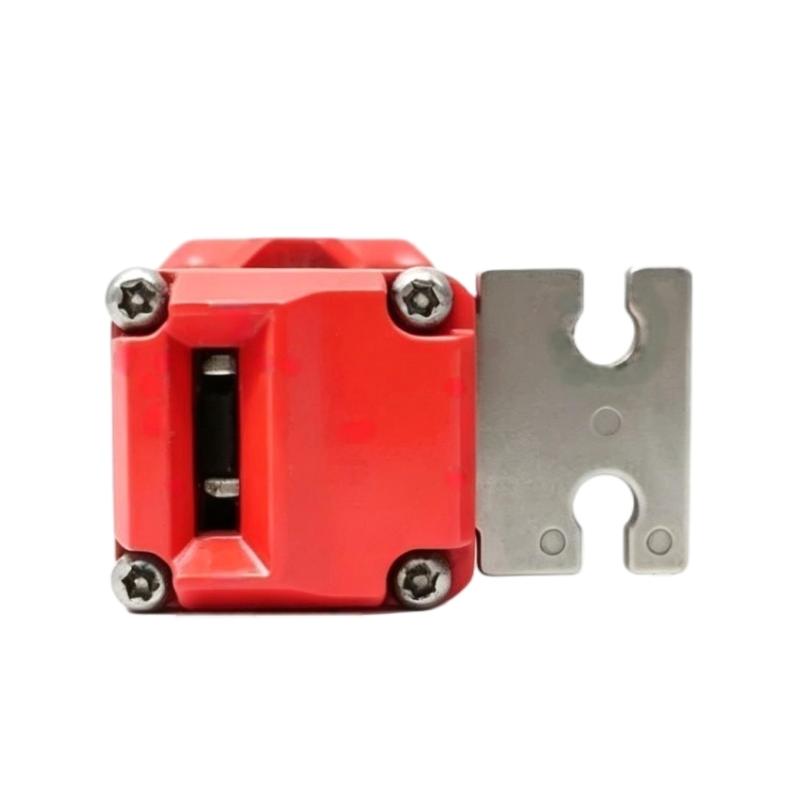

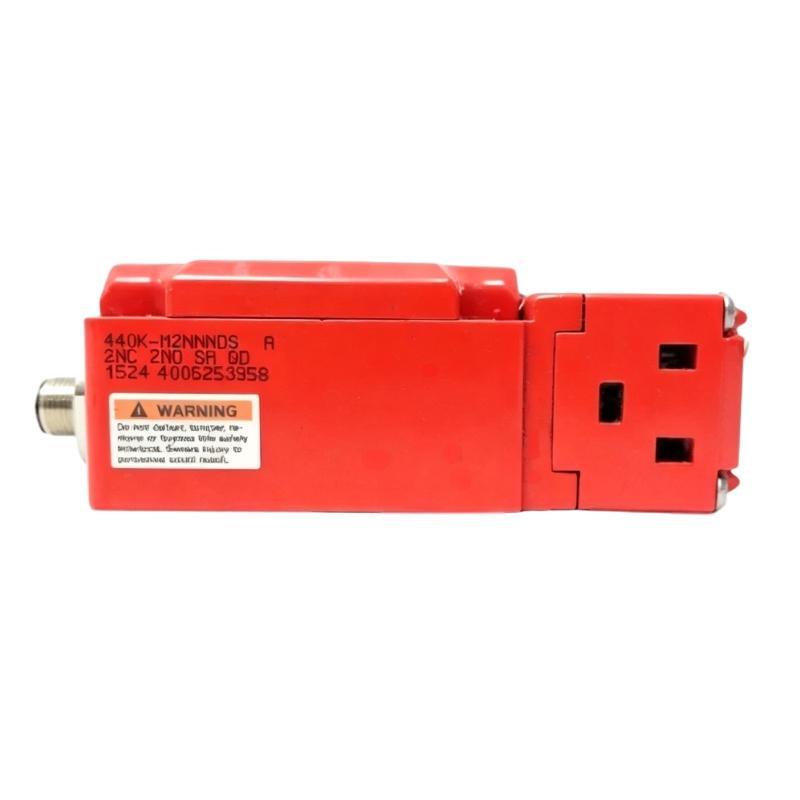

The Allen-Bradley 440K-M2NNNDS is a mechanical tongue-operated safety interlock switch designed to monitor the position of machine guards, protective doors, and access panels. When used with a compatible actuator and safety control circuit, it helps prevent hazardous machine operation when a guard is open or improperly positioned. Its two normally closed safety contacts can be incorporated into a suitable safety circuit, while the two normally open auxiliary contacts can provide status feedback for control or monitoring purposes. The switch is intended for industrial machinery where access to moving parts or hazardous processes must be controlled.

2. What is the difference between the safety contacts and auxiliary contacts?

The 440K-M2NNNDS provides two normally closed safety contacts and two normally open auxiliary contacts. The normally closed contacts are intended for integration into the machine’s safety circuit, allowing the control system to detect changes in guard position. The normally open auxiliary contacts can be used for status indication, PLC monitoring, or other control functions where appropriate. These contact groups serve different purposes and should be wired according to the manufacturer’s circuit diagrams. Auxiliary contacts must not be assumed to provide the same safety function as the designated safety contacts.

3. Does the 440K-M2NNNDS include an actuator?

No. The 440K-M2NNNDS is supplied without an actuator. A compatible tongue actuator must be selected separately according to the switch configuration and the mechanical arrangement of the guard or access door. Before installation, confirm the correct actuator type and ensure that it can enter and withdraw from the switch without excessive lateral force. Incorrect actuator alignment can cause mechanical wear, unreliable switching, or damage to the internal mechanism. The actuator and switch should be installed according to the manufacturer’s instructions, with suitable mounting hardware and adequate mechanical protection.

4. How should the 440K-M2NNNDS be wired into a machine safety circuit?

The switch should be wired according to the applicable manufacturer wiring diagram and the requirements of the machine’s safety control architecture. The two normally closed safety contacts can be connected to compatible safety relay or safety controller inputs, while the auxiliary contacts may be used for operational status monitoring. Confirm the connector pinout, electrical ratings, and input compatibility before energizing the circuit. Protective measures should also address cable routing, connector retention, and possible electrical interference. Installation and commissioning should be performed by qualified personnel, and the completed circuit must be validated to confirm that opening the guard produces the intended safe response.

5. What causes the 440K-M2NNNDS to fail to detect an open guard?

Failure to detect an open guard may result from incorrect actuator alignment, damaged contacts, loose connections, cable faults, or incorrect wiring. Start by checking whether the actuator moves correctly with the guard and whether it is fully disengaged when the guard opens. Inspect the connector and cable for mechanical damage, contamination, or loose connections. If the mechanical installation is correct, qualified personnel can test the contact states against the manufacturer’s wiring information. The safety circuit and controller diagnostics should also be checked for faults. Do not bypass the switch or force the contacts into a particular state to keep the machine operating.

6. Can the 440K-M2NNNDS be connected directly to a standard PLC?

A standard PLC may be used to monitor suitable auxiliary contact signals, but it should not automatically be treated as an adequate safety controller. Where the switch is used to protect personnel from hazardous machinery, its safety contacts must be integrated into a properly designed safety-related control system. Depending on the risk assessment, this may require a safety relay or safety PLC with suitable fault detection and output monitoring. The complete arrangement must meet the required safety performance, including the behavior of contactors and other final switching elements. The presence of two safety contacts alone does not establish the safety rating of the complete machine.

7. How should the 440K-M2NNNDS be maintained and tested?

Maintenance should include regular inspection of the switch housing, mounting hardware, actuator, connector, and associated cables. Check for loose fasteners, mechanical deformation, contamination, and signs of excessive actuator wear. Functional testing should verify that opening and closing the guard produces the expected contact transitions and that the machine safety system responds correctly. The testing interval should be established according to the manufacturer’s recommendations, machine operating conditions, and risk assessment. If the switch shows inconsistent operation or physical damage, remove the affected equipment from service as required and replace or repair the component according to approved procedures. Record the results of safety inspections and commissioning tests.

8. What should be considered when replacing the 440K-M2NNNDS?

Before replacing the switch, verify the complete model number, contact configuration, actuator compatibility, connector type, and mounting arrangement. The replacement must provide the required safety contacts and be electrically compatible with the existing safety control circuit. Check the wiring diagram and connector pin assignment rather than relying solely on wire colors or physical appearance. After installation, inspect the mechanical alignment and confirm that the actuator operates smoothly without excessive force. Finally, test the guard interlocking function, safety controller response, and machine stopping behavior under controlled conditions. A replacement should not be approved solely because it fits the existing mounting holes; the safety function of the complete system must also be verified.
