1. What type of feedback system does the MPL-A320H-MK74AA use?

The MPL-A320H-MK74AA uses a multi-turn high-resolution absolute encoder with Hiperface feedback. This feedback system provides rotor position information to the servo drive, supporting accurate positioning and controlled motion in industrial automation applications. The multi-turn function enables the system to track position across multiple motor rotations. During commissioning, verify that the selected servo drive supports the encoder interface and feedback protocol. Correct motor identification, feedback configuration, and position reference settings are essential for reliable operation.

2. Which servo drives are suitable for the MPL-A320H-MK74AA?

This motor belongs to the Allen-Bradley MPL low-inertia servo motor family and is designed for a 230 V AC system. Compatible Allen-Bradley Kinetix servo drives may be suitable, depending on the specific drive model, firmware, feedback interface, and application requirements. When selecting a drive, check the motor’s rated speed, continuous torque, peak torque, feedback protocol, and integrated brake requirements. Do not determine compatibility from voltage alone. Confirm the motor and drive combination against the manufacturer’s compatibility information before installation.

3. What are the rated speed and torque capabilities of this motor?

The MPL-A320H-MK74AA has a rated speed of 3500 RPM, a continuous stall torque of 3.05 Nm, and a peak stall torque of 7.91 Nm. These specifications help engineers evaluate the motor’s suitability for acceleration, deceleration, and sustained operation. Continuous torque is particularly important when calculating the load during normal operation, while peak torque indicates the available short-duration torque under specified operating conditions. The final selection should also account for load inertia, acceleration time, duty cycle, and thermal limits to avoid excessive current or overheating.

4. What is the function of the integrated 24 V DC brake?

The MPL-A320H-MK74AA includes a 24 V DC holding brake designed to help hold the motor shaft when the brake is engaged. It is particularly useful in applications where the shaft must remain stationary when the motor is not actively producing torque. The brake is not intended to replace the servo drive’s normal dynamic braking function or serve as the sole emergency stopping mechanism unless the complete system is specifically designed and rated for that purpose. During installation, verify the brake supply voltage, wiring, control sequence, and release timing. For vertical axes, additional risk assessment and suitable load-holding measures may be necessary.

5. What are the keyless shaft and mounting features of this model?

This motor features a keyless shaft extension and an IEC metric flange mounting arrangement with free mounting holes, Type FF. The keyless shaft can be used with a compatible clamping coupling or other suitable mechanical transmission component. During installation, verify the shaft interface, coupling capacity, alignment, and allowable mechanical loads. Incorrect coupling installation or excessive radial force can lead to vibration, bearing wear, and reduced positioning accuracy. The mounting surface should be sufficiently rigid, and the motor should be secured according to the equipment manufacturer’s installation requirements.

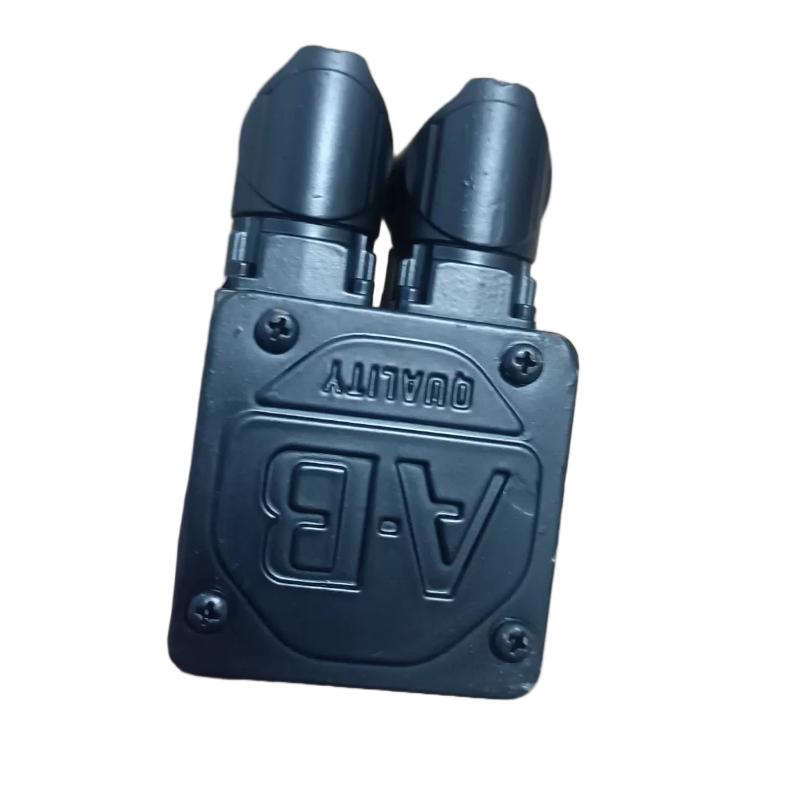

6. What connector type does the MPL-A320H-MK74AA use?

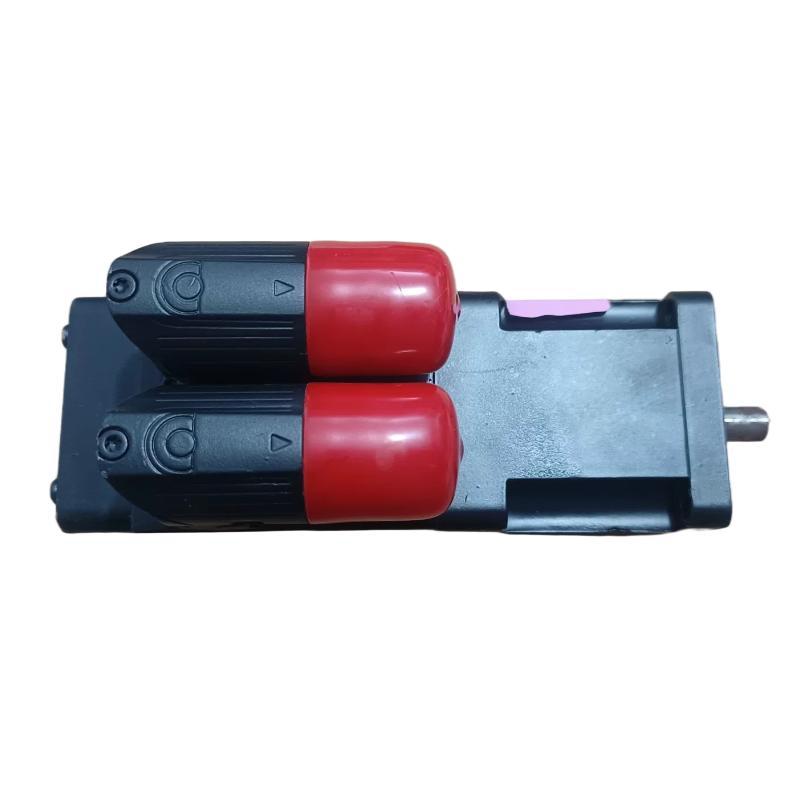

The motor uses a SpeedTEC DIN circular connector with a right-angle configuration that can rotate through 180 degrees. This design provides flexibility when routing motor power and feedback cables in compact machinery. Use compatible cables and connectors with the correct pin assignments and electrical ratings. Ensure that the connectors are fully secured and that cable routing minimizes exposure to electrical interference, excessive bending, heat, and mechanical damage. Before connecting or disconnecting cables, isolate the power supply and follow the relevant electrical safety procedures.

7. What applications are suitable for the MPL-A320H-MK74AA servo motor?

The MPL-A320H-MK74AA is suitable for industrial motion control applications requiring responsive acceleration, stable speed regulation, and accurate positioning. Potential applications include automated assembly equipment, packaging machinery, material handling systems, and production machinery with coordinated motion axes. Its suitability depends on the required torque, operating speed, load inertia, acceleration profile, and duty cycle. Engineers should calculate the actual load requirements and evaluate the complete servo system rather than relying solely on the motor’s rated speed. Proper drive selection and tuning are necessary to achieve stable performance.

8. How can common operating faults be diagnosed on the MPL-A320H-MK74AA?

If the motor experiences positioning errors, unexpected vibration, overheating, or servo alarms, begin by checking the fault code and diagnostic history recorded by the servo drive. Inspect the power supply, motor cables, encoder feedback connections, grounding, and brake control circuit. Confirm that the drive is configured for the correct motor and that the feedback signals are functioning properly. Mechanical checks should include coupling alignment, load resistance, shaft movement, and mounting rigidity. If the fault occurs during rapid acceleration or deceleration, review the load inertia, motion profile, and servo tuning parameters. Always follow the machine’s safety procedures before inspecting wiring or mechanical components.
