Technical Specifications

FAQ

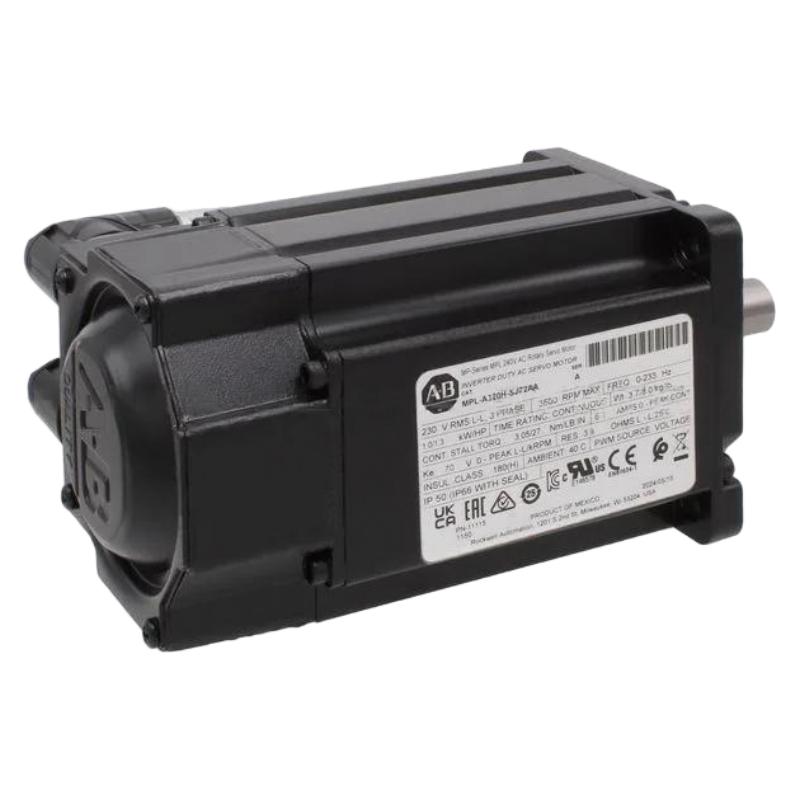

1. What type of encoder does the MPL-A320H-SJ72AA use?

The MPL-A320H-SJ72AA uses a single-turn high-resolution absolute encoder with Hiperface feedback and a resolution of 1024 cycles/rev (Sin/Cos). The encoder provides rotor position information to the servo drive, supporting accurate positioning, speed regulation, and repeatable motion. A single-turn absolute encoder measures the absolute position within one mechanical revolution, making it suitable for applications that require precise position feedback. During commissioning, verify that the selected servo drive supports the encoder interface and feedback protocol, and configure the motor and position feedback parameters correctly.

2. Which servo drives are compatible with the MPL-A320H-SJ72AA?

This motor belongs to the Allen-Bradley MPL low-inertia servo motor series and is designed for a 230 V AC servo system. Compatible Allen-Bradley Kinetix drives may be suitable, depending on the specific drive model, feedback interface, firmware version, and application requirements. Drive selection should account for motor voltage, current, rated speed, torque requirements, and feedback compatibility. Voltage matching alone does not guarantee compatibility. Before installation, verify the motor-drive combination against the manufacturer’s technical documentation and complete the required motor identification, parameter configuration, and commissioning procedures.

3. What are the rated speed and torque specifications of this servo motor?

The MPL-A320H-SJ72AA has a rated speed of 3500 RPM, a continuous stall torque of 3.05 Nm, a peak stall torque of 7.91 Nm, and a rated continuous power of 1 kW. These specifications help engineers assess the motor’s ability to handle different motion profiles and load conditions. Continuous torque is important when evaluating sustained operation, while peak torque is relevant to short-duration acceleration, deceleration, and temporary load changes. Actual motor selection should also consider load inertia, acceleration time, operating frequency, and thermal limits to ensure reliable performance.

4. Does the MPL-A320H-SJ72AA include an integrated holding brake?

No. The MPL-A320H-SJ72AA does not include an integrated mechanical holding brake. When the motor is powered down, it cannot rely on an internal brake to hold the shaft in position. For vertical axes, lifting mechanisms, or applications involving suspended loads, an independent mechanical brake or suitable load-holding mechanism may be required. The control system should also provide appropriate deceleration and stopping logic. Electrical braking through the servo drive should not be treated as a substitute for mechanical holding protection. The final arrangement should be determined by the machine’s safety requirements and risk assessment.

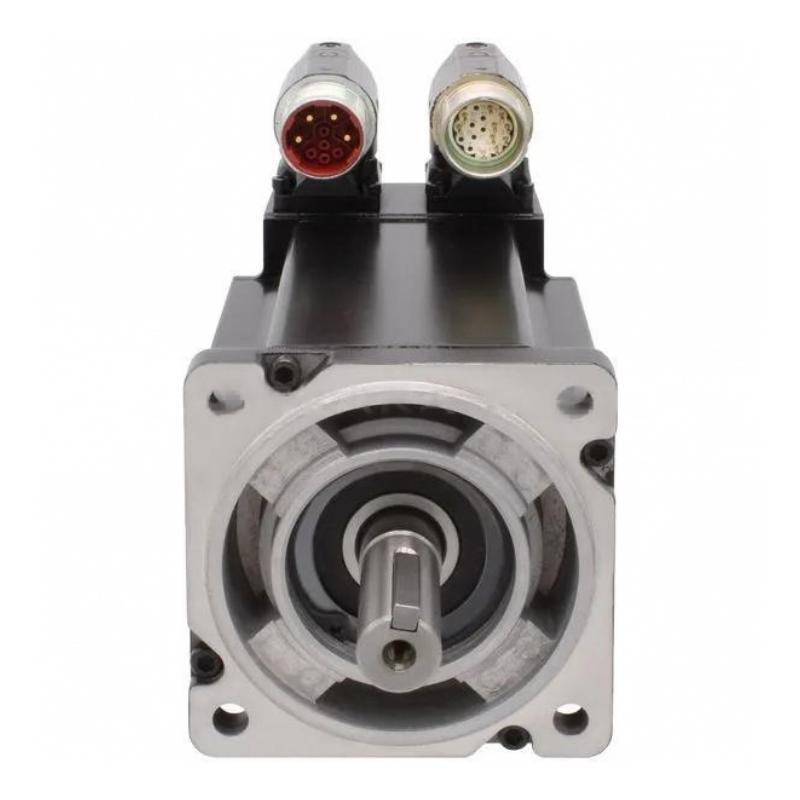

5. What are the advantages of the keyed shaft design?

The MPL-A320H-SJ72AA features a keyed shaft that can be connected to compatible keyed couplings, pulleys, or other mechanical transmission components. The key-and-keyway arrangement helps transmit rotational torque and reduces the risk of relative movement between connected components when correctly installed. Before assembly, verify the shaft diameter, keyway dimensions, coupling specifications, and permissible torque. Proper alignment between the motor shaft and the driven mechanism is also essential. Excessive radial or axial loads, incorrect coupling installation, or shaft misalignment can increase vibration, accelerate bearing wear, and reduce positioning accuracy.

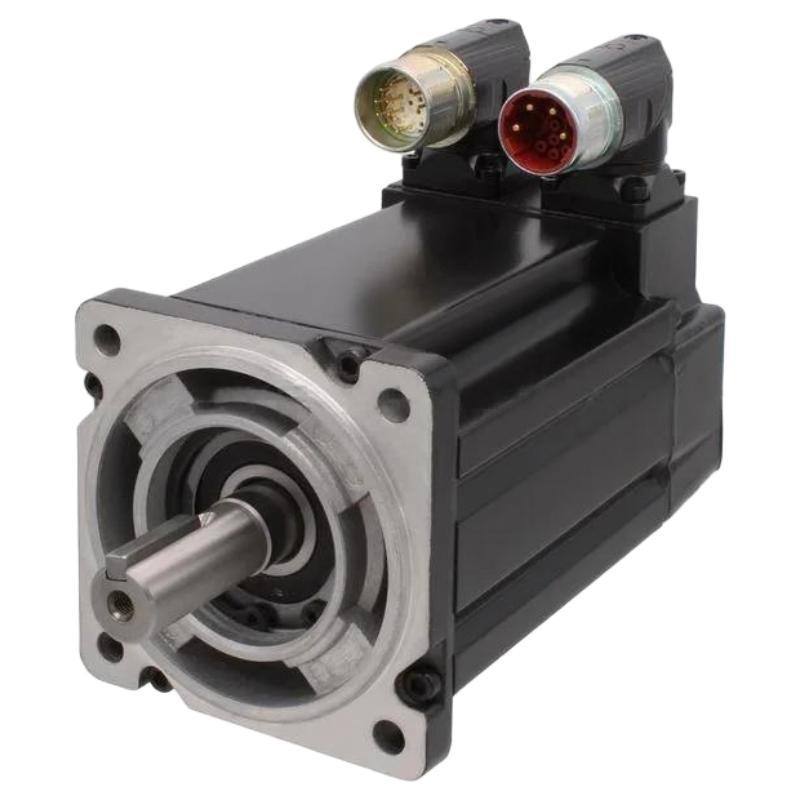

6. What electrical connectors are used on the MPL-A320H-SJ72AA?

The motor uses SpeedTEC DIN circular connectors with a right-angle configuration that can rotate through 180 degrees. This arrangement offers flexibility when routing cables in compact industrial equipment. Use compatible motor power and feedback cables, and verify the connector pin assignments, electrical ratings, grounding, and locking mechanism before operation. Power and feedback cables should be routed according to the servo system’s wiring guidelines to minimize electromagnetic interference that could affect encoder signals. Always isolate the power supply and follow the applicable electrical safety procedures before connecting or disconnecting cables.

7. What industrial applications are suitable for the MPL-A320H-SJ72AA?

The MPL-A320H-SJ72AA is a low-inertia servo motor intended for motion control applications requiring responsive acceleration, stable speed regulation, and accurate position feedback. Potential applications include packaging machinery, automated assembly equipment, material handling systems, and industrial production lines. Suitability depends on the required torque, operating speed, load inertia, acceleration profile, and duty cycle. For equipment involving frequent starts, stops, or rapid direction changes, engineers should calculate the load requirements and assess the motor’s torque margin and thermal loading. A compatible servo drive and properly tuned control system are also necessary to achieve stable performance.

8. How can operating faults or positioning errors be diagnosed?

If the MPL-A320H-SJ72AA experiences positioning errors, speed fluctuations, abnormal vibration, or servo alarms, begin by reviewing the fault codes and diagnostic history stored in the servo drive. Inspect the motor power supply, power cable, encoder feedback connections, grounding, and motor configuration parameters. Confirm that the feedback signal is operating correctly and that the drive is configured for the installed motor. If no electrical fault is identified, inspect the coupling, mechanical alignment, load resistance, and transmission components for looseness or excessive friction. For faults occurring during acceleration or deceleration, review the load inertia, motion profile, and servo gain settings. Follow the machine’s shutdown and electrical safety procedures before performing inspections or adjustments.
