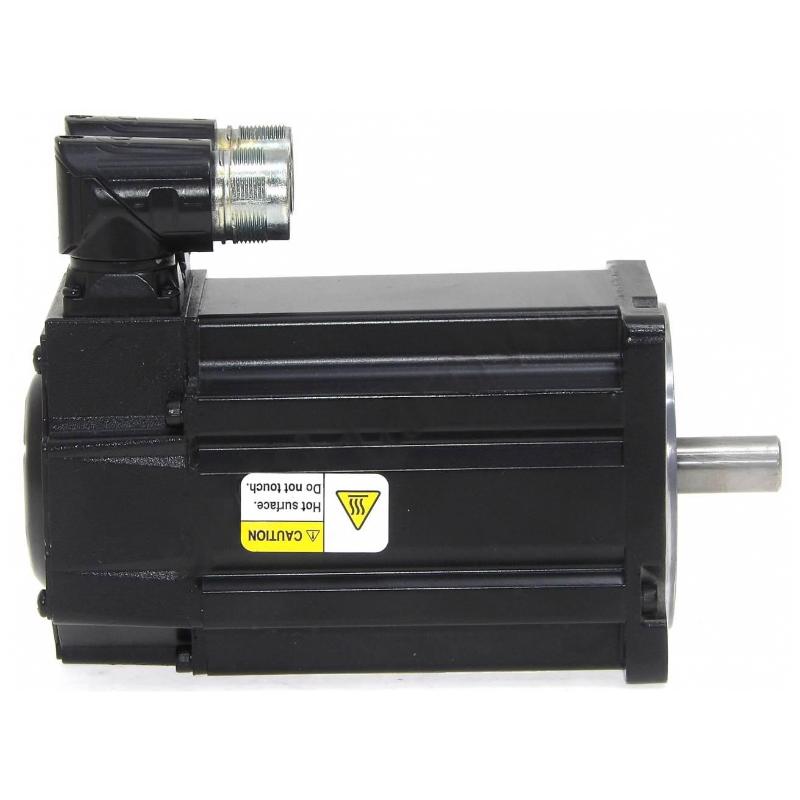

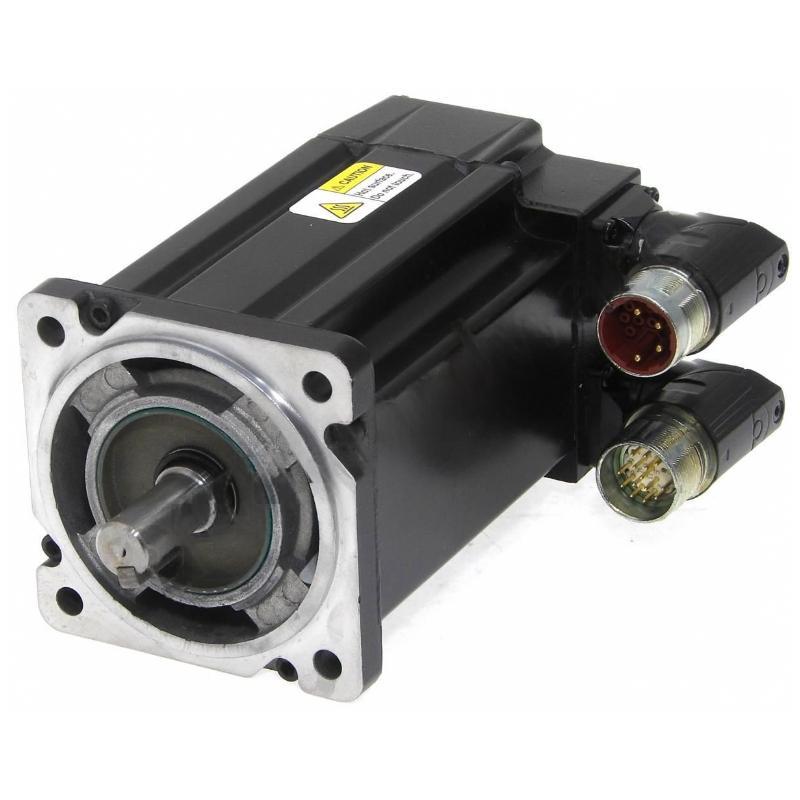

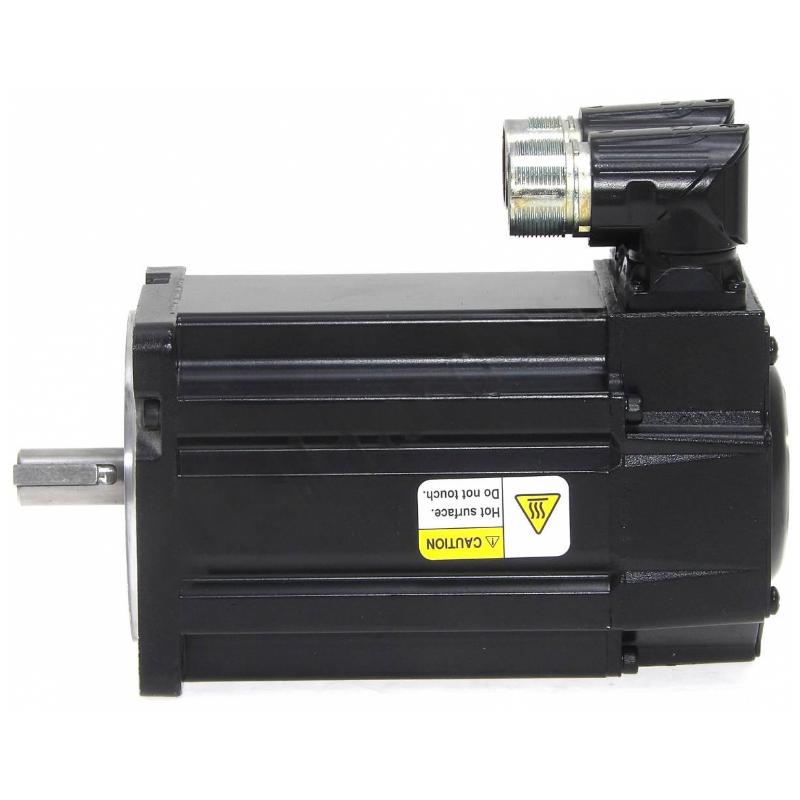

Q1: What are the main applications of the Allen-Bradley MPL-A320P-H-X229 servo motor?

A: The MPL-A320P-H-X229 is a low-inertia brushless AC servo motor designed for industrial motion control applications that require accurate positioning, fast acceleration, and reliable speed regulation. It is commonly suitable for automated manufacturing equipment, packaging machinery, material handling systems, CNC machines, and precision assembly equipment. Its low-inertia design allows the motor to respond quickly to changing motion commands, making it particularly useful in applications involving frequent acceleration, deceleration, and directional changes. When properly matched with a compatible servo drive, it provides stable motion performance and precise control in demanding industrial environments.

Q2: Which Allen-Bradley servo drives are compatible with the MPL-A320P-H-X229?

A: The MPL-A320P-H-X229 is designed for use with compatible Allen-Bradley servo drive systems. Supported drive families include Kinetix 5500, Kinetix 6000, Kinetix 6200, Kinetix 6500, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000. Before selecting a drive, engineers should verify the electrical ratings, feedback interface, motor configuration, and drive firmware requirements. Particular attention should be paid to the incremental encoder feedback and the motor’s 200 V AC voltage class. Correct drive selection helps prevent feedback errors, overcurrent faults, and unstable motor operation during commissioning.

Q3: What is the function of the incremental encoder in the MPL-A320P-H-X229?

A: The MPL-A320P-H-X229 uses a 2000-pulse incremental encoder to provide position and speed feedback to the servo drive. During operation, the encoder continuously generates feedback signals according to the rotation of the motor shaft. The servo drive processes these signals and compares the actual motor position and speed with the commanded values. This feedback mechanism enables closed-loop motion control and helps maintain accurate positioning under changing load conditions. If the encoder cable becomes damaged or the feedback connection is interrupted, the drive may report encoder-related faults or lose accurate position control. Regular inspection of feedback cables, connectors, and grounding connections is recommended.

Q4: What should be considered when installing the MPL-A320P-H-X229 servo motor?

A: Proper installation is important for maintaining the motor’s performance and service life. Before installation, verify that the mounting flange, shaft configuration, and mechanical coupling match the connected equipment. The keyed shaft must be correctly aligned with the coupling to prevent excessive vibration and mechanical stress. The motor should be mounted on a sufficiently rigid surface, and the connected load should not introduce excessive radial or axial forces. Electrical connections must also follow the specified wiring configuration, with particular attention to phase connections, grounding, and encoder feedback. Before starting the machine, manually inspect the mechanical assembly and confirm that the motor shaft can rotate without abnormal resistance.

Q5: Why does the MPL-A320P-H-X229 experience vibration or unstable operation?

A: Abnormal vibration may result from incorrect servo tuning, mechanical misalignment, loose mounting hardware, excessive load inertia, or encoder feedback interference. The first step is to inspect the motor mounting bolts, coupling, and connected transmission components. Any mechanical looseness or misalignment should be corrected before adjusting the servo parameters. If the mechanical assembly is in good condition, check the position loop and velocity loop settings in the servo drive. Excessively high gain settings can cause oscillation, while unsuitable filtering parameters may affect motion stability. Monitoring the actual speed, torque, and position feedback can help determine whether the vibration originates from the mechanical system or the servo control configuration.

Q6: How can overheating problems in the MPL-A320P-H-X229 be prevented?

A: Overheating is commonly associated with excessive loading, frequent high-torque operation, unsuitable acceleration settings, poor ventilation, or electrical connection problems. To prevent this condition, ensure that the connected machinery operates within the motor’s rated torque and speed limits. Check the servo drive’s load monitoring data and verify that the motor is not continuously operating near its maximum capacity. The installation area should provide sufficient ventilation, and the motor housing should be kept free of dust and other materials that may restrict heat dissipation. If the motor continues to overheat under normal operating conditions, inspect the power wiring, winding insulation, and mechanical load system for possible faults.

Q7: What is the difference between the MPL-A320P-H-X229 and servo motors equipped with an integrated brake?

A: The MPL-A320P-H-X229 is a non-brake configuration, meaning it does not include an integrated holding brake. Its primary function is to provide controlled rotary motion through the servo drive. For applications involving vertical loads, lifting mechanisms, or equipment that must maintain its position when power is removed, an external mechanical holding solution may be necessary. By comparison, brake-equipped servo motors have an additional holding mechanism that can help prevent unwanted shaft movement when the motor is stopped. When considering a replacement or alternative configuration, engineers should evaluate the mechanical safety requirements, braking sequence, and compatibility with the existing control system.

Q8: Is the MPL-A320P-H-X229 still available, and what should be considered when replacing it?

A: The MPL-A320P-H-X229 has been officially discontinued by Rockwell Automation, with the discontinuation date listed as July 23, 2024. The manufacturer does not specify a planned direct replacement for this particular catalog number. When maintaining existing equipment, customers may consider sourcing original surplus inventory or evaluating an alternative motor from the MP-Series product family. However, replacement selection should not be based solely on similar model numbers or appearance. Important factors include rated voltage, continuous torque, maximum speed, encoder feedback, keyed shaft configuration, connector orientation, and mounting compatibility. The replacement must also be compatible with the installed servo drive. Before returning the machine to production, technicians should verify all electrical connections, review drive parameters, and perform a complete commissioning test to confirm stable operation.
