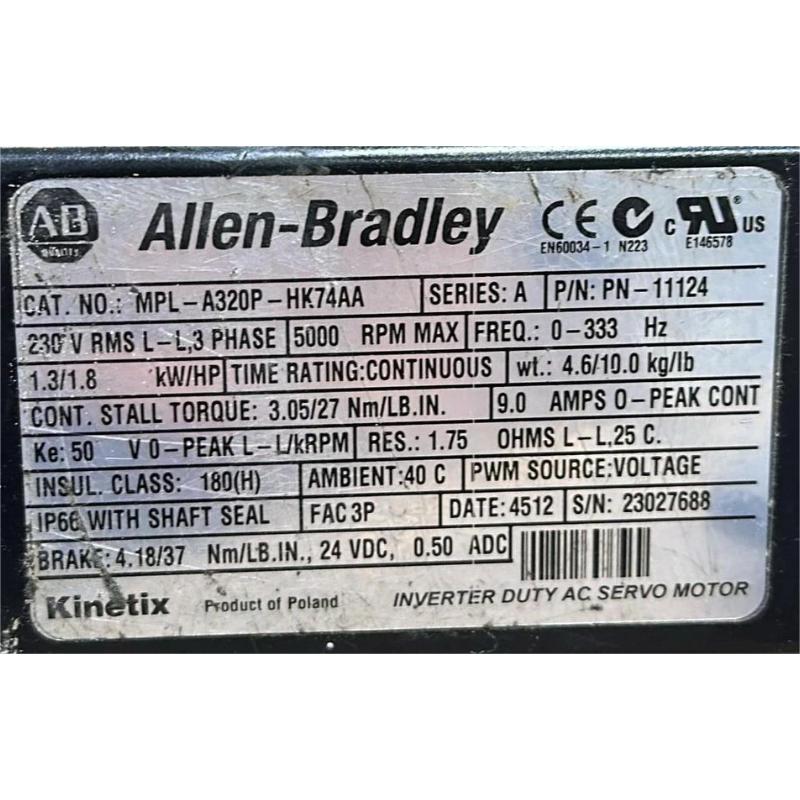

Q1: What are the main industrial applications of the MPL-A320P-HK74AA servo motor?

A: The Allen-Bradley MPL-A320P-HK74AA is a low-inertia AC servo motor designed for industrial applications requiring accurate positioning, precise speed regulation, and fast dynamic response. It can be used in automated production lines, packaging machinery, material handling systems, CNC equipment, and precision motion control applications. Its low-inertia rotor design allows the motor to accelerate and decelerate quickly, making it suitable for machines that require frequent starting, stopping, and direction changes. When properly configured with a compatible servo drive, it helps maintain stable motion performance and consistent positioning accuracy.

Q2: Which servo drives are compatible with the MPL-A320P-HK74AA?

A: The MPL-A320P-HK74AA belongs to the Allen-Bradley MP-Series MPL servo motor family. It should be paired with a servo drive that supports its electrical ratings, encoder feedback configuration, and integrated brake requirements. Potential drive families include Kinetix 5500, Kinetix 6000, Kinetix 6200/6500, Kinetix 300, Kinetix 350, Kinetix 2000, and Ultra 3000. However, compatibility depends on the exact drive catalog number, feedback interface, firmware version, and motor configuration. Always verify the motor and drive compatibility before installation to avoid configuration errors, feedback faults, or unexpected shutdowns.

Q3: What is the function of the incremental encoder in the MPL-A320P-HK74AA?

A: The incremental encoder provides feedback signals that allow the servo drive to monitor motor speed and rotational position. The drive continuously compares the actual motor feedback with the commanded motion values and adjusts the output accordingly. This closed-loop control process helps maintain accurate positioning, consistent speed, and stable operation under changing load conditions. If the encoder cable is damaged, the feedback signal becomes unstable, or the connector is improperly installed, the drive may generate feedback-related faults. In such cases, technicians should inspect the feedback wiring, connector condition, shielding, and grounding before replacing the encoder or motor.

Q4: What is the purpose of the integrated 24V DC brake?

A: The integrated 24V DC holding brake is designed to prevent unwanted motor shaft rotation when the motor is stopped or when the servo system is disabled. It is particularly useful in vertical motion systems, lifting mechanisms, and applications where maintaining a mechanical position is important. The brake is intended primarily for holding a stationary load rather than continuously stopping a moving motor. During installation, the brake power supply and control sequence must be correctly configured. The brake should release before motor movement begins and engage according to the manufacturer’s recommended shutdown sequence to prevent unnecessary mechanical stress and premature wear.

Q5: How can overheating problems with the MPL-A320P-HK74AA be diagnosed?

A: Motor overheating can result from excessive mechanical loading, incorrect acceleration and deceleration settings, insufficient cooling, or abnormal mechanical resistance. Start by checking whether the connected machinery moves freely and whether bearings, couplings, and transmission components show signs of wear or binding. Next, review the servo drive’s current, torque, and load monitoring values to determine whether the motor is operating continuously near or above its rated capacity. Also inspect the power supply, motor wiring, grounding, and surrounding operating temperature. If overheating continues under normal operating conditions, further inspection of the motor windings and insulation condition may be necessary.

Q6: What should be checked if the MPL-A320P-HK74AA experiences inaccurate positioning?

A: Positioning errors can be caused by encoder feedback problems, incorrect servo tuning, mechanical backlash, loose couplings, or unexpected load variations. First, inspect the encoder cable and feedback connector for loose connections, damaged insulation, or electromagnetic interference. Then review the position loop gain, velocity loop gain, and relevant filtering parameters in the servo drive. Incorrect tuning can result in overshoot, vibration, or unstable positioning. Mechanical components should also be checked for excessive clearance, worn bearings, and loose mounting connections. Using servo monitoring software to compare commanded and actual position values can help identify whether the problem originates from the feedback system, drive configuration, or mechanical assembly.

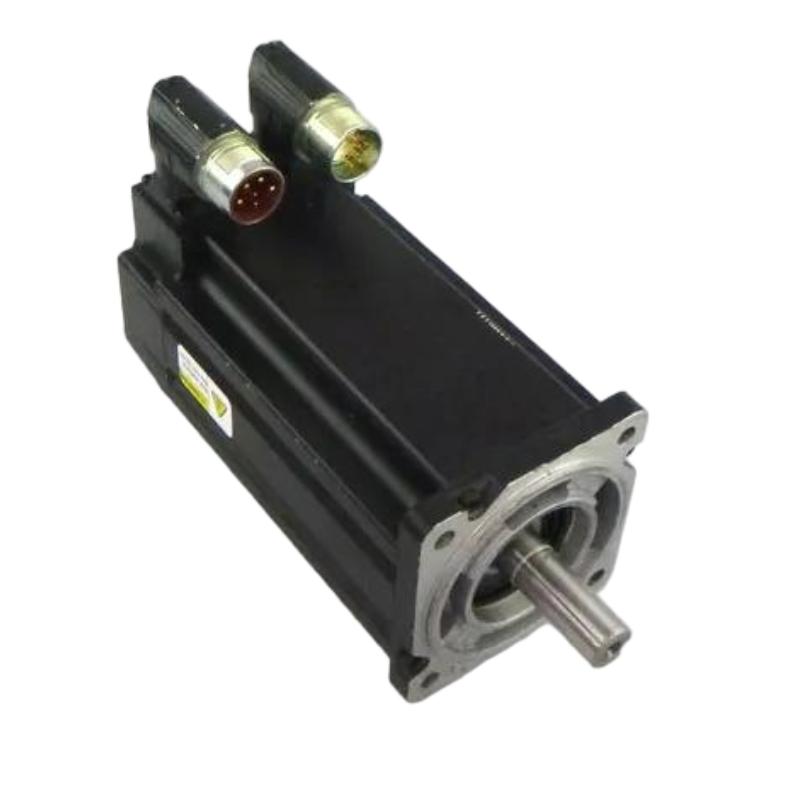

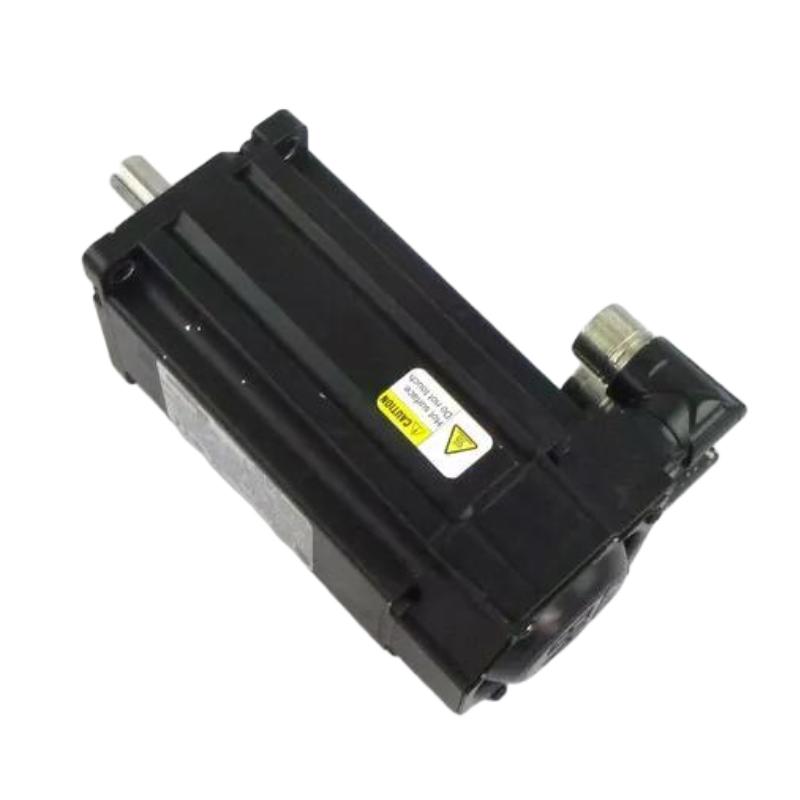

Q7: What are the advantages of the SpeedTEC DIN connector used on this servo motor?

A: The SpeedTEC DIN connector provides a secure industrial electrical connection for the motor’s wiring configuration. Its right-angle design helps reduce cable clearance requirements in installations where space around the motor is limited. The 180-degree rotational feature also provides additional flexibility when routing cables through different machine layouts. During installation, technicians should use the correct compatible cables and ensure that all connectors are properly secured. Power, grounding, and feedback connections must be checked carefully before commissioning. Loose connections, incorrect wiring, or damaged connectors may cause intermittent operation, feedback errors, or motor startup failures.

Q8: Can the MPL-A320P-HK74AA be replaced with another servo motor if the original model is discontinued?

A: Yes, a replacement may be considered, but selecting an alternative requires more than matching the motor’s general appearance or product series. The replacement motor must be evaluated for electrical ratings, continuous and peak torque, encoder feedback type, brake configuration, shaft design, connector arrangement, and compatibility with the existing servo drive. The Allen-Bradley MPL-A320P-SK74AA may be considered as an engineering replacement candidate, but its suitability should be verified against the original machine configuration. Before replacement, technicians should back up the existing drive parameters, review mechanical mounting requirements, and confirm feedback and brake wiring. A complete commissioning test should then be performed to verify positioning accuracy, speed response, braking operation, and overall system stability.
