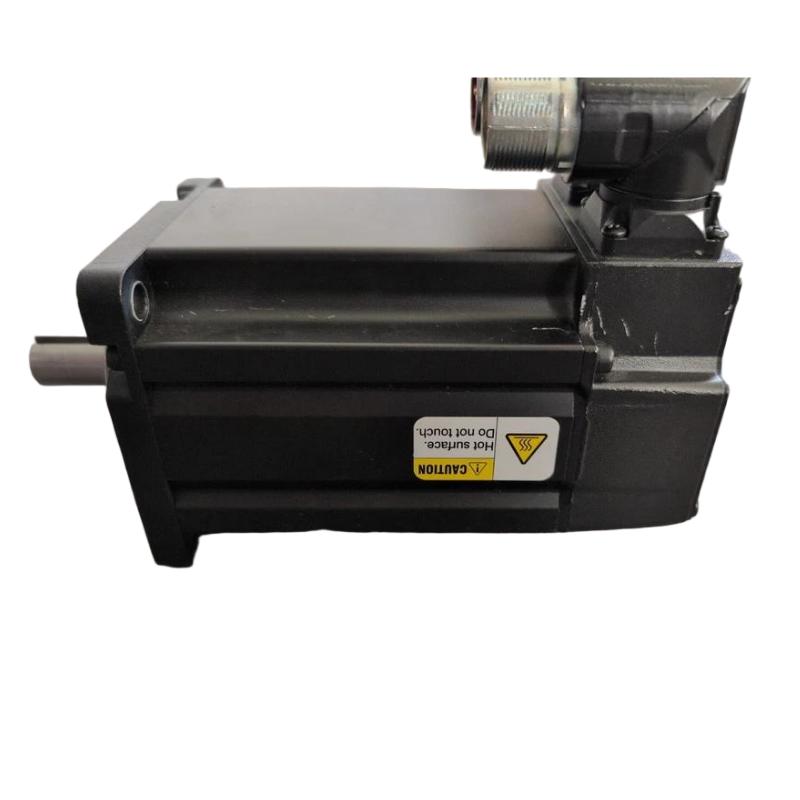

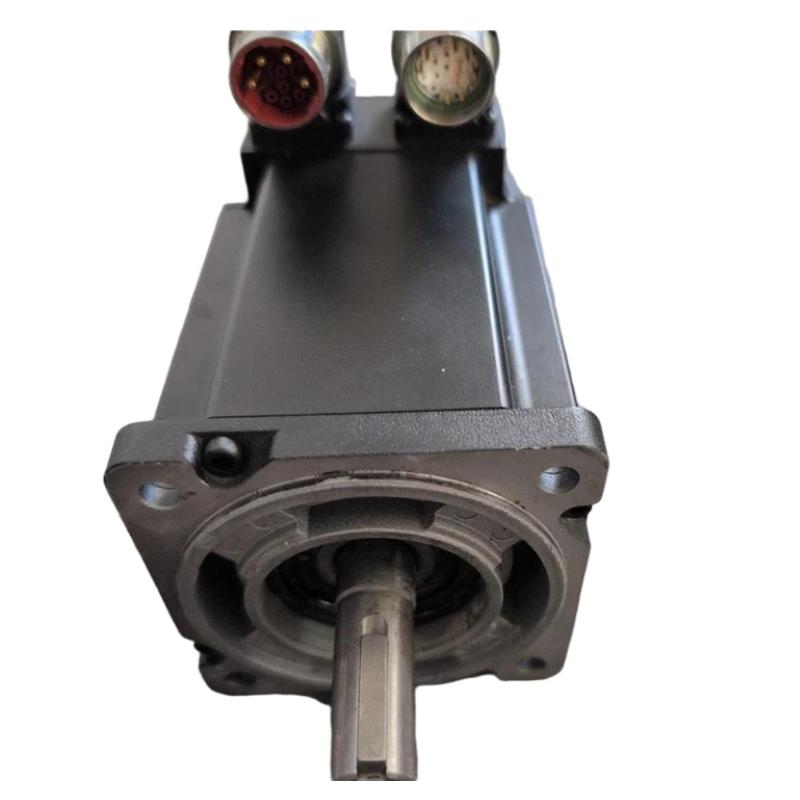

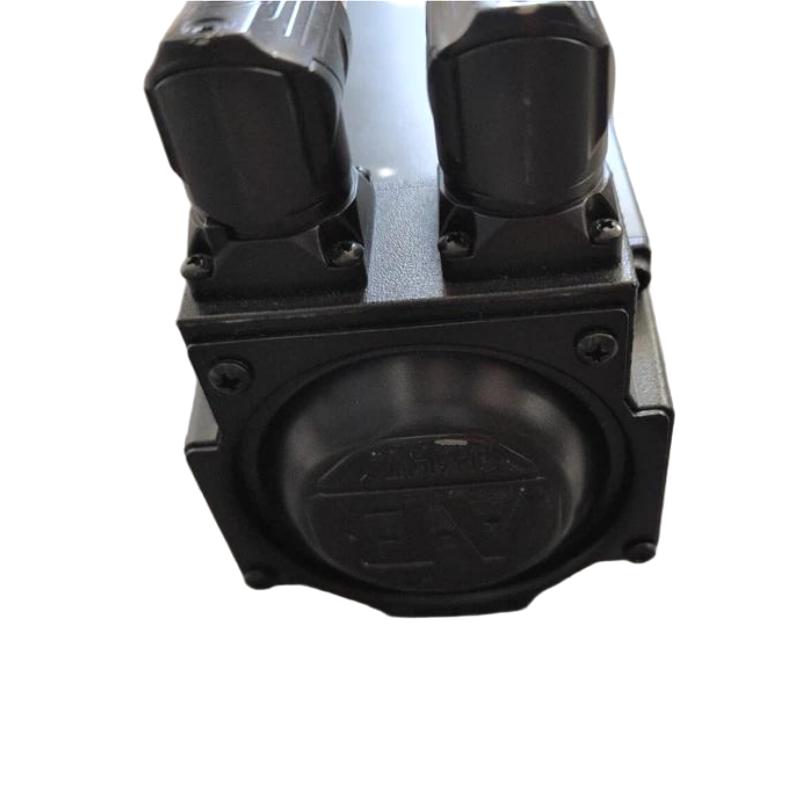

Allen Bradley MPL-A320P-MK72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | MPL-A320P-MK72AA |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Armature Voltage | 230 V AC |
| Continuous Rated Power | 1.3 kW |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Output Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Feedback Type | Multi-turn Absolute High-Resolution Encoder |
| Encoder Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyless Shaft Extension |
| Holding Brake | No Integrated Brake |
| Connector Type | SpeedTEC DIN Circular Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount, FF Free Mounting Holes |
| Magnet Stack Length | 50.8 mm |
| Frame Size | 100 mm |
| Weight | 3.7 kg |
| Shaft Seal | No Shaft Seal |
| Rotor Inertia | 7.8 × 10⁻⁵ kg·m² |
| Operating Temperature | 0°C to 40°C |
| Compatible Servo Drives | Kinetix 5500, 6000, 6200, 6500, 300, 350, 2000, 7000, Ultra 3000 (verify specific drive configuration) |
| Product Status | Active |
FAQ
1. What is the main function of the Allen-Bradley MPL-A320P-MK72AA servo motor?
The MPL-A320P-MK72AA belongs to the Allen-Bradley MP-Series MPL family of low-inertia servo motors. It is designed for precision motion control in industrial automation systems. With a 200 V AC voltage class, a maximum speed of 5000 RPM, and a multi-turn absolute high-resolution encoder, it supports applications requiring responsive acceleration, accurate speed regulation, and repeatable positioning.
2. How does the MPL-A320P-MK72AA differ from a servo motor with a keyed shaft?
This model uses a keyless shaft extension, meaning the shaft does not have a keyway for a parallel key. A suitable clamping coupling or another compatible shaft connection is generally required, depending on the machine design. Before installation, check the coupling bore, clamping method, and torque transmission capacity to prevent shaft slippage, misalignment, or excessive vibration.
3. Does the MPL-A320P-MK72AA have an integrated holding brake?
No. The MPL-A320P-MK72AA configuration does not include an integrated holding brake. When the motor stops or power is removed, it cannot provide mechanical holding force by itself. Applications involving vertical axes, suspended loads, or equipment that must remain stationary after power loss may require an independent mechanical braking system designed to meet the machine’s safety requirements.
4. What type of encoder does this servo motor use?
The MPL-A320P-MK72AA uses a multi-turn absolute high-resolution encoder with the Hiperface feedback protocol. Its specified resolution is 1024 Sin/Cos cycles per revolution. The encoder supplies motor position feedback to the servo drive, supporting accurate position and speed control. Correct feedback cable connections and matching motor configuration parameters are essential for reliable operation.
5. Which Allen-Bradley servo drives are compatible with the MPL-A320P-MK72AA?
This motor may be used with compatible Allen-Bradley Kinetix and Ultra 3000 servo drive systems, including selected models from the Kinetix 5500, 6000, 6200, 6500, 300, 350, 2000, and 7000 families. Actual compatibility must be verified against the drive’s voltage rating, feedback interface, current capacity, and supported motor configuration. Do not determine compatibility solely from the product family name.
6. How can positioning errors on the MPL-A320P-MK72AA be diagnosed?
First, inspect the encoder feedback cable and SpeedTEC DIN connector for loose connections, damaged pins, or cable deterioration. Check grounding and shielding to rule out electrical interference. Then verify the motor parameters, feedback type, and control settings in the servo drive. Mechanical issues, such as a loose coupling, excessive load variation, or backlash in the transmission system, can also cause positioning errors. Review the drive’s alarm history and operating data during troubleshooting.
7. What can cause the servo motor to overheat or draw excessive current?
Common causes include loads exceeding the motor’s rated capacity, frequent acceleration and deceleration, excessive mechanical resistance, incorrect servo tuning, and insufficient cooling. Continuous operation under heavy load can increase both motor current and temperature. Check the mechanical load, drive current readings, operating cycle, and ventilation conditions to determine the cause. Ensure the motor operates within its specified ratings.
8. What routine maintenance is recommended for the MPL-A320P-MK72AA?
Routine maintenance should include inspecting the motor power connections, encoder feedback cable, connectors, mounting bolts, and shaft coupling. Monitor the motor for abnormal noise, vibration, or temperature increases during operation. Check for mechanical binding or excessive load on the drive system. Since this model does not have an integrated holding brake, any external mechanical holding device should also be inspected to ensure it meets the machine’s safety requirements. Regular inspection intervals should be based on operating conditions and duty cycle.
Allen Bradley MPL-A320P-MK72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
