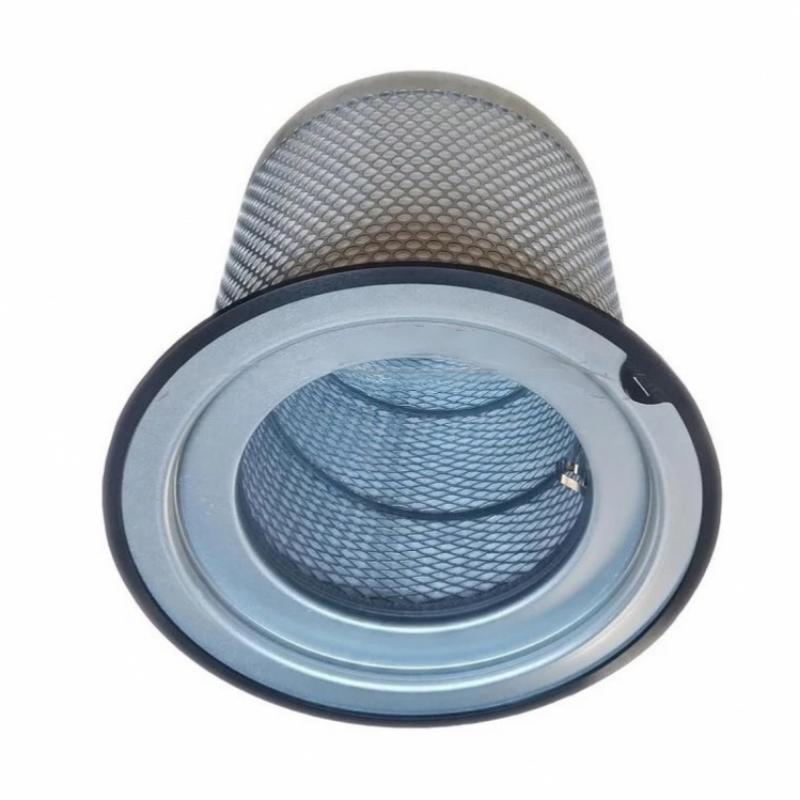

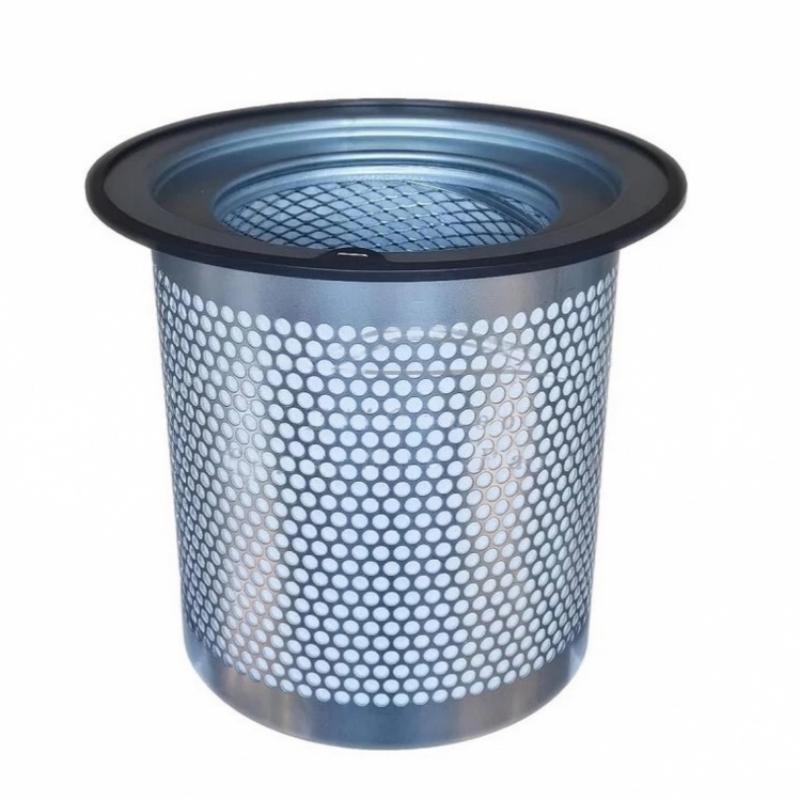

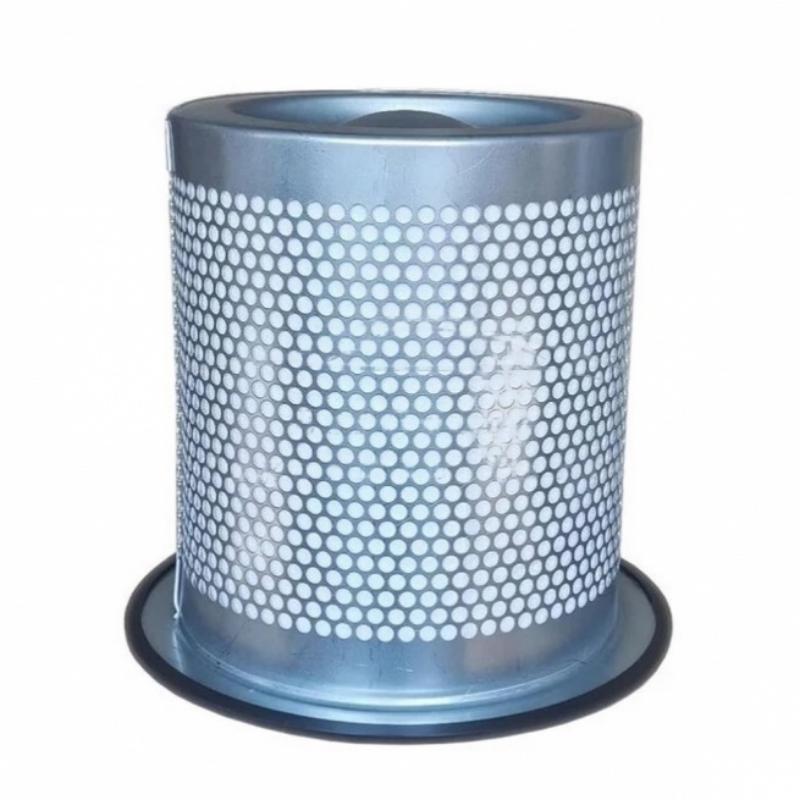

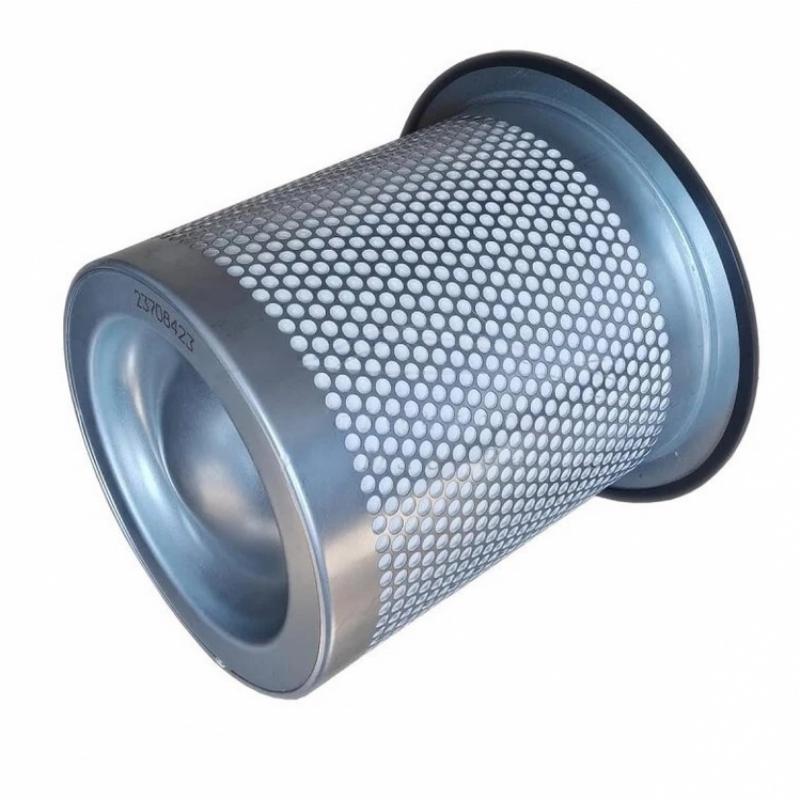

Ingersoll Rand 47704432001 23708423 Air-Oil Separator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Product Name | Air-Oil Separator |
| Model Number | 47704432001 |
| Order Number | 23708423 |
| Product Type | Air-Oil Separator Element |
| Application | Rotary Screw Air Compressors |
| Main Function | Separates oil mist from compressed air to reduce oil carryover |
| Separation Method | Coalescing filtration |
| Filter Media | Fine-fiber separation media |
| Outer Diameter | 240 mm |
| Largest Outer Diameter | 297 mm |
| Height | 278 mm |
| Weight | 4.9 kg |
| Compatible Equipment | Selected Ingersoll Rand R45, R55 and R75 compressor models; verify by serial number |
| Installation | Installed in the designated air-oil separator housing |
| Maintenance | Replace according to compressor operating conditions and the recommended maintenance schedule |
FAQ
Q1: What is the function of the Ingersoll Rand 47704432001 Air-Oil Separator?
The air-oil separator removes oil mist from compressed air in oil-injected rotary screw compressors. It helps return separated oil to the lubrication circuit while reducing oil carryover into the compressed-air system. This supports stable compressor operation and helps protect downstream equipment.
Q2: Which compressors are compatible with this air-oil separator?
Part number 23708423 is associated with selected Ingersoll Rand R45, R55 and R75 series compressors. Compatibility can vary by compressor version and serial number. Confirm the compressor model and serial number before ordering a replacement.
Q3: What are the common signs of a worn or damaged air-oil separator?
Typical symptoms include increased oil consumption, excessive oil in the compressed-air line, higher-than-normal differential pressure across the separator, and reduced compressor efficiency. These symptoms can also result from other faults, so check the separator and the surrounding oil-return system before replacing components.
Q4: How does a clogged air-oil separator affect compressor performance?
A clogged separator restricts airflow and increases pressure drop. The compressor may consume more energy to maintain the required discharge pressure, while operating temperatures may rise. If the differential pressure exceeds the manufacturer’s specified limit, inspect the separator and replace it when necessary.
Q5: How often should the air-oil separator be replaced?
The replacement interval depends on the compressor model, operating hours, oil condition, ambient environment and manufacturer recommendations. Dust, elevated temperatures and contaminated lubricant can shorten service life. Follow the maintenance schedule for the specific compressor rather than relying on a fixed interval for every installation.
Q6: What should be checked before installing a replacement separator?
Confirm the part and order numbers, compressor compatibility, sealing surfaces and oil-return connections. Inspect the housing for residue or damage, and make sure the replacement element is seated correctly. Incorrect installation or damaged seals can allow oil to enter the compressed-air stream.
Q7: Can an air-oil separator be cleaned and reused?
Cleaning is generally not recommended unless the manufacturer explicitly approves a suitable procedure. Fine separation media can be damaged by compressed air, solvents or mechanical handling, even if the element appears clean afterward. A damaged or contaminated element may lose separation efficiency and should be replaced.
Q8: What should be checked if oil carryover continues after replacement?
Check that the separator is the correct part and is installed with its seals properly seated. Also inspect the oil-return line, return orifice, scavenge components, lubricant level and compressor operating conditions. If oil carryover persists, follow the compressor service manual’s diagnostic procedure to identify the underlying cause.
Ingersoll Rand 47704432001 23708423 Air-Oil Separator is in stock. Please contact us for a quick quote and competitive pricing.
