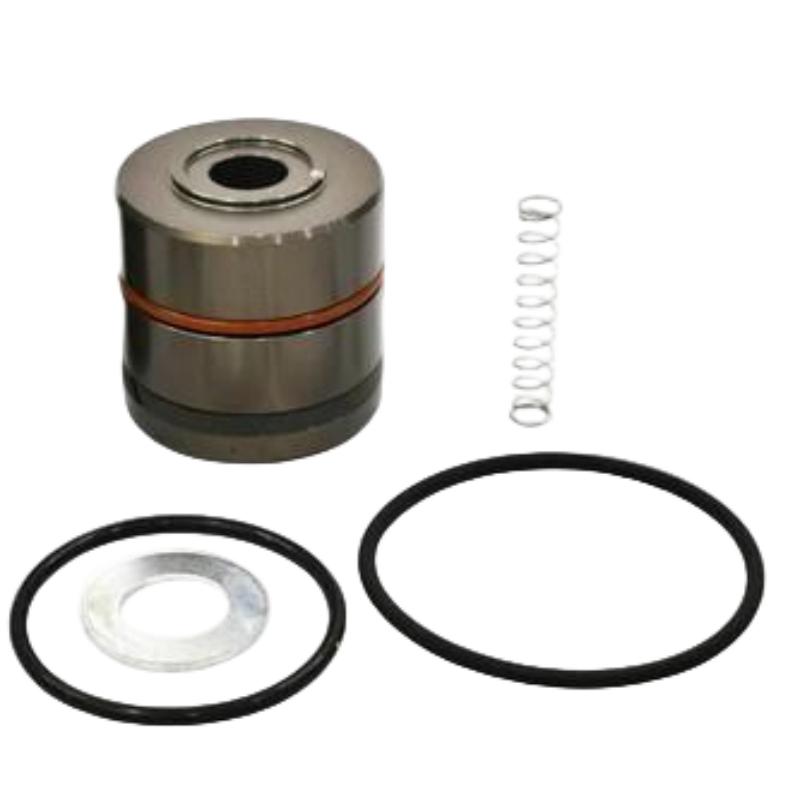

Ingersoll Rand 47704432001 47690462001 Minimum Pressure Valve Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Product Name | Minimum Pressure Valve Kit |
| Model Number | 47704432001 |
| Order Number | 47690462001 |
| Product Type | Minimum Pressure Valve Service Kit |
| Application | Oil-injected rotary screw air compressors |
| Main Function | Maintains minimum system pressure and supports proper oil circulation |
| Operating Principle | Pressure-actuated valve mechanism |
| Primary Purpose | Helps maintain the pressure required for oil circulation and supports air-oil separation |
| Dimensions | 100 × 15 × 80 mm |
| Weight | 0.1 kg |
| Installation Location | Minimum pressure valve assembly within the compressor system |
| Compatibility | Must be confirmed against the compressor model, serial number and original parts documentation |
| Maintenance | Inspect and service according to the compressor manufacturer’s maintenance instructions |
| Replacement Considerations | Verify the part number, kit contents and applicable compressor configuration before installation |
FAQ
Q1: What is the function of the Ingersoll Rand Minimum Pressure Valve Kit?
The minimum pressure valve helps maintain a minimum pressure inside the compressor system before allowing compressed air to flow freely toward the outlet. In an oil-injected screw compressor, this pressure is important for supporting oil circulation and the proper operation of the air-oil separation system.
Q2: How does a minimum pressure valve work in a screw air compressor?
The valve remains closed or restricts flow while system pressure is below its operating threshold. Once sufficient pressure develops, the valve opens progressively to allow compressed air to move downstream. This helps the compressor establish stable operating pressure during startup and normal operation.
Q3: What are the common symptoms of a faulty minimum pressure valve?
Typical symptoms include slow pressure buildup, unstable discharge pressure, restricted airflow, abnormal pressure differences across the system, or excessive pressure retained in the compressor after shutdown. These symptoms can also be caused by other components, so the valve should be inspected alongside the air-oil separator and associated piping.
Q4: Can a faulty minimum pressure valve increase oil carryover?
Yes, under certain operating conditions. If the valve fails to maintain the pressure required by the compressor’s oil separation system, oil separation performance may deteriorate. However, excessive oil carryover can also result from a worn separator element, a blocked oil-return line, incorrect oil level or unsuitable lubricant.
Q5: What should be checked before installing the valve kit?
Confirm that the kit matches the compressor model and serial number. Inspect the valve housing, mating surfaces, seals and internal components for contamination or damage. Check the kit contents against the applicable parts documentation, and ensure the compressor is isolated from power and fully depressurized before servicing.
Q6: Can the minimum pressure valve be repaired instead of replaced?
Repair may be possible if the manufacturer provides a service procedure and the required replacement components. If the valve body, sealing surfaces or internal mechanism are damaged beyond the permitted service limits, replacement is generally the safer option. Follow the compressor’s service documentation when deciding whether to repair or replace the assembly.
Q7: What can cause a minimum pressure valve to stick or operate incorrectly?
Possible causes include carbon deposits, contaminated lubricant, degraded seals, internal wear, corrosion or foreign particles entering the valve assembly. Incorrect installation can also affect valve movement and sealing. Regular maintenance, clean lubricant and correct servicing procedures help reduce the risk of premature failure.
Q8: How can the minimum pressure valve be tested after installation?
After installation, follow the manufacturer’s commissioning procedure and verify that the compressor builds pressure normally. Monitor startup behavior, discharge pressure, airflow and pressure changes during loading and unloading. Check for air or oil leaks and confirm that shutdown and pressure-release functions operate correctly. If pressure remains unstable, investigate the valve setting, related controls and the wider compressor system.
Ingersoll Rand 47704432001 47690462001 Minimum Pressure Valve Kit is in stock. Please contact us for a quick quote and competitive pricing.
