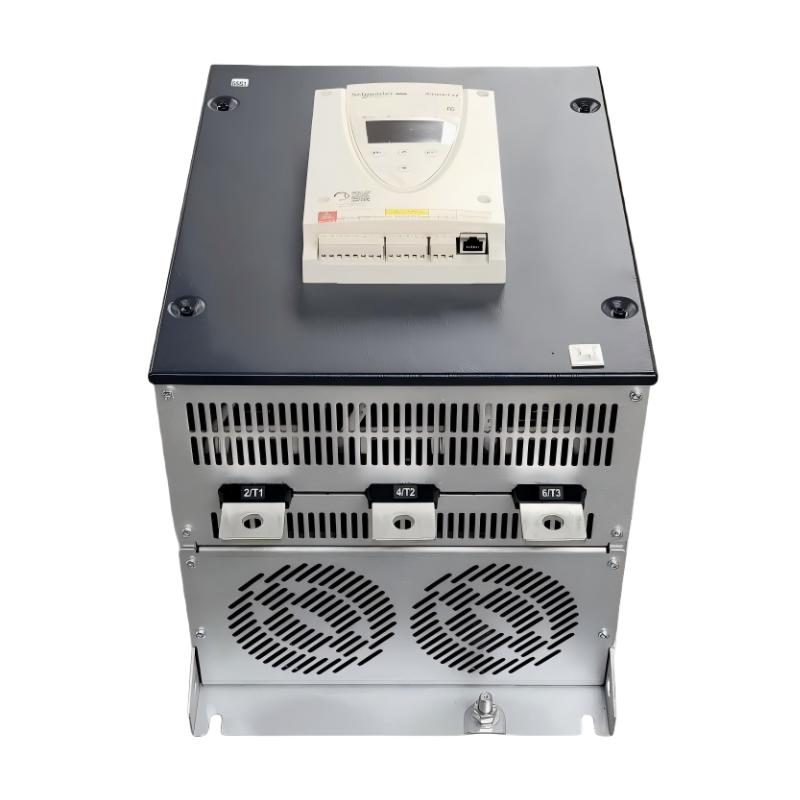

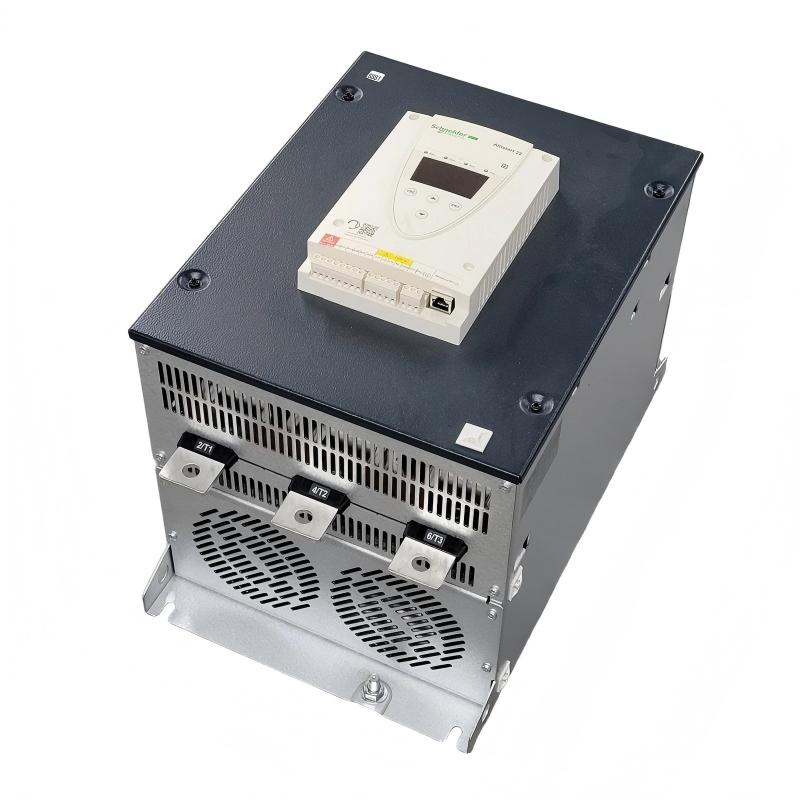

1. What is the main function of the Schneider ATS22C59S6U Soft Starter?

The Schneider ATS22C59S6U Soft Starter is designed to control the starting and stopping process of three-phase asynchronous motors by gradually adjusting the voltage supplied to the motor.

Compared with traditional direct starting methods, the soft starter reduces the high inrush current during motor startup and minimizes mechanical stress on connected equipment. It provides smoother acceleration and deceleration, helping improve motor protection and system reliability.

The ATS22C59S6U is commonly used in industrial applications such as pumps, fans, compressors, and conveyor systems where controlled motor operation is required.

2. What types of motors are suitable for the ATS22C59S6U Soft Starter?

The ATS22C59S6U Soft Starter is mainly designed for controlling three-phase asynchronous induction motors.

It is suitable for motor-driven equipment that requires reduced starting current and smooth acceleration, including centrifugal pumps, ventilation systems, compressors, and industrial machinery.

Before installation, users should verify that the motor specifications match the soft starter operating requirements to ensure proper performance and reliable operation.

3. What advantages does the ATS22C59S6U provide compared with direct motor starting?

The ATS22C59S6U provides several advantages compared with direct motor starting methods.

It limits the high starting current that occurs when motors are connected directly to the power supply, reducing stress on electrical networks. The controlled acceleration process also reduces mechanical impact on motors, couplings, and driven equipment.

By improving starting performance and reducing mechanical wear, the soft starter helps increase equipment service life and reduce maintenance requirements.

4. How can faults in the Schneider ATS22C59S6U Soft Starter be diagnosed?

When the ATS22C59S6U experiences abnormal operation, technicians should first check the displayed fault information and diagnostic status.

Common troubleshooting steps include verifying the incoming power supply, motor connections, control wiring, and parameter settings. Engineers should also check whether motor overload, phase loss, or protection functions have been activated.

Reviewing fault history and operating conditions can help determine whether the problem is related to external equipment, incorrect configuration, or abnormal motor conditions.

5. What protection functions are available in the ATS22C59S6U Soft Starter?

The ATS22C59S6U includes multiple protection functions designed to protect motors and improve system safety.

These functions include overload protection, overcurrent protection, phase loss detection, and thermal protection. The soft starter continuously monitors operating conditions and can respond when abnormal situations occur.

These protection features help prevent motor damage, improve equipment reliability, and reduce unexpected production interruptions.

6. What maintenance practices are recommended for the ATS22C59S6U?

Regular maintenance of the ATS22C59S6U should include checking electrical connections, monitoring operating conditions, and reviewing diagnostic information.

Maintenance personnel should inspect power terminals, control wiring, and cooling conditions to ensure stable operation. Any loose connections, abnormal alarms, or environmental issues should be addressed promptly.

Preventive maintenance helps identify potential problems early, improves system availability, and extends the service life of the motor control equipment.

7. What are the common causes of ATS22C59S6U startup failures?

Common causes of startup failures include incorrect wiring, unstable power supply, motor overload, incorrect parameter settings, phase loss, and missing control signals.

If the motor characteristics do not match the configured parameters, or if protection functions are triggered, the soft starter may prevent the motor from starting.

During troubleshooting, engineers should check the power source, motor wiring, control commands, protection status, and configuration settings to identify the actual cause.

8. How does the ATS22C59S6U improve industrial motor system reliability?

The ATS22C59S6U improves industrial motor system reliability by providing controlled motor starting and stopping, reducing electrical and mechanical stress during operation.

By managing startup current and monitoring motor conditions, it helps protect motors and connected mechanical equipment from excessive stress.

Its stable control performance and protection functions make it suitable for industrial applications requiring continuous operation, improved equipment reliability, and reduced maintenance costs.
