1. What is the Schneider Electric TSXETG100 mainly used for?

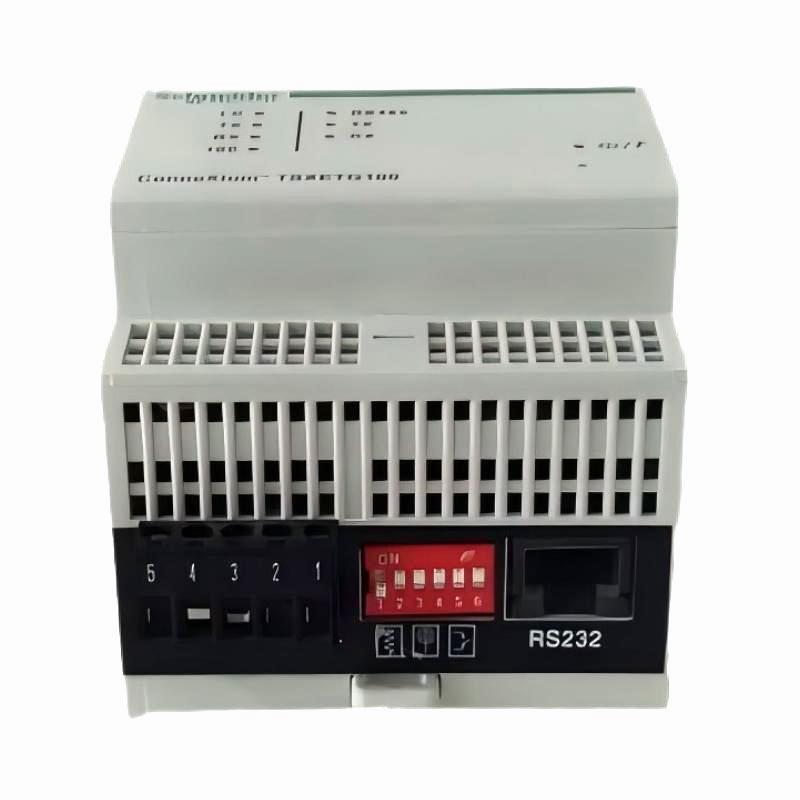

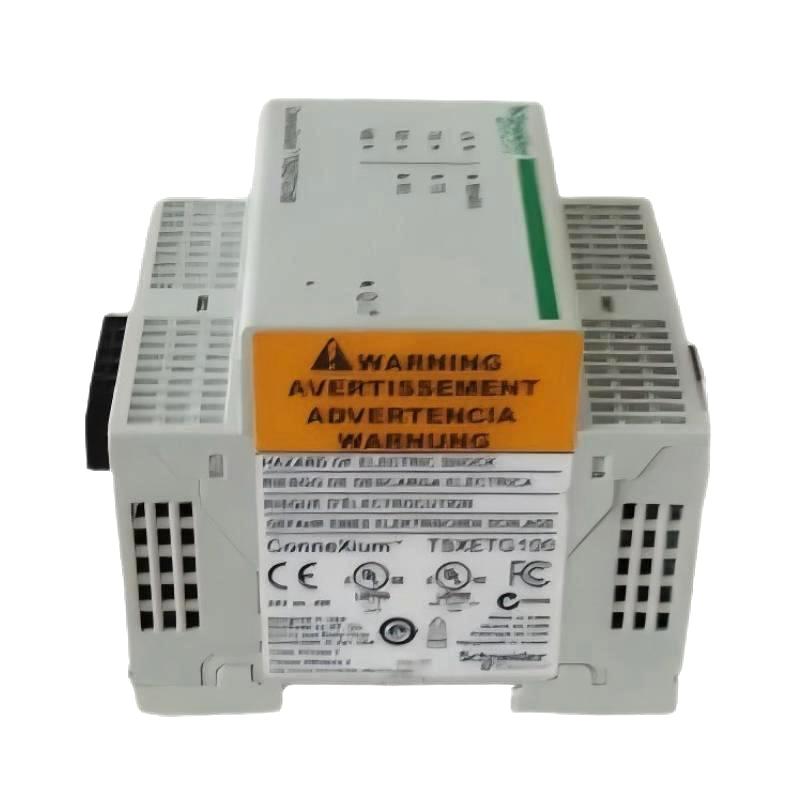

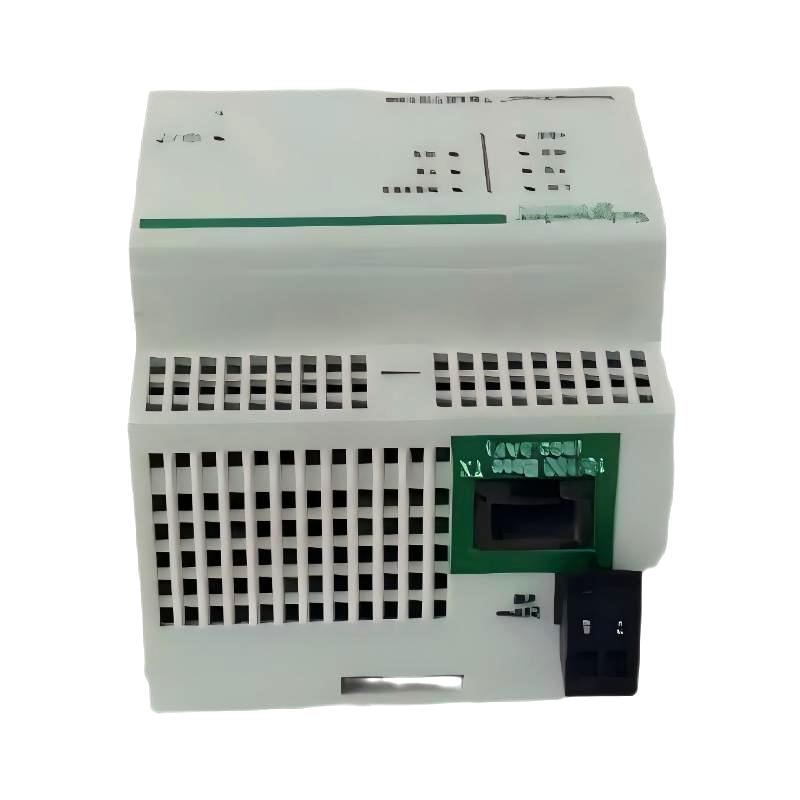

The Schneider Electric TSXETG100 is an Ethernet Modbus Gateway designed to connect Modbus serial devices with an Ethernet-based industrial network. It provides a communication bridge between Ethernet-side control or supervisory systems and Modbus devices operating through serial communication. This makes it useful when existing Modbus field equipment needs to exchange data with PLCs, SCADA systems, HMIs, or other Ethernet-based automation equipment. By providing a gateway between different communication layers, the TSXETG100 can help integrate existing field devices into a broader industrial network without requiring every device to have a native Ethernet interface.

2. What is the main communication function of the TSXETG100?

The main function of the TSXETG100 is to provide communication between Ethernet-based systems and Modbus serial devices. On the Ethernet side, the gateway can communicate with compatible industrial control or supervisory equipment, while the serial side provides access to Modbus field devices. The gateway manages the exchange of requests and responses between the two communication environments. During system design, engineers should define the Ethernet network parameters, Modbus communication settings, device addresses, and register mapping according to the connected equipment. Correct configuration of both sides is essential for reliable data exchange.

3. How does the TSXETG100 connect Modbus devices to an Ethernet network?

The TSXETG100 works as an intermediary between an Ethernet network and Modbus serial equipment. A PLC, SCADA workstation, HMI, or other Ethernet-based device can send a communication request through the Ethernet network. The gateway receives the request and communicates with the appropriate Modbus device through its serial interface. The response from the field device is then transferred back through the gateway to the Ethernet-side application. This architecture allows legacy Modbus instruments and controllers to participate in a modern Ethernet-based automation network. The actual communication parameters and register addresses must be configured consistently between the gateway and connected devices.

4. What types of automation equipment can be integrated using the TSXETG100?

The TSXETG100 can be used to integrate compatible Modbus serial equipment into industrial Ethernet communication architectures. Depending on the application, this can include PLCs, meters, sensors, drives, controllers, remote monitoring equipment, and other Modbus-enabled devices. It can also support communication between field equipment and higher-level systems such as SCADA or HMI platforms. Before integration, engineers should verify the communication protocol, serial settings, Modbus addressing, register definitions, and Ethernet-side requirements of the connected equipment. Correct matching of these parameters ensures that the gateway can correctly transfer process data between the field devices and supervisory system.

5. How should a TSXETG100 communication fault be diagnosed?

Troubleshooting should start by determining whether the problem is on the Ethernet side, gateway configuration, or Modbus serial side. First, verify the gateway power and physical network connection. Then check the Ethernet configuration, including the IP address and network settings, and confirm that the gateway can communicate with the controlling device. If the Ethernet connection is normal, inspect the Modbus communication parameters, device address, serial settings, cable connections, and field device status. Register addresses and data formats should also be checked because an incorrect register definition can cause communication to appear active while producing incorrect or missing data. Testing the communication path one section at a time helps identify whether the fault is caused by the network, gateway configuration, wiring, or Modbus device.

6. Can the TSXETG100 be used with an existing Modbus installation?

Yes, the TSXETG100 can be useful when an existing Modbus serial installation needs to be connected to an Ethernet-based automation network. This is particularly valuable in plants where older controllers, instruments, or field devices continue to use Modbus communication while the supervisory or control infrastructure has moved toward Ethernet. Before installation, the existing Modbus network should be documented, including device addresses, communication parameters, register locations, and wiring. The Ethernet network configuration should then be planned separately. After installation, each connected device should be tested to confirm that the required registers can be read or written correctly through the gateway.

7. What should be checked when configuring the TSXETG100?

Configuration should begin with the communication requirements of both sides of the gateway. On the Ethernet side, verify the network addressing and communication parameters required by the PLC, SCADA, HMI, or other supervisory equipment. On the Modbus side, confirm the serial communication settings, device addresses, register locations, data types, and read/write requirements of the connected devices. Engineers should also verify that the requested data addresses correspond to the actual register definitions provided by each field device. After configuration, perform communication tests using known process values and compare the values received by the Ethernet-side system with the actual field-device data. This helps detect address mapping, scaling, data-type, or configuration errors before the gateway is placed into continuous operation.

8. What are the typical applications of the Schneider TSXETG100?

The TSXETG100 is suitable for industrial automation applications where Modbus serial devices need to communicate with Ethernet-based control or monitoring systems. Typical applications include PLC-to-field-device communication, SCADA data acquisition, HMI monitoring, remote equipment supervision, energy or utility monitoring, and integration of legacy Modbus equipment into Ethernet networks. It can be especially useful during modernization projects where existing field devices remain in service while the plant communication infrastructure is upgraded. By providing a communication bridge between the two network environments, the gateway can simplify system integration and reduce the need to replace compatible Modbus equipment solely because it does not have a native Ethernet interface.
