1. What is the Schneider TSXISPY101 mainly used for?

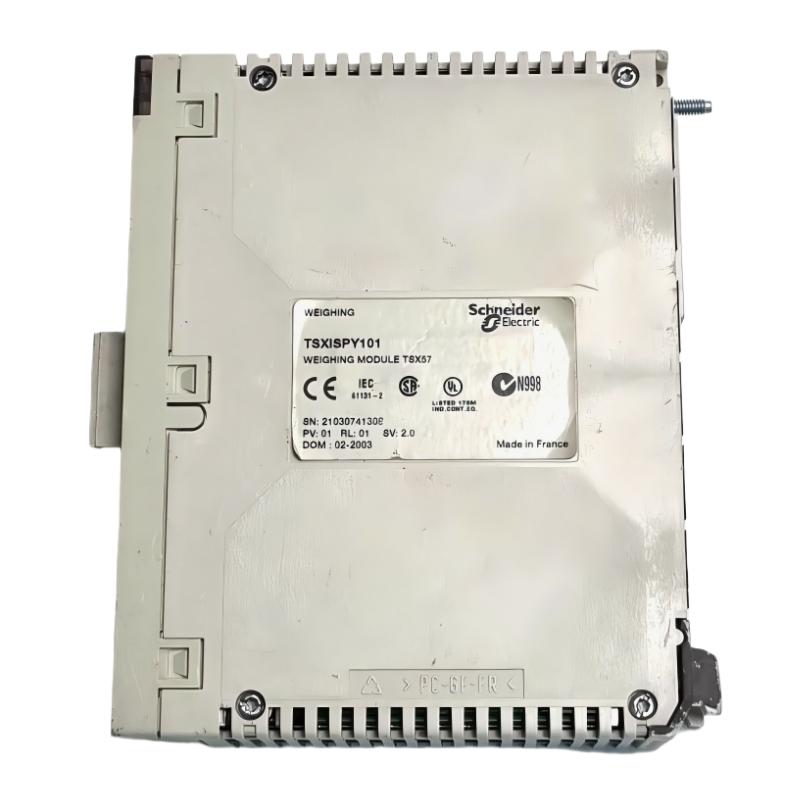

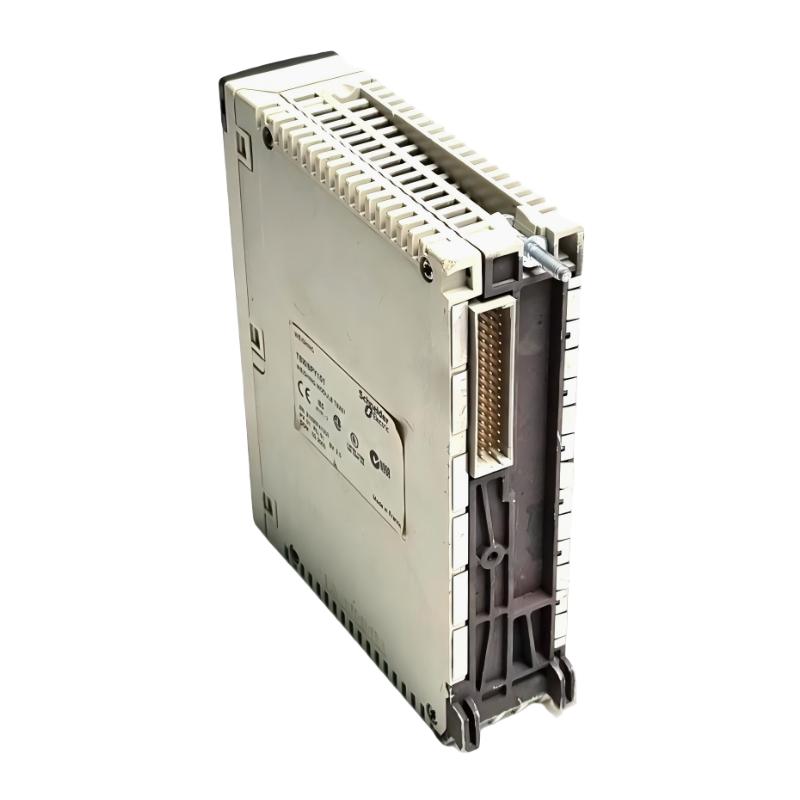

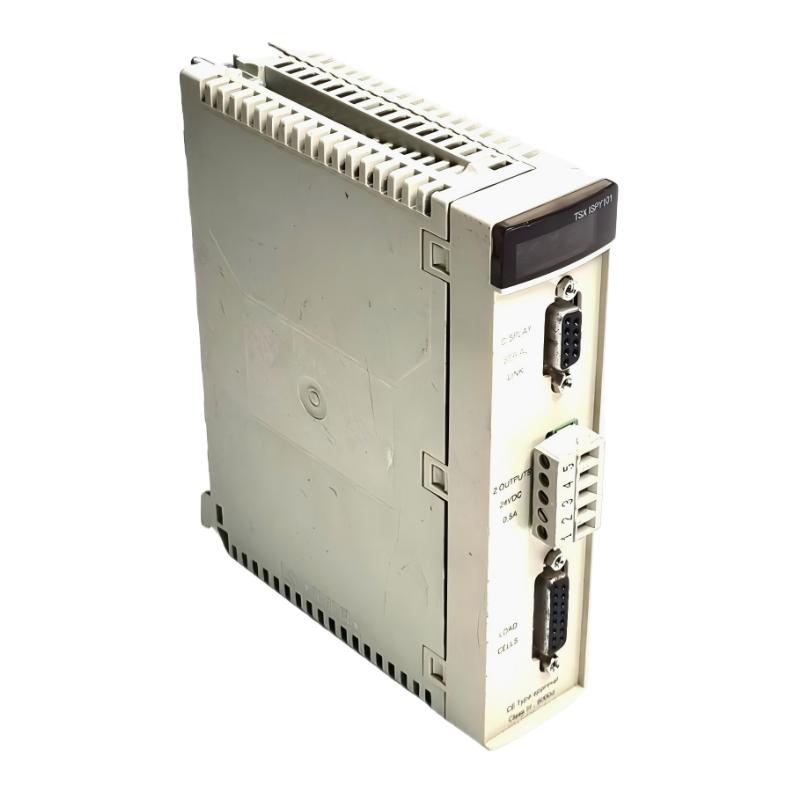

The Schneider TSXISPY101 ISP Plus Weighing Module is designed for industrial weighing and weight measurement applications within compatible automation systems. It can be used where a PLC needs to receive and process weighing information for applications such as batching, filling, dosing, material handling, and process monitoring. The module provides an interface between the weighing system and the automation controller, allowing measured weight information to be incorporated into the control program. This makes it possible to use weight values as part of process decisions, control sequences, alarms, and production management functions.

2. How does the TSXISPY101 work in a PLC-based weighing system?

In a typical weighing application, the TSXISPY101 receives measurement information from the weighing system and processes the relevant weighing data for use by the PLC. The PLC application can then use the measurement result as part of its control logic. For example, during a batching process, the controller can monitor the measured weight and determine when the required material quantity has been reached. Depending on the application, the weight value can also be used for filling control, dosing, material monitoring, or process alarms. Correct configuration of the weighing system, module, PLC program, and associated field equipment is essential for reliable operation.

3. What applications are suitable for the TSXISPY101?

The TSXISPY101 is suitable for industrial processes where accurate weight information needs to be incorporated into an automation control system. Typical applications include batching, filling, dosing, weighing of raw materials, material handling, and process monitoring. In a batching system, for example, the PLC can use the measured weight to control material feeding and stop the process when the target quantity is reached. In filling applications, the weight measurement can be used to determine whether the required amount of material has been delivered. The exact application depends on the overall weighing equipment, PLC architecture, and control strategy.

4. What should be checked if the TSXISPY101 provides incorrect weighing values?

When incorrect weighing values are observed, troubleshooting should begin with the weighing system and measurement chain rather than immediately assuming that the module itself has failed. Check the weighing equipment, sensor connections, wiring, grounding, and mechanical installation first. Then verify the TSXISPY101 configuration and the PLC application’s handling of measurement data. Calibration parameters, zero settings, scaling, filtering, and measurement ranges should also be reviewed according to the system design. Mechanical problems such as vibration, unstable mounting, material buildup, or external forces on the weighing structure can also affect the measured result. Comparing the module’s processed value with an independent reference measurement can help determine whether the problem originates from the weighing equipment, configuration, or control application.

5. How should the TSXISPY101 be configured for a new weighing application?

Configuration should begin by defining the requirements of the weighing process, including the measurement range, weighing equipment, target accuracy, process sequence, and required PLC control functions. The TSXISPY101 should then be installed and configured according to the applicable Schneider Electric system architecture and the requirements of the connected weighing equipment. The PLC application should be programmed to process the measurement values correctly and apply the required control logic. Calibration and zeroing procedures should be completed according to the weighing system’s requirements. After configuration, the system should be tested under controlled conditions using known loads or defined process conditions. This helps verify that the measurement values received by the PLC correspond correctly to the actual weighing process.

6. Why is calibration important when using the TSXISPY101?

Calibration is essential because the quality of the final weighing result depends on the relationship between the actual physical load and the measurement value processed by the automation system. Even when the module and weighing equipment are functioning correctly, incorrect calibration or scaling can cause the PLC to interpret the measured value incorrectly. A proper calibration procedure establishes the required relationship between the physical load and the corresponding measurement value. Zero conditions should also be checked because mechanical installation, material residue, vibration, and other external influences can affect the baseline measurement. Calibration should be performed according to the requirements of the complete weighing system, and the result should be verified with suitable reference loads or test conditions.

7. How can communication or data problems with the TSXISPY101 be diagnosed?

If the PLC does not receive the expected weighing information, first verify that the TSXISPY101 is correctly installed and recognized by the control system. Next, check the module configuration and confirm that the PLC application is accessing the correct data. The connection between the weighing equipment and the module should also be inspected, including terminals, wiring, connectors, and relevant signal paths. If the module is providing data but the PLC value is incorrect, examine scaling, data mapping, engineering units, and application logic. System diagnostics can also help identify hardware or configuration problems. A useful troubleshooting approach is to determine whether the fault occurs at the weighing equipment, module input, processed measurement value, or PLC application level.

8. What should be considered when commissioning the TSXISPY101?

Commissioning should verify the complete weighing and control chain, starting with the mechanical weighing structure and continuing through the measurement equipment, TSXISPY101, PLC configuration, and application program. Before applying production material, verify that the module is correctly installed and recognized by the PLC system. Check zero conditions, measurement configuration, calibration, scaling, and data processing. Test the system using known or controlled loads and compare the measured values with the expected results. For batching or dosing applications, verify that the PLC responds correctly when the configured weight targets are reached. Alarms, limits, interlocks, and process sequences should also be tested. A complete commissioning procedure ensures that the measured weight is correctly transferred into the PLC and that the control system responds appropriately throughout the entire process.
