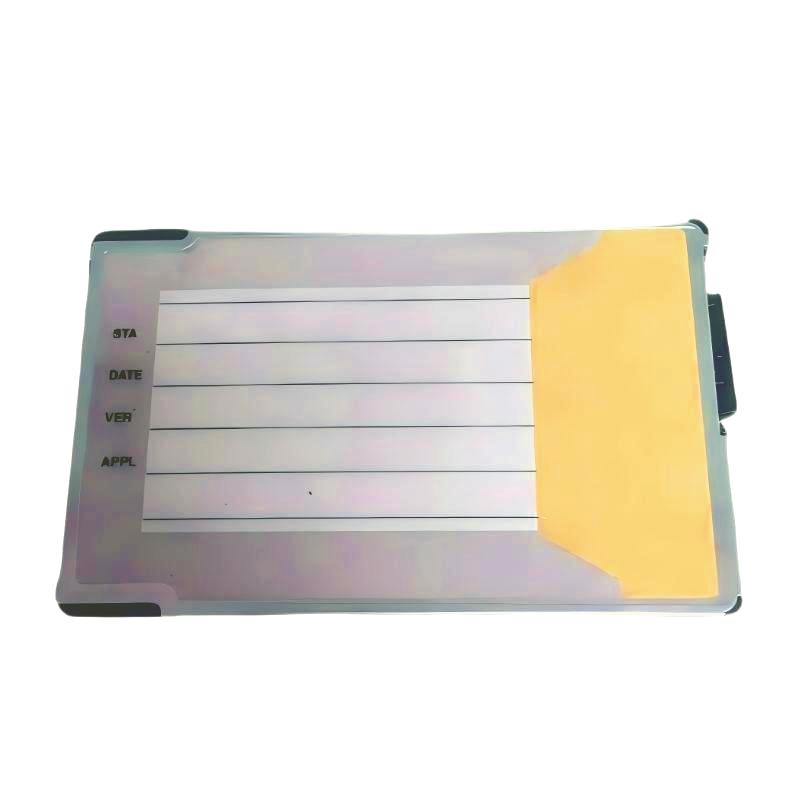

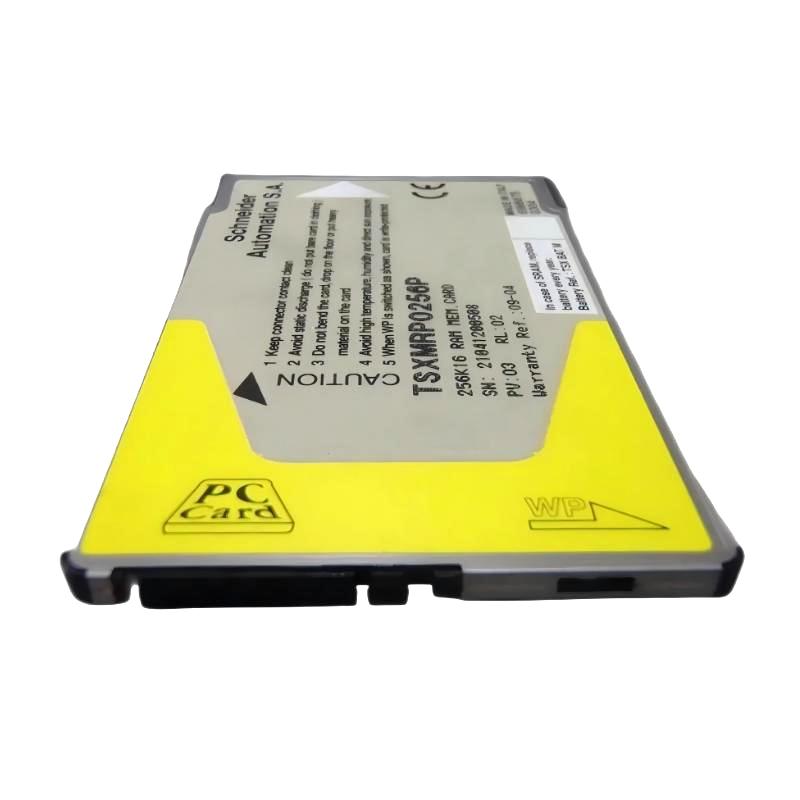

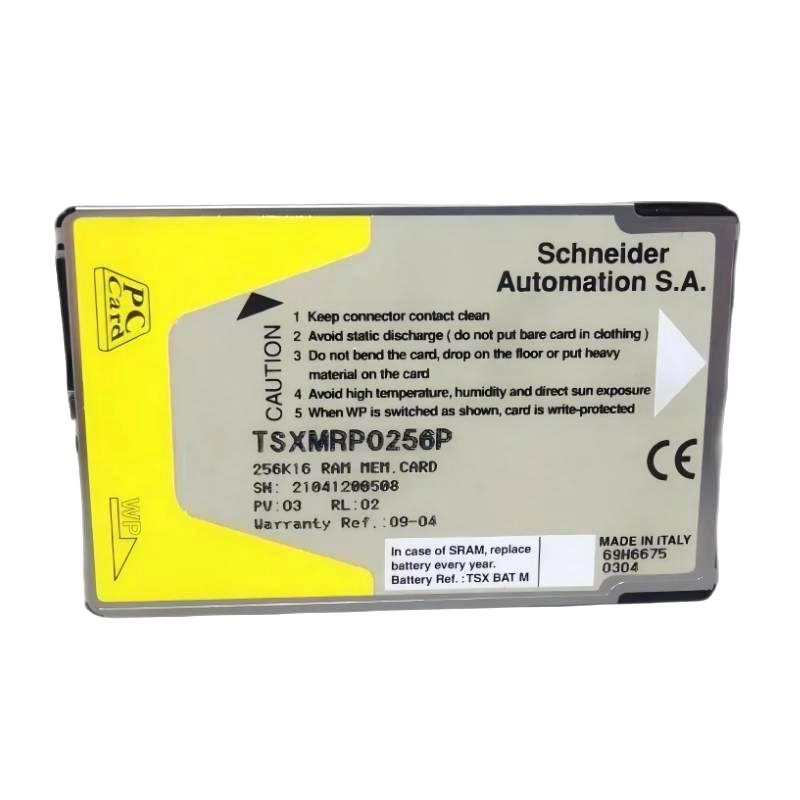

1. What is the Schneider TSXMRP0256P Memory Card mainly used for?

The Schneider TSXMRP0256P Memory Card is a storage expansion module designed for Schneider Electric Modicon TSX PLC systems. It is mainly used to increase PLC application storage capacity and store user control programs, system configuration parameters and automation application data.

In industrial automation systems, PLC programs contain important control logic, production process instructions and equipment operation parameters. Reliable program storage is essential for maintaining stable equipment operation.

The TSXMRP0256P provides additional memory resources for PLC applications and helps engineers perform program backup, system recovery and equipment maintenance more efficiently. It improves overall automation system reliability and reduces risks caused by program loss.

2. What role does the TSXMRP0256P Memory Card play in a PLC system?

The TSXMRP0256P Memory Card functions as an application memory expansion device for Schneider PLC systems, providing additional storage space for PLC programs and related application information.

In practical industrial applications, PLC internal memory may not be sufficient for complex control programs. By installing this Memory Card, engineers can store larger application programs and important system data.

When PLC equipment requires maintenance, controller replacement or system upgrades, stored application data can be used to restore system operation quickly, reducing production downtime and improving maintenance efficiency.

3. What are the main technical advantages of the Schneider TSXMRP0256P?

The Schneider TSXMRP0256P provides reliable data storage capability and strong compatibility for industrial automation applications.

Main advantages include:

• 256 KB application storage capacity;
• Supports PLC program memory expansion;
• Improves application data management capability;
• Supports program backup and recovery;
• Simplifies equipment maintenance and upgrades;
• Enhances automation system reliability.

This Memory Card helps overcome PLC memory limitations and allows automation systems to support more complex control applications.

4. What applications are suitable for the Schneider TSXMRP0256P?

The TSXMRP0256P is suitable for industrial automation projects that require expanded PLC program storage capacity.

Typical applications include:

• Automated production equipment;
• Industrial machine control systems;
• Manufacturing production lines;
• Packaging machinery;
• Process control systems;
• Factory automation upgrade projects.

In these applications, the Memory Card helps protect important control programs, improves system availability and reduces maintenance complexity.

5. What problems may occur if the Schneider TSXMRP0256P fails?

If the TSXMRP0256P Memory Card develops a fault, the PLC system may experience storage-related problems.

Common symptoms include:

• PLC cannot read stored programs;
• Application program loading failure;
• Memory card recognition errors;
• Abnormal program recovery;
• Unstable control system operation.

Possible causes include:

• Incorrect memory card installation;
• Interface connection problems;
• Data corruption;
• Incorrect PLC configuration;
• Memory device aging.

When a failure occurs, engineers should check PLC diagnostic information, verify memory card status and confirm application data integrity.

6. How can faults in the Schneider TSXMRP0256P be diagnosed?

Fault diagnosis of the TSXMRP0256P requires checking both PLC software information and the actual system operating condition.

Recommended troubleshooting steps include:

1. Check the Memory Card installation status;
2. Review PLC alarm and diagnostic information;
3. Confirm compatibility between the memory card and PLC system;
4. Check program reading and writing operations;
5. Verify stored data integrity;
6. Perform program transfer tests if necessary.

A systematic troubleshooting process helps identify whether the problem comes from the memory card, PLC system configuration or application program.

7. Why is the TSXMRP0256P Memory Card important for industrial automation systems?

The TSXMRP0256P Memory Card is important because it protects critical PLC application programs and improves system maintainability.

In continuous industrial production environments, loss of PLC programs can cause equipment downtime and production interruptions. By storing important application data securely, engineers can restore system operation faster after maintenance activities or unexpected failures.

The module improves automation system flexibility, reduces downtime risks and supports stable long-term equipment operation.

8. What maintenance practices should be followed when using the Schneider TSXMRP0256P?

To ensure reliable long-term operation of the TSXMRP0256P, proper memory management and regular maintenance should be performed.

Recommended practices include:

• Regularly back up PLC application programs;
• Check PLC diagnostic status;
• Confirm secure Memory Card installation;
• Avoid unauthorized program modifications;
• Save complete application programs before system upgrades;
• Regularly monitor automation equipment operation.

Proper maintenance reduces the risk of program loss, improves system recovery speed and ensures stable operation of Schneider PLC automation systems.
